Craftsman
Hammer Drill

Model # 315101390 Official Craftsman 1/2" hammer drill

Here are the diagrams and repair parts for Official Craftsman 315101390 1/2" hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

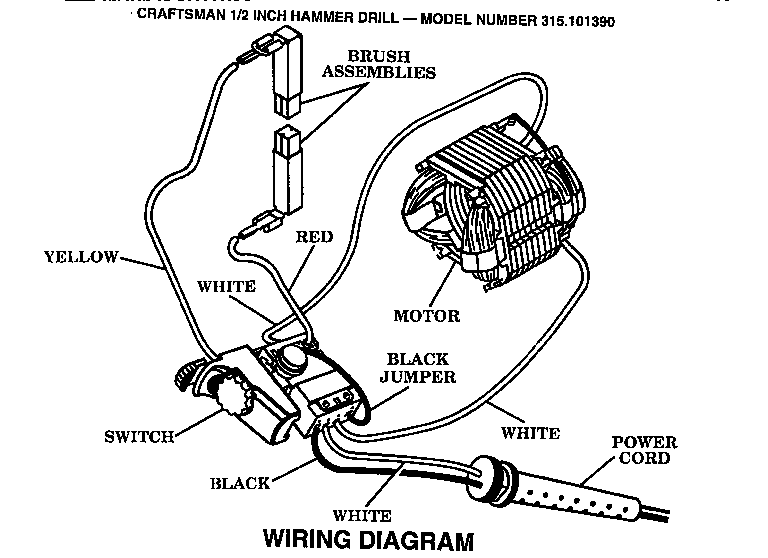

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Bearing 990963-001
#5

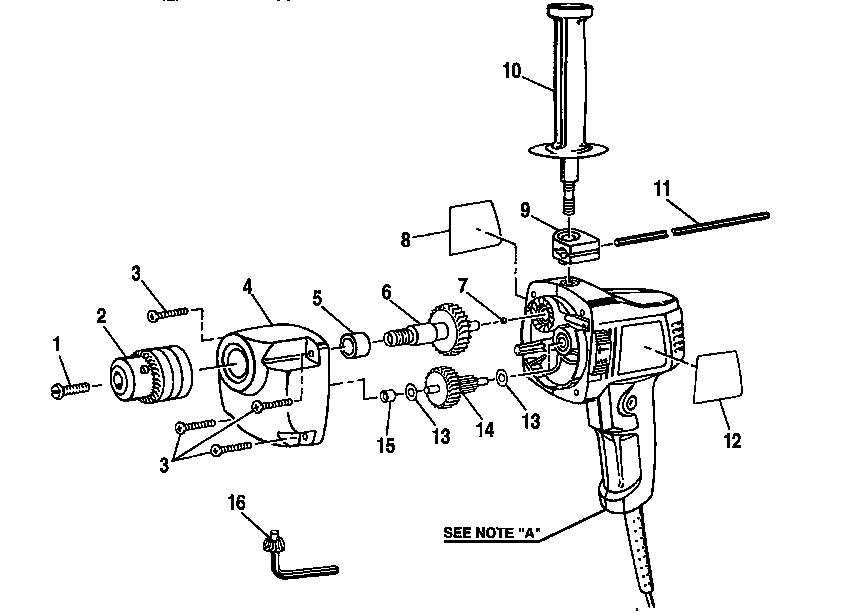

Gear and spindle assembly diagram

Bearing

Part #990963-001

The manufacturer no longer makes this part, and there's no substitute part

Gear,spndl 972927-001
#6

Gear and spindle assembly diagram

Gear,spndl

Part #972927-001

The manufacturer no longer makes this part, and there's no substitute part

Gear,pinin 972823-001
#14

Gear and spindle assembly diagram

Gear,pinin

Part #972823-001

The manufacturer no longer makes this part, and there's no substitute part

Housing 972934-001
#3

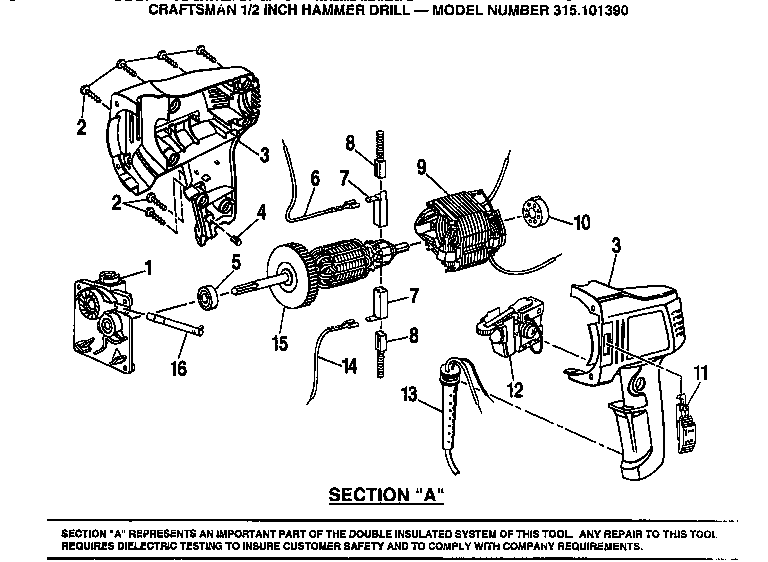

Housing assembly diagram

Housing

Part #972934-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 610784-035
#8

Housing assembly diagram

Brush assembly

Part #610784-035

The manufacturer no longer makes this part, and there's no substitute part

Housing 972724-005
#4

Gear and spindle assembly diagram

Housing

Part #972724-005

The manufacturer no longer makes this part, and there's no substitute part

Switch 974235-101
#12

Housing assembly diagram

Switch

Part #974235-101

The manufacturer no longer makes this part, and there's no substitute part

Armature 989933-039
#15

Housing assembly diagram

Armature

Part #989933-039

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 990839-001
#7

Housing assembly diagram

Brush tube

Part #990839-001

The manufacturer no longer makes this part, and there's no substitute part

Ball 703774-005
#7

Gear and spindle assembly diagram

Ball

Part #703774-005

The manufacturer no longer makes this part, and there's no substitute part
