Hotpoint
Dishwasher

Model # HDA2100H50BB Official Hotpoint dishwasher

Here are the diagrams and repair parts for Official Hotpoint HDA2100H50BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Dishwasher Dishrack, Lower (replaces Wd28x10041, Wd28x10053, Wd28x10054, Wd28x10335) WD28X10284
#701

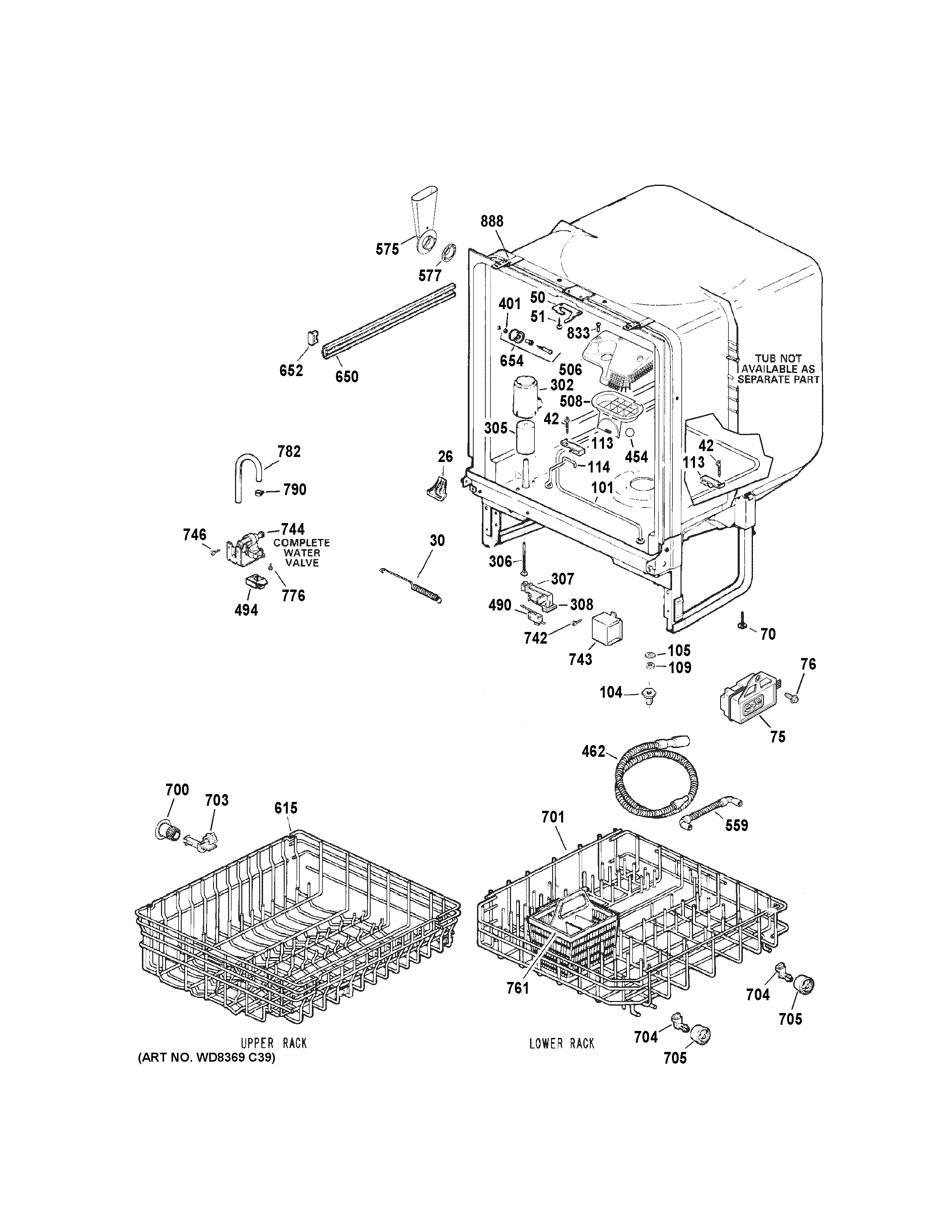

Body parts diagram

Dishwasher dishrack, lower (replaces wd28x10041, wd28x10053, wd28x10054, wd28x10335)

Part #WD28X10284

Replaced by #WD28X31819

?
Manufacturer substitution
This part replaces WD28X10284. Substitute parts can look different from the original.
BEST SELLER
$118.90 |
9% OFF Phone Price : $130.90
In Stock
G.e. Dishwasher Pump And Motor Assembly (replaces Wd26x10035) WD26X10051
#310

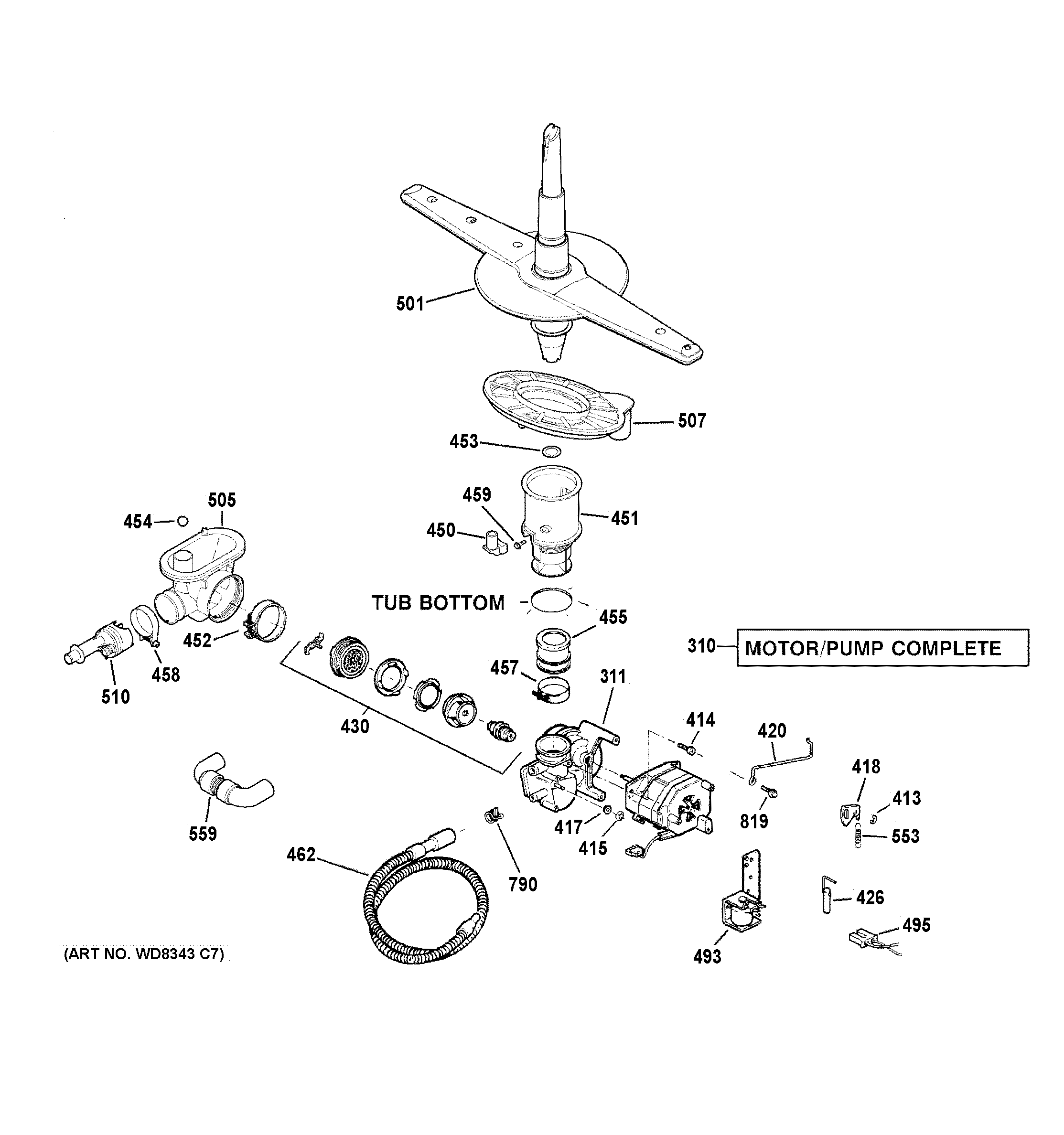

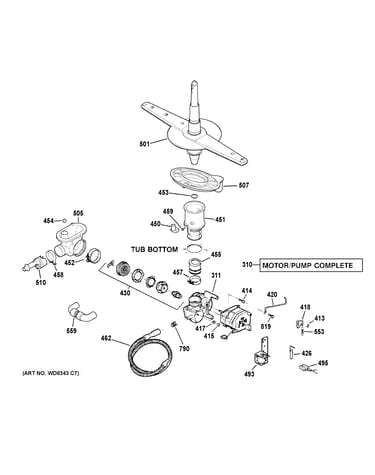

Motor-pump mechanism diagram

G.e. dishwasher pump and motor assembly (replaces wd26x10035)

Part #WD26X10051

BEST SELLER
$157.59 |
7% OFF Phone Price : $169.59
In Stock
Dishwasher Door Seal (replaces Wd08x10014) WD08X10057
#843

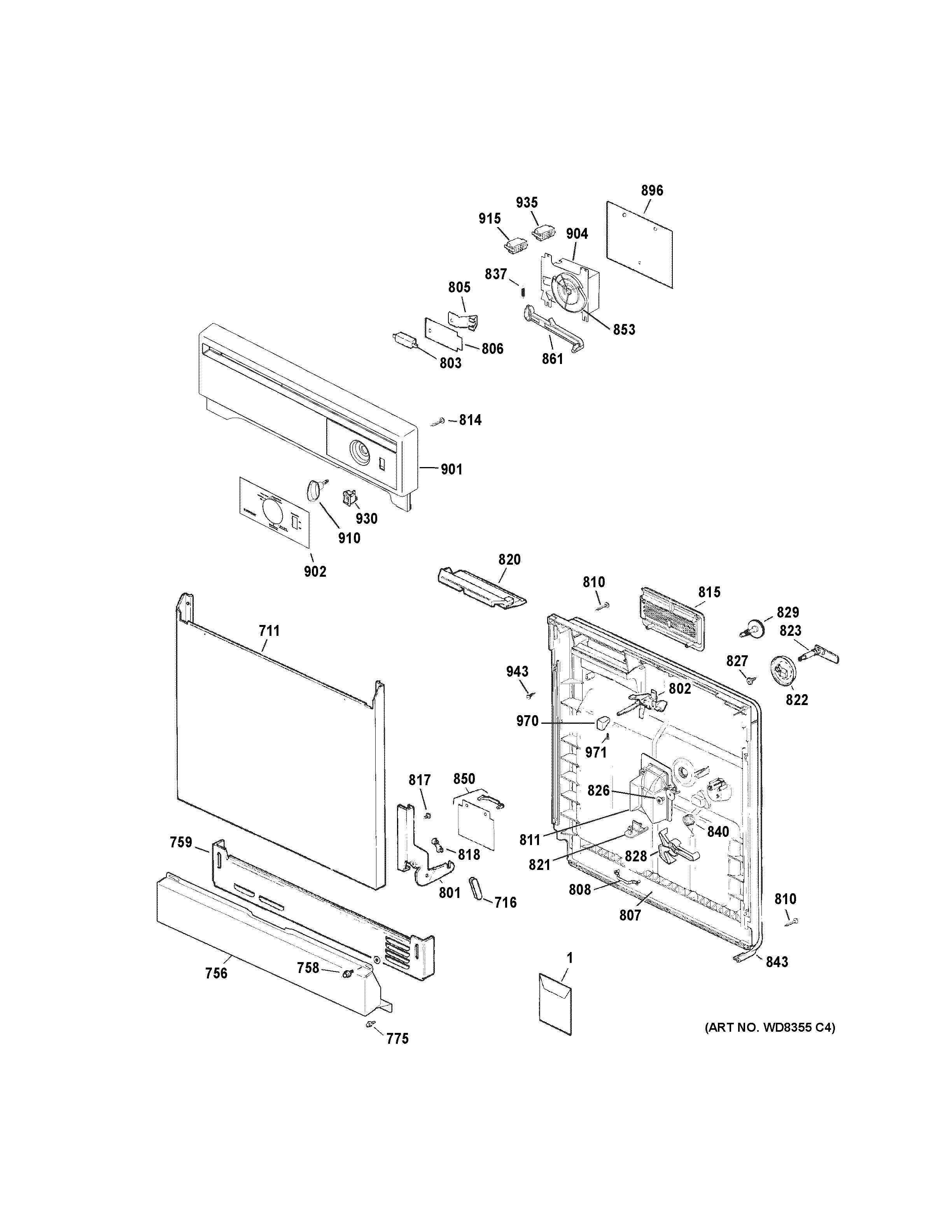

Escutcheon & door assembly diagram

Dishwasher door seal (replaces wd08x10014)

Part #WD08X10057

BEST SELLER
$98.14 |
11% OFF Phone Price : $110.14
In Stock
Bafle Tubcnr WD08X0227
#26

Body parts diagram

Bafle tubcnr

Part #WD08X0227

Replaced by #WD8X227

?
Manufacturer substitution
This part replaces WD08X0227. Substitute parts can look different from the original.
BEST SELLER
$19.45 |
9% OFF Phone Price : $21.45
In Stock
Armature&lnk WD01X1316
#426

Motor-pump mechanism diagram

Armature&lnk

Part #WD01X1316

Replaced by #WD1X1316

?
Manufacturer substitution
This part replaces WD01X1316. Substitute parts can look different from the original.
BEST SELLER
$27.34 |
18% OFF Phone Price : $33.34
In Stock
Dishwasher Dishrack, Upper (replaces Wd28x10212, Wd28x10220, Wd28x10366) WD28X10210
#615

Body parts diagram

Dishwasher dishrack, upper (replaces wd28x10212, wd28x10220, wd28x10366)

Part #WD28X10210

Replaced by #WD28X31820

?
Manufacturer substitution
This part replaces WD28X10210. Substitute parts can look different from the original.
BEST SELLER
$115.54 |
9% OFF Phone Price : $127.54
In Stock
Dishwasher Door Switch (replaces Wd21x557) WD21X10261
#803

Escutcheon & door assembly diagram

Dishwasher door switch (replaces wd21x557)

Part #WD21X10261

BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Dishwasher Rinse-aid Dispenser Cap WD12X10284
#829

Escutcheon & door assembly diagram

Dishwasher rinse-aid dispenser cap

Part #WD12X10284

Replaced by #WD12X24238

?
Manufacturer substitution
This part replaces WD12X10284. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Dishwasher Heating Element Nut WD01X10070
#104

Body parts diagram

Dishwasher heating element nut

Part #WD01X10070

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dishwasher Timer WD21X10474
#904

Escutcheon & door assembly diagram

Dishwasher timer

Part #WD21X10474

Replaced by #WD21X33640

?
Manufacturer substitution
This part replaces WD21X10474. Substitute parts can look different from the original.
BEST SELLER
$23.78
