Model # ADU6000C-P1188312W Official Amana dishwasher

Here are the diagrams and repair parts for Official Amana ADU6000C-P1188312W dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

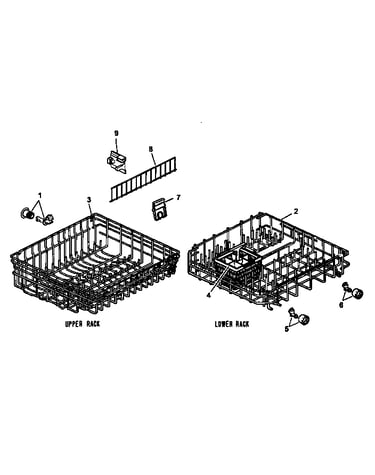

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Pinion Gear R0910016
#10

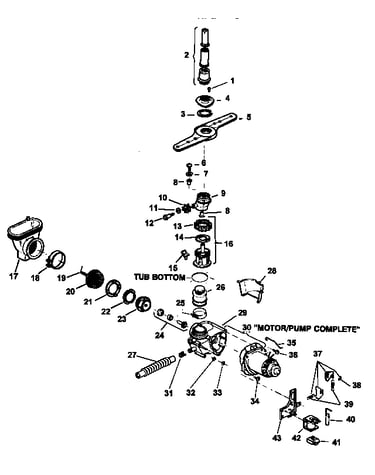

Water distribution components diagram

Pinion gear

Part #R0910016

The manufacturer no longer makes this part, and there's no substitute part

Rinse Aid Inj Asm R0905618
#26

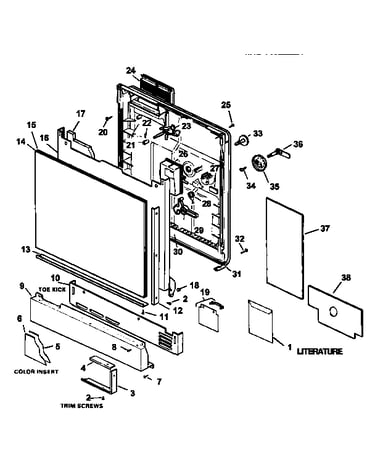

Door and door trim diagram

Rinse aid inj asm

Part #R0905618

The manufacturer no longer makes this part, and there's no substitute part

Lens R0910061
#19

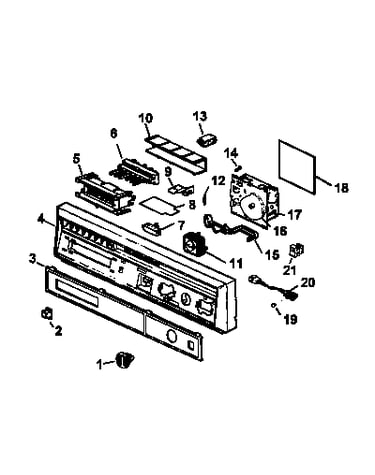

Control panel diagram

Lens

Part #R0910061

The manufacturer no longer makes this part, and there's no substitute part

Heater Support R0911008
#38

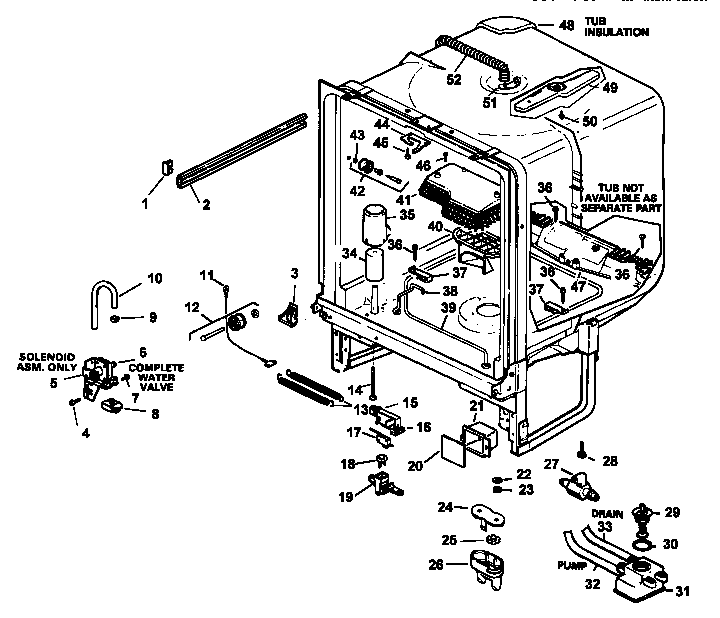

Tub assy diagram

Heater support

Part #R0911008

The manufacturer no longer makes this part, and there's no substitute part

Timer Knob R0903594
#1

Control panel diagram

Timer knob

Part #R0903594

The manufacturer no longer makes this part, and there's no substitute part

Thermostat, Water R0911002
#18

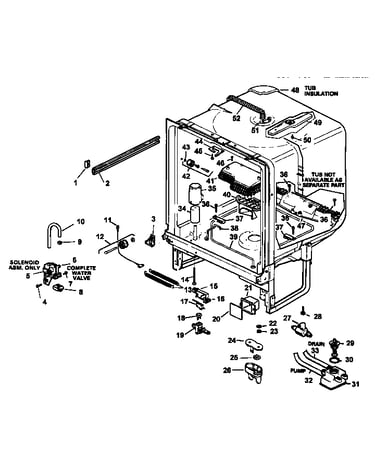

Tub assy diagram

Thermostat, water

Part #R0911002

The manufacturer no longer makes this part, and there's no substitute part

Instr Install {dw} R0913059
#1C

Door and door trim diagram

Instr install {dw}

Part #R0913059

The manufacturer no longer makes this part, and there's no substitute part

Latch Detergent Cup R0905539
#29

Door and door trim diagram

Latch detergent cup

Part #R0905539

The manufacturer no longer makes this part, and there's no substitute part

Grommet R0906502
#23

Tub assy diagram

Grommet

Part #R0906502

The manufacturer no longer makes this part, and there's no substitute part

Assy, Filter Frame R0910122
#47

Tub assy diagram

Assy, filter frame

Part #R0910122

The manufacturer no longer makes this part, and there's no substitute part
