Crosley
Upright Freezer

Model # WCR17/F Official Crosley upright freezer

Here are the diagrams and repair parts for Official Crosley WCR17-F upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Light Bulb 1-34291-002
#37

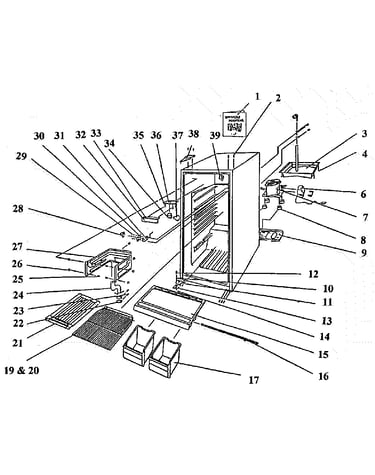

Cabinet parts diagram

Light bulb

Part #1-34291-002

The manufacturer no longer makes this part, and there's no substitute part

Switch 2-32164-001
#39

Cabinet parts diagram

Switch

Part #2-32164-001

The manufacturer no longer makes this part, and there's no substitute part

Drier 3-34960-001
#7C

Cabinet parts diagram

Drier

Part #3-34960-001

The manufacturer no longer makes this part, and there's no substitute part

Compressor 90006-088
#7

Cabinet parts diagram

Compressor

Part #90006-088

The manufacturer no longer makes this part, and there's no substitute part

Screw 3-24004-079
#29

Cabinet parts diagram

Screw

Part #3-24004-079

The manufacturer no longer makes this part, and there's no substitute part

Crisper Rail 3-34715-004
#16

Cabinet parts diagram

Crisper rail

Part #3-34715-004

The manufacturer no longer makes this part, and there's no substitute part

Handle Screw 3-24004-091
#47A

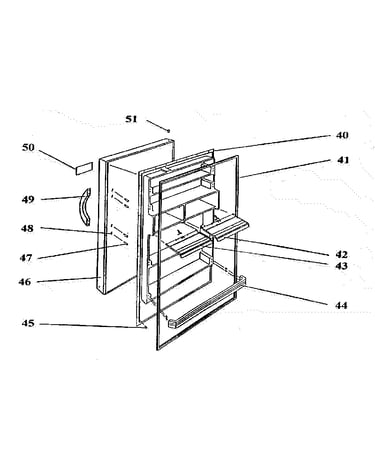

Door assy diagram

Handle screw

Part #3-24004-091

The manufacturer no longer makes this part, and there's no substitute part

Vent Plug 3-24898-007
#NI

Cabinet parts diagram

Vent plug

Part #3-24898-007

The manufacturer no longer makes this part, and there's no substitute part

Shim 2-81312
#38B

Cabinet parts diagram

Shim

Part #2-81312

The manufacturer no longer makes this part, and there's no substitute part

Hinge Cover 3-80838-003
#38A

Cabinet parts diagram

Hinge cover

Part #3-80838-003

The manufacturer no longer makes this part, and there's no substitute part
