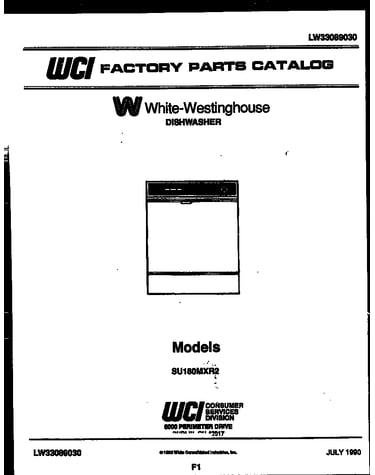

Model # SU180MXR2 Official White-Westinghouse dishwasher - lw33089030

Here are the diagrams and repair parts for Official White-Westinghouse SU180MXR2 dishwasher - lw33089030, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

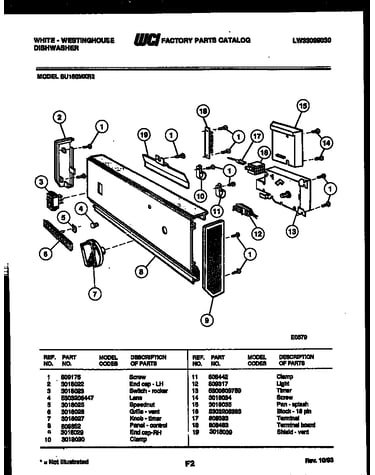

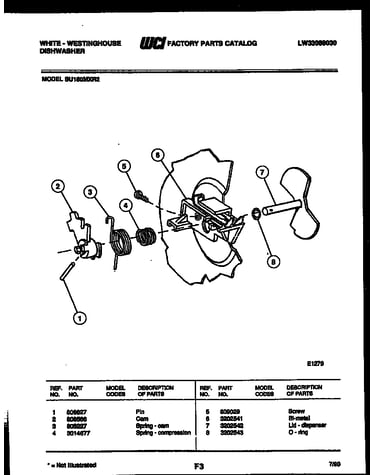

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Wheel 3202777

#1

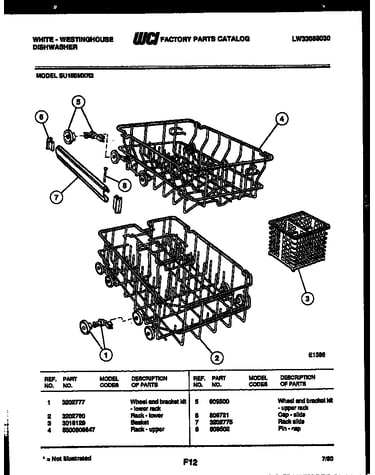

All parts diagram

Wheel

Part #3202777

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 3202777. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88 |
17% OFF Phone Price : $5.88
In Stock
Nut 3018118
#24

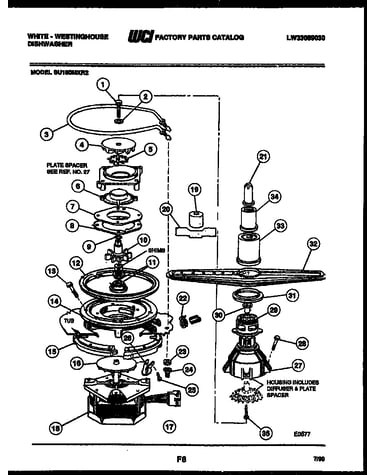

Motor pump parts diagram

Nut

Part #3018118

Replaced by #154106202

?
Manufacturer substitution
This part replaces 3018118. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Lock Nut 808470
#14

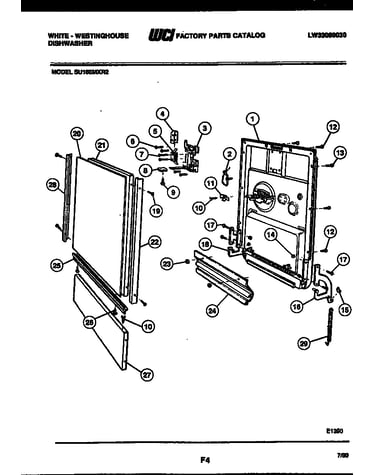

Door parts diagram

Lock nut

Part #808470

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 808470. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Insulation 5303208369

#NI

All parts diagram

Insulation

Part #5303208369

Replaced by #154641601

?
Manufacturer substitution
This part replaces 5303208369. Substitute parts can look different from the original.
$33.02 |
15% OFF Phone Price : $39.02
In Stock
Screw 809163
#9

Door parts diagram

Screw

Part #809163

This item is not returnable
$2.16
In Stock
Nut 3018143
#14

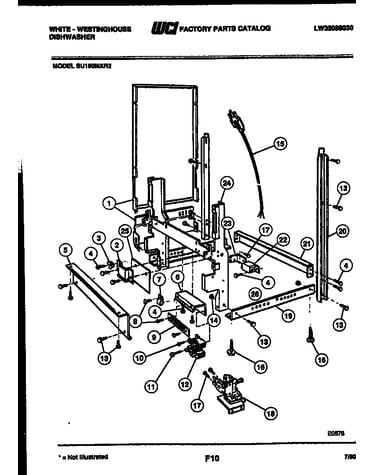

Power dry and motor parts diagram

Nut

Part #3018143

This item is not returnable
$2.49
In Stock
Panel 3018066
#27

Door parts diagram

Panel

Part #3018066

Replaced by #5300809550

?
Manufacturer substitution
This part replaces 3018066. Substitute parts can look different from the original.
$19.99
In Stock
Clip 3014661
#8

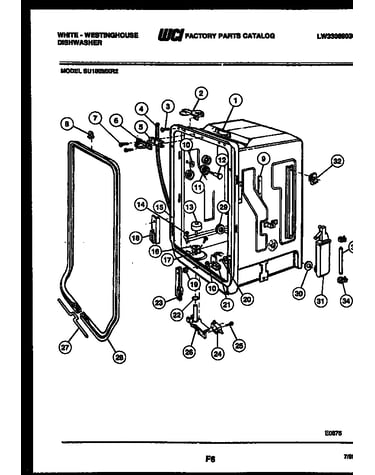

Tub and frame parts diagram

Clip

Part #3014661

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 3014661. Substitute parts can look different from the original.
$84.49
In Stock
O-ring 3014675
#9

Motor pump parts diagram

O-ring

Part #3014675

Replaced by #5300806521

?
Manufacturer substitution
This part replaces 3014675. Substitute parts can look different from the original.
$24.89
In Stock
Spring 3202857
#29

Door parts diagram

Spring

Part #3202857

Replaced by #5300807601

?
Manufacturer substitution
This part replaces 3202857. Substitute parts can look different from the original.
This item is not returnable
$57.13
In Stock
