Model # FGS395BL0 Official Roper 30" gas freestanding range

Here are the diagrams and repair parts for Official Roper FGS395BL0 30" gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

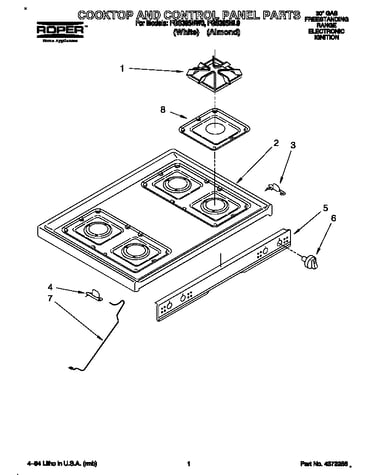

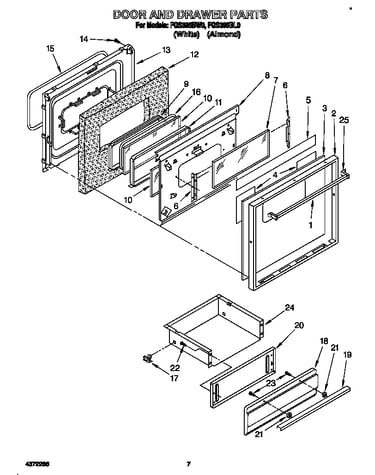

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |

Light Switch 816703
#21

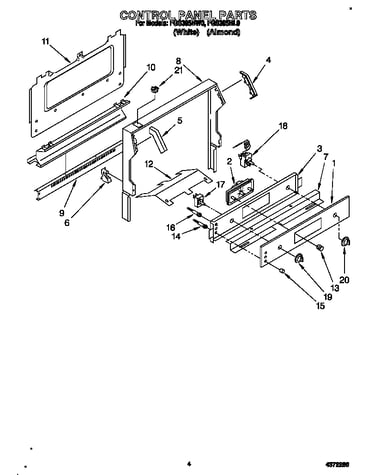

Control panel diagram

Light switch

Part #816703

Replaced by #WP4314961

?
Manufacturer substitution
This part replaces 816703. Substitute parts can look different from the original.
$35.52
14% OFF Phone Price : $41.52
In Stock
Oven Igniter 816625
#6

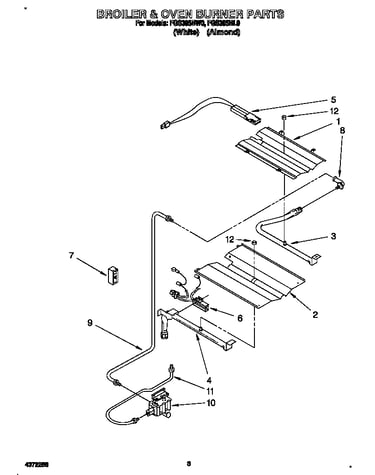

Broiler and oven burner diagram

Oven igniter

Part #816625

Replaced by #814269

?
Manufacturer substitution
This part replaces 816625. Substitute parts can look different from the original.
$98.19
11% OFF Phone Price : $110.19
In Stock
Manifold Pipe 4371026
#6

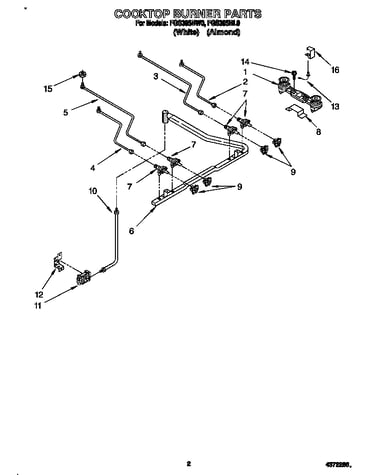

Cooktop burner diagram

Manifold pipe

Part #4371026

The manufacturer no longer makes this part, and there's no substitute part

Tubing, Burner(lf) 4371022
#4

Cooktop burner diagram

Tubing, burner(lf)

Part #4371022

The manufacturer no longer makes this part, and there's no substitute part

Panel B/s, White Rh 816708
#34B

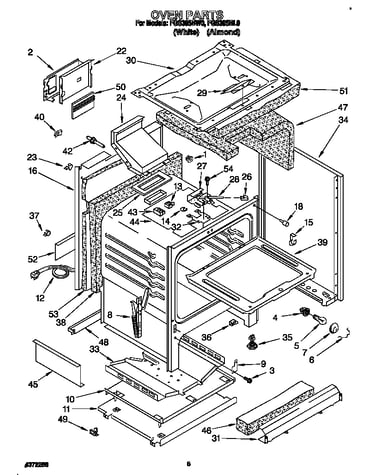

Oven diagram

Panel b/s, white rh

Part #816708

The manufacturer no longer makes this part, and there's no substitute part

Oven Burner 816588
#4

Broiler and oven burner diagram

Oven burner

Part #816588

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Igniter Switch 4371164
#9

Cooktop burner diagram

Cooktop igniter switch

Part #4371164

The manufacturer no longer makes this part, and there's no substitute part

Selector Switch 4371629
#17

Control panel diagram

Selector switch

Part #4371629

The manufacturer no longer makes this part, and there's no substitute part

Valve, Top(4) 4371028
#7

Cooktop burner diagram

Valve, top(4)

Part #4371028

The manufacturer no longer makes this part, and there's no substitute part

Panel B/s, White Lh 816709
#34A

Oven diagram

Panel b/s, white lh

Part #816709

The manufacturer no longer makes this part, and there's no substitute part
