Model # 831293050 Official Proform proform 520x treadmill

Here are the diagrams and repair parts for Official Proform 831293050 proform 520x treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038
Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
In Stock
Belt,walk,ar 190254
#77

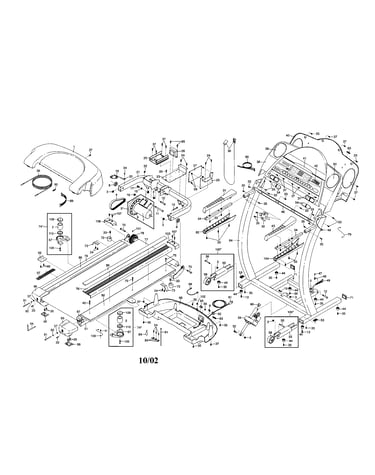

Proform 520x diagram

Belt,walk,ar

Part #190254

Replaced by #173063

?
Manufacturer substitution
This part replaces 190254. Substitute parts can look different from the original.
BEST SELLER
$77.49 |
7% OFF Phone Price : $83.49
Back Order
Treadmill Walking Belt Alignment Tool (replaces 161927) 128457
Treadmill walking belt alignment tool (replaces 161927)

Part #128457

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229
#61

Proform 520x diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Black & Decker Treadmill Line Filter 185582
#26

Proform 520x diagram

Black & decker treadmill line filter

Part #185582

$29.69 |
17% OFF Phone Price : $35.69
In Stock
Magnet,rnd,m 100498
#101

Proform 520x diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Black & Decker Treadmill Front Roller 180486
#78

Proform 520x diagram

Black & decker treadmill front roller

Part #180486

$58.49 |
9% OFF Phone Price : $64.49
In Stock
Black & Decker Treadmill Washer 014063
#92

Proform 520x diagram

Black & decker treadmill washer

Part #014063

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Toyostove Treadmill Circuit Breaker 186726
#65

Proform 520x diagram

Toyostove treadmill circuit breaker

Part #186726

This item is not returnable
$8.99
In Stock
Black & Decker Treadmill Transport Wheel 165009
#58

Proform 520x diagram

Black & decker treadmill transport wheel

Part #165009

This item is not returnable
$2.99
In Stock
