Model # AHF35FAM1 Official GE dehumidifier
Here are the diagrams and repair parts for Official GE AHF35FAM1 dehumidifier, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
AHF35FAM1 Dehumidifier
#141

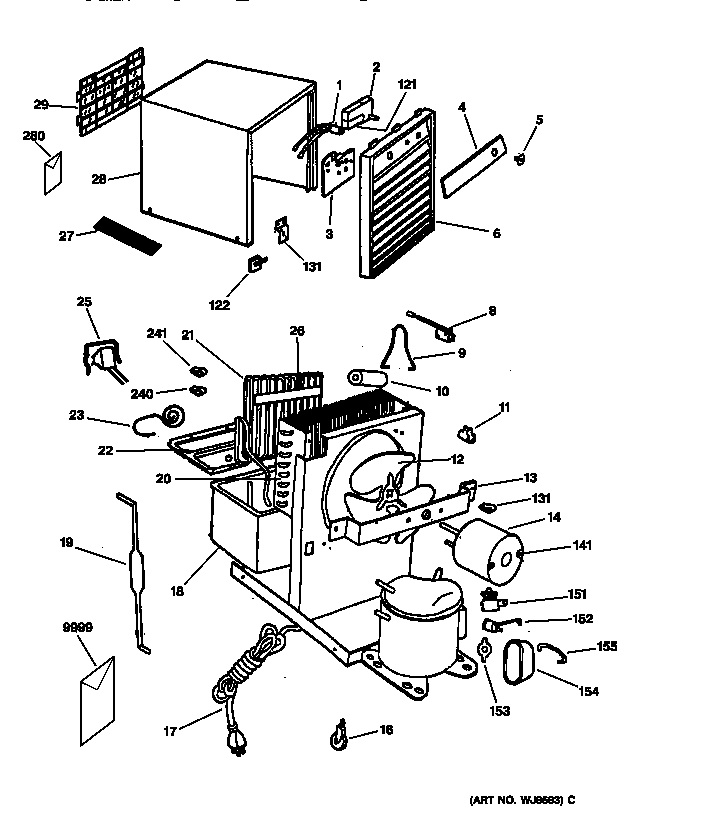

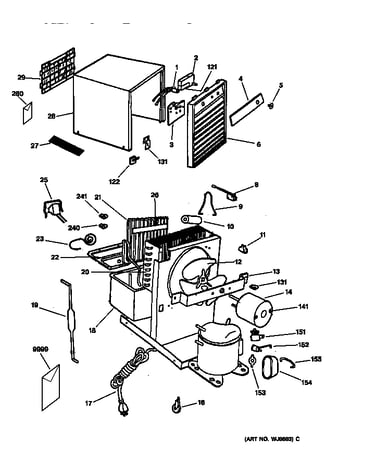

Unit parts diagram
Fan nut
Part #WK1X10003
Replaced by #WK01X10003
?
Manufacturer substitution
This part replaces WK1X10003. Substitute parts can look different from the original.
This item is not returnable
$4.69
In Stock
#155
Unit parts diagram
Cover clip
Part #WK2X10002
Replaced by #WK02X10002
?
Manufacturer substitution
This part replaces WK2X10002. Substitute parts can look different from the original.
$16.09
In Stock
#131
Unit parts diagram
Bracket
Part #WK3X10004
Replaced by #WK03X10004
?
Manufacturer substitution
This part replaces WK3X10004. Substitute parts can look different from the original.
$19.11
In Stock
#16
Unit parts diagram
Caster
Part #WK6X10001
Replaced by #WK06X10001
?
Manufacturer substitution
This part replaces WK6X10001. Substitute parts can look different from the original.
$12.40
In Stock
#4
Unit parts diagram
Escutcheon
Part #WK7X10003
Replaced by #WK07X10003
?
Manufacturer substitution
This part replaces WK7X10003. Substitute parts can look different from the original.
$24.14
In Stock
#13
Unit parts diagram
Bracket
Part #WK3X10005
Replaced by #WK03X10005
?
Manufacturer substitution
This part replaces WK3X10005. Substitute parts can look different from the original.
$19.11
In Stock
#13
Unit parts diagram
Bracket
Part #WK3X10001
Replaced by #WK03X10001
?
Manufacturer substitution
This part replaces WK3X10001. Substitute parts can look different from the original.
$18.43
In Stock
#241
Unit parts diagram
Clamp
Part #WK3X10003
Replaced by #WK03X10003
?
Manufacturer substitution
This part replaces WK3X10003. Substitute parts can look different from the original.
$19.11
In Stock
#26
Unit parts diagram
Bracket
Part #WK3X10006
Replaced by #WK03X10006
?
Manufacturer substitution
This part replaces WK3X10006. Substitute parts can look different from the original.
$19.11
In Stock
#4
Unit parts diagram
Control p
Part #WK7X10001
Replaced by #WK07X10001
?
Manufacturer substitution
This part replaces WK7X10001. Substitute parts can look different from the original.
$37.53
In Stock
