Kenmore
Bottom-Mount Refrigerator

Model # 10679473411 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 10679473411 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

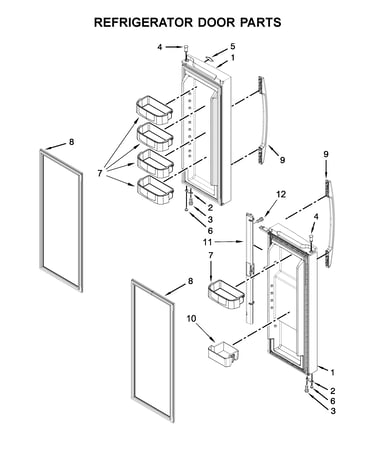

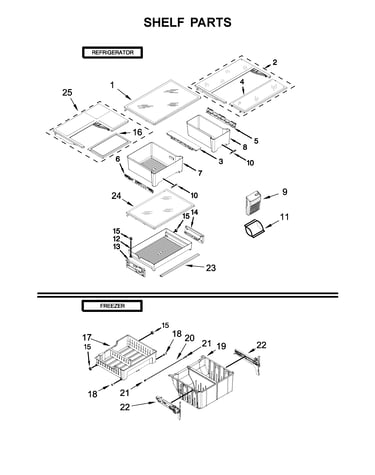

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Refrigerator Cartridge W10743248
#4

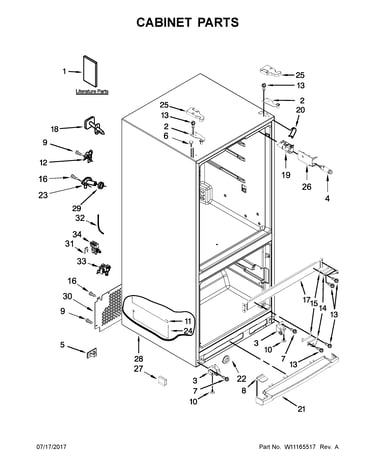

Cabinet parts diagram

Refrigerator cartridge

Part #W10743248

Replaced by #EDR1RXD1

?
Manufacturer substitution
This part replaces W10743248. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Air Filter W10335147
#25

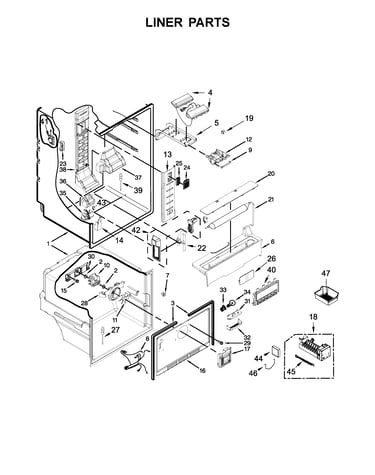

Liner parts diagram

Refrigerator air filter

Part #W10335147

Replaced by #W10311524

?
Manufacturer substitution
This part replaces W10335147. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$16.74 |
11% OFF Phone Price : $18.74
In Stock
Refrigerator Ice Maker Assembly W10632400
#18

Liner parts diagram

Refrigerator ice maker assembly

Part #W10632400

Replaced by #4317943

?
Manufacturer substitution
This part replaces W10632400. Substitute parts can look different from the original.
BEST SELLER
$96.71 |
11% OFF Phone Price : $108.71
In Stock
Kenmore Refrigerator Water Filter (replaces W10744238) 9082
#NI

Optional parts diagram

Kenmore refrigerator water filter (replaces w10744238)

Part #9082

BEST SELLER

Get free shipping with Automatic Reorder

$54.98
In Stock
Refrigerator Thermistor W10438761
#27

Liner parts diagram

Refrigerator thermistor

Part #W10438761

Replaced by #W10316760

?
Manufacturer substitution
This part replaces W10438761. Substitute parts can look different from the original.
BEST SELLER
$47.88 |
11% OFF Phone Price : $53.88
In Stock
Refrigerator Thermistor W10384183
#39

Liner parts diagram

Refrigerator thermistor

Part #W10384183

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch 1118894
#19

Liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Drier Assembly W10669573
#29

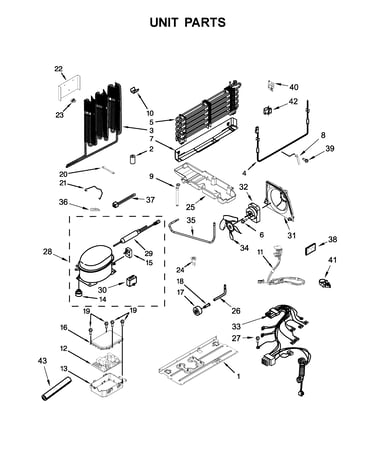

Unit parts diagram

Refrigerator drier assembly

Part #W10669573

Replaced by #W10843121

?
Manufacturer substitution
This part replaces W10669573. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Inlet Valve W10498992
#33

Cabinet parts diagram

Refrigerator inlet valve

Part #W10498992

Replaced by #WPW10238100

?
Manufacturer substitution
This part replaces W10498992. Substitute parts can look different from the original.
BEST SELLER
$104.37 |
10% OFF Phone Price : $116.37
In Stock
Refrigerator Capacitor W10590083
#30

Unit parts diagram

Refrigerator capacitor

Part #W10590083

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces W10590083. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
