Hotpoint
Top-Mount Refrigerator

Model # HTS22GCPARCC Official Hotpoint refrigerator - p series

Here are the diagrams and repair parts for Official Hotpoint HTS22GCPARCC refrigerator - p series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

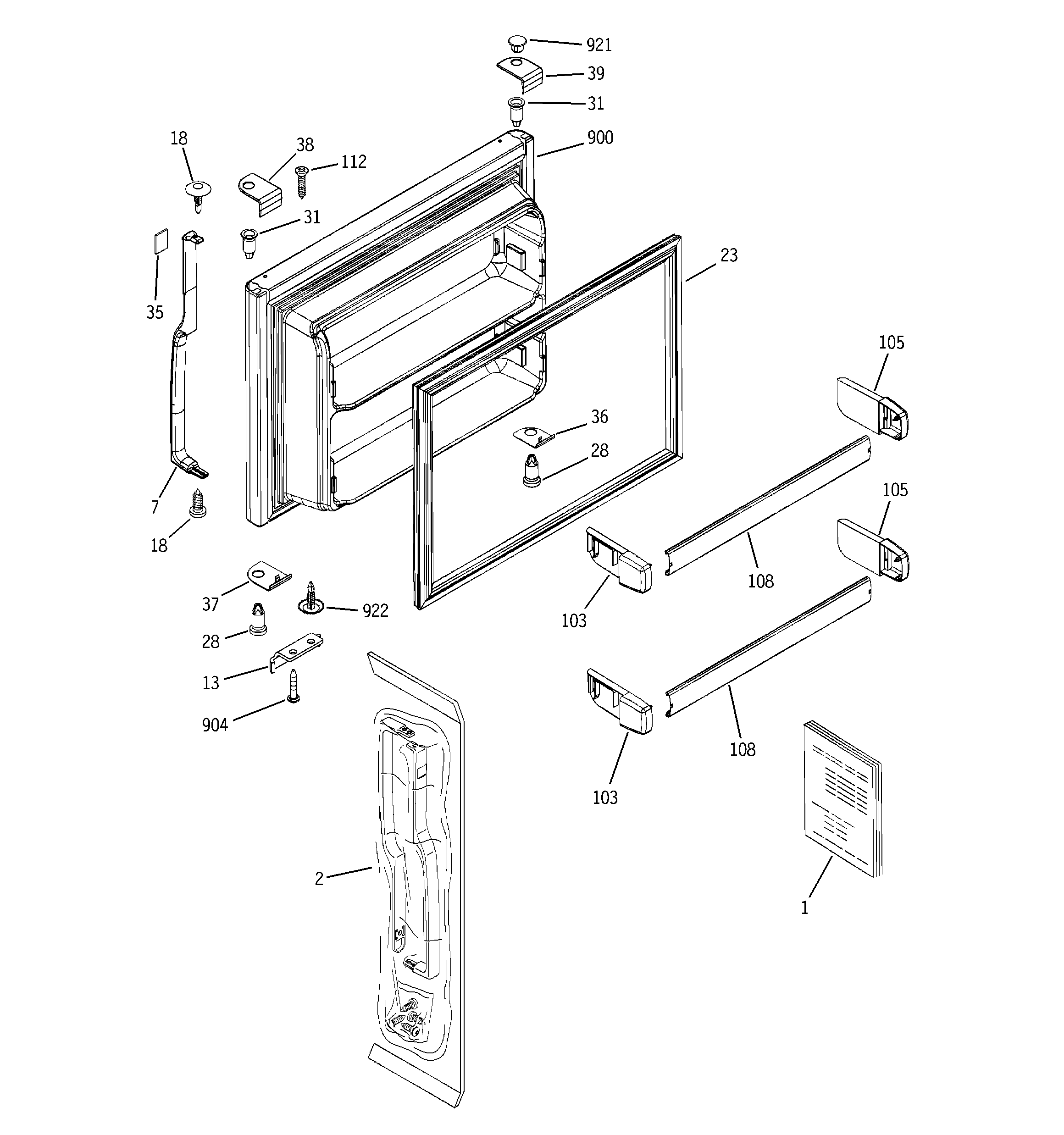

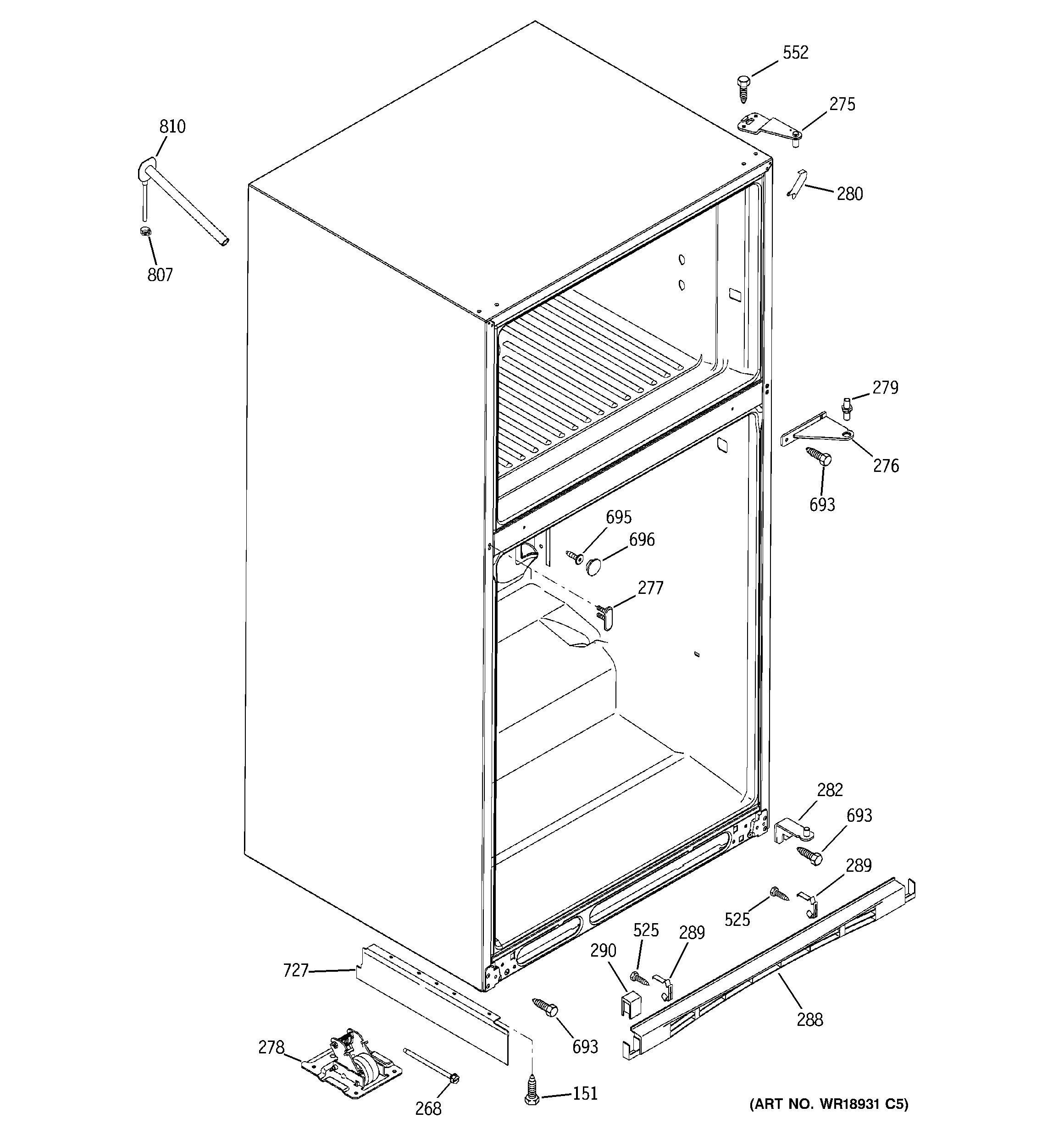

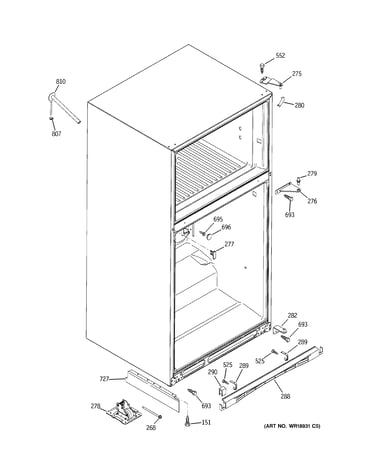

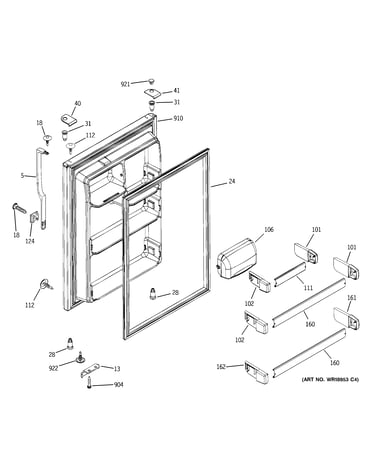

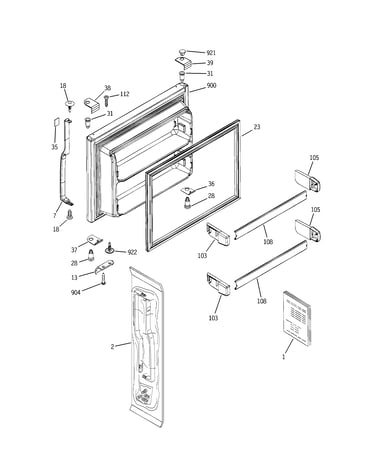

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Refrigerator Temperature Sensor WR55X10027
#605

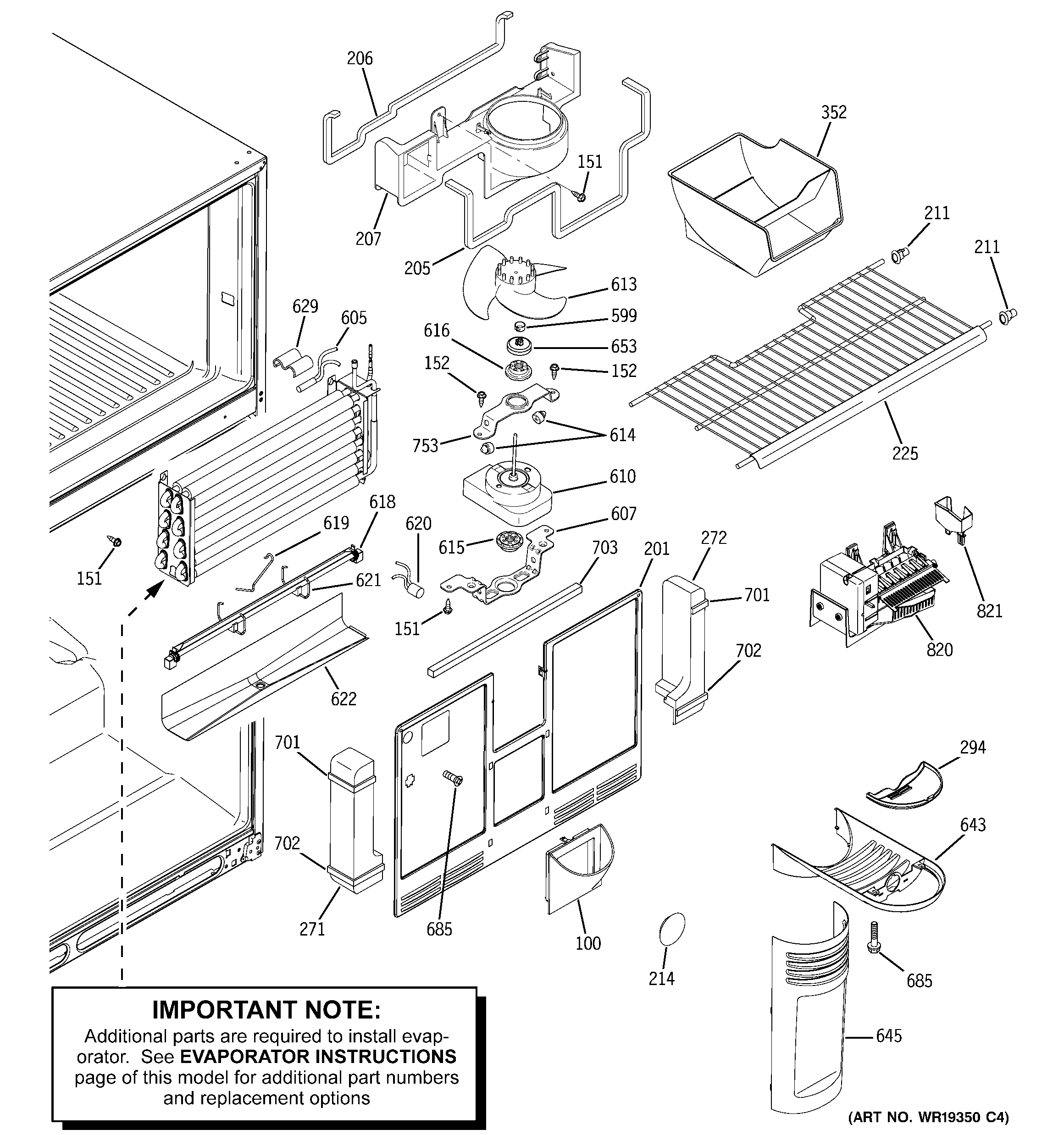

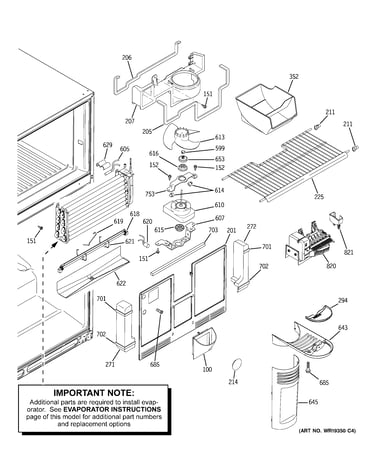

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10027. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Ice Maker WR30X10012
#820

Freezer section diagram

Refrigerator ice maker

Part #WR30X10012

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10012. Substitute parts can look different from the original.
BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Dryer Filter WR86X0096
#740

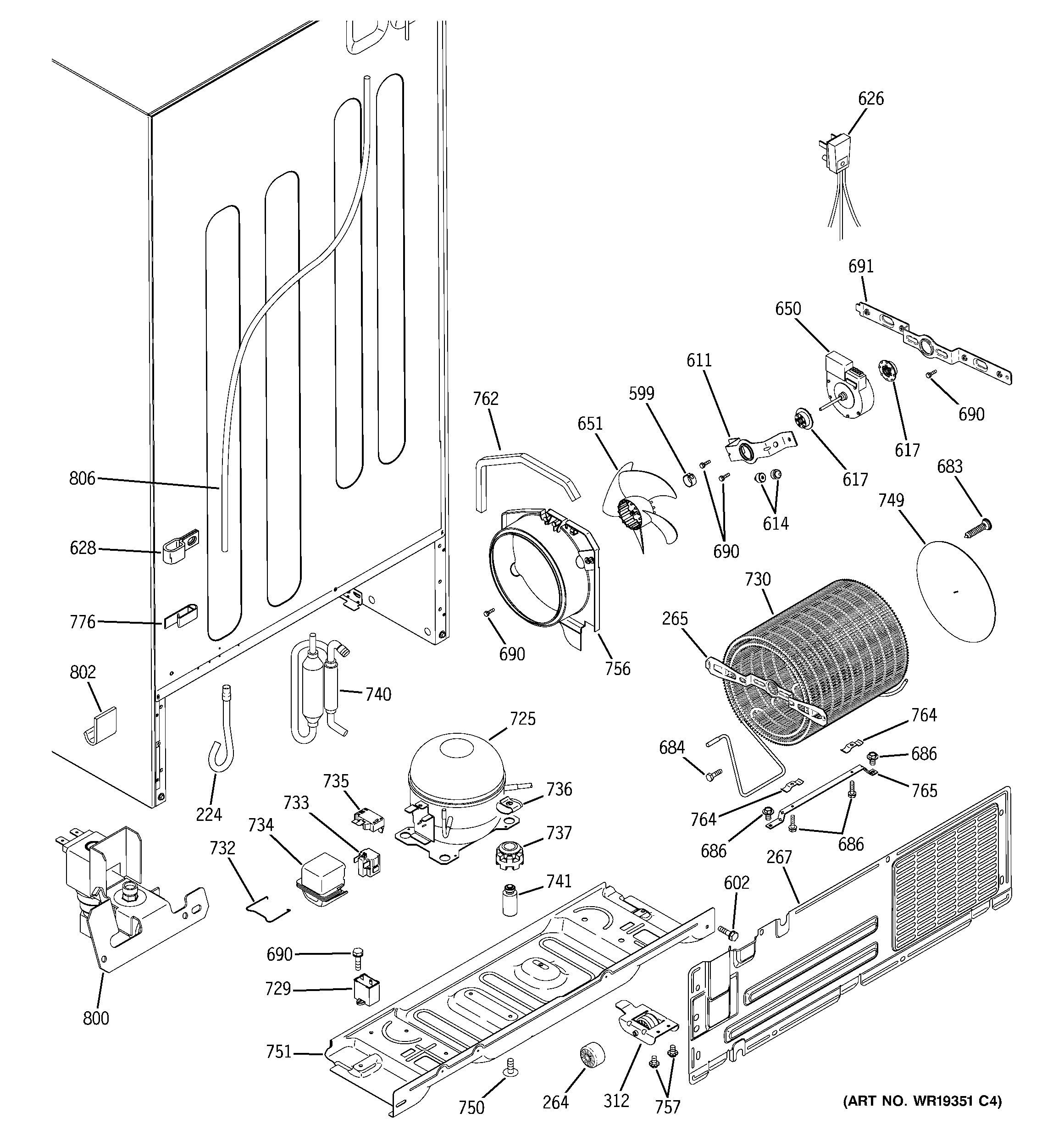

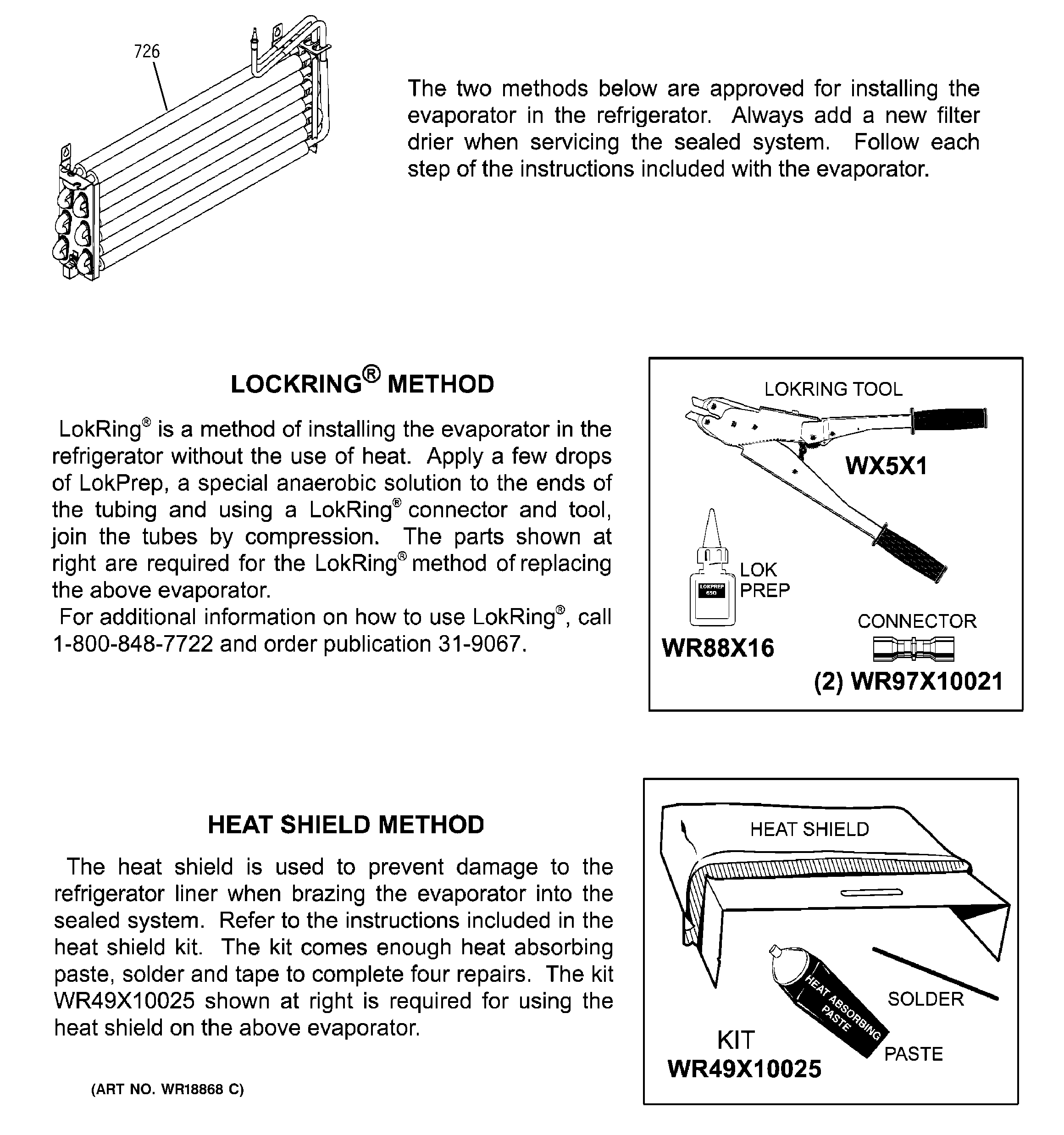

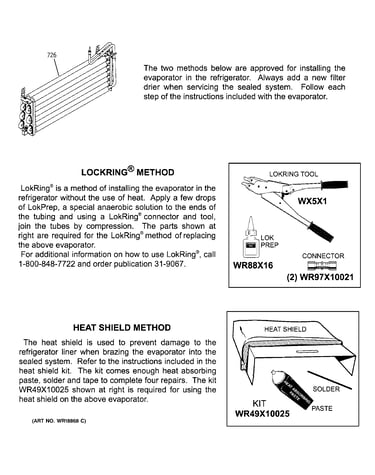

Sealed system diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
#437

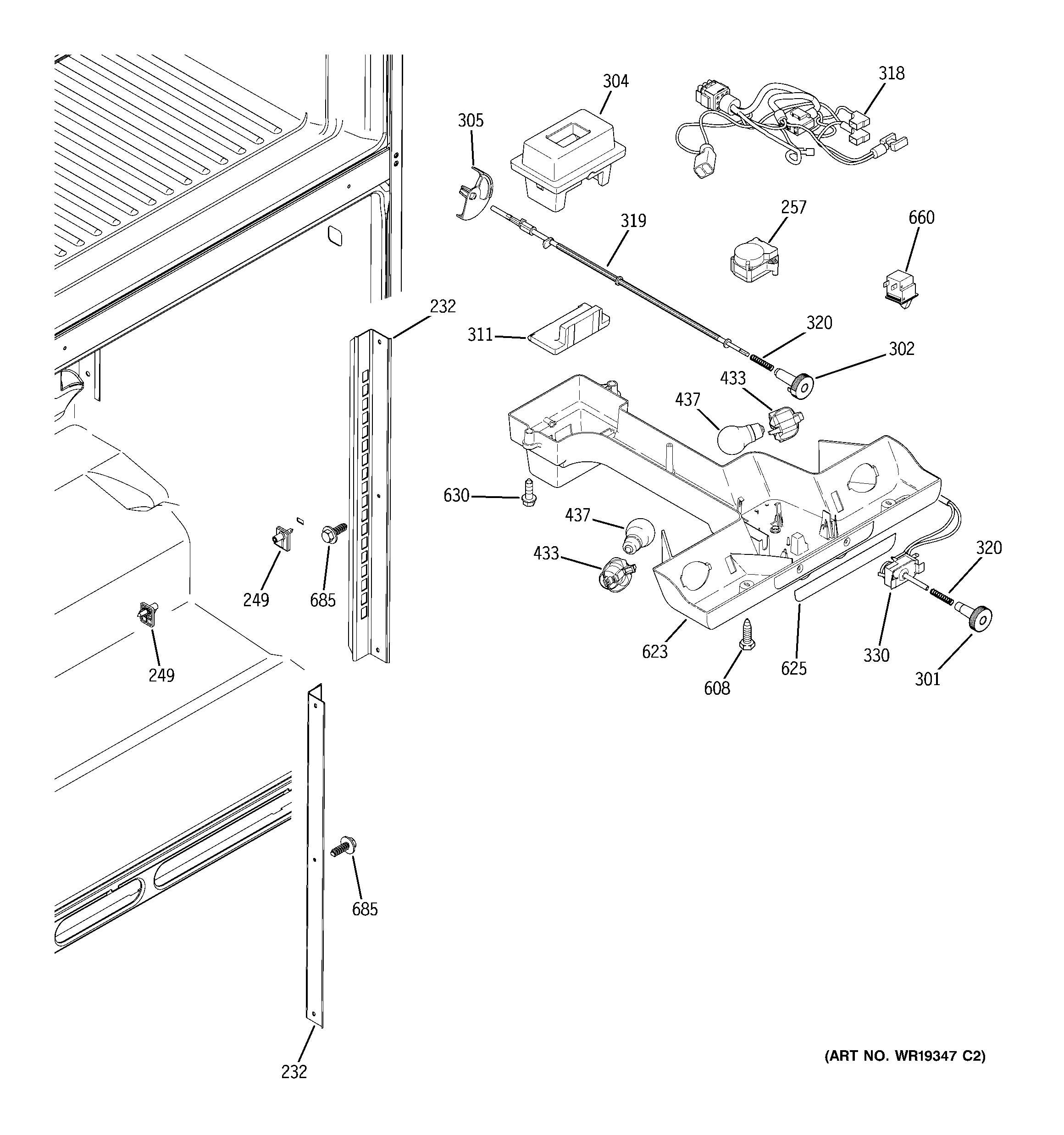

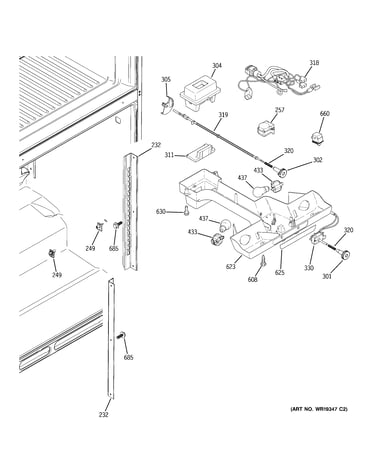

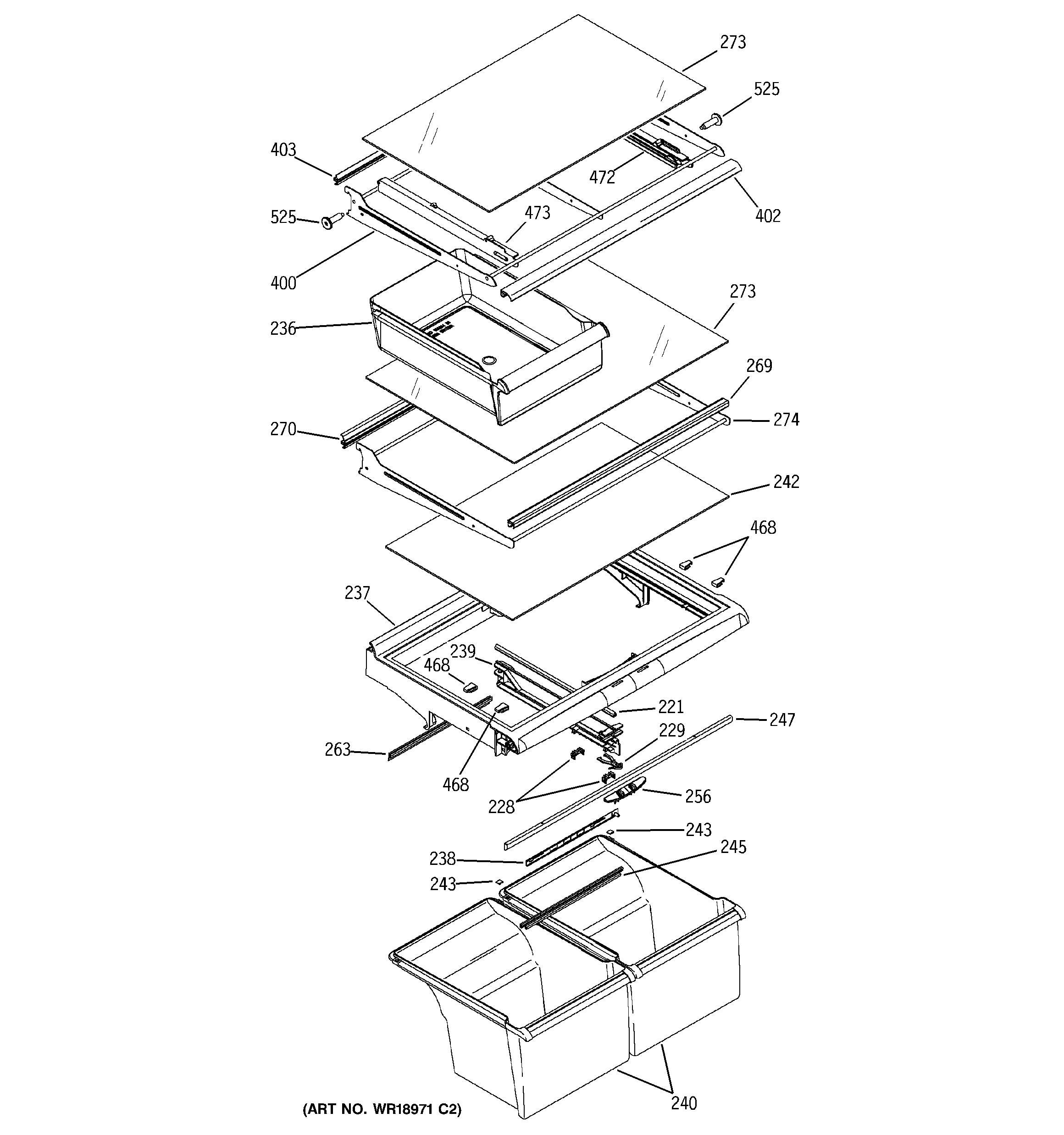

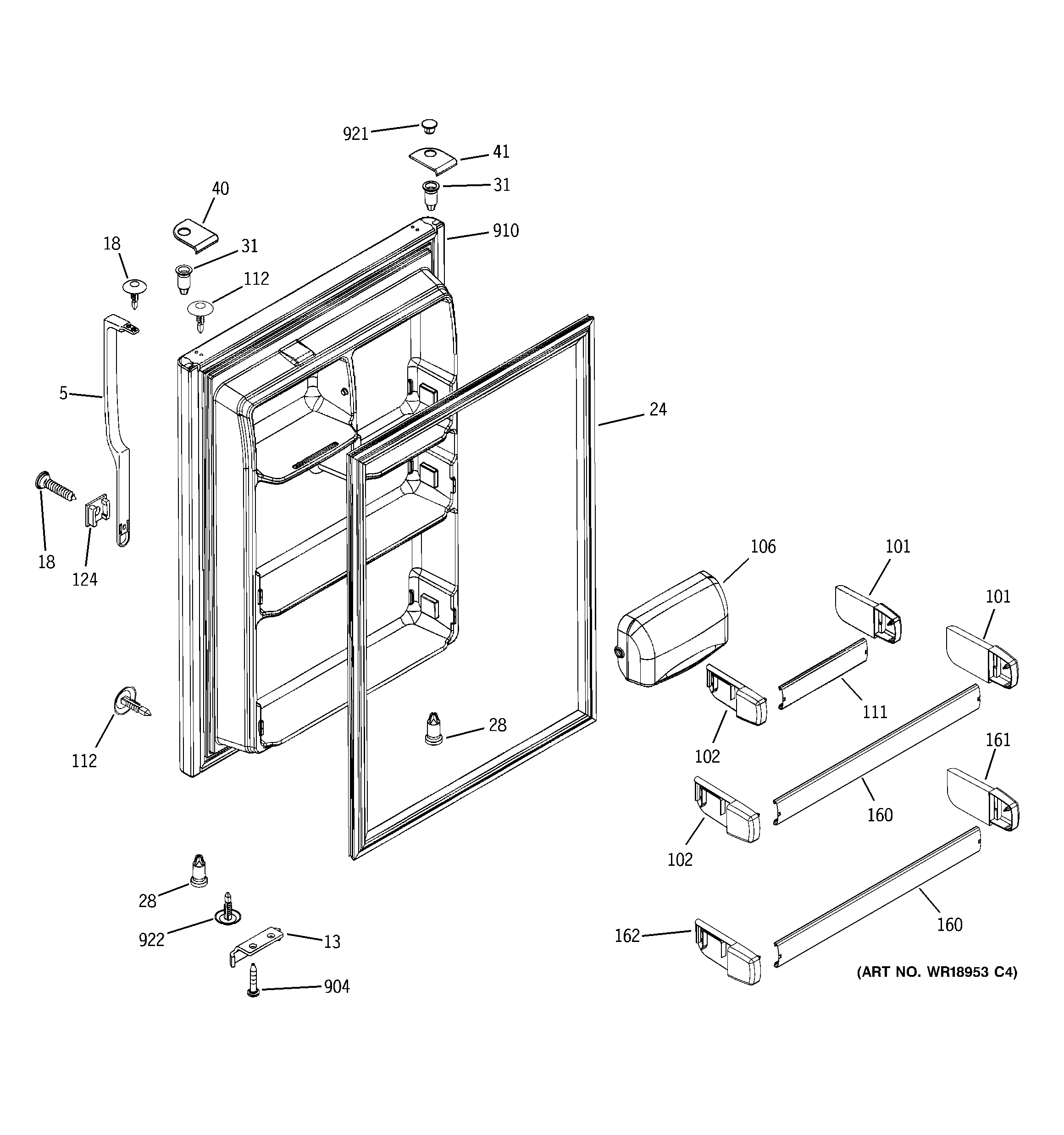

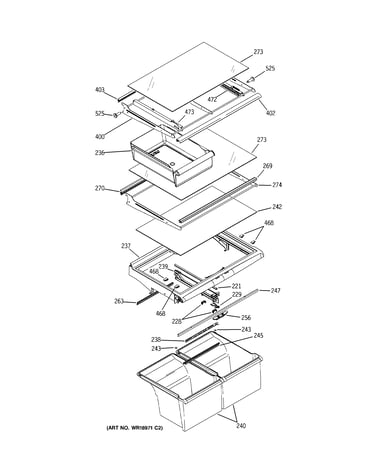

Fresh food section diagram

Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Capacitor WR62X0079
#729

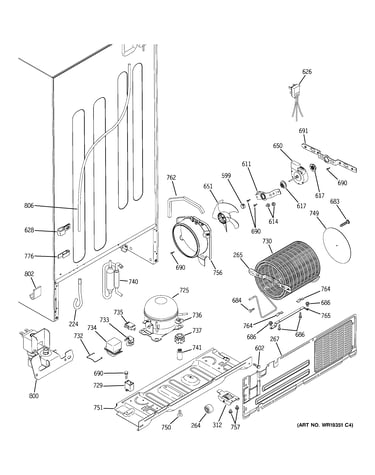

Sealed system diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Comp Repl Kt WR87X10042
#725

Sealed system diagram

Comp repl kt

Part #WR87X10042

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10042. Substitute parts can look different from the original.
BEST SELLER
$394.05 |
$12.00 OFF Phone Price : $406.05
In Stock
Defrost Eco WR50X10021
#620

Freezer section diagram

Defrost eco

Part #WR50X10021

Replaced by #WR50X10071

?
Manufacturer substitution
This part replaces WR50X10021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$17.43 |
10% OFF Phone Price : $19.43
In Stock
Refrigerator Drain Tube (replaces Wr02x10661, Wr02x12058) WR02X11426
#224

Sealed system diagram

Refrigerator drain tube (replaces wr02x10661, wr02x12058)

Part #WR02X11426

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Valve And Tu WR57X10048
#800

Sealed system diagram

Valve and tu

Part #WR57X10048

Replaced by #WR57X10086

?
Manufacturer substitution
This part replaces WR57X10048. Substitute parts can look different from the original.
$59.67 |
9% OFF Phone Price : $65.67
In Stock
Evaporator Fan Blade WR60X10055
#613

Freezer section diagram

Evaporator fan blade

Part #WR60X10055

Replaced by #WR60X10205

?
Manufacturer substitution
This part replaces WR60X10055. Substitute parts can look different from the original.
$13.92 |
13% OFF Phone Price : $15.92
In Stock
