Craftsman
Bench Grinder

Model # 319190420 Official Craftsman bench grinder

Here are the diagrams and repair parts for Official Craftsman 319190420 bench grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Grindrlabl 190420L

#NI

All parts diagram

Grindrlabl

Part #190420L

The manufacturer no longer makes this part, and there's no substitute part

Relief 8025
#25

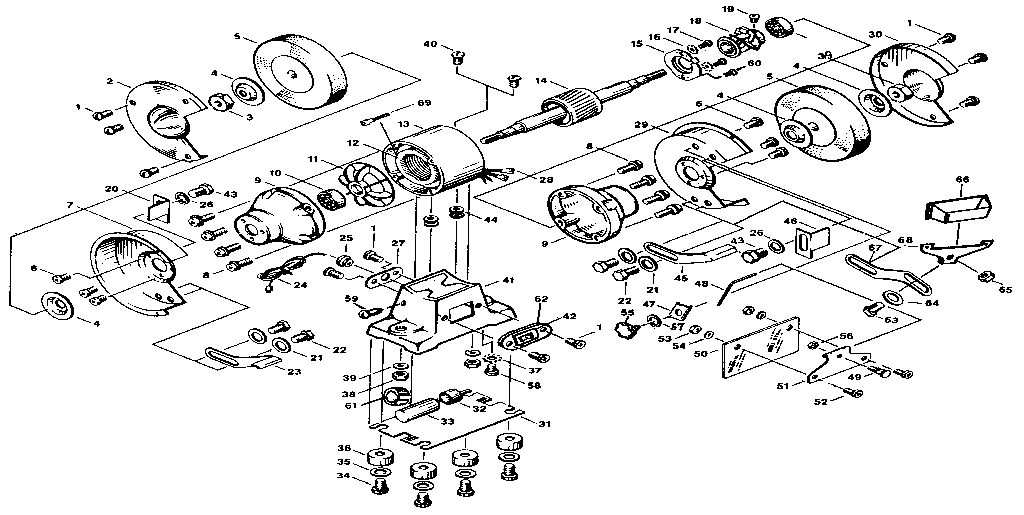

Unit parts diagram

Relief

Part #8025

The manufacturer no longer makes this part, and there's no substitute part

Washer 8037
#37

Unit parts diagram

Washer

Part #8037

The manufacturer no longer makes this part, and there's no substitute part

Rest Adj 8023
#23

Unit parts diagram

Rest adj

Part #8023

The manufacturer no longer makes this part, and there's no substitute part

Tray Quench 8077
#66

Unit parts diagram

Tray quench

Part #8077

The manufacturer no longer makes this part, and there's no substitute part

Cover 8032
#32

Unit parts diagram

Cover

Part #8032

The manufacturer no longer makes this part, and there's no substitute part

Guard Whl 8007
#7

Unit parts diagram

Guard whl

Part #8007

The manufacturer no longer makes this part, and there's no substitute part

Shade 8063
#5

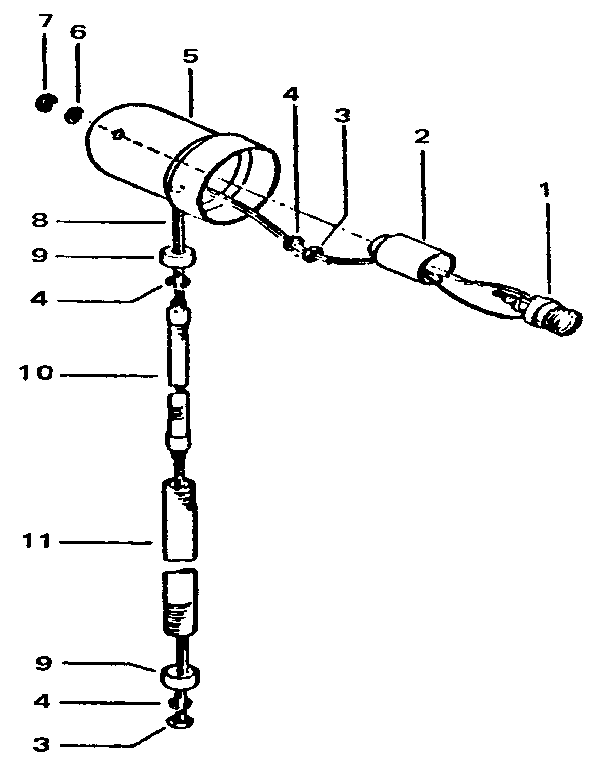

Light diagram

Shade

Part #8063

The manufacturer no longer makes this part, and there's no substitute part

Sleeving 8069
#11

Light diagram

Sleeving

Part #8069

The manufacturer no longer makes this part, and there's no substitute part

Nut 8076
#65

Unit parts diagram

Nut

Part #8076

The manufacturer no longer makes this part, and there's no substitute part
