Craftsman
Bench Grinder

Model # 319190420 Official Craftsman bench grinder

Here are the diagrams and repair parts for Official Craftsman 319190420 bench grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Washer 8062
#4

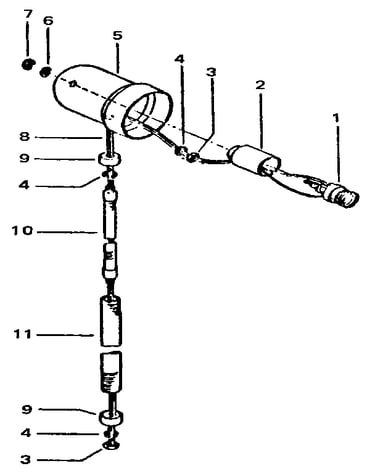

Light diagram

Washer

Part #8062

The manufacturer no longer makes this part, and there's no substitute part

Screw 8040
#40

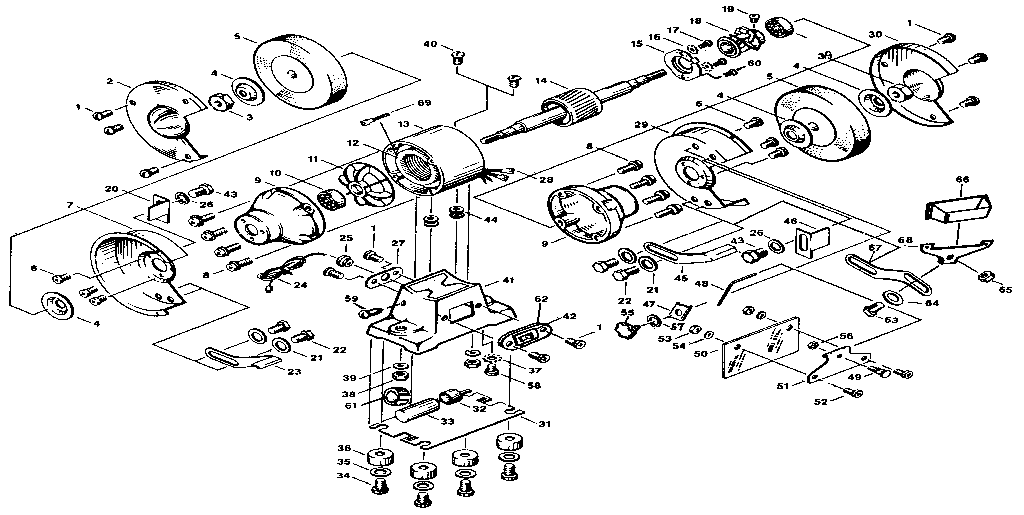

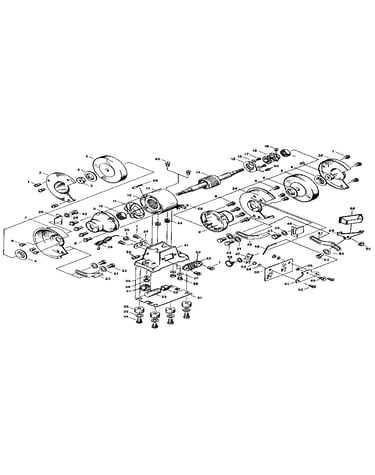

Unit parts diagram

Screw

Part #8040

The manufacturer no longer makes this part, and there's no substitute part

Bolt 8022
#22

Unit parts diagram

Bolt

Part #8022

The manufacturer no longer makes this part, and there's no substitute part

Base Plate 8031
#31

Unit parts diagram

Base plate

Part #8031

The manufacturer no longer makes this part, and there's no substitute part

Shade 8063
#5

Light diagram

Shade

Part #8063

The manufacturer no longer makes this part, and there's no substitute part

Rod 8048
#48

Unit parts diagram

Rod

Part #8048

The manufacturer no longer makes this part, and there's no substitute part

Nut 8076
#65

Unit parts diagram

Nut

Part #8076

The manufacturer no longer makes this part, and there's no substitute part

Bolt 8049
#49

Unit parts diagram

Bolt

Part #8049

The manufacturer no longer makes this part, and there's no substitute part

Rest Adj 8023
#23

Unit parts diagram

Rest adj

Part #8023

The manufacturer no longer makes this part, and there's no substitute part

Washer 8016
#16

Unit parts diagram

Washer

Part #8016

The manufacturer no longer makes this part, and there's no substitute part
