Craftsman
Pressure Washer

Model # 47144555 Official Craftsman high-pressure washer

Here are the diagrams and repair parts for Official Craftsman 47144555 high-pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Hose 38254
#7

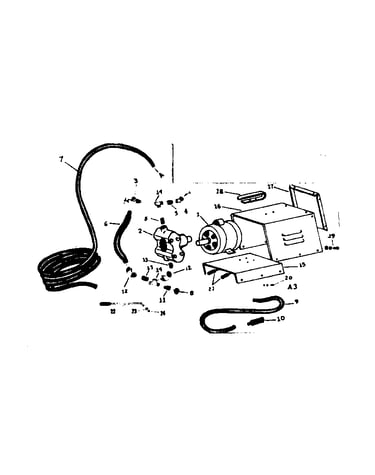

Replacement parts diagram

Hose

Part #38254

The manufacturer no longer makes this part, and there's no substitute part

Screen GHS
#8

Replacement parts diagram

Screen

Part #GHS

The manufacturer no longer makes this part, and there's no substitute part

Hose 12712
#6

Replacement parts diagram

Hose

Part #12712

The manufacturer no longer makes this part, and there's no substitute part

Suc Hose 7697
#9

Replacement parts diagram

Suc hose

Part #7697

The manufacturer no longer makes this part, and there's no substitute part

Extension E18
#22

Replacement parts diagram

Extension

Part #E18

The manufacturer no longer makes this part, and there's no substitute part

Screw 1412
#19

Replacement parts diagram

Screw

Part #1412

The manufacturer no longer makes this part, and there's no substitute part

Screw 51634
#20

Replacement parts diagram

Screw

Part #51634

The manufacturer no longer makes this part, and there's no substitute part

1/2 H.p. Electric Motor 1/2D.P.
#1

Replacement parts diagram

1/2 h.p. electric motor

Part #1/2D.P.

The manufacturer no longer makes this part, and there's no substitute part

Fitting M12F34
#11

Replacement parts diagram

Fitting

Part #M12F34

The manufacturer no longer makes this part, and there's no substitute part

Nipple CN12
#13

Replacement parts diagram

Nipple

Part #CN12

The manufacturer no longer makes this part, and there's no substitute part
