Model # WHDVH660H1MB Official GE washer
Here are the diagrams and repair parts for Official GE WHDVH660H1MB washer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
WHDVH660H1MB Washer
#203

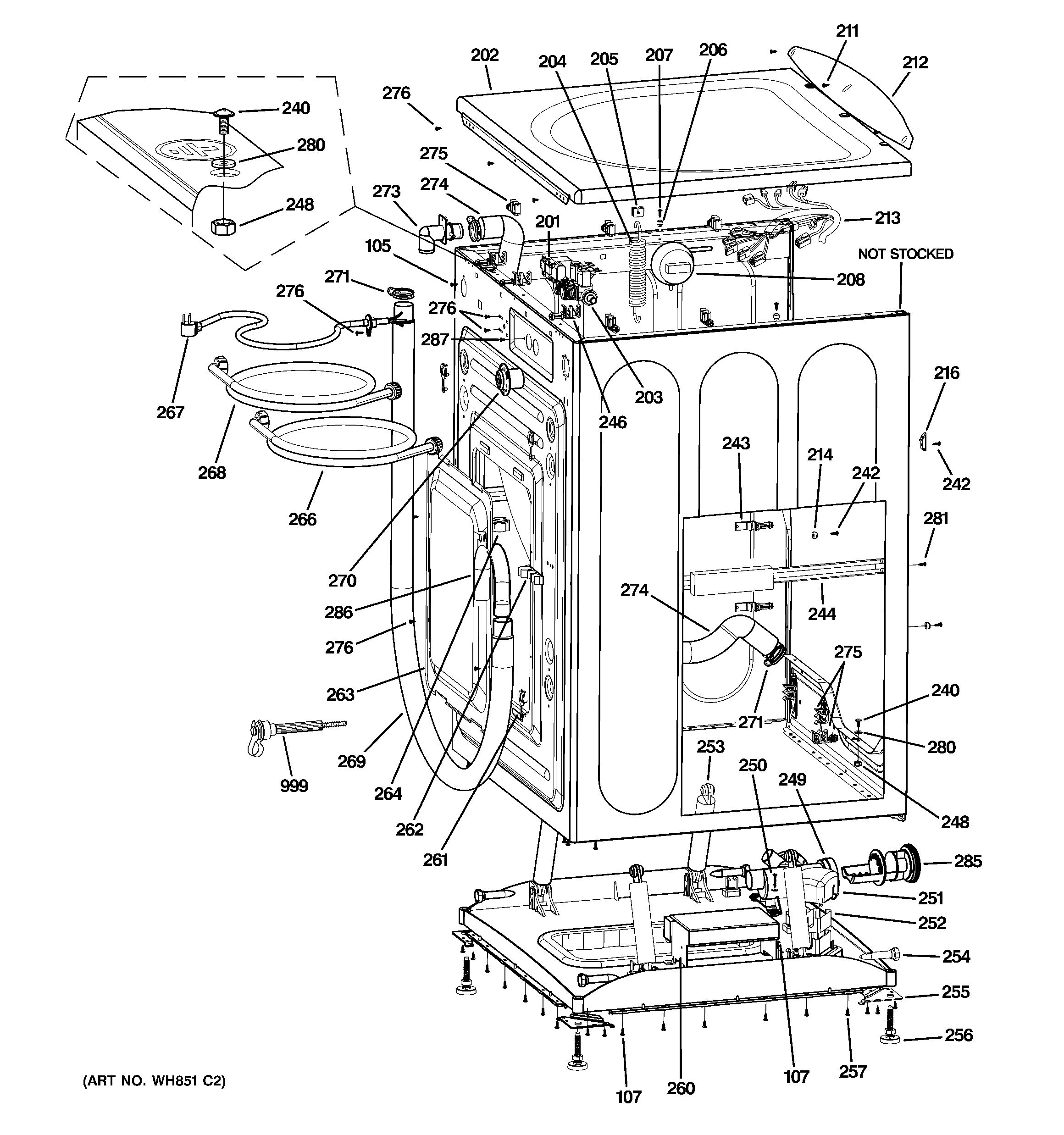

Cabinet & top panel diagram
Washer water inlet valve
Part #WH13X10023
$81.28 |
7% OFF Phone Price : $87.28
In Stock
#285
Cabinet & top panel diagram
Filter pump
Part #WH23X10027
Replaced by #WH11X34741
?
Manufacturer substitution
This part replaces WH23X10027. Substitute parts can look different from the original.
$130.59
In Stock
#217

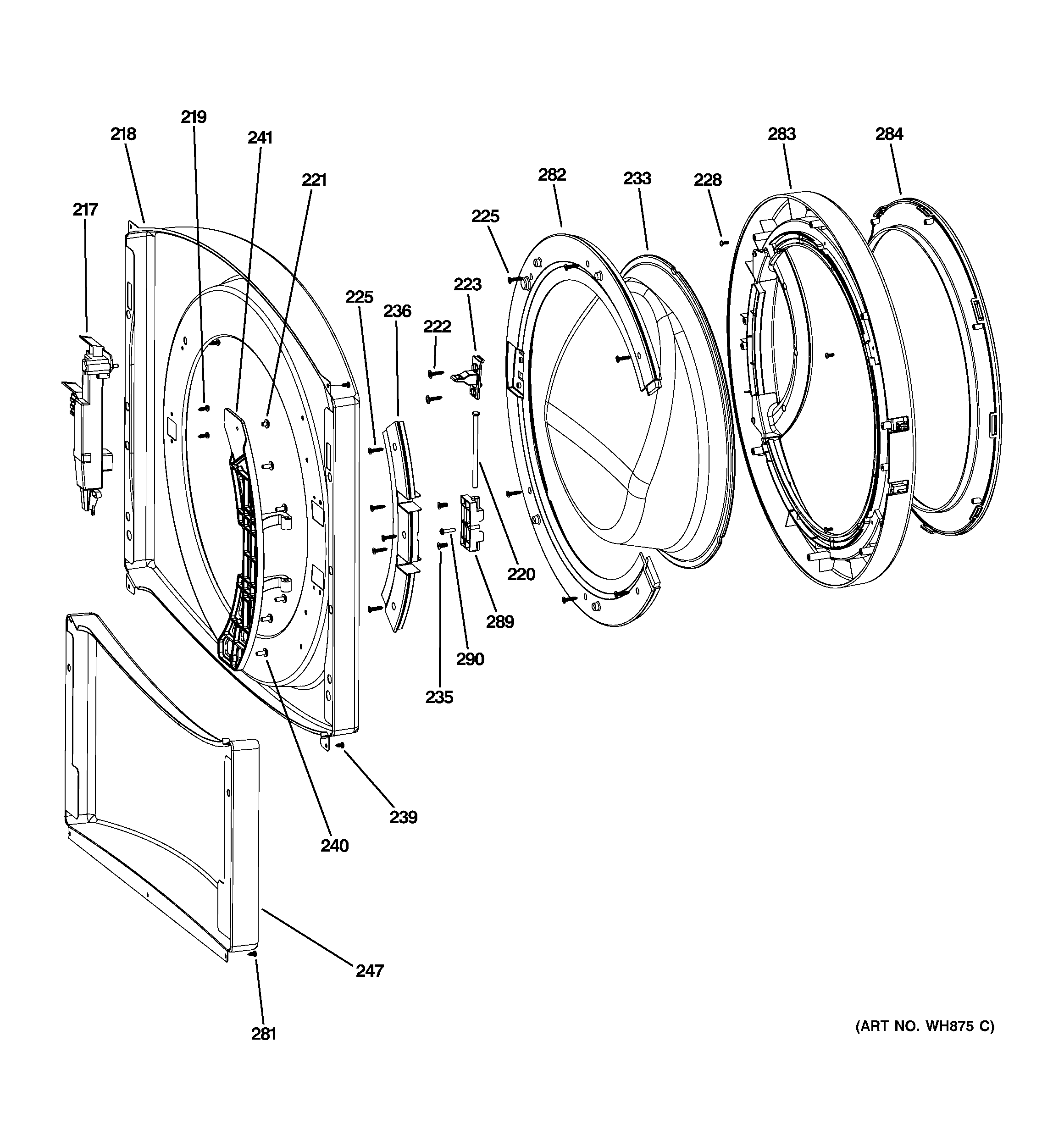

Front panel & door diagram
Washer door lock
Part #WH10X10006
$189.19 |
6% OFF Phone Price : $201.19
In Stock
#140

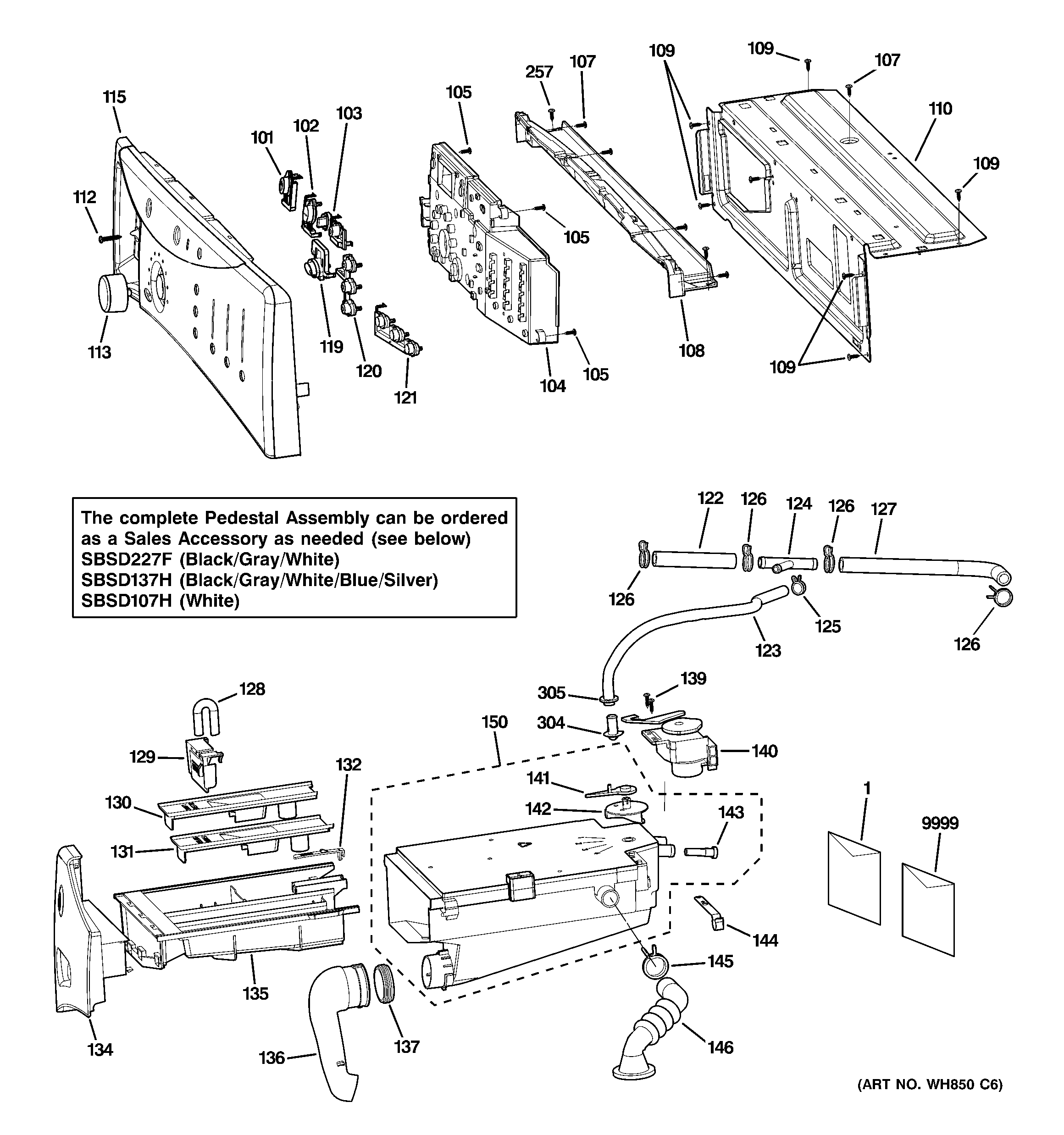

Controls & dispenser diagram
Diverter
Part #WH43X10031
Replaced by #WH43X10059
?
Manufacturer substitution
This part replaces WH43X10031. Substitute parts can look different from the original.
$127.66 |
9% OFF Phone Price : $139.66
In Stock
#306

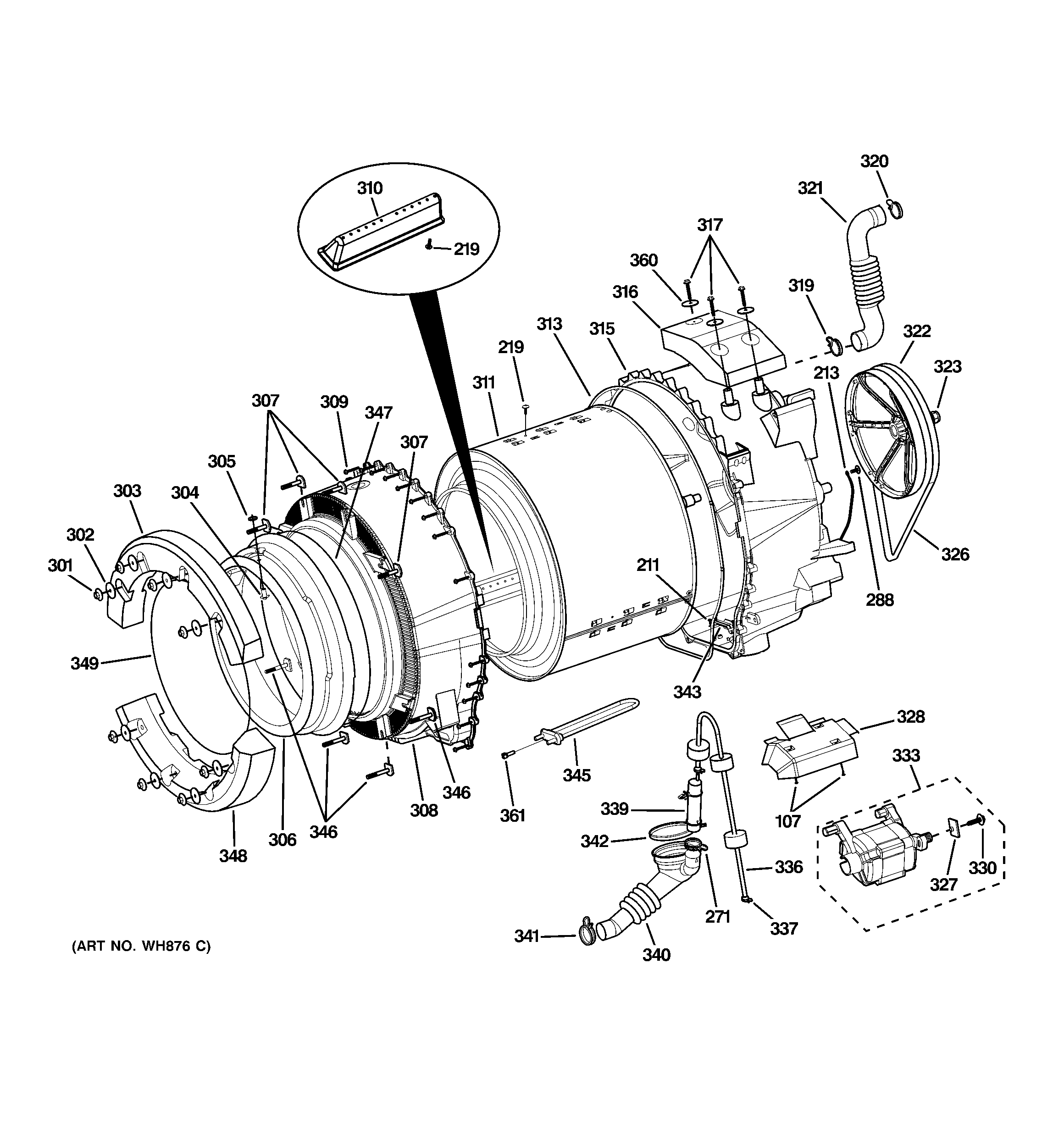

Tub & motor diagram
Gasket
Part #WH08X10022
Replaced by #WH08X10036
?
Manufacturer substitution
This part replaces WH08X10022. Substitute parts can look different from the original.
$193.30 |
6% OFF Phone Price : $205.30
In Stock
#254
Cabinet & top panel diagram
Washer shock absorber mounting pin
Part #WH01X10261
This item is not returnable
$9.11 |
10% OFF Phone Price : $10.11
In Stock
#349
Tub & motor diagram
Washer door boot spring clamp, outer
Part #WH01X10279
This item is not returnable
$25.44 |
19% OFF Phone Price : $31.44
In Stock
#333
Tub & motor diagram
Washer drive motor (replaces wh02x10214)
Part #WH20X10028
$394.75 |
$12.00 OFF Phone Price : $406.75
In Stock
#347
Tub & motor diagram
Washer door boot spring clamp, inner
Part #WH01X10277
This item is not returnable
$24.09 |
20% OFF Phone Price : $30.09
In Stock
#253
Cabinet & top panel diagram
Washer shock absorber (replaces wh01x10260)
Part #WH01X10343
$66.90 |
8% OFF Phone Price : $72.90
In Stock
