White-Westinghouse
Dehumidifier

Model # MDDQ40FW3 Official White-Westinghouse dehumidifier - p5995304911

Here are the diagrams and repair parts for Official White-Westinghouse MDDQ40FW3 dehumidifier - p5995304911, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

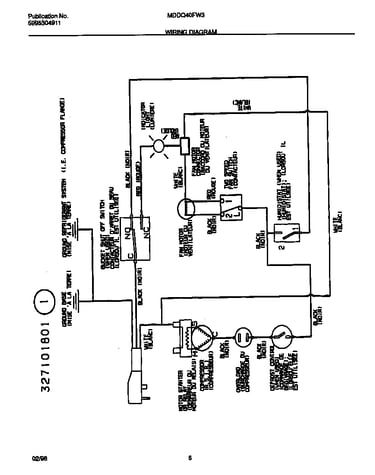

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Screw 53030076201
#8

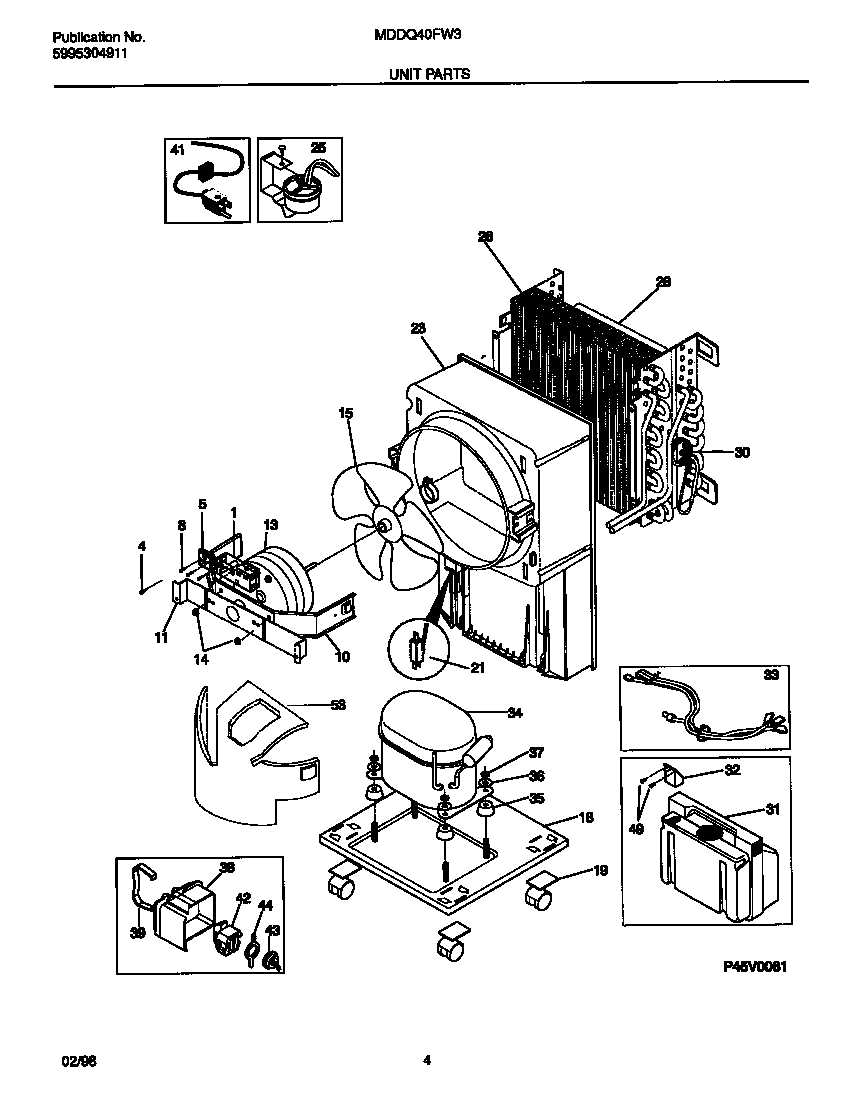

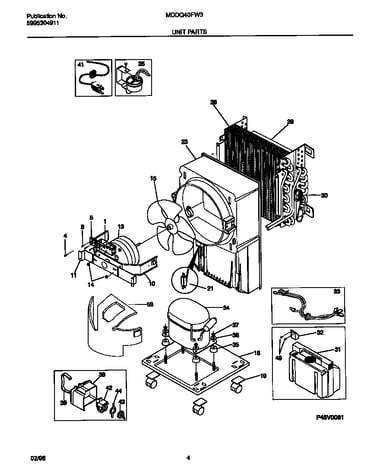

Unit parts diagram

Screw

Part #53030076201

The manufacturer no longer makes this part, and there's no substitute part

Condenser 3276506071
#26

Unit parts diagram

Condenser

Part #3276506071

The manufacturer no longer makes this part, and there's no substitute part

Cross Bracket 3273500011
#11

Unit parts diagram

Cross bracket

Part #3273500011

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 3273000091
#27

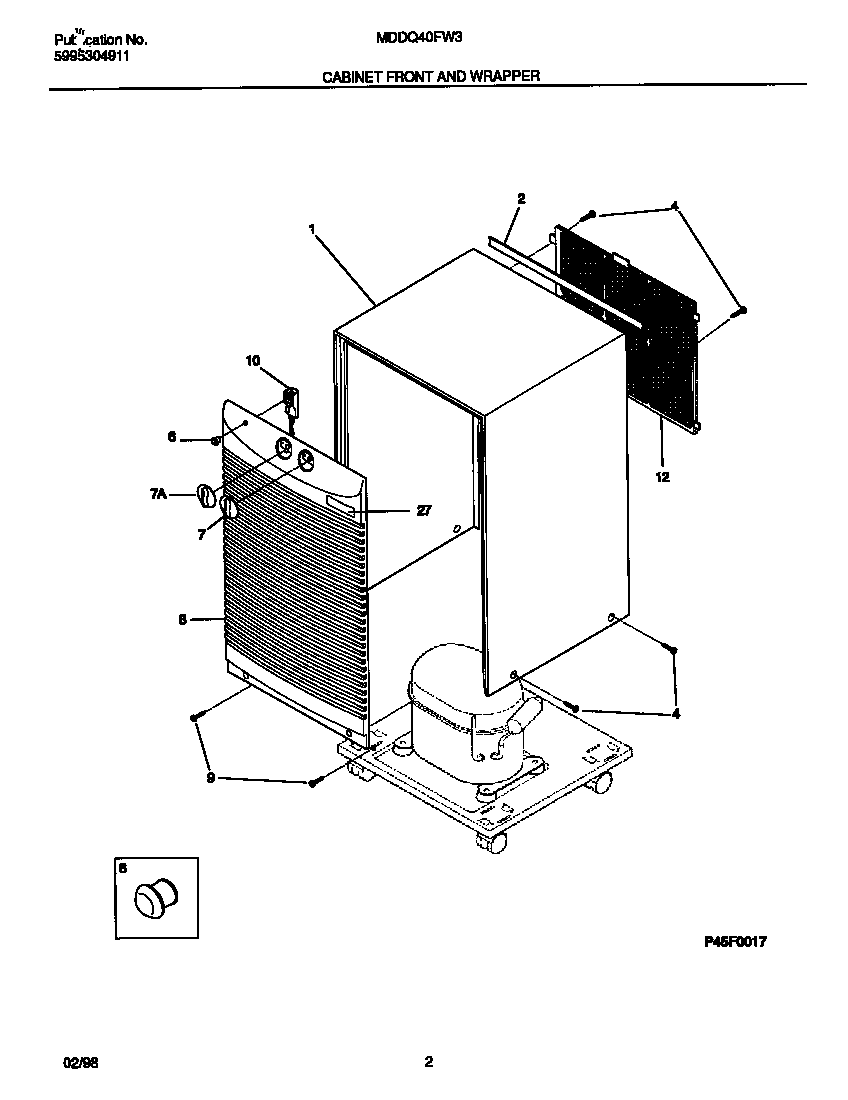

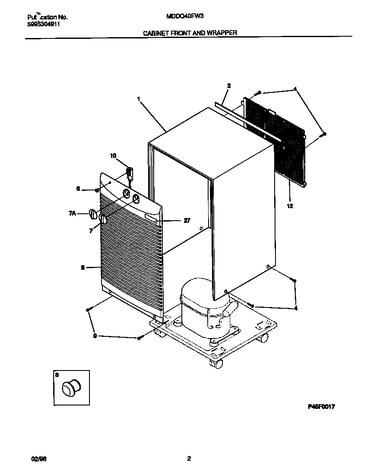

Cabinet front and wrapper diagram

Nameplate

Part #3273000091

The manufacturer no longer makes this part, and there's no substitute part

Float 53032725201
#32

Unit parts diagram

Float

Part #53032725201

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube 53080171201
#30

Unit parts diagram

Capillary tube

Part #53080171201

The manufacturer no longer makes this part, and there's no substitute part

Fan Housing 3276500011
#23

Unit parts diagram

Fan housing

Part #3276500011

The manufacturer no longer makes this part, and there's no substitute part

Compressor 53033212611
#34

Unit parts diagram

Compressor

Part #53033212611

The manufacturer no longer makes this part, and there's no substitute part

Strainer 53032903571

#NI

All parts diagram

Strainer

Part #53032903571

The manufacturer no longer makes this part, and there's no substitute part

Motor-fan,2 Speed 53044039581
#13

Unit parts diagram

Motor-fan,2 speed

Part #53044039581

The manufacturer no longer makes this part, and there's no substitute part
