Bottom-Mount Refrigerator

Model # GNE25JSKBFSS Official GE refrigerator

Here are the diagrams and repair parts for Official GE GNE25JSKBFSS refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

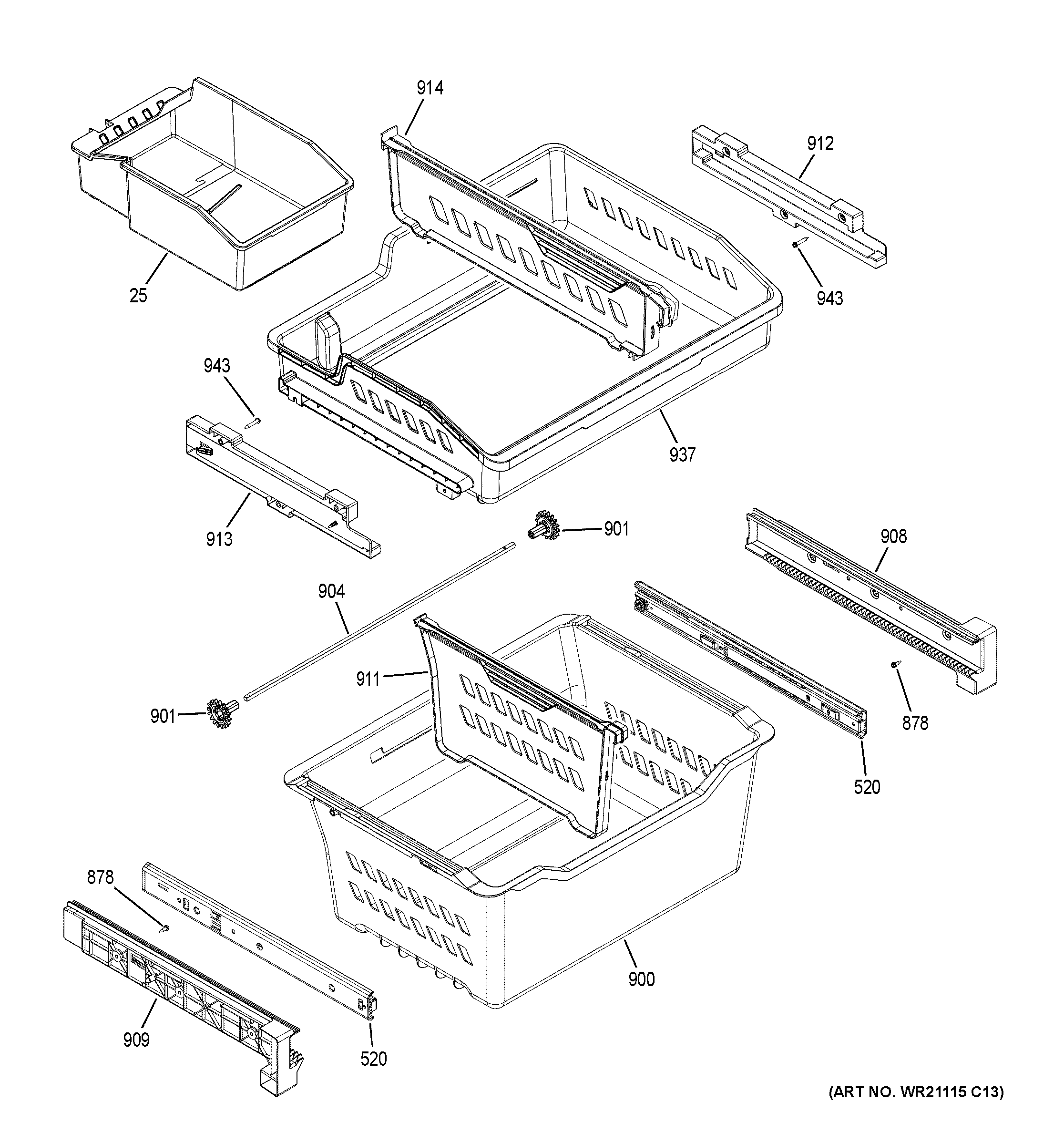

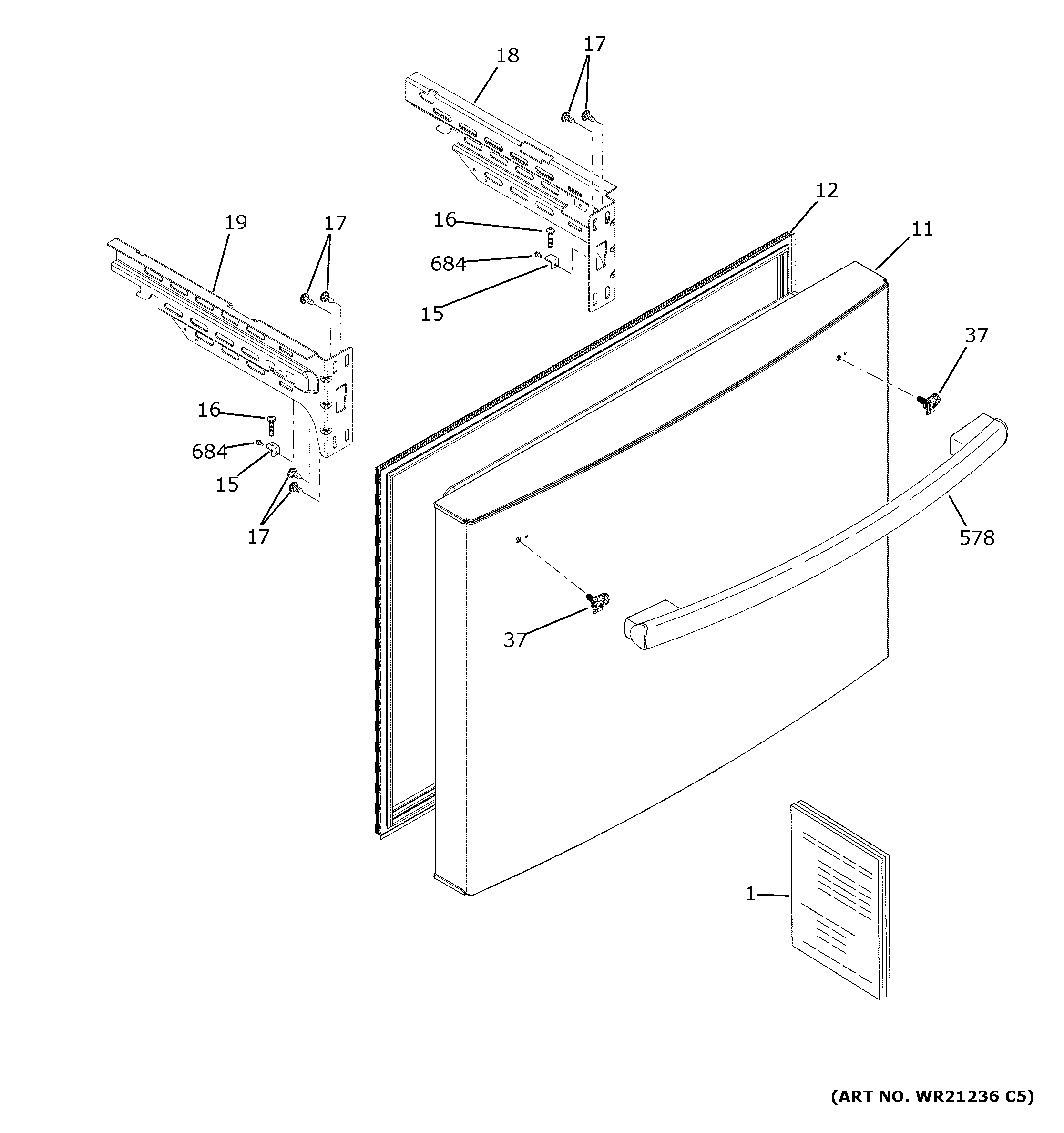

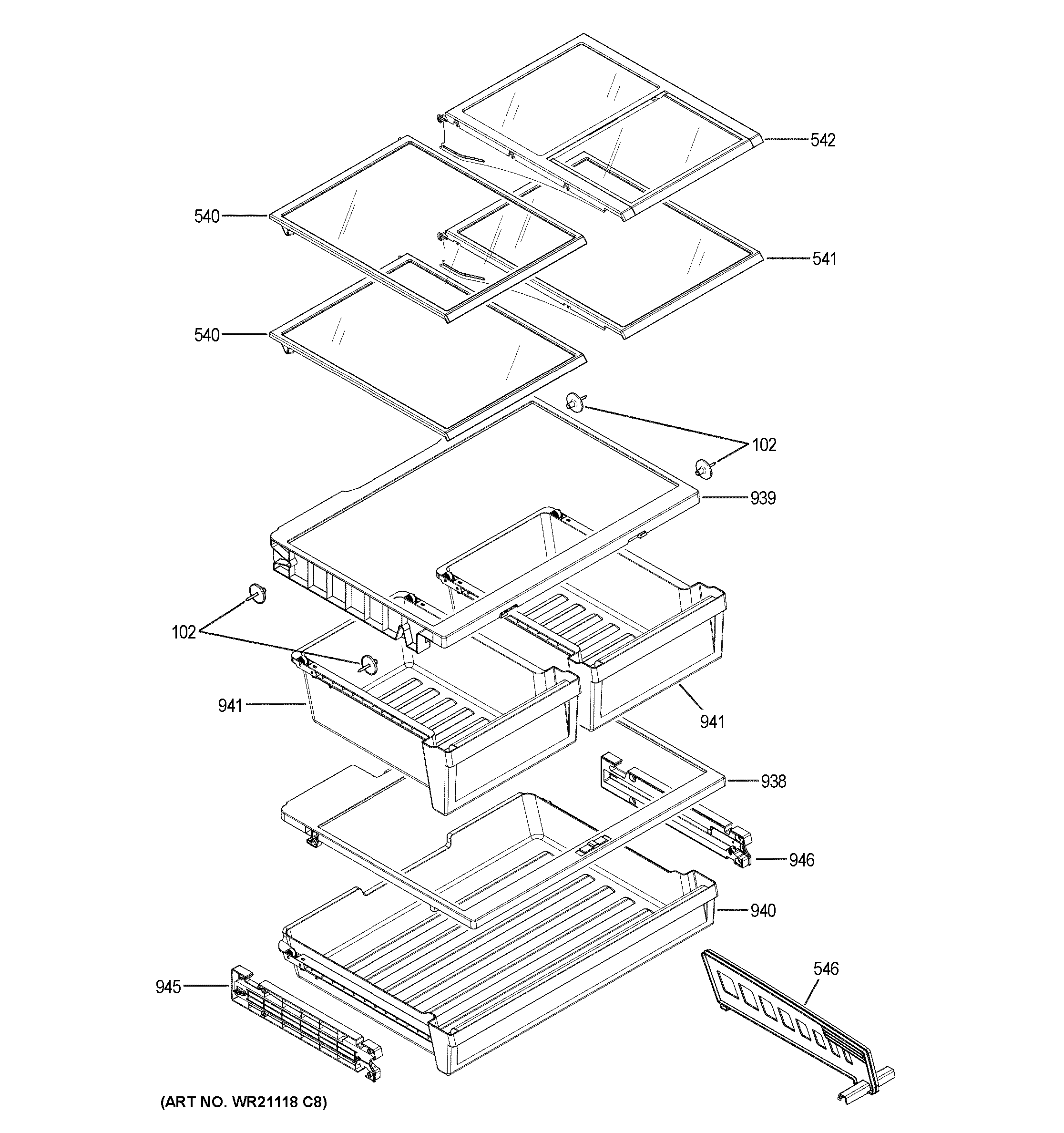

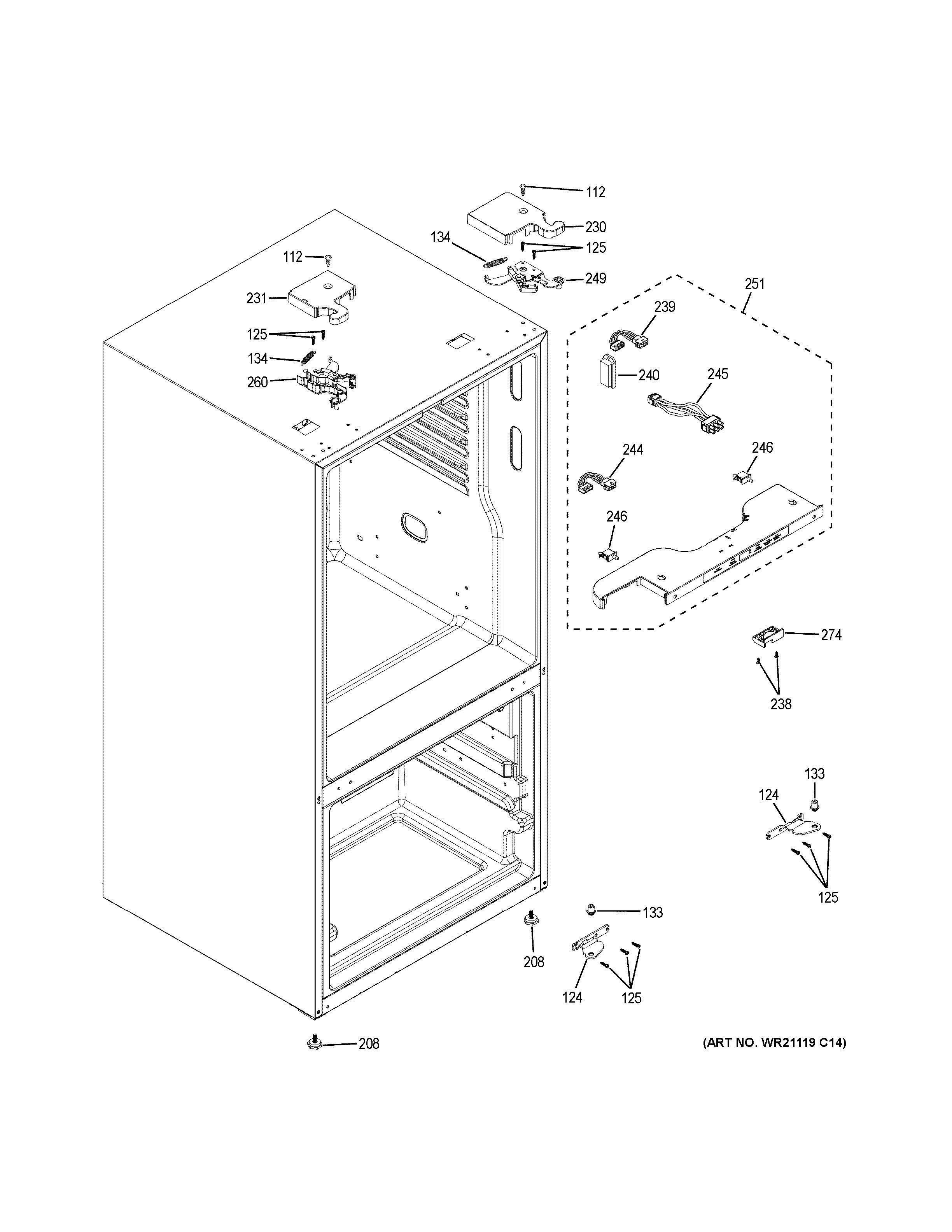

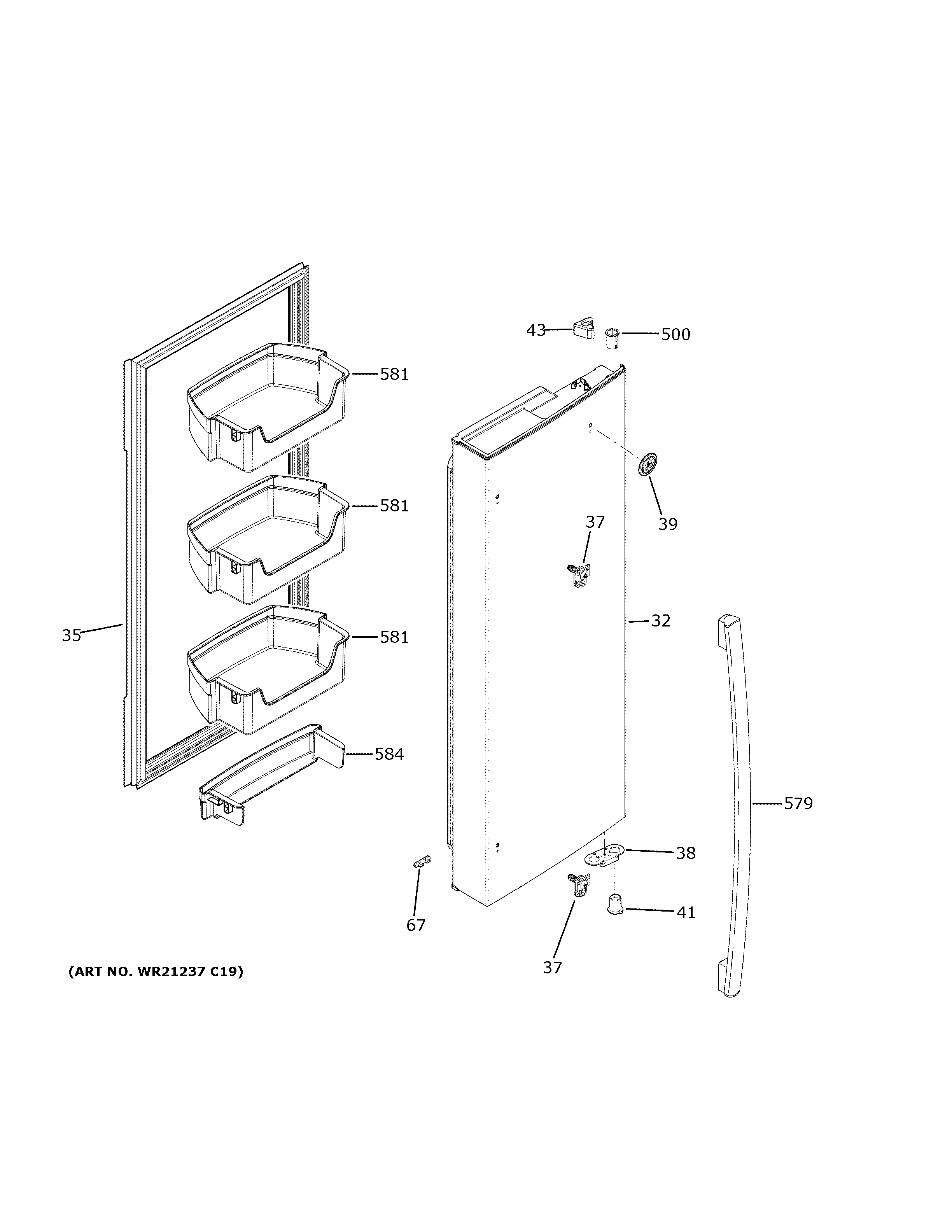

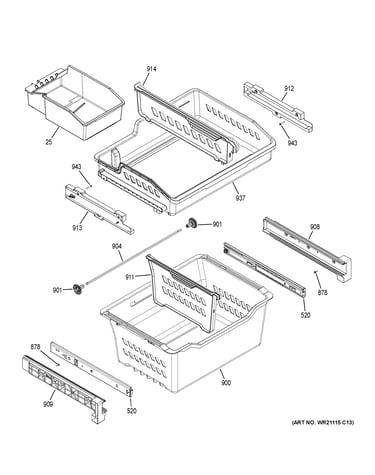

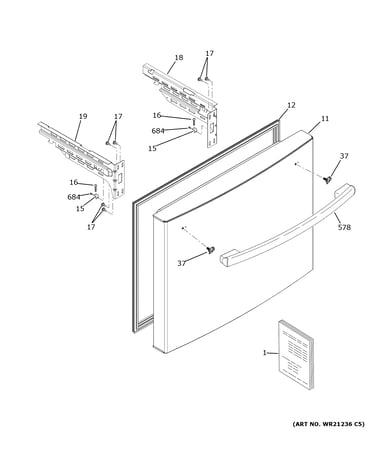

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forGNE25JSKBFSS Refrigerators

  • Dryer Filter WR86X0096
    #740

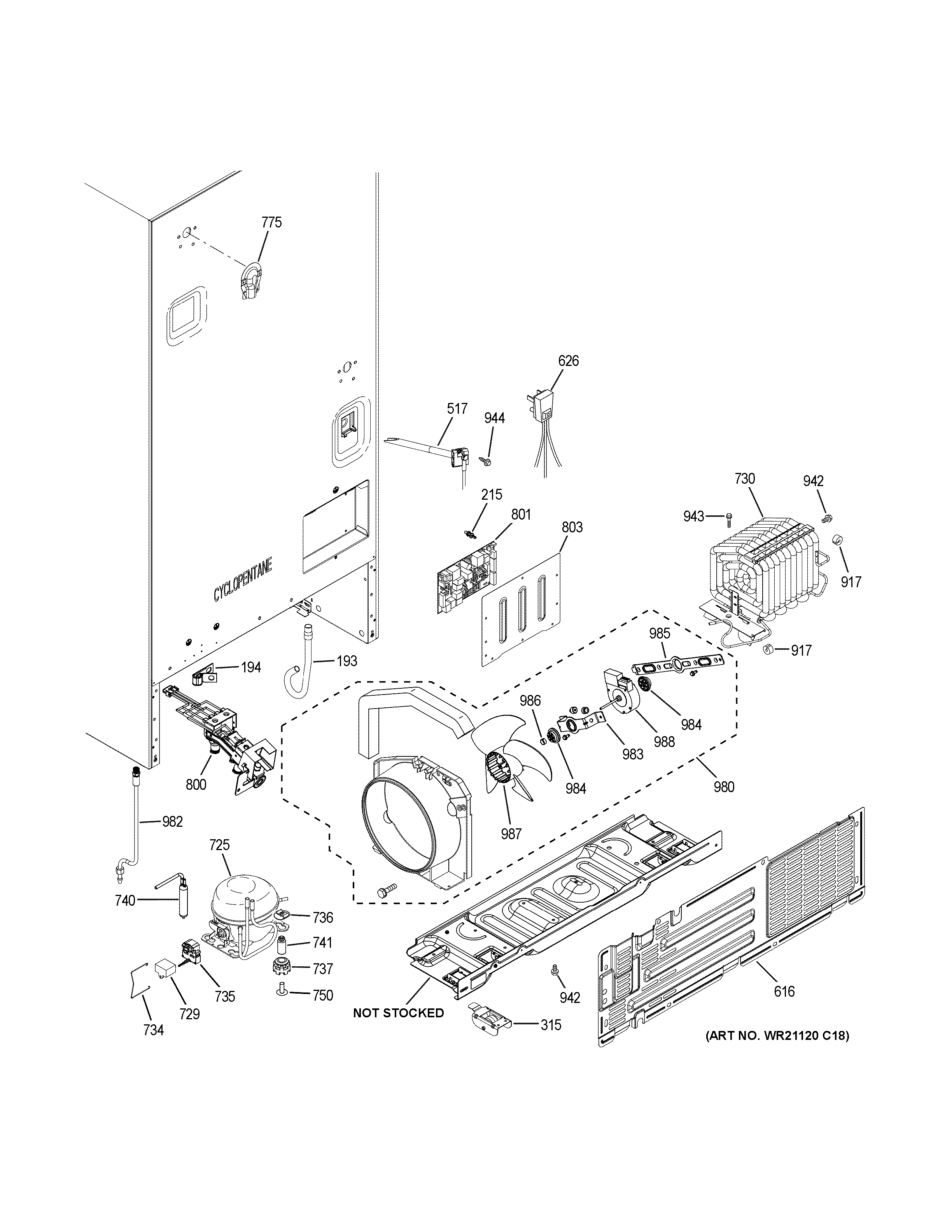

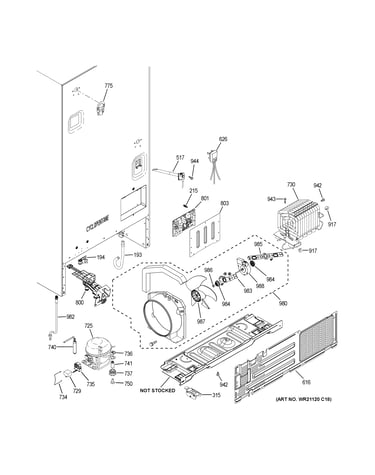

    Machine compartment diagram

    Dryer filter

    Part #WR86X0096

    Replaced by #WR86X25269

    ?
    Manufacturer substitution
    This part replaces WR86X0096. Substitute parts can look different from the original.
    BEST SELLER
    $74.11
    7% OFF Phone Price : $80.11
    In Stock
  • G.e. Refrigerator Water Filter MWFP
    #264

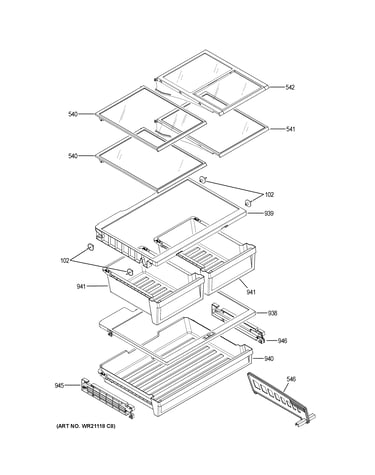

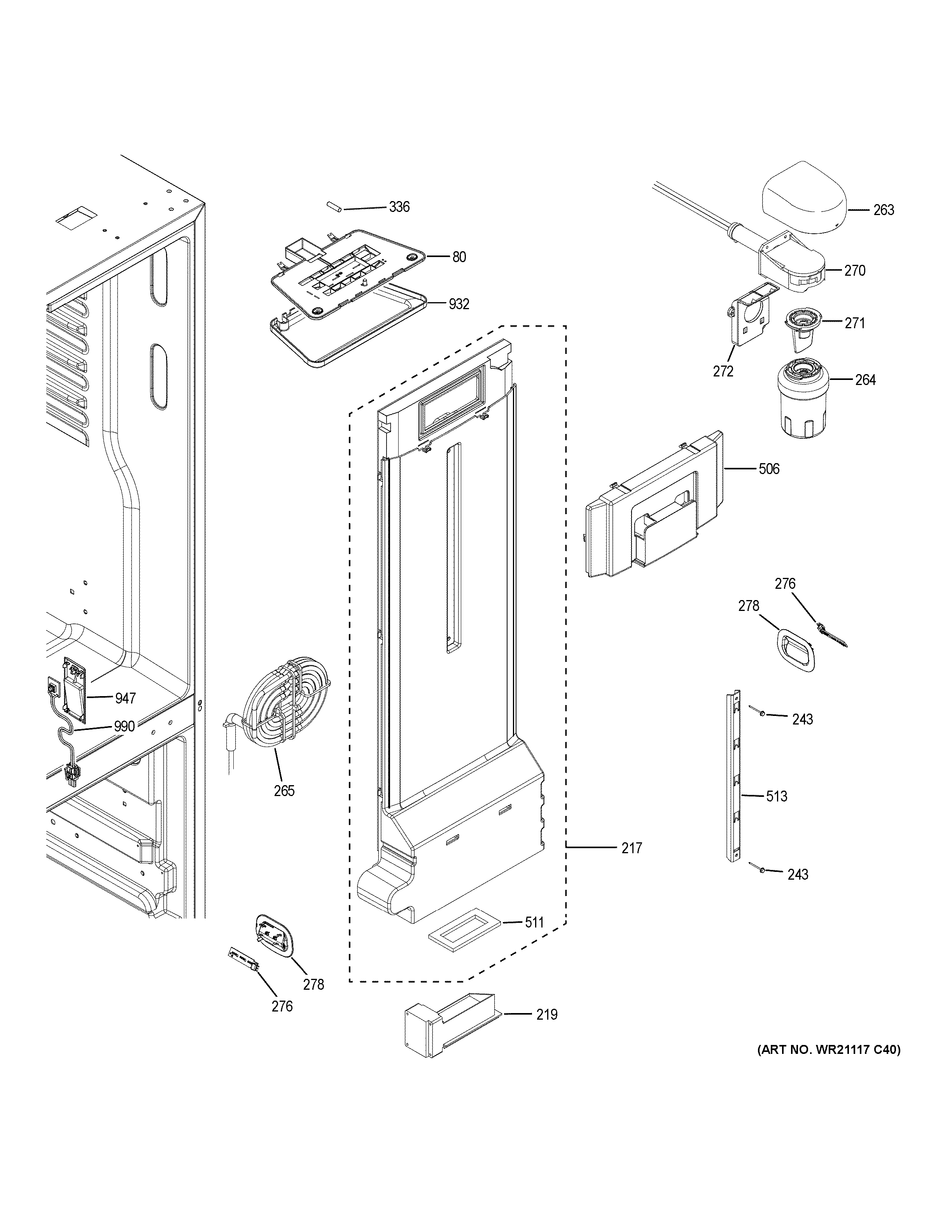

    Fresh food section diagram

    G.e. refrigerator water filter

    Part #MWFP

    BEST SELLER

    Get free shipping with Automatic Reorder

    $56.03
    10% OFF Phone Price : $62.03
    In Stock
  • Refrigerator Water Inlet Valve Assembly WR57X26569
    #800

    Machine compartment diagram

    Refrigerator water inlet valve assembly

    Part #WR57X26569

    Replaced by #WR57X30890

    ?
    Manufacturer substitution
    This part replaces WR57X26569. Substitute parts can look different from the original.
    BEST SELLER
    $64.48
    9% OFF Phone Price : $70.48
    In Stock
  • Refrigerator Defrost Bi-metal Thermostat WR50X10069
    #241

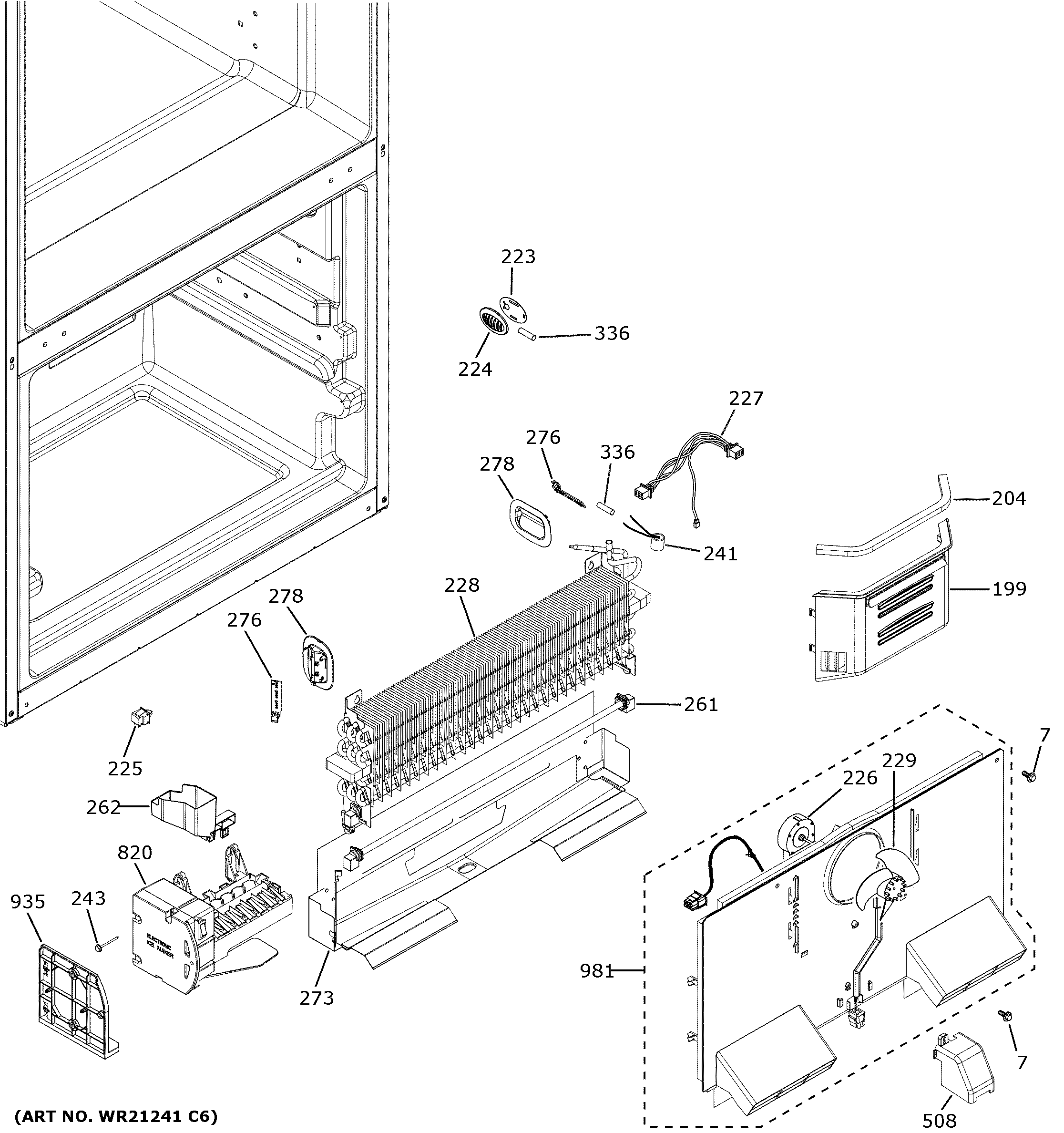

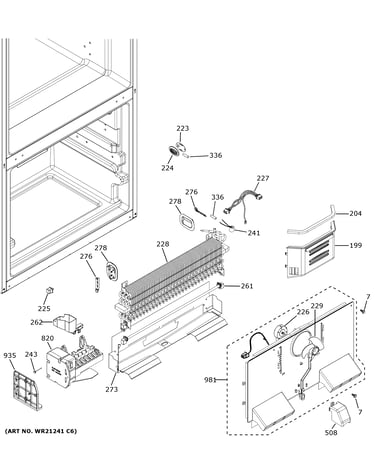

    Freezer section diagram

    Refrigerator defrost bi-metal thermostat

    Part #WR50X10069

    BEST SELLER
    This item is not returnable
    $21.64
    22% OFF Phone Price : $27.64
    In Stock
  • Refrigerator Capacitor WR62X20693
    #729

    Machine compartment diagram

    Refrigerator capacitor

    Part #WR62X20693

    Replaced by #WR55X24064

    ?
    Manufacturer substitution
    This part replaces WR62X20693. Substitute parts can look different from the original.
    BEST SELLER
    $58.94
    9% OFF Phone Price : $64.94
    In Stock
  • Refrigerator Flipper Assembly WR17X25027
    #66

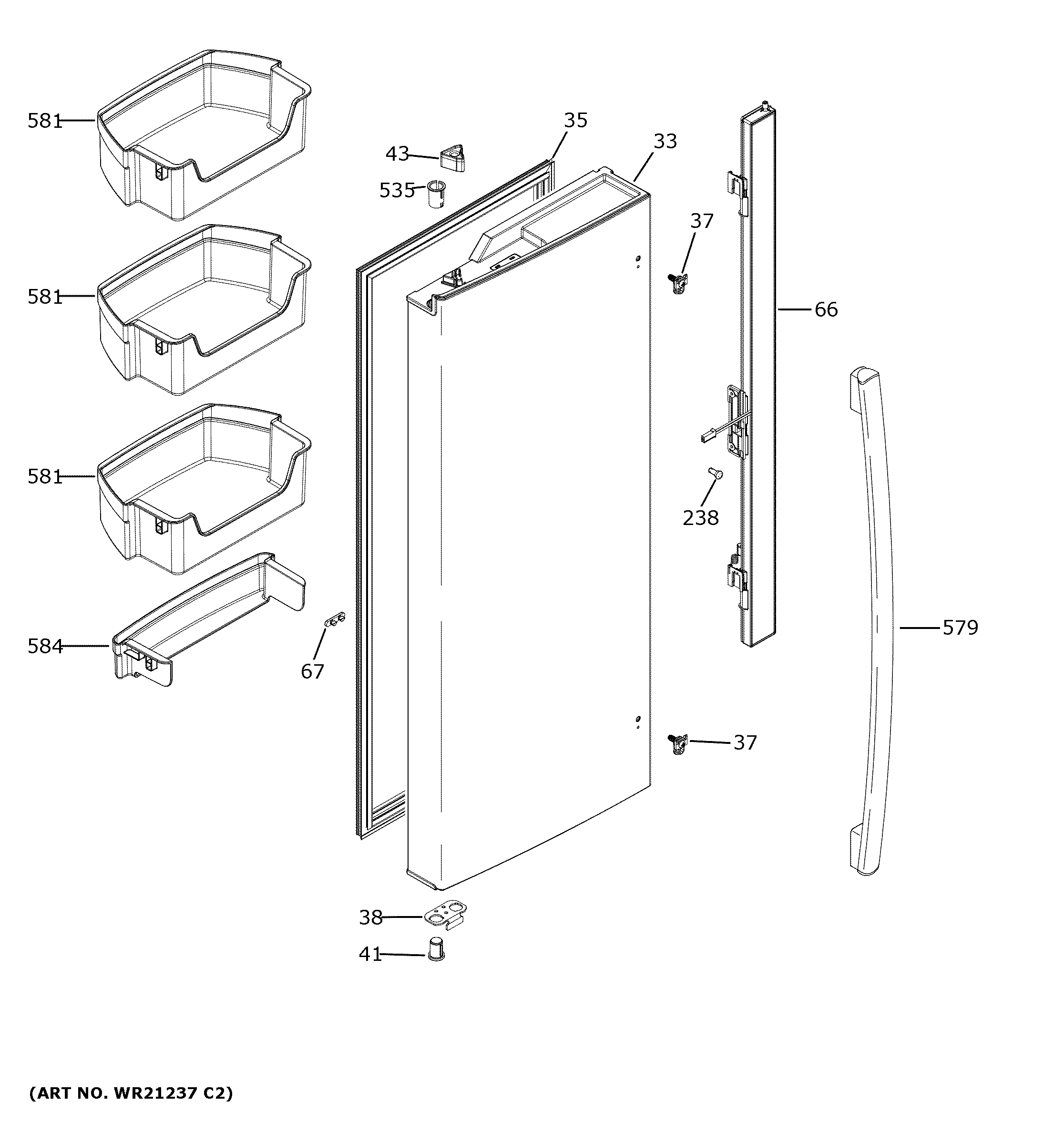

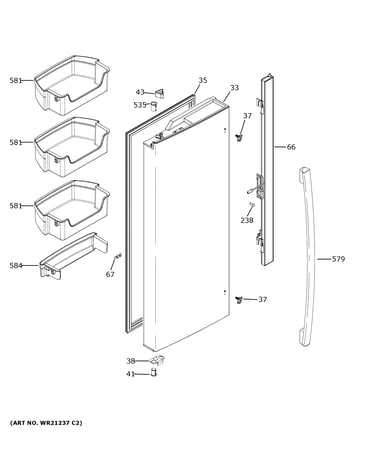

    Fresh food door - lh diagram

    Refrigerator flipper assembly

    Part #WR17X25027

    BEST SELLER
    $171.69
    7% OFF Phone Price : $183.69
    In Stock
  • Refrigerator Evaporator Fan Blade WR60X10208
    #229

    Freezer section diagram

    Refrigerator evaporator fan blade

    Part #WR60X10208

    Replaced by #WR60X30922

    ?
    Manufacturer substitution
    This part replaces WR60X10208. Substitute parts can look different from the original.
    BEST SELLER
    $79.66
    7% OFF Phone Price : $85.66
    In Stock
  • Refrigerator Compressor Kit WR87X10224
    #725

    Machine compartment diagram

    Refrigerator compressor kit

    Part #WR87X10224

    BEST SELLER
    $479.77
    $12.00 OFF Phone Price : $491.77
    In Stock
  • Refrigerator Evaporator Fan Motor WR60X31698
    #226

    Freezer section diagram

    Refrigerator evaporator fan motor

    Part #WR60X31698

    Replaced by #WR60X32614

    ?
    Manufacturer substitution
    This part replaces WR60X31698. Substitute parts can look different from the original.
    BEST SELLER
    $102.94
    10% OFF Phone Price : $114.94
    In Stock
  • Motor Dc Con WR60X24483
    #988

    Machine compartment diagram

    Motor dc con

    Part #WR60X24483

    Replaced by #WR60X10209

    ?
    Manufacturer substitution
    This part replaces WR60X24483. Substitute parts can look different from the original.
    BEST SELLER
    $60.17
    9% OFF Phone Price : $66.17
    In Stock
