Model # 502472994 Official Sears 26" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502472994 26" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Brake Shoe 308697
#2

Caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Spk 11-9/32 303157
Spk 11-9/32

Part #303157

The manufacturer no longer makes this part, and there's no substitute part

Tire Tube 75X487PA
#9A

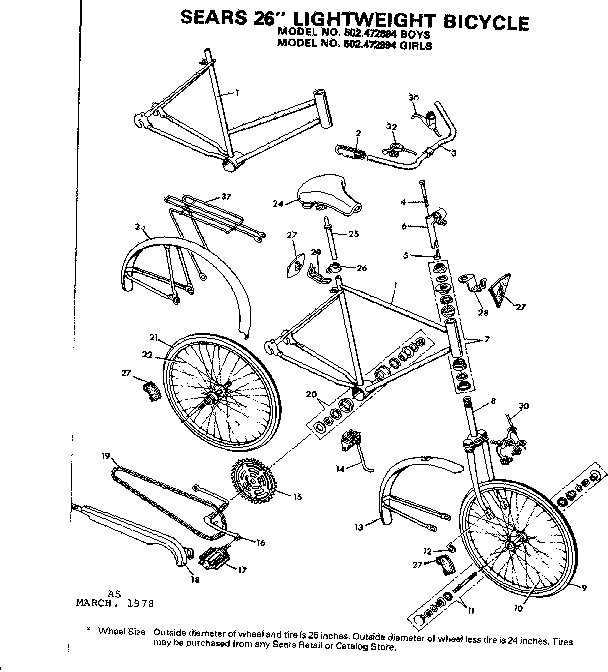

Unit parts diagram

Tire tube

Part #75X487PA

The manufacturer no longer makes this part, and there's no substitute part

Axle Mx 303520
#11

Unit parts diagram

Axle mx

Part #303520

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 300424
#39A

Shimano three speed hub w/coaster brake diagram

Sprocket

Part #300424

The manufacturer no longer makes this part, and there's no substitute part

Bearing Set 303384
#7

Unit parts diagram

Bearing set

Part #303384

The manufacturer no longer makes this part, and there's no substitute part

Pawl Pin D 300718
#18

Shimano three speed hub w/coaster brake diagram

Pawl pin d

Part #300718

The manufacturer no longer makes this part, and there's no substitute part

Axle 300917
#31

Shimano three speed hub w/coaster brake diagram

Axle

Part #300917

The manufacturer no longer makes this part, and there's no substitute part

Dust Cap 300025
#38

Shimano three speed hub w/coaster brake diagram

Dust cap

Part #300025

The manufacturer no longer makes this part, and there's no substitute part

Ret Spring 300913
#12

Shimano three speed hub w/coaster brake diagram

Ret spring

Part #300913

The manufacturer no longer makes this part, and there's no substitute part
