Model # M167W Official Jenn-Air microwave

Here are the diagrams and repair parts for Official Jenn-Air M167W microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

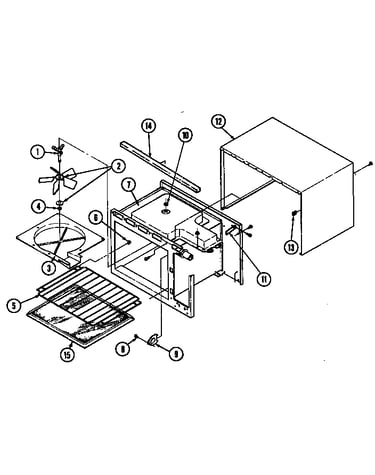

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Screw 03020068
#22

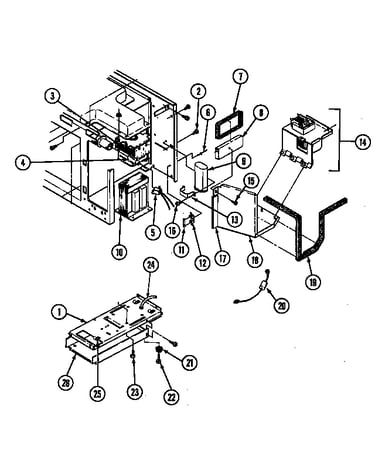

Internal controls (upper) diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 03020041
#4

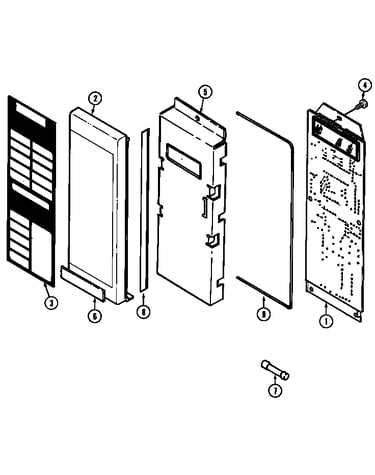

Control panel (upper) diagram

Screw

Part #03020041

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 03020041. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Rivet Pop 03060002
#6

Internal controls (upper) diagram

Rivet pop

Part #03060002

Replaced by #WP210720

?
Manufacturer substitution
This part replaces 03060002. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 708955
#3B

Trim diagram

Screw

Part #708955

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces 708955. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 03010144
#2

Internal controls (upper) diagram

Screw

Part #03010144

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 03010144. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Screw 03010135
#14

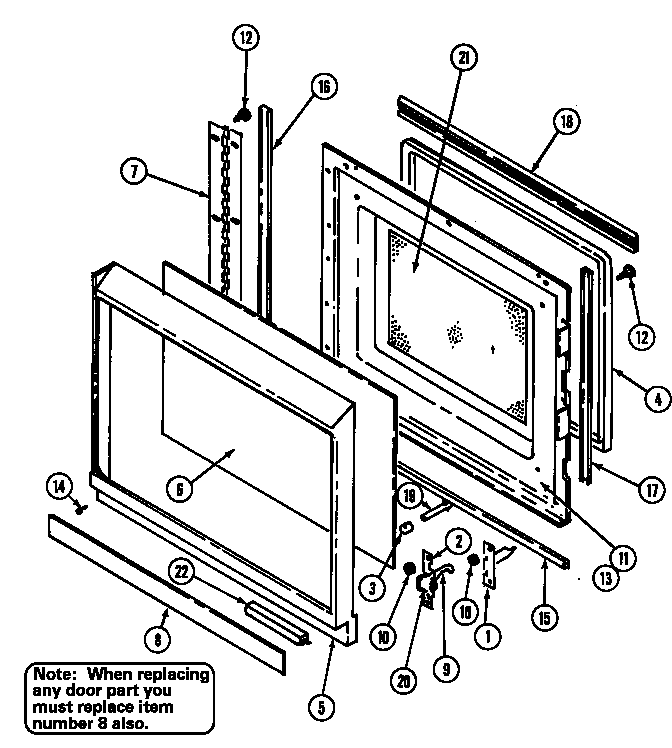

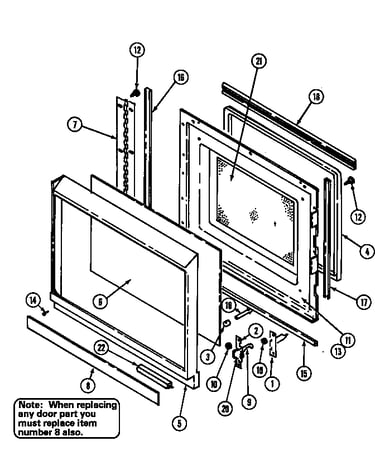

Door (upper) diagram

Screw

Part #03010135

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 03010135. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Foot Base 02230008
#21

Internal controls (upper) diagram

Foot base

Part #02230008

The manufacturer no longer makes this part, and there's no substitute part

Insulator 702898
#6A

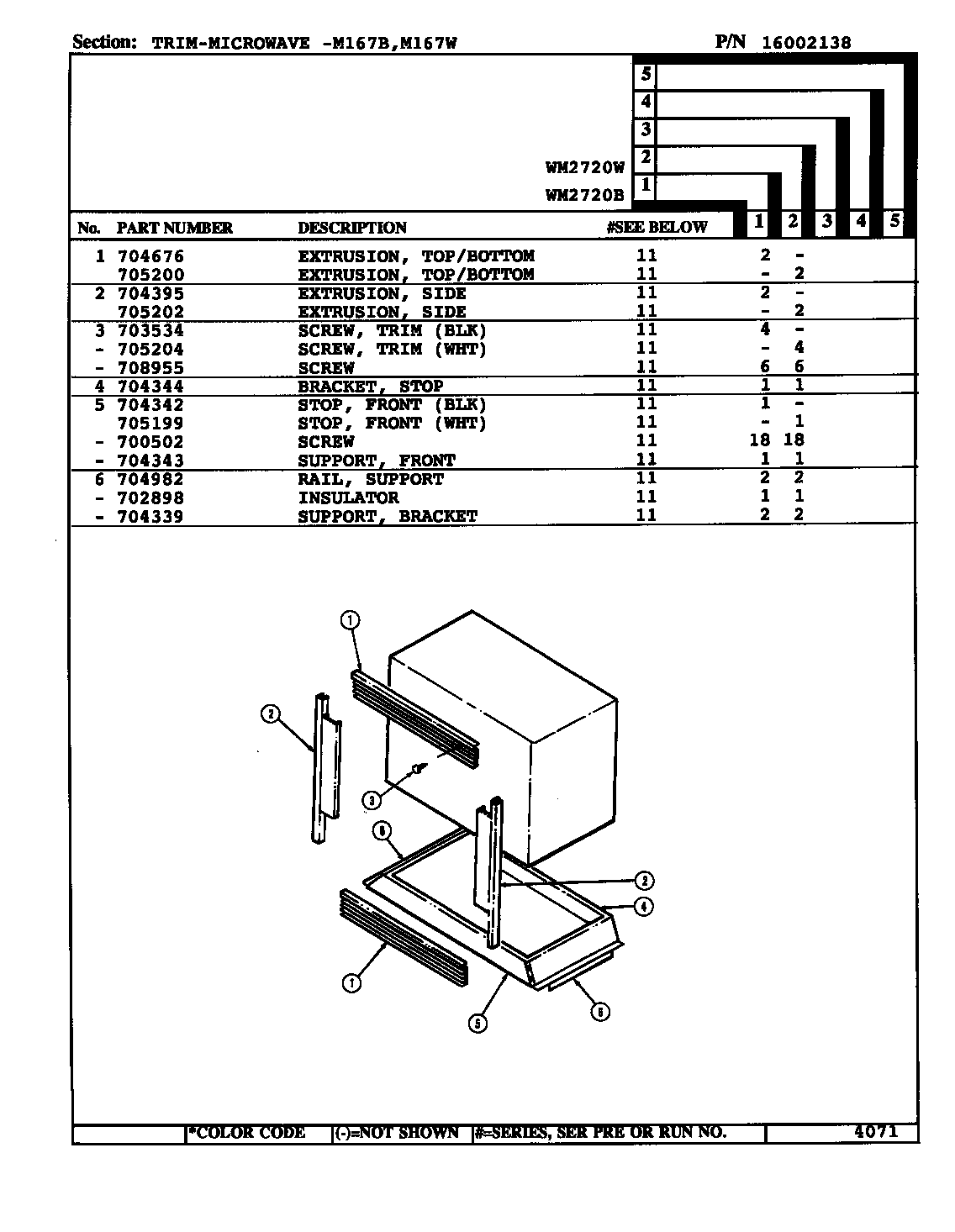

Trim diagram

Insulator

Part #702898

The manufacturer no longer makes this part, and there's no substitute part

"switch, Seco" 01140038
#10

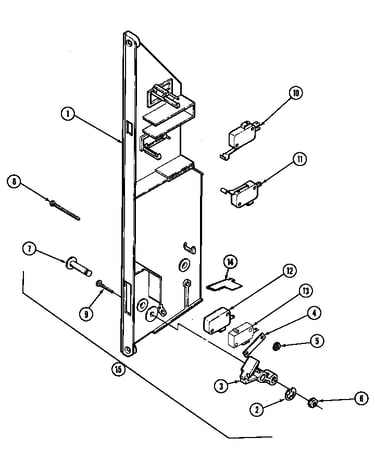

Interlock switches (upper) diagram

"switch, seco"

Part #01140038

The manufacturer no longer makes this part, and there's no substitute part

"plate, Compo" 02040101
#1

Internal controls (upper) diagram

"plate, compo"

Part #02040101

The manufacturer no longer makes this part, and there's no substitute part
