Model # 7MWFW6622HW0 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool 7MWFW6622HW0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

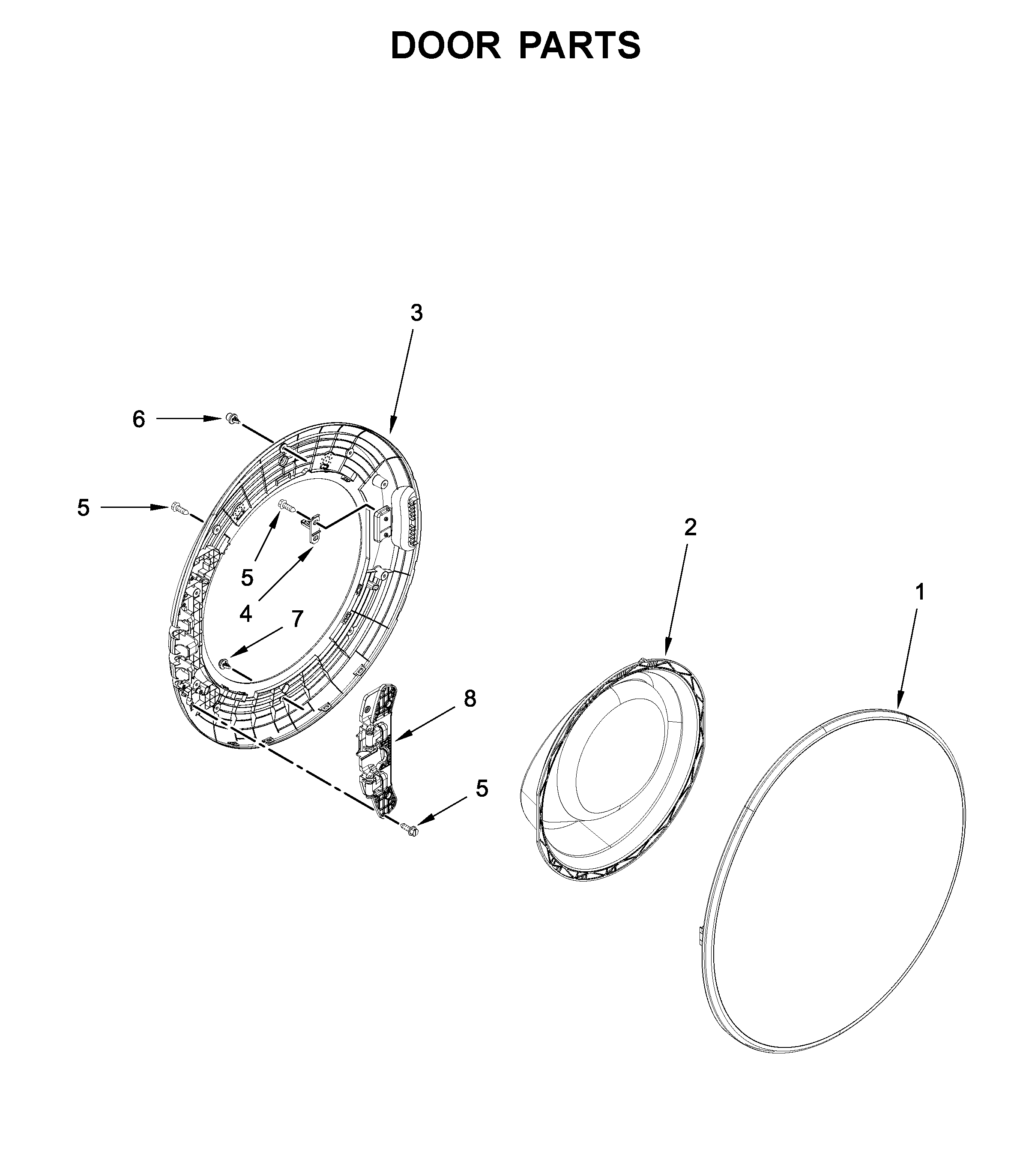

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

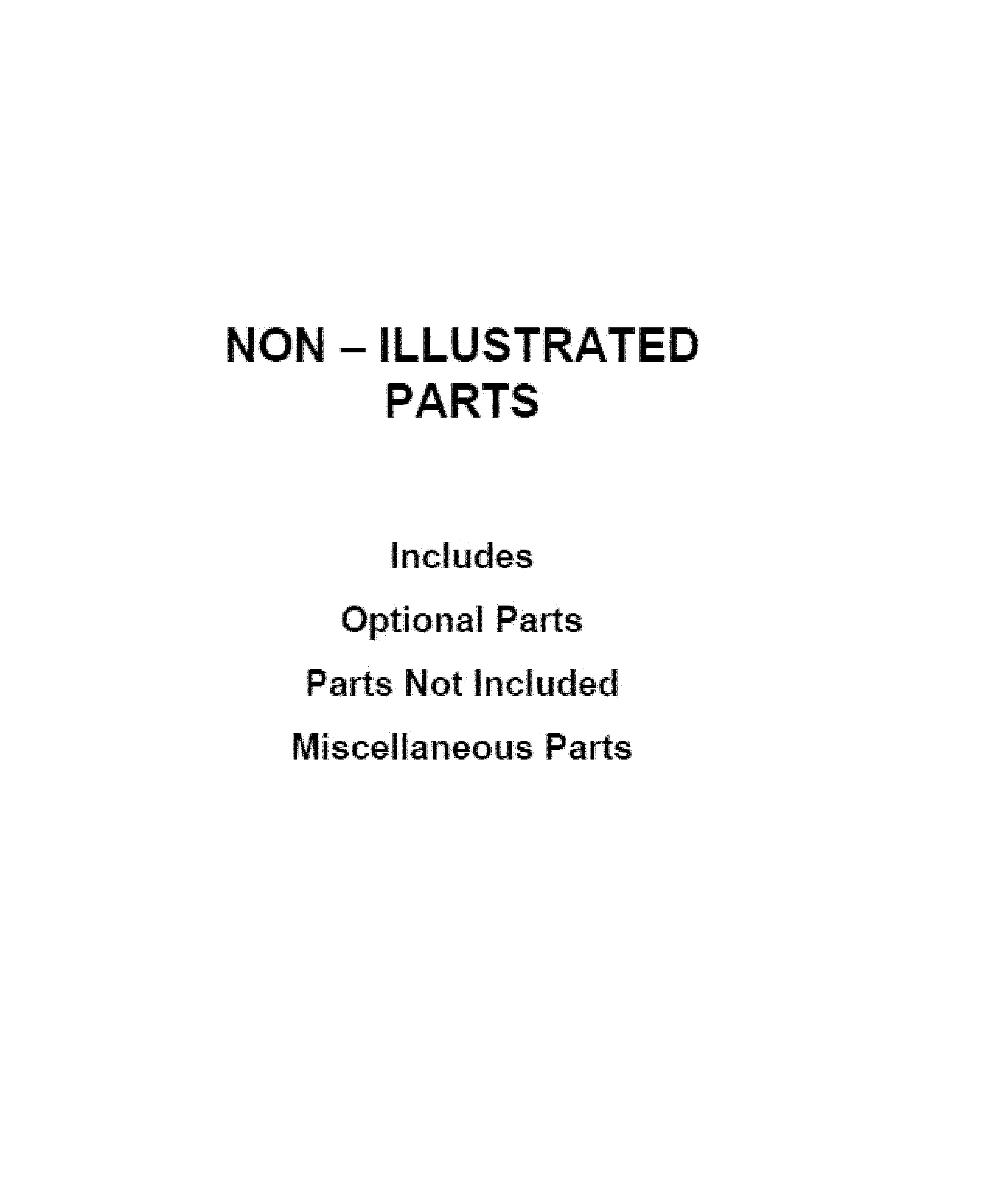

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91 |
14% OFF Phone Price : $13.91
In Stock
Pump Assembl W10918608
#12

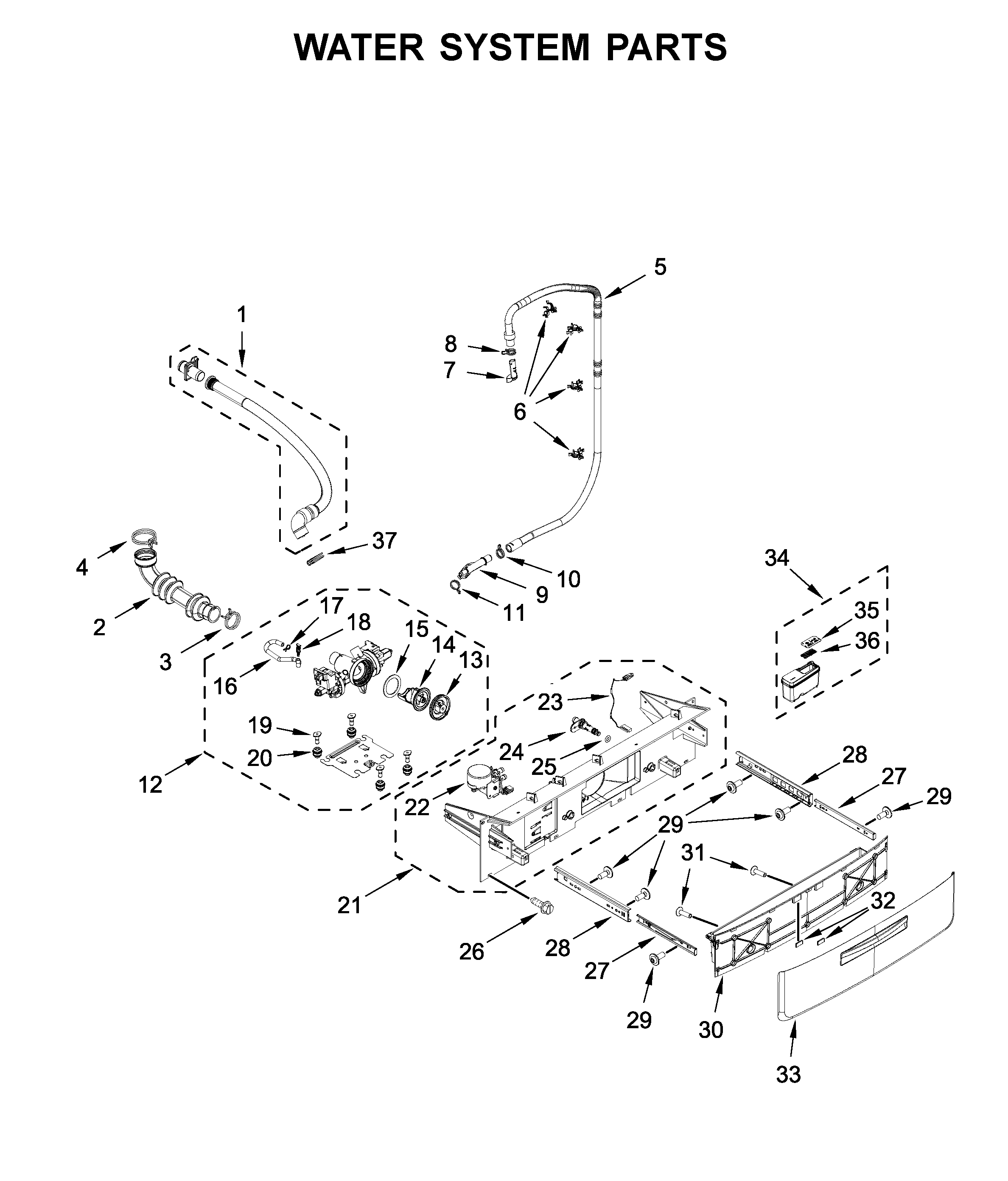

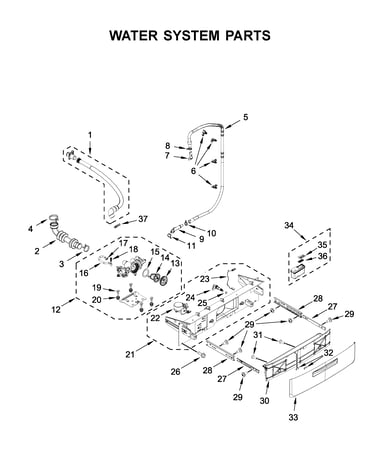

Water system parts diagram

Pump assembl

Part #W10918608

Replaced by #W11458345

?
Manufacturer substitution
This part replaces W10918608. Substitute parts can look different from the original.
BEST SELLER
$92.92 |
8% OFF Was : $101.00
In Stock
Bellow, D412 W10897390
#2

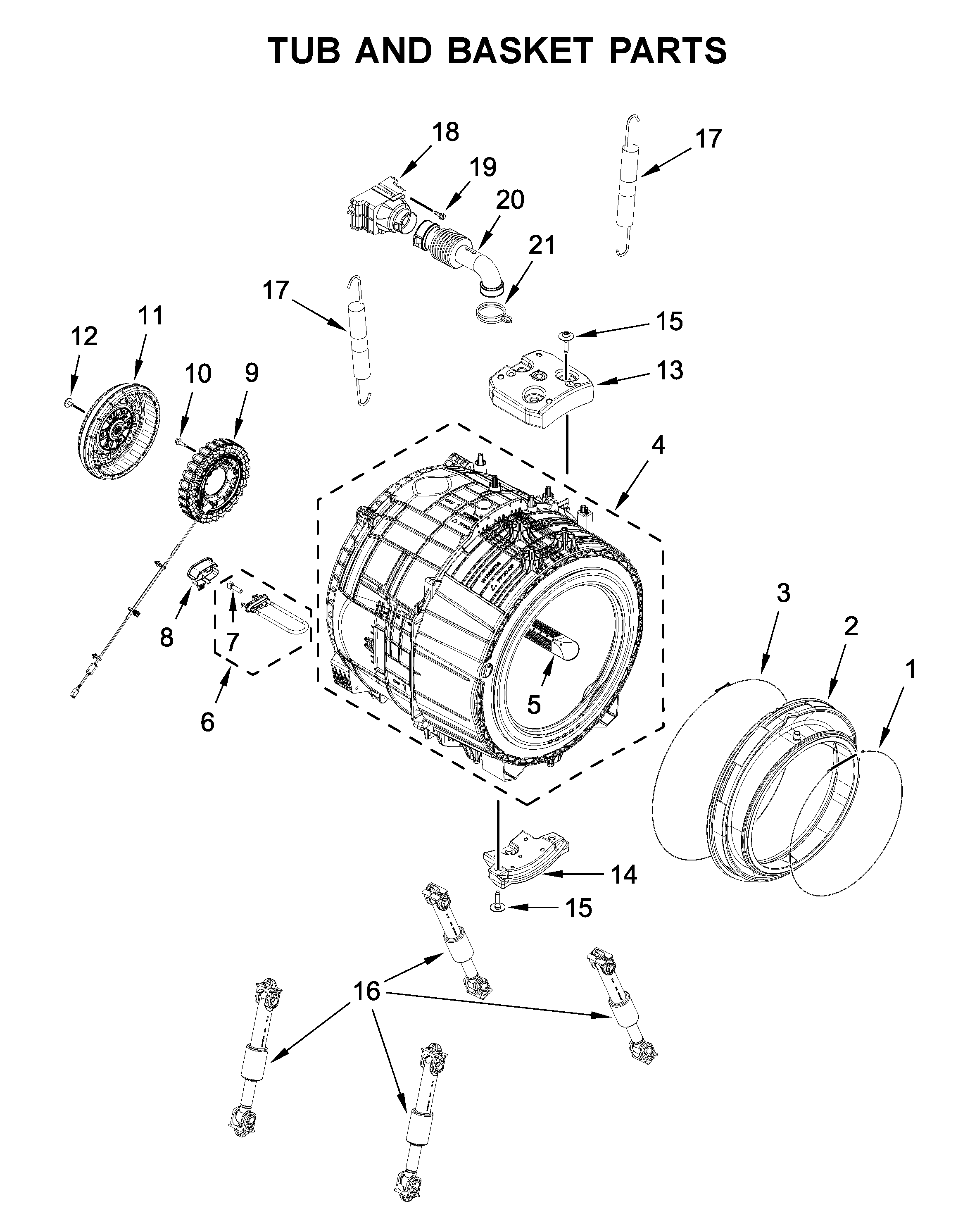

Tub and basket parts diagram

Bellow, d412

Part #W10897390

Replaced by #W11314648

?
Manufacturer substitution
This part replaces W10897390. Substitute parts can look different from the original.
BEST SELLER
$176.77 |
6% OFF Phone Price : $188.77
In Stock
Clamp W10096851
#3

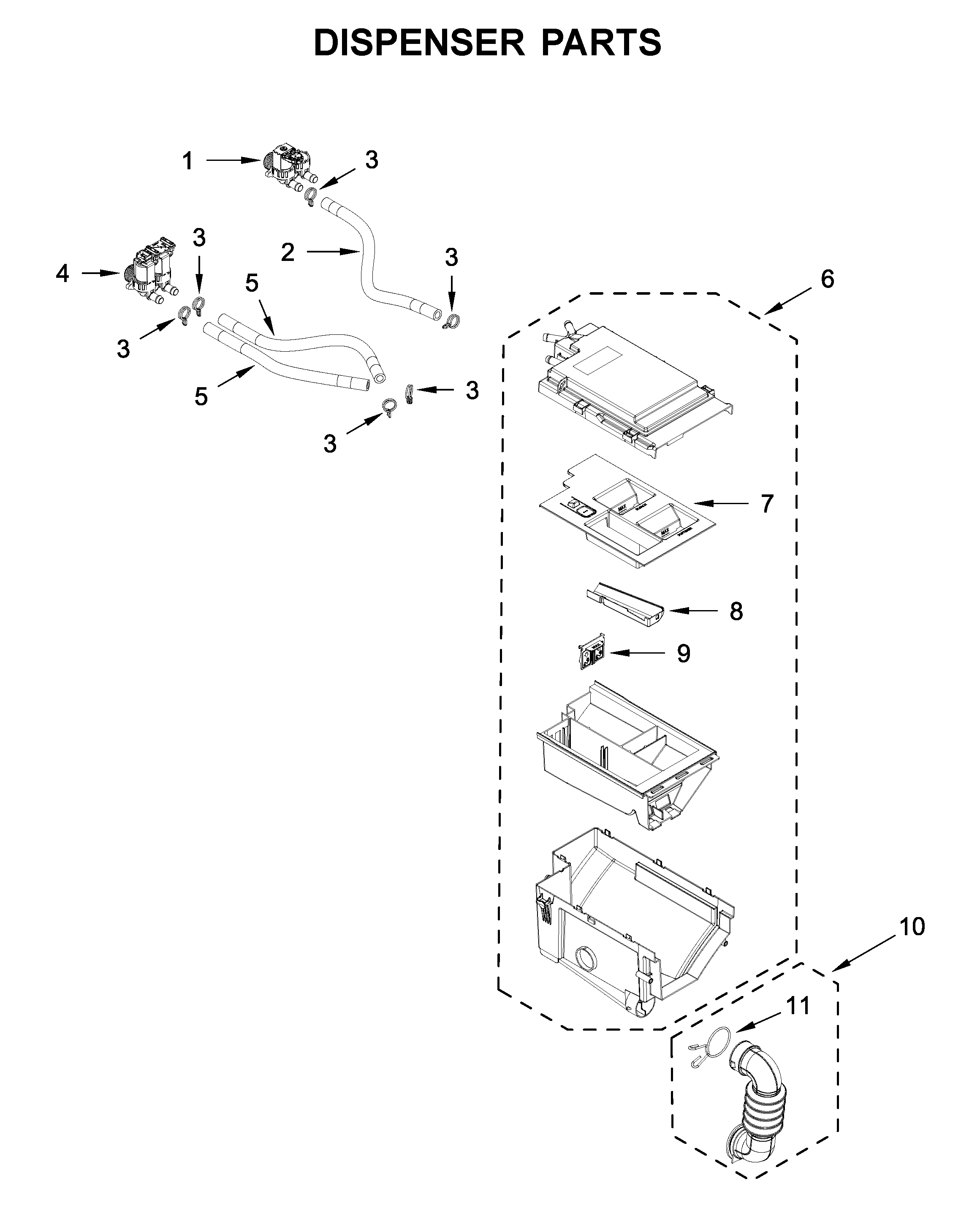

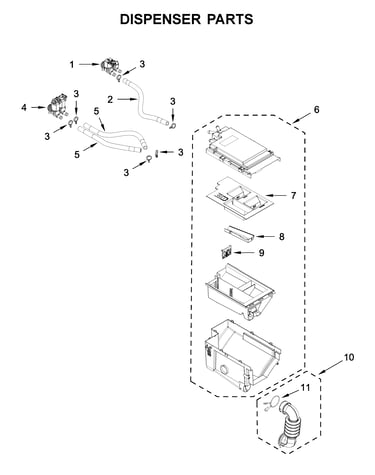

Dispenser parts diagram

Clamp

Part #W10096851

Replaced by #WP596669

?
Manufacturer substitution
This part replaces W10096851. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 9724996
#11

Water system parts diagram

Hose clamp

Part #9724996

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 9724996. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp 371503
#8

Water system parts diagram

Clamp

Part #371503

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 371503. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Ha15g Janus- W10804741
#15

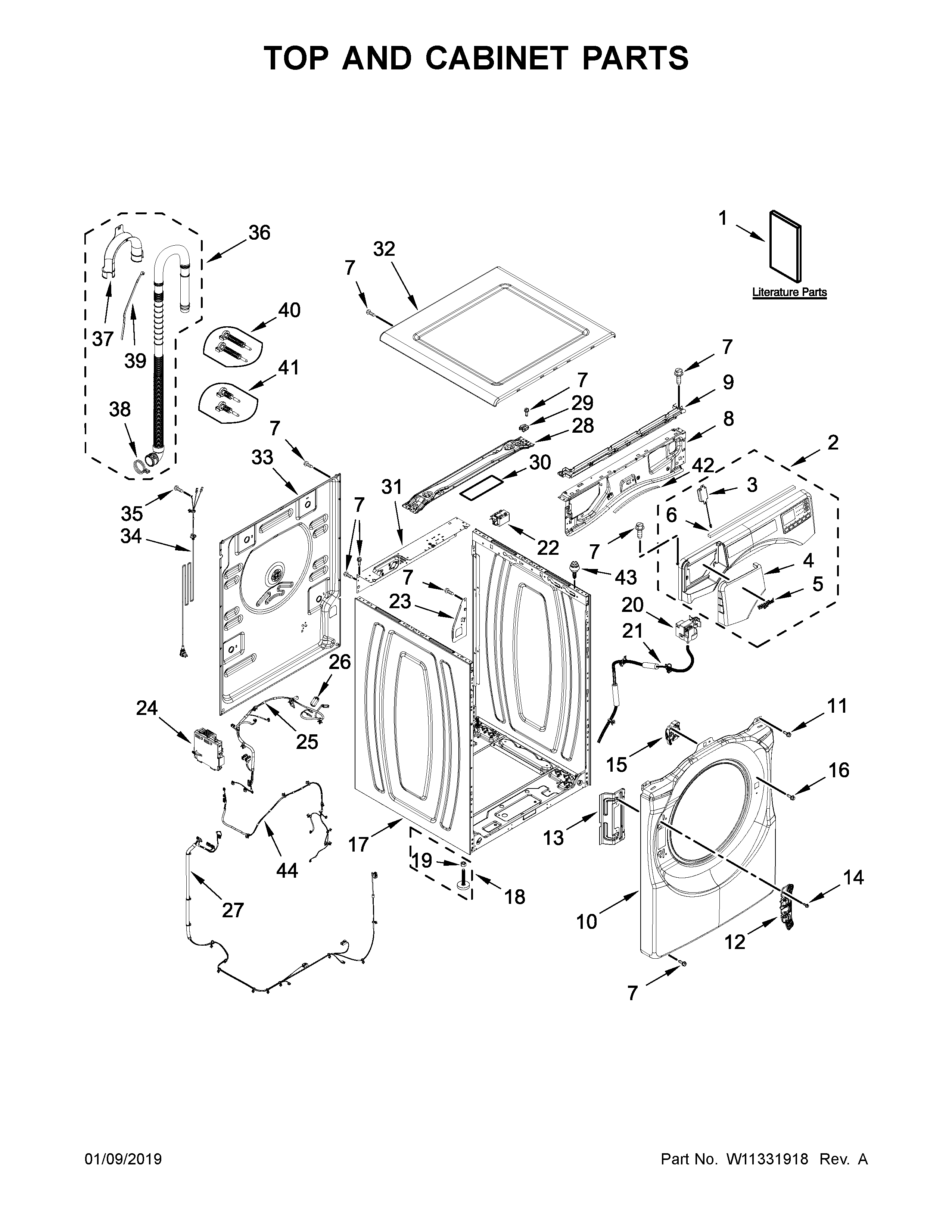

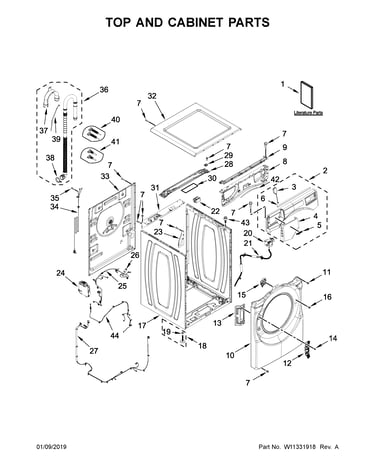

Top and cabinet parts diagram

Ha15g janus-

Part #W10804741

Replaced by #W11565030

?
Manufacturer substitution
This part replaces W10804741. Substitute parts can look different from the original.
BEST SELLER
$31.22 |
16% OFF Phone Price : $37.22
In Stock
Dispenser As W10918512
#6

Dispenser parts diagram

Dispenser as

Part #W10918512

Replaced by #W11524105

?
Manufacturer substitution
This part replaces W10918512. Substitute parts can look different from the original.
BEST SELLER
$48.49 |
11% OFF Phone Price : $54.49
In Stock
Console Assy W11294803
#2

Top and cabinet parts diagram

Console assy

Part #W11294803

Replaced by #W11319991

?
Manufacturer substitution
This part replaces W11294803. Substitute parts can look different from the original.
BEST SELLER
$187.53 |
6% OFF Phone Price : $199.53
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
