Model # HGS3023UC/12 Official Bosch range

Here are the diagrams and repair parts for Official Bosch HGS3023UC-12 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Ignition 00622493
#207

Valve assy diagram

Ignition

Part #00622493

Replaced by #00631765

?
Manufacturer substitution
This part replaces 00622493. Substitute parts can look different from the original.
$139.59 |
8% OFF Phone Price : $151.59
In Stock
Range Oven Control Board 00676846
#106

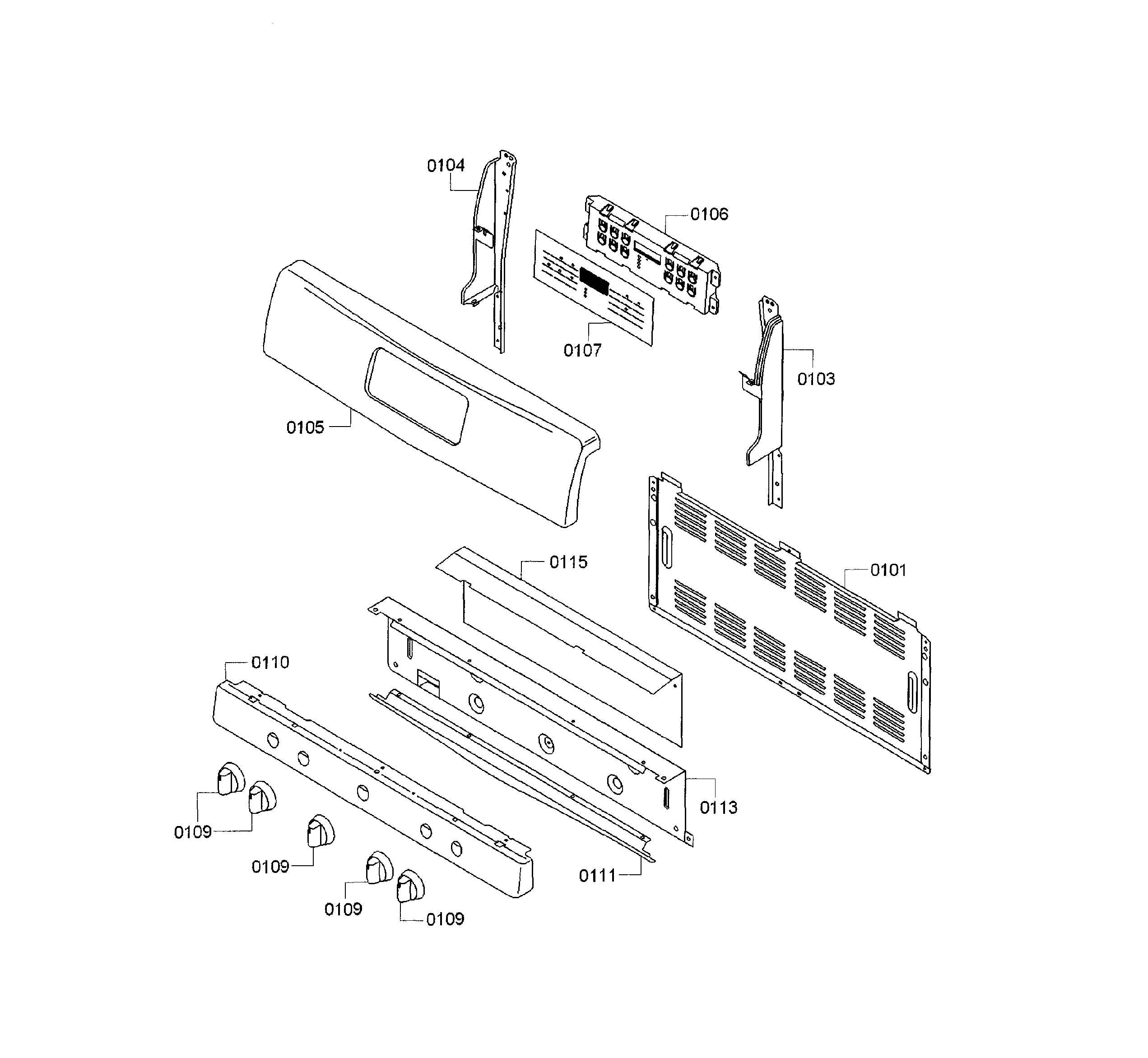

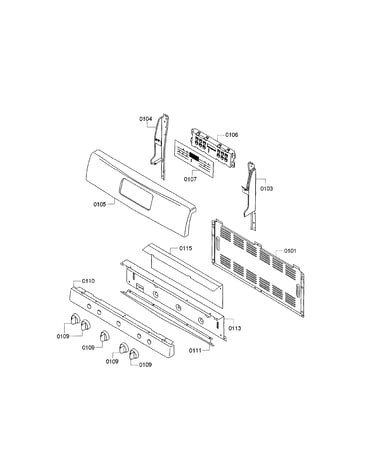

Control panel diagram

Range oven control board

Part #00676846

$257.49
In Stock
Burner 00676871
#223

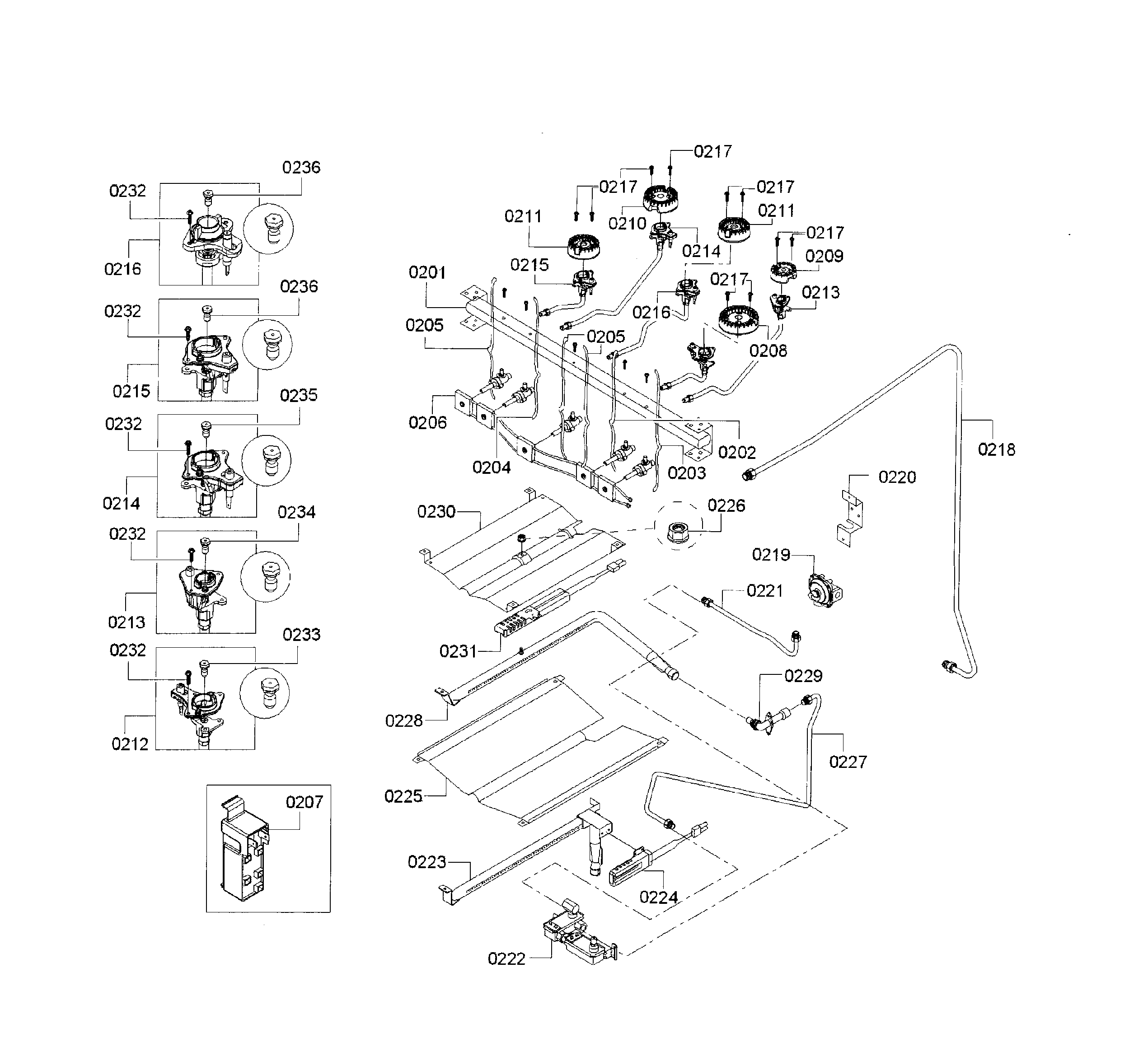

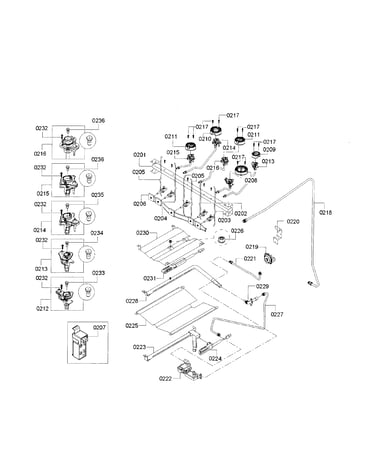

Valve assy diagram

Burner

Part #00676871

$270.45
In Stock
Cover 00751102
#342

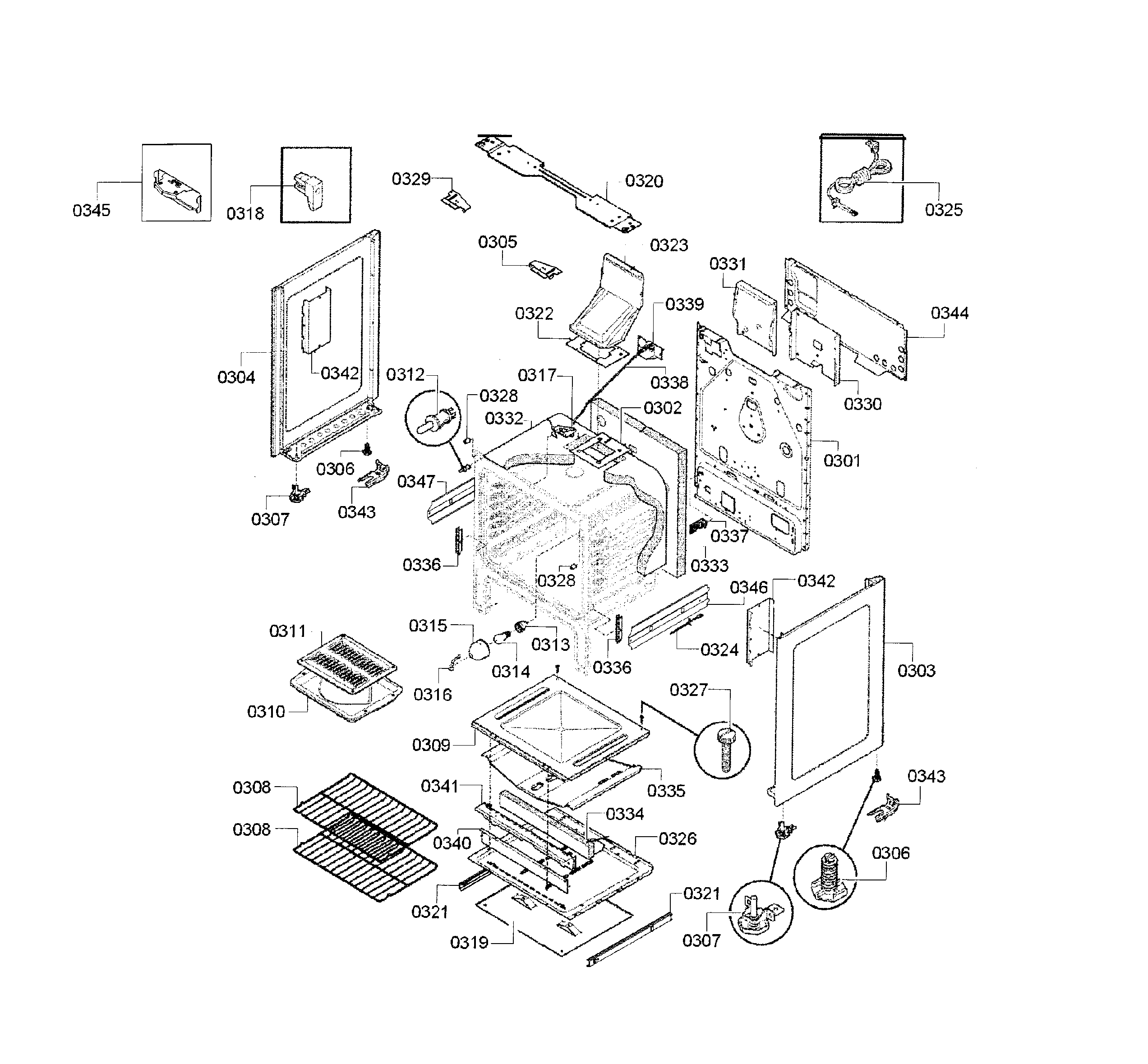

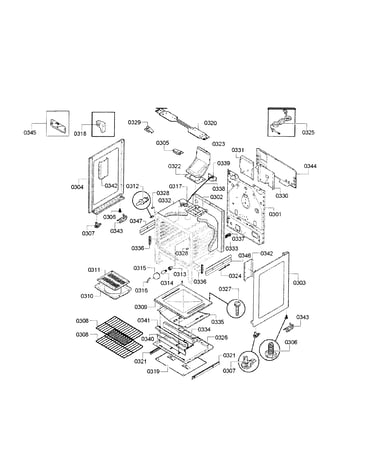

Main assy diagram

Cover

Part #00751102

$37.47
In Stock
Rod 00649274
#338

Main assy diagram

Rod

Part #00649274

$139.84
In Stock
Support 00684061
#320

Main assy diagram

Support

Part #00684061

$70.02
In Stock
Drawer Slide 00653939
#412

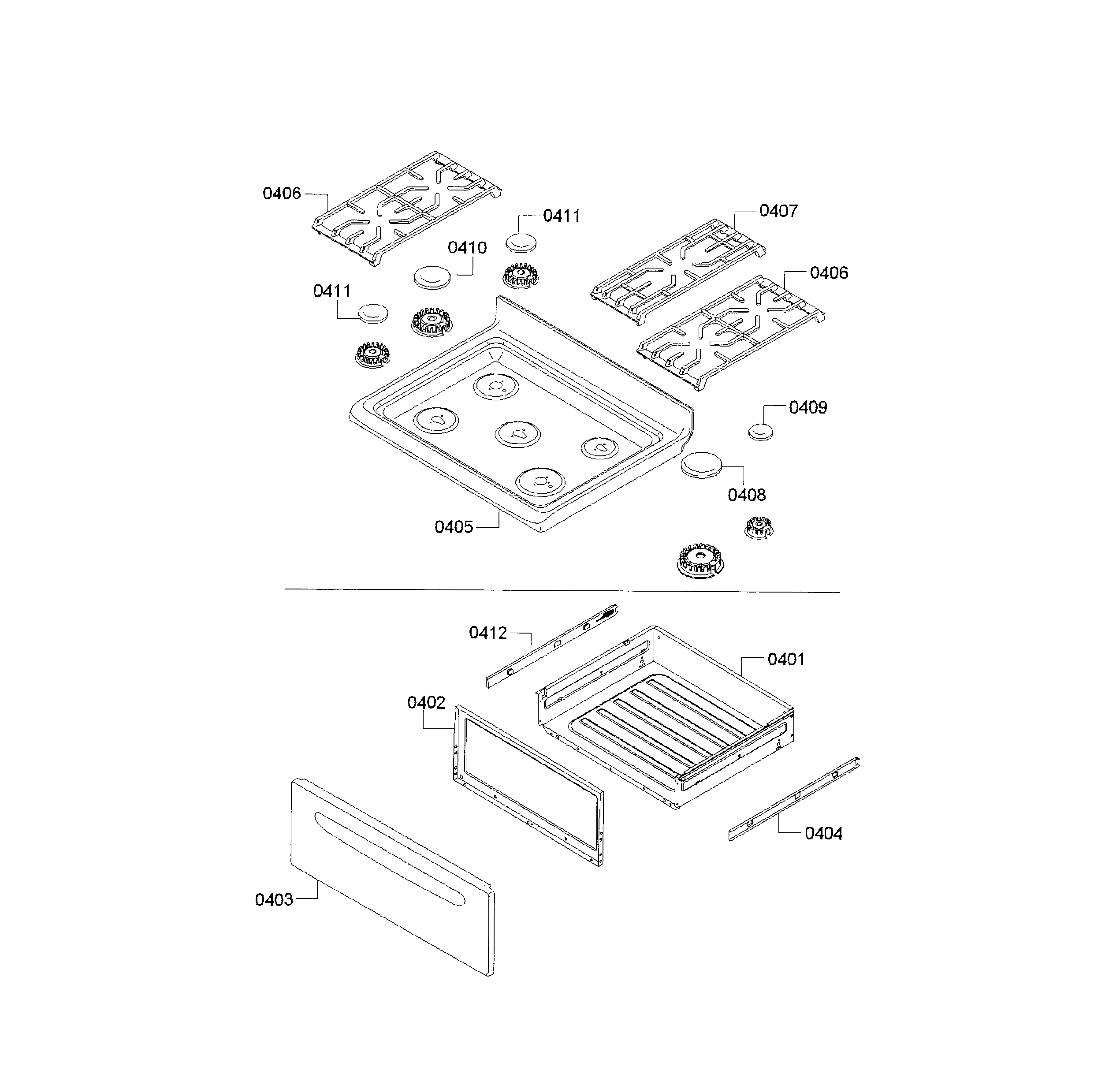

Cooktop & drawer diagram

Drawer slide

Part #00653939

$120.60 |
9% OFF Phone Price : $132.60
In Stock
Range Oven Door Inner Glass 00684076
#505

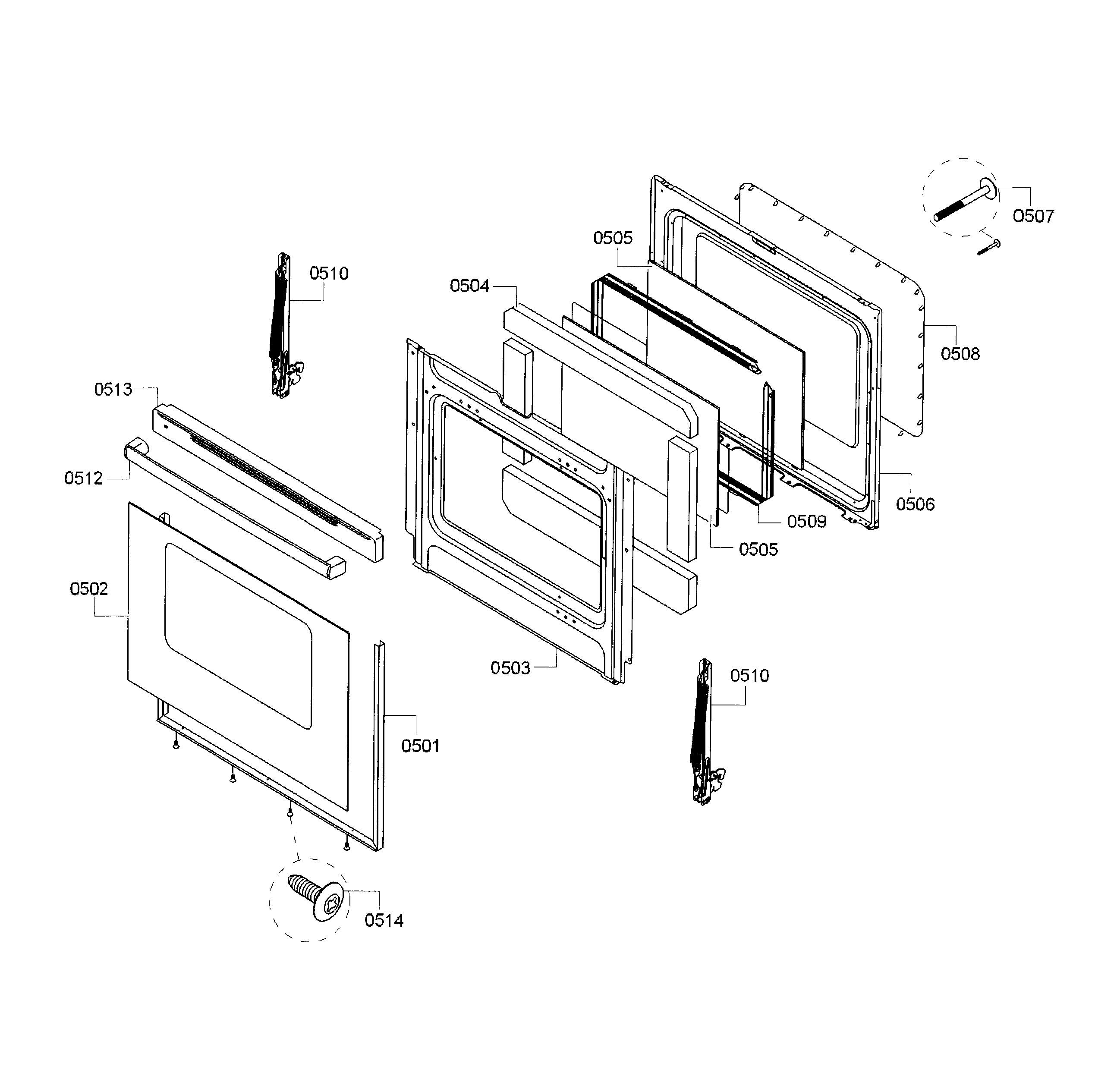

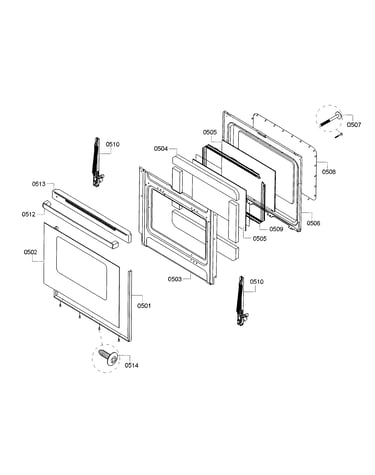

Door diagram

Range oven door inner glass

Part #00684076

$377.83
In Stock
Slide 00653941
#404

Cooktop & drawer diagram

Slide

Part #00653941

$123.40
In Stock
Clip 00621822
#NI

Control panel diagram

Clip

Part #00621822

$37.64
In Stock

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

View all

Why can't I unlock my range's oven door?

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Read more

Why is my range's oven temperature wrong?

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Read more

Why won't my range's oven heat?

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Read more

How do I get rid of streaks on my range's oven window?

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…

Read more

Why doesn't my range's oven broiler work?

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Read more

Why won't my range's oven bake?

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

Read more

Why isn't my range working?

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…

Read more
