Kenmore
Gas Water Heater

Model # 153330750 Official Kenmore power miser 10 gas water heater

Here are the diagrams and repair parts for Official Kenmore 153330750 power miser 10 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Rod 9001792
#21

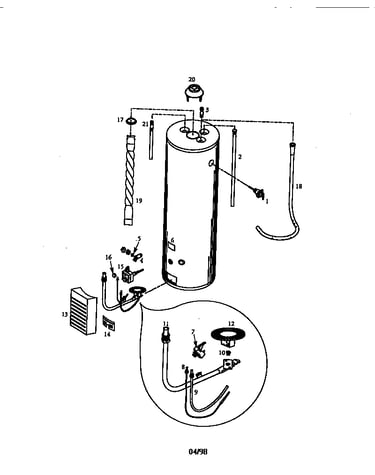

75 gallon diagram

Rod

Part #9001792

Replaced by #100300397

?
Manufacturer substitution
This part replaces 9001792. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
Burner 9002411
#12

75 gallon diagram

Burner

Part #9002411

Replaced by #9003631005

?
Manufacturer substitution
This part replaces 9002411. Substitute parts can look different from the original.
$46.79 |
11% OFF Phone Price : $52.79
In Stock
Water Heater Manifold Inner Door 9000281
#14

75 gallon diagram

Water heater manifold inner door

Part #9000281

$17.69 |
10% OFF Phone Price : $19.69
In Stock
Ring 9001208
#17

75 gallon diagram

Ring

Part #9001208

Replaced by #100108507

?
Manufacturer substitution
This part replaces 9001208. Substitute parts can look different from the original.
$31.11
In Stock
Water Heater Drain Valve 9000254
#4

75 gallon diagram

Water heater drain valve

Part #9000254

Replaced by #100108361

?
Manufacturer substitution
This part replaces 9000254. Substitute parts can look different from the original.
$17.14
In Stock
Water Heater Gas Control Valve Knob F145-1280
#16

75 gallon diagram

Water heater gas control valve knob

Part #F145-1280

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod 9000734
#2

75 gallon diagram

Anode rod

Part #9000734

Replaced by #100108660

?
Manufacturer substitution
This part replaces 9000734. Substitute parts can look different from the original.
$60.00
In Stock
Water Heater Pilot Tube Assembly (replaces Std317025, Std317255) 9000278
#9

75 gallon diagram

Water heater pilot tube assembly (replaces std317025, std317255)

Part #9000278

Replaced by #100108370

?
Manufacturer substitution
This part replaces 9000278. Substitute parts can look different from the original.
$36.67
In Stock
Pilot 9000284
#7

75 gallon diagram

Pilot

Part #9000284

Replaced by #100109070

?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
Manifold 9002460
#11

75 gallon diagram

Manifold

Part #9002460

Replaced by #100108818

?
Manufacturer substitution
This part replaces 9002460. Substitute parts can look different from the original.
$54.44
In Stock
