Model # PWR04FANBBS Official GE refrigerator - n series

Here are the diagrams and repair parts for Official GE PWR04FANBBS refrigerator - n series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 36 parts |

#12

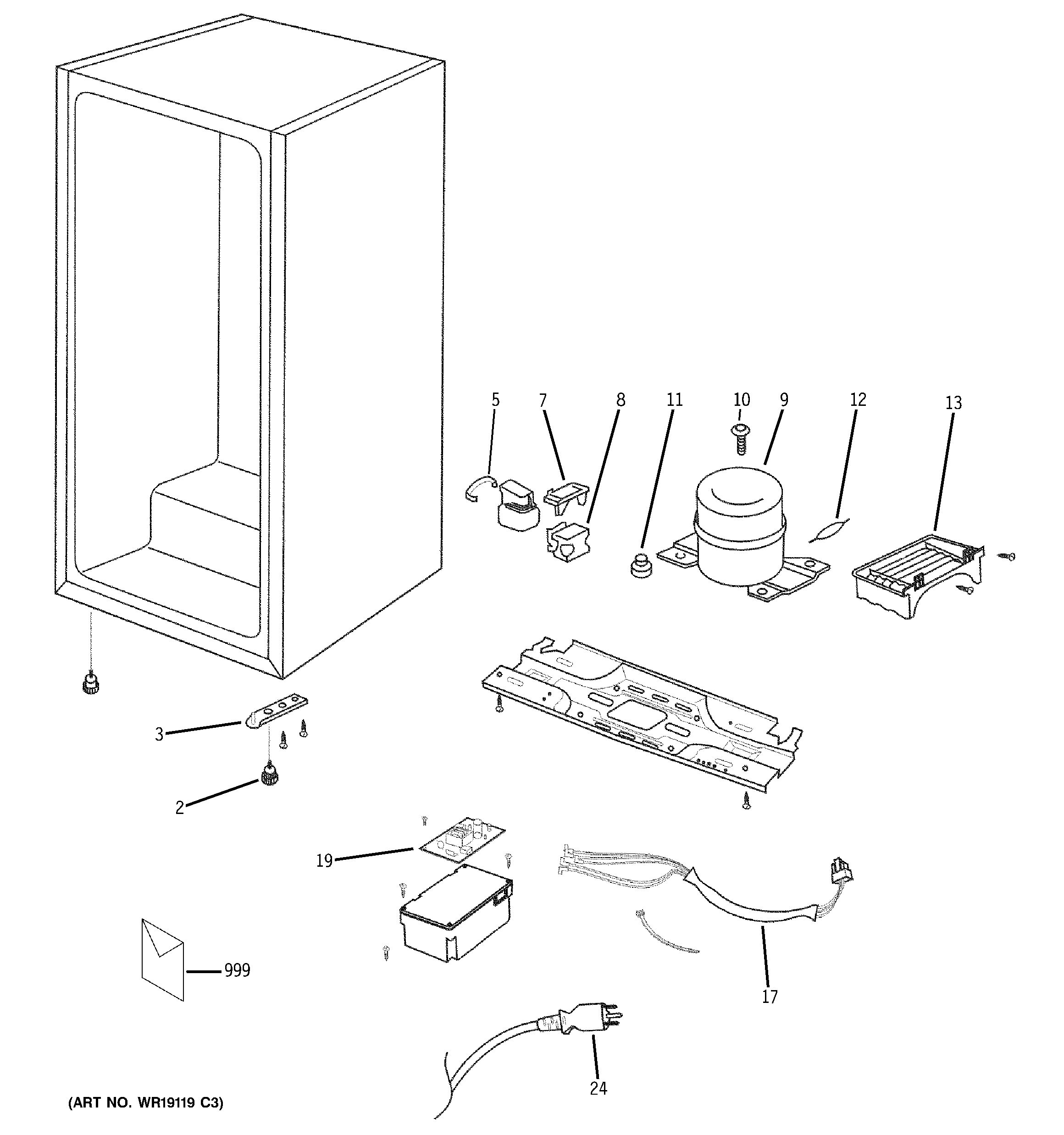

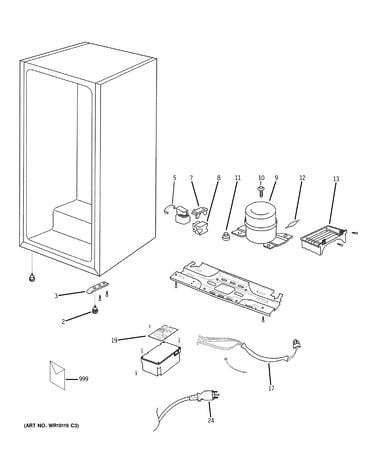

Unit parts diagram

Dryer assembly

Part #WR86X0093

Replaced by #WR86X25269

$79.18 |

7% OFF Phone Price : $85.18

In Stock

Qty

Beverage Cooler Temperature Sensor WR23X10278

#46

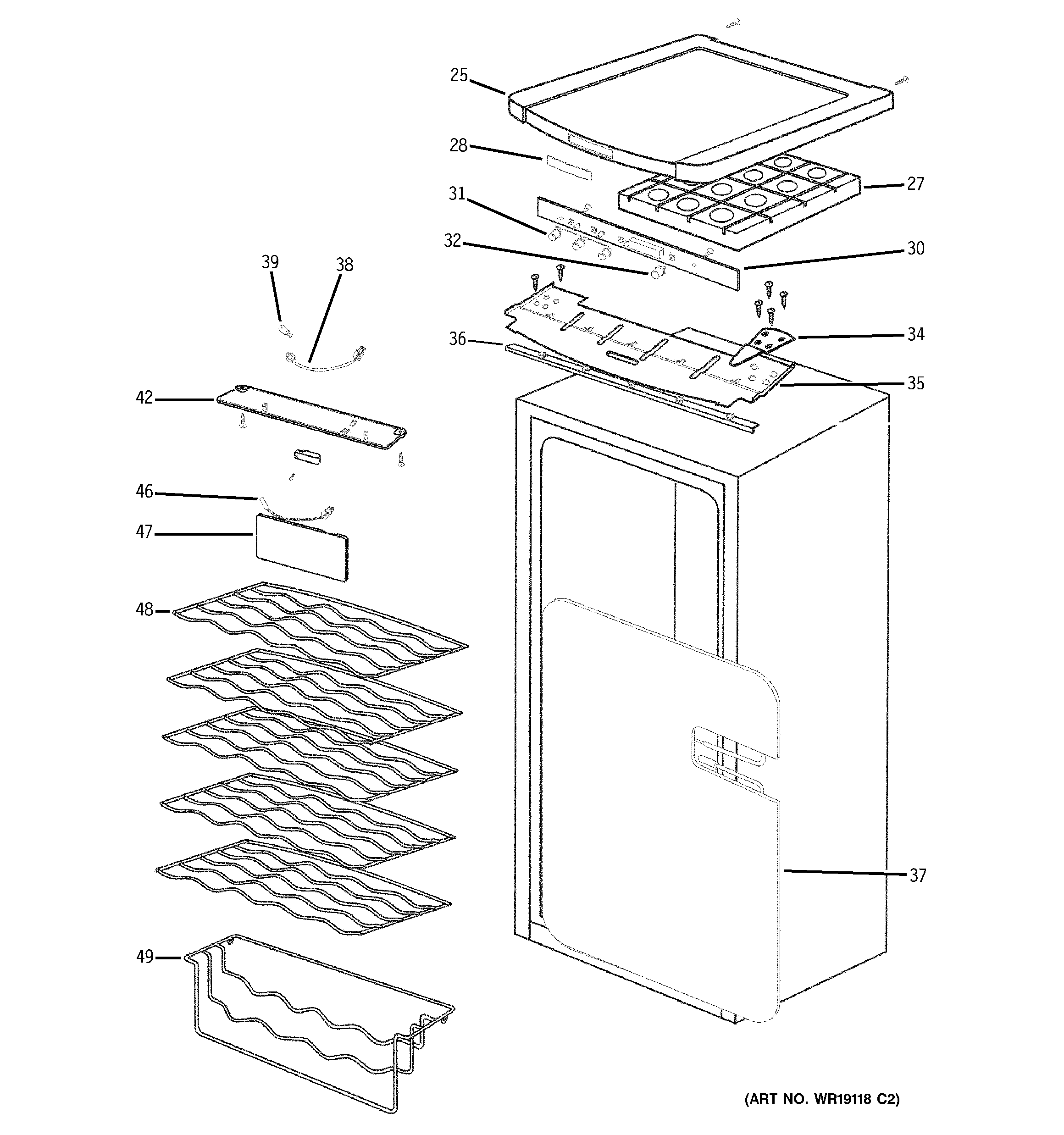

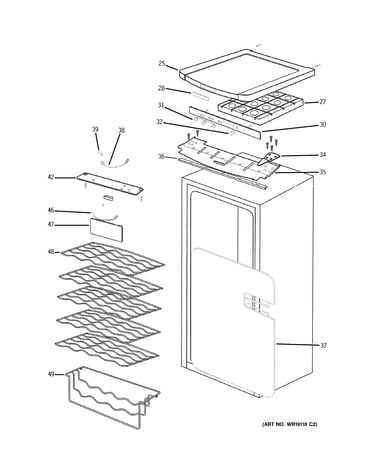

Cabinet diagram

Beverage cooler temperature sensor

Part #WR23X10278

$82.19 |

7% OFF Phone Price : $88.19

In Stock

Qty

#32

Cabinet diagram

Button r

Part #WR02X11278

The manufacturer no longer makes this part, and there's no substitute part

#51

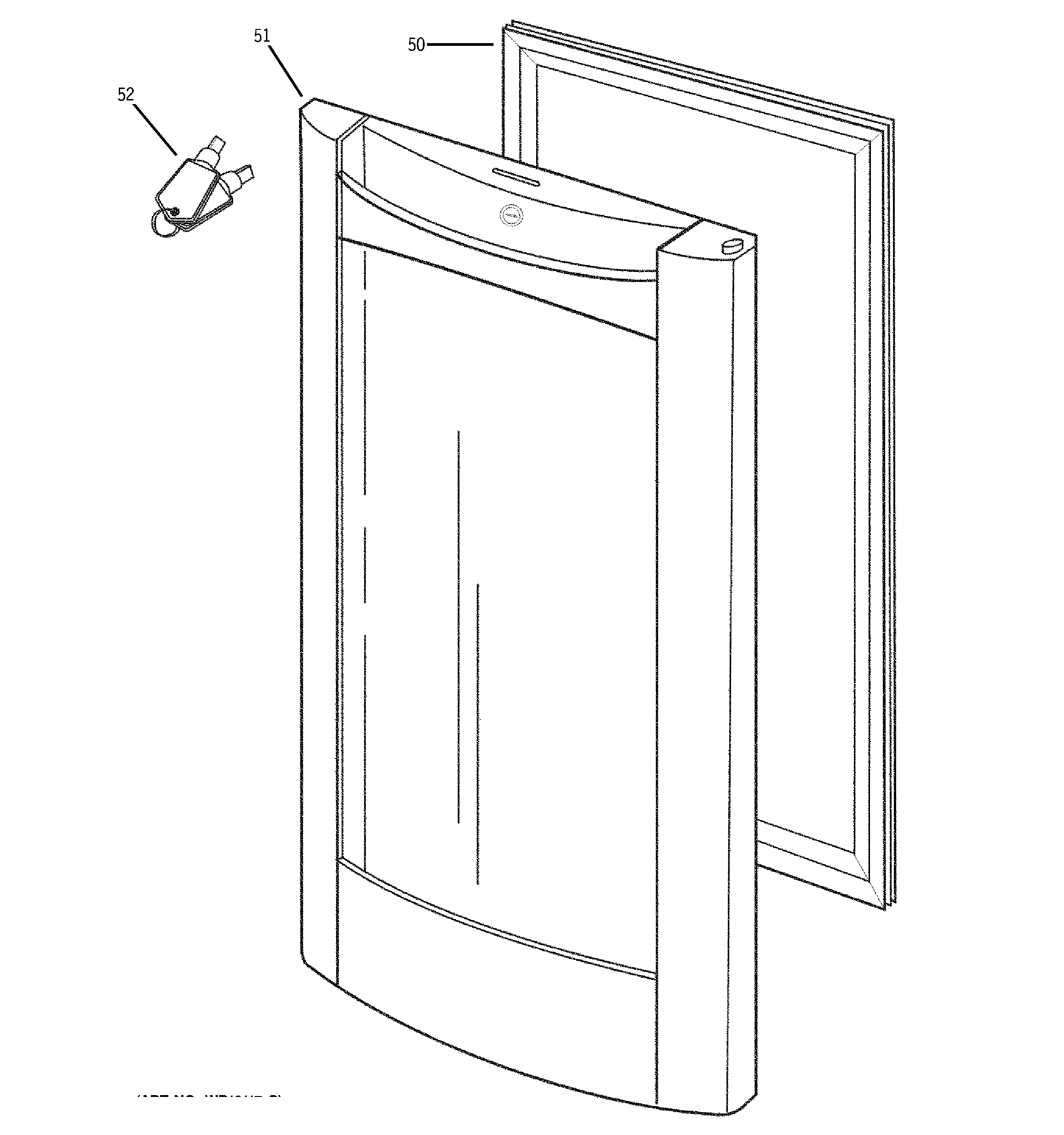

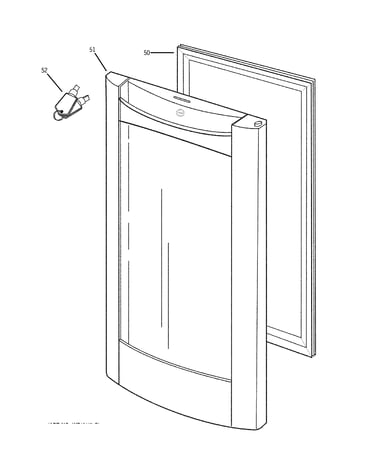

Door diagram

Door assy,bl

Part #WR78X11895

The manufacturer no longer makes this part, and there's no substitute part

#30

Cabinet diagram

Wine cooler display board

Part #WR09X10083

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Guard

Part #WR08X5195

The manufacturer no longer makes this part, and there's no substitute part

#37

Cabinet diagram

Evaporator assembly

Part #WR37X10005

The manufacturer no longer makes this part, and there's no substitute part

#35

Cabinet diagram

Reinf top ta

Part #WR17X11301

The manufacturer no longer makes this part, and there's no substitute part

#50

Door diagram

Door gasket

Part #WR14X10211

The manufacturer no longer makes this part, and there's no substitute part

#24

Unit parts diagram

Power cord

Part #WR23X10523

The manufacturer no longer makes this part, and there's no substitute part
