GE
Bottom-Mount Refrigerator

Model # PFSF6PKXBBB Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE PFSF6PKXBBB bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

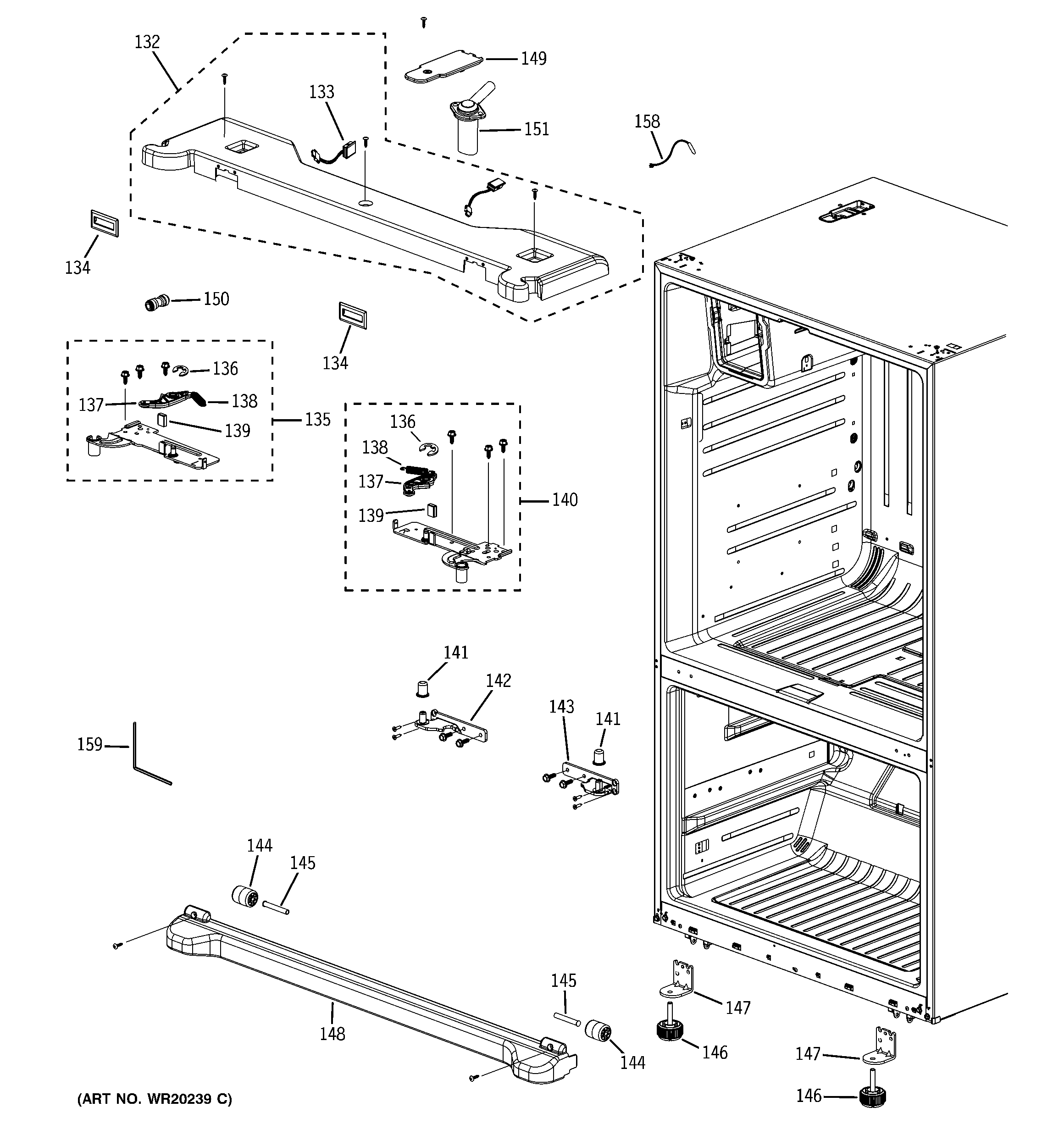

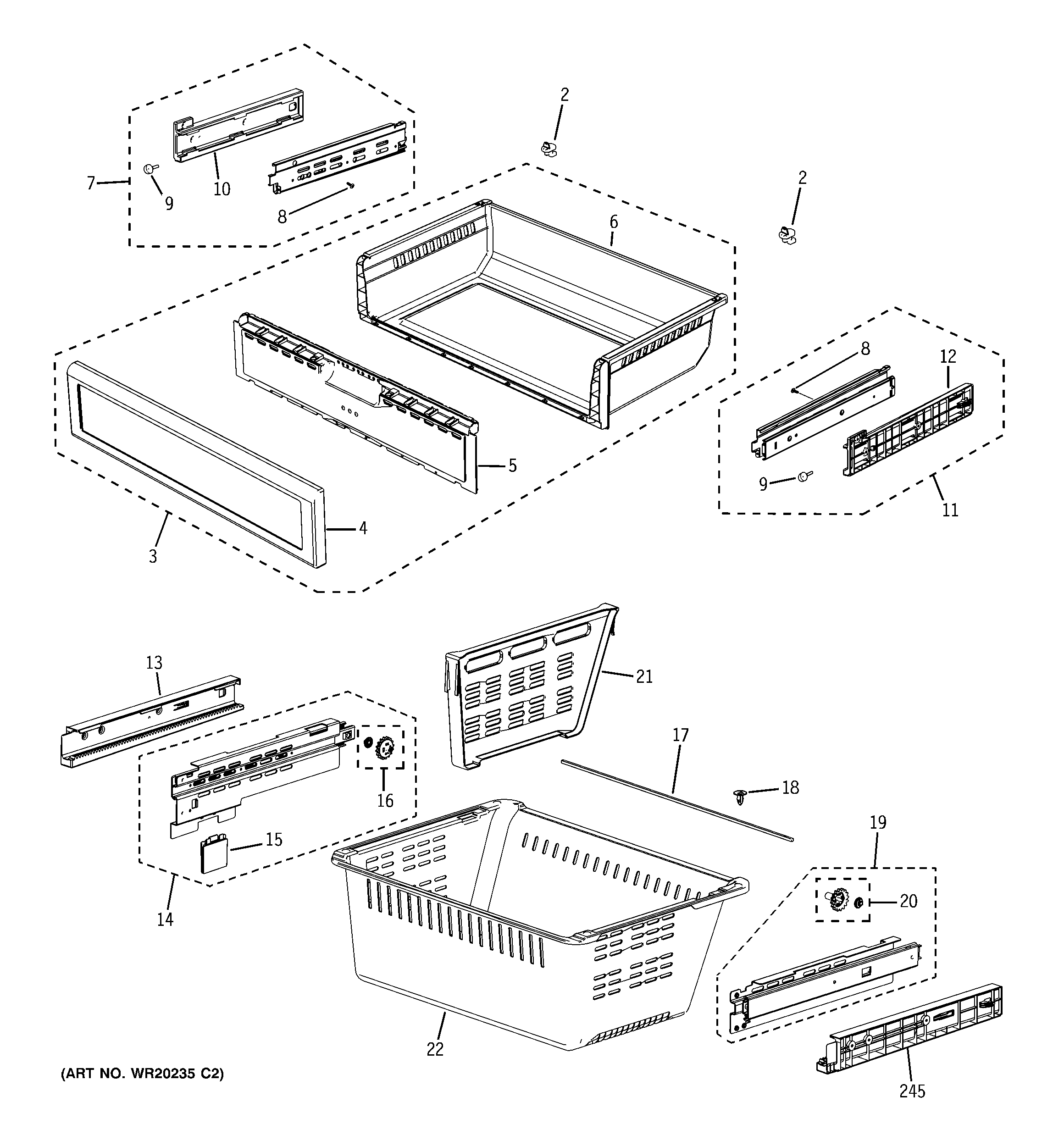

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 263 parts  |
Refrigerator Incandescent Lamp WR02X12594
#33

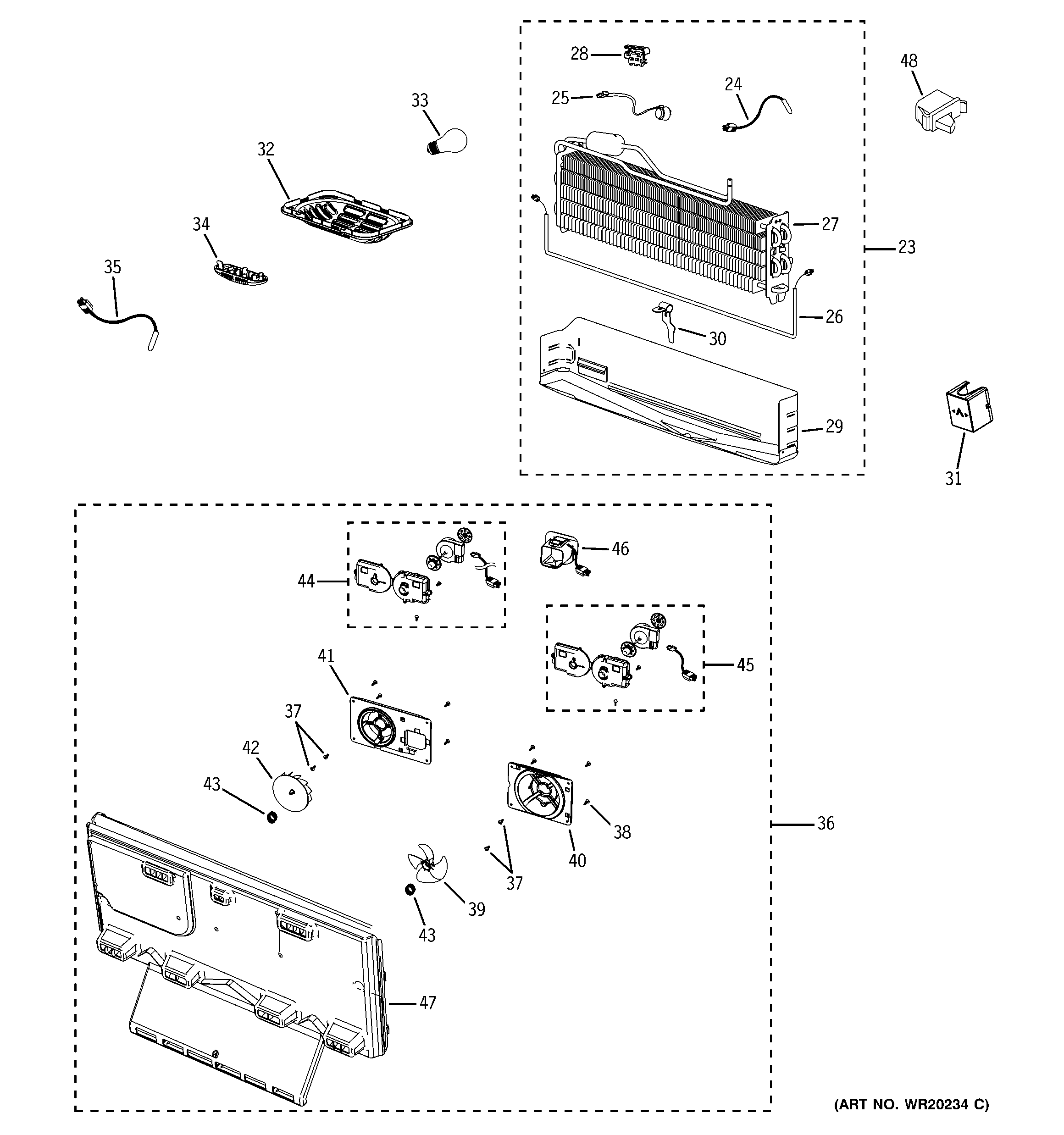

Freezer section diagram

Refrigerator incandescent lamp

Part #WR02X12594

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12594. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Temperature Sensor (replaces Wr23x10581) WR23X10582
Refrigerator temperature sensor (replaces wr23x10581)

Part #WR23X10582

BEST SELLER
$78.11 |
7% OFF Phone Price : $84.11
In Stock
Refrigerator Sensor WR23X10581
#24

Freezer section diagram

Refrigerator sensor

Part #WR23X10581

Replaced by #WR23X10582

?
Manufacturer substitution
This part replaces WR23X10581. Substitute parts can look different from the original.
BEST SELLER
$78.11 |
7% OFF Phone Price : $84.11
In Stock
Refrigerator Fresh Food Evaporator Cover And Fan Assembly WR13X10658
#97

Fresh food section diagram

Refrigerator fresh food evaporator cover and fan assembly

Part #WR13X10658

BEST SELLER
$234.95 |
5% OFF Phone Price : $246.95
In Stock
Refrigerator Water Inlet Valve Assembly WR57X10082
#187

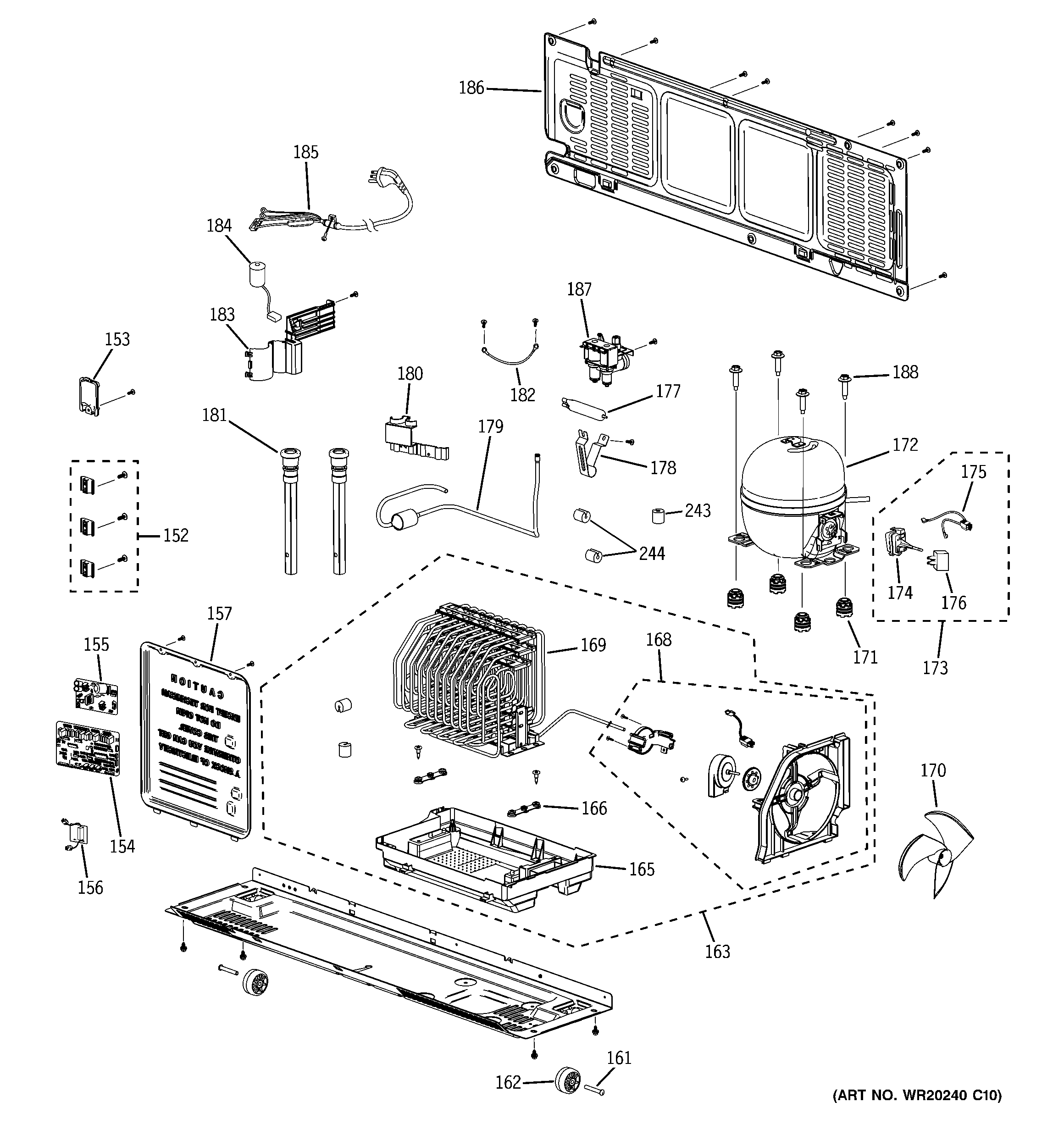

Unit parts diagram

Refrigerator water inlet valve assembly

Part #WR57X10082

$190.00 |
6% OFF Phone Price : $202.00
In Stock
Asm-tray Ice WR29X10088
#122

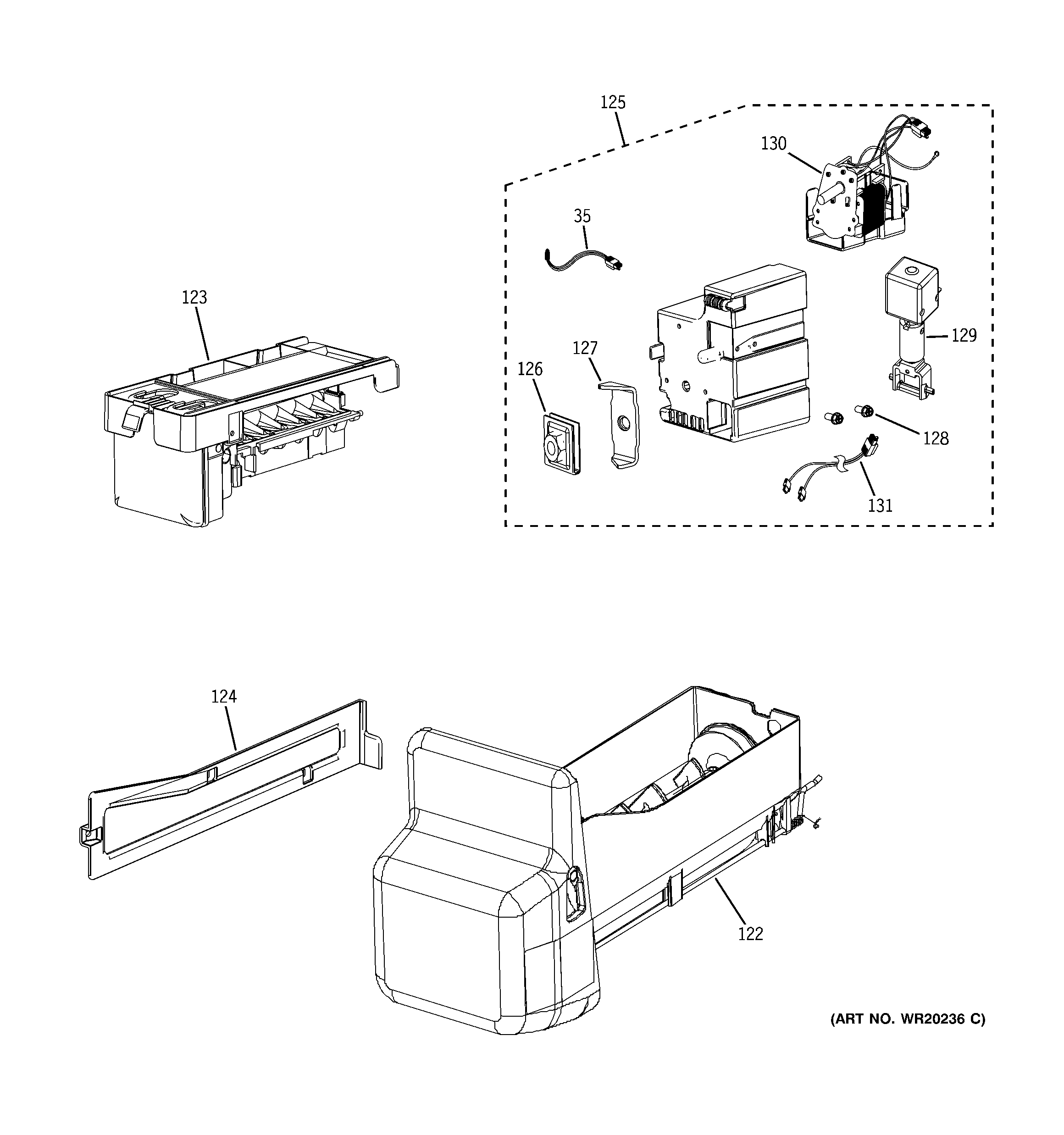

Ice maker & dispenser diagram

Asm-tray ice

Part #WR29X10088

Replaced by #WR29X10097

?
Manufacturer substitution
This part replaces WR29X10088. Substitute parts can look different from the original.
$199.20 |
6% OFF Phone Price : $211.20
In Stock
Refrigerator Water Filter Head (replaces Wr85x10092) WR17X12469
#114

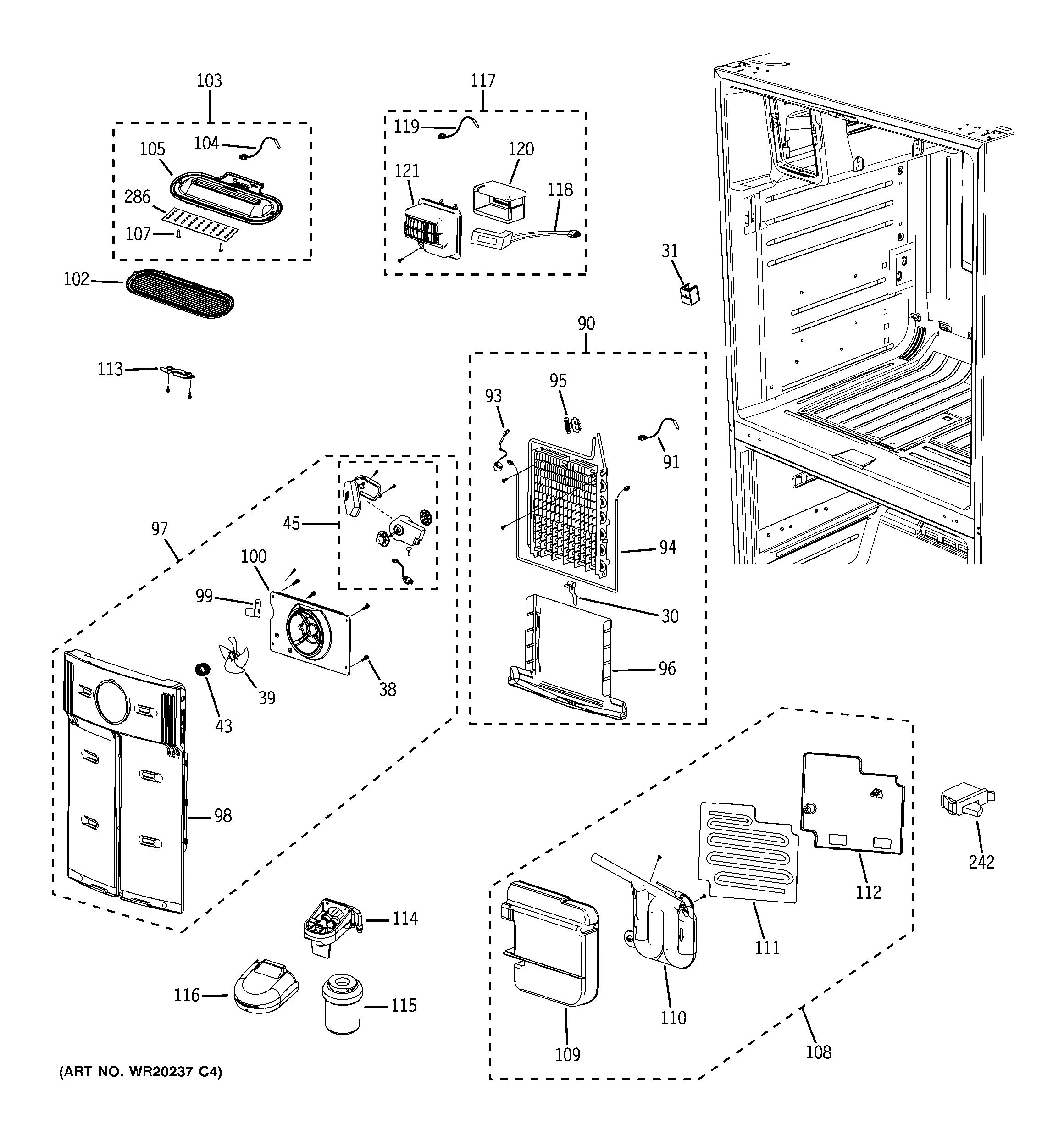

Fresh food section diagram

Refrigerator water filter head (replaces wr85x10092)

Part #WR17X12469

$195.17 |
6% OFF Phone Price : $207.17
In Stock
Refrigerator Freezer Evaporator Cover And Fan Assembly WR17X12467
#36

Freezer section diagram

Refrigerator freezer evaporator cover and fan assembly

Part #WR17X12467

$345.91 |
$12.00 OFF Phone Price : $357.91
In Stock
Refrigerator Door Gasket (replaces Wr24x10241) WR24X10201
#234

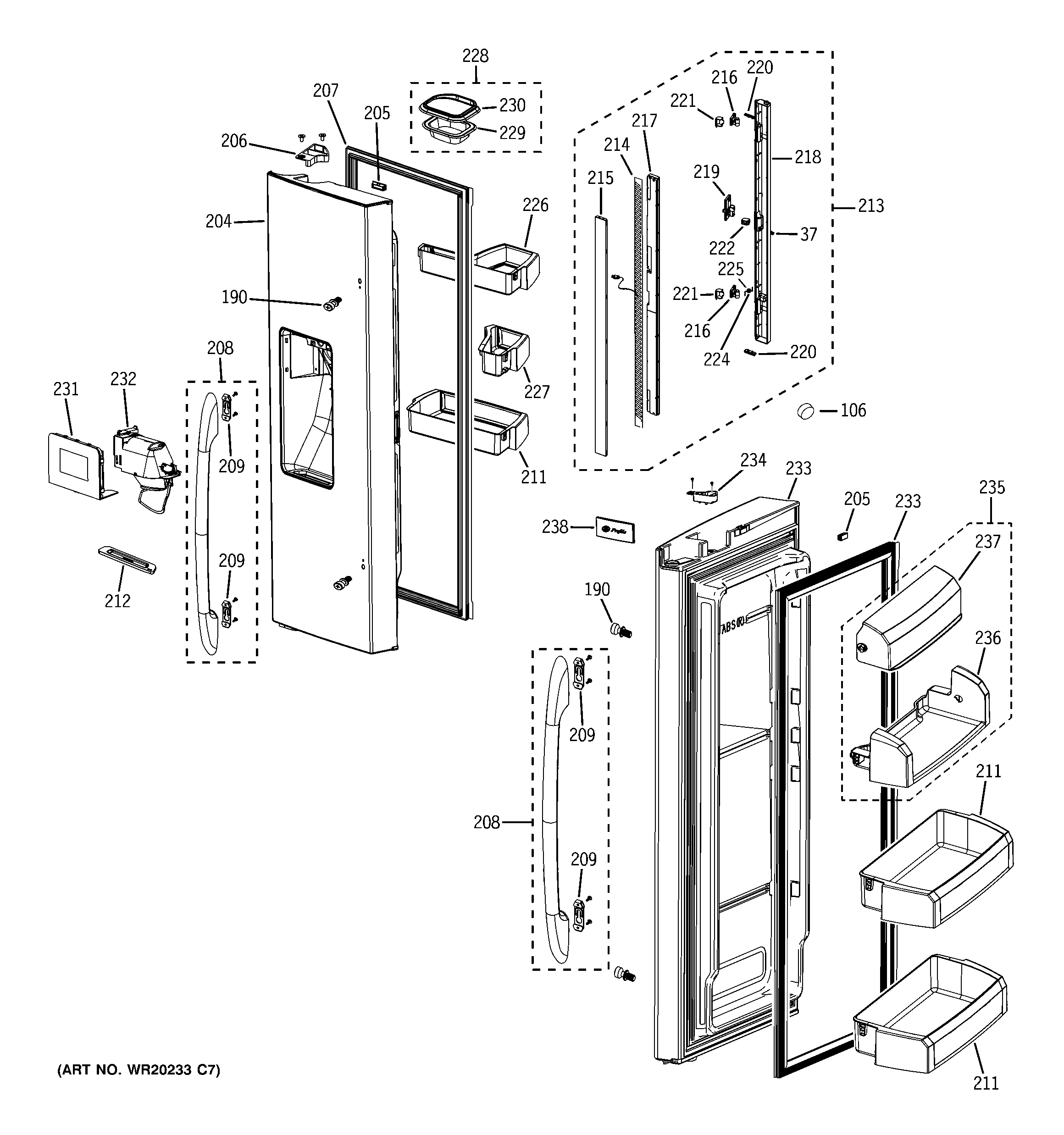

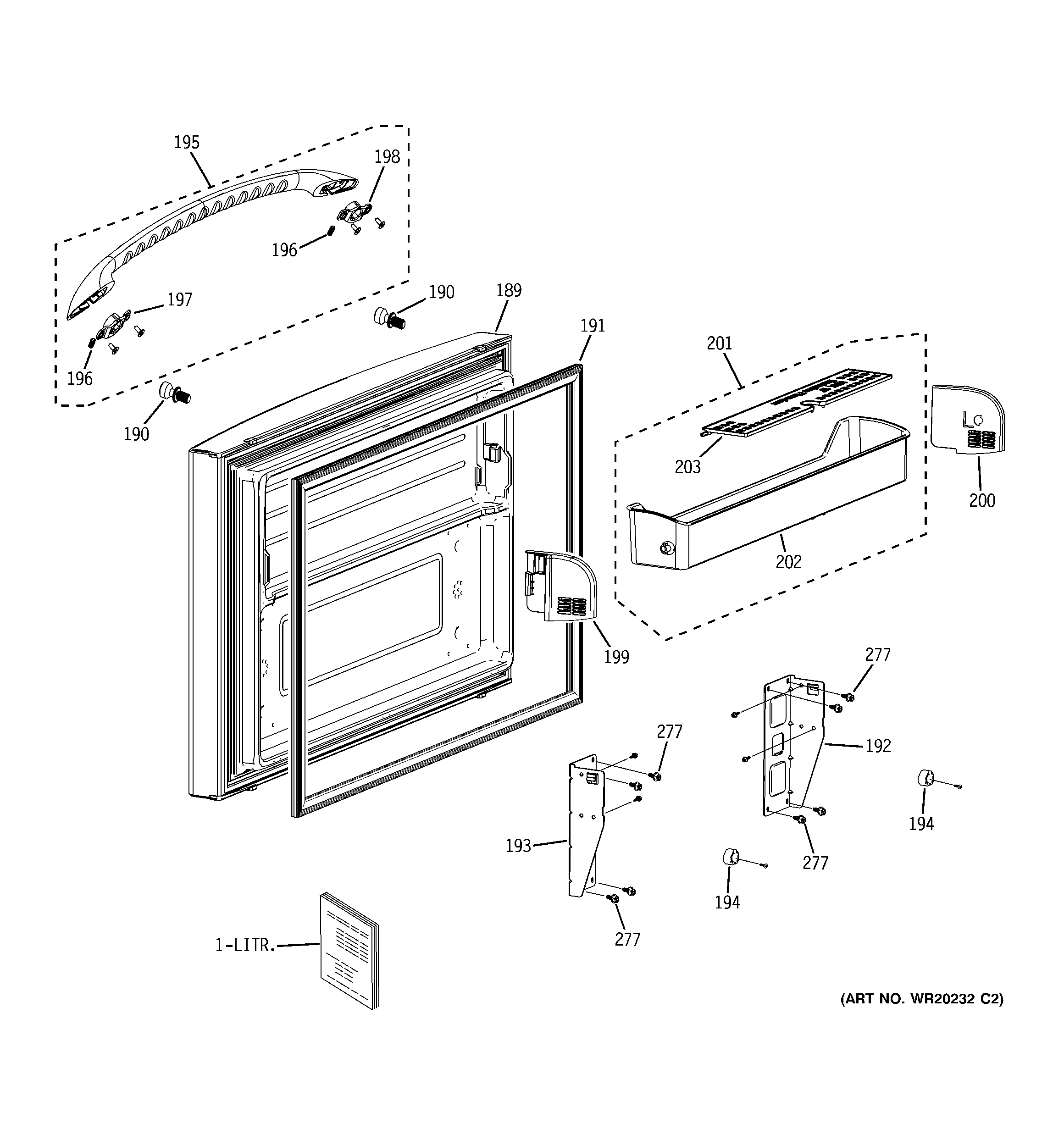

Fresh food doors diagram

Refrigerator door gasket (replaces wr24x10241)

Part #WR24X10201

$135.81 |
8% OFF Phone Price : $147.81
In Stock
Refrigerator Crisper Drawer Cover Assembly (replaces Wr13x10957, Wr17x12383, Wr17x12391, Wr32x10678, Wr32x10802) WR32X10662
#62

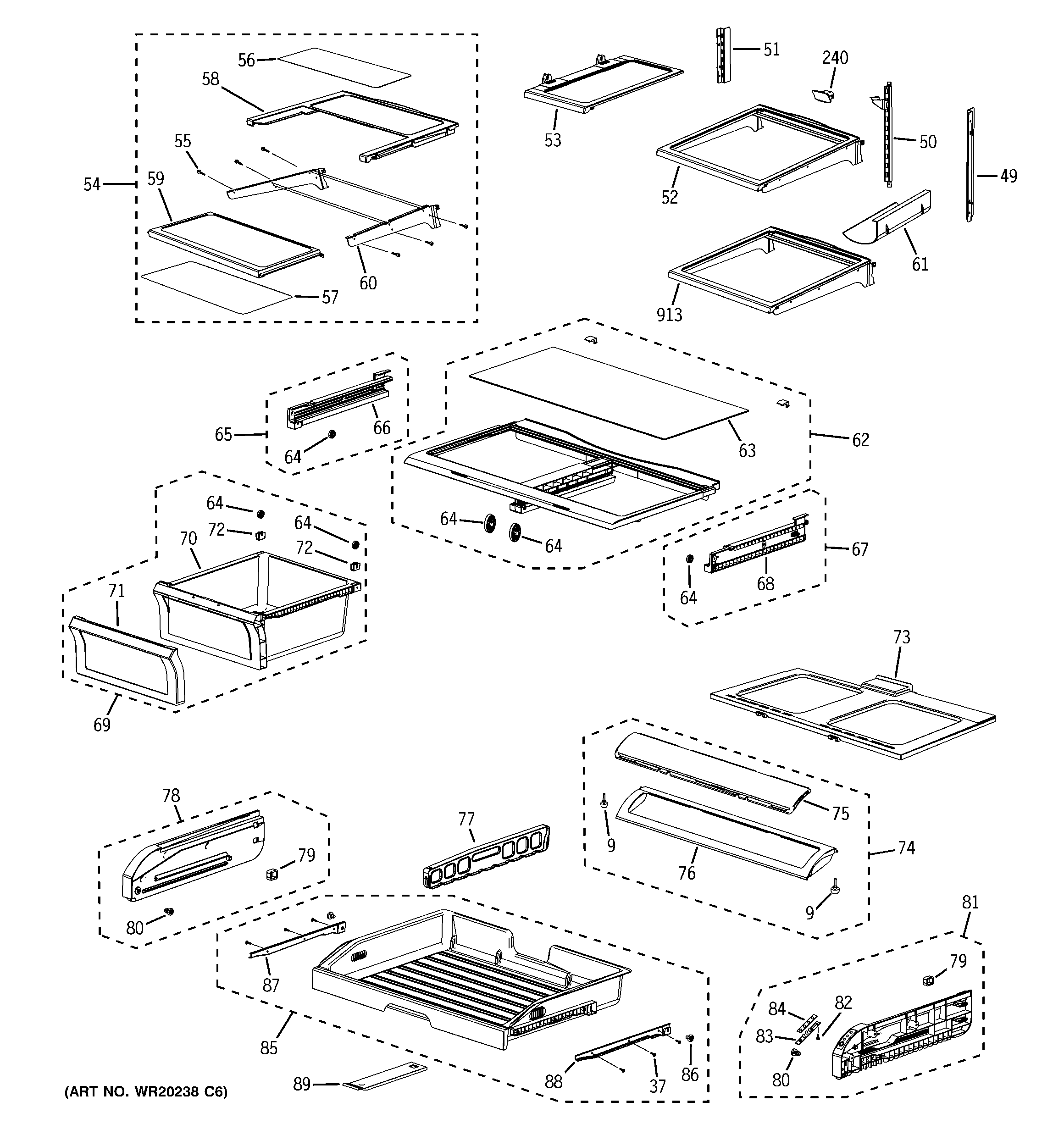

Fresh food shelves diagram

Refrigerator crisper drawer cover assembly (replaces wr13x10957, wr17x12383, wr17x12391, wr32x10678, wr32x10802)

Part #WR32X10662

$204.33 |
6% OFF Phone Price : $216.33
In Stock
