Model # GI5FSAXVY03 Official Whirlpool refrigerator
Here are the diagrams and repair parts for Official Whirlpool GI5FSAXVY03 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forGI5FSAXVY03 Refrigerators
- #27

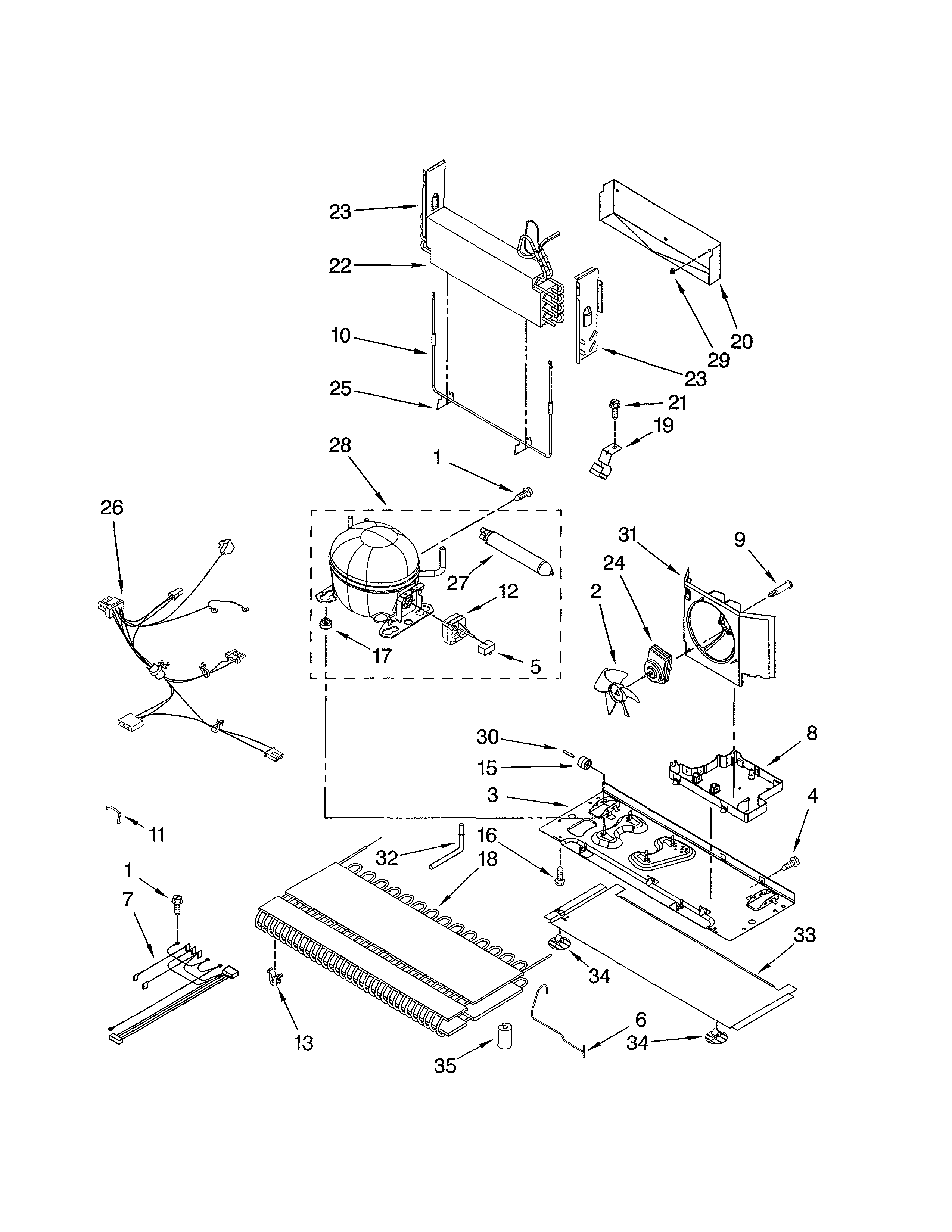

Unit parts diagram
Refrigerator uv filter dryerPart #W10143759
Replaced by #WPW10143759
?Manufacturer substitutionThis part replaces W10143759. Substitute parts can look different from the original.$20.04 |23% OFF Phone Price : $26.04In Stock - #6

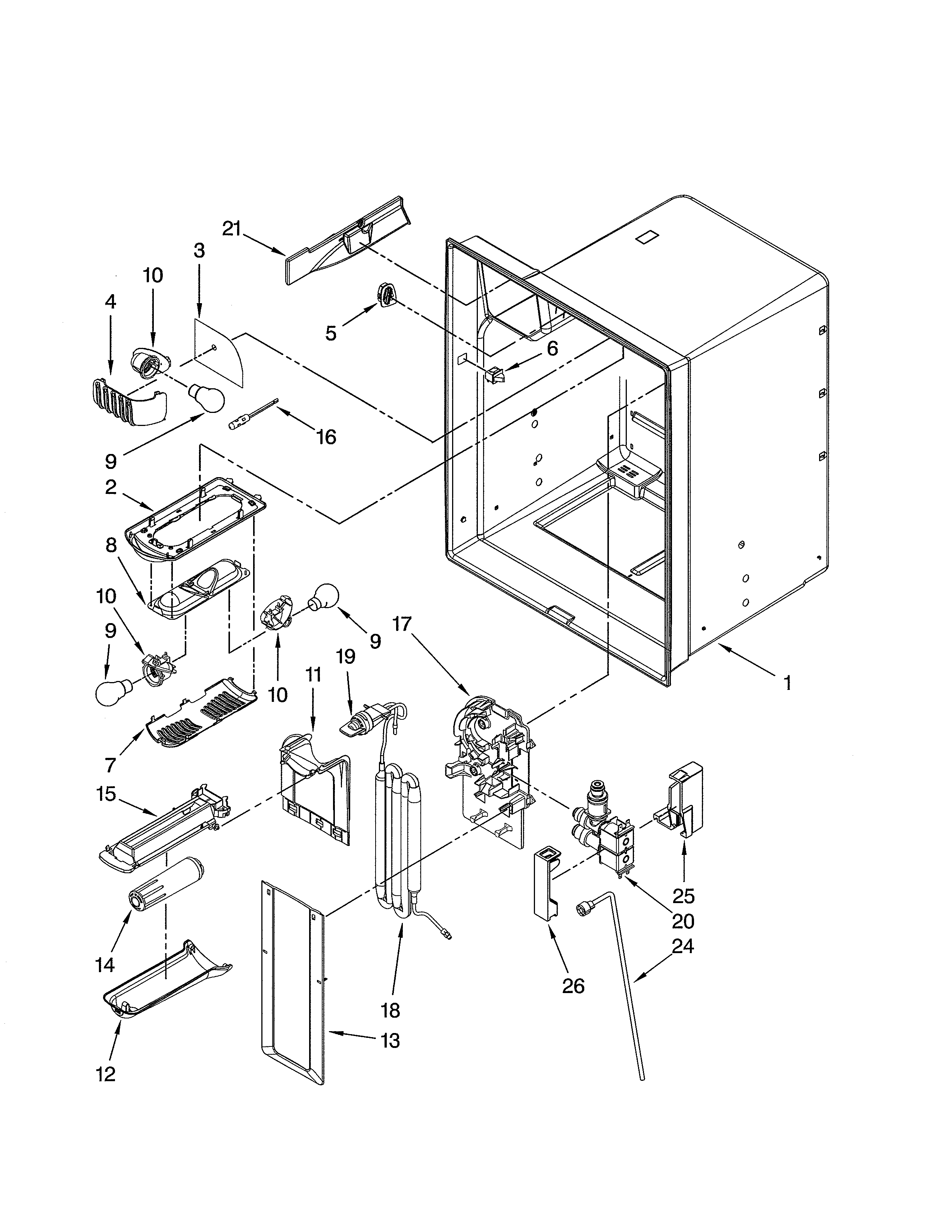

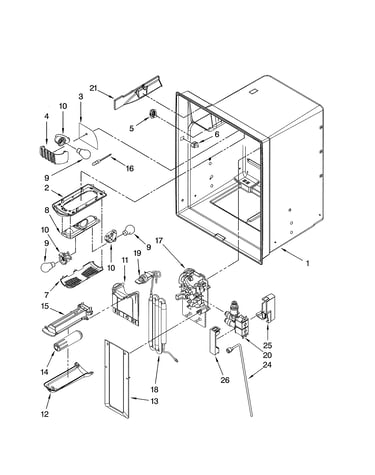

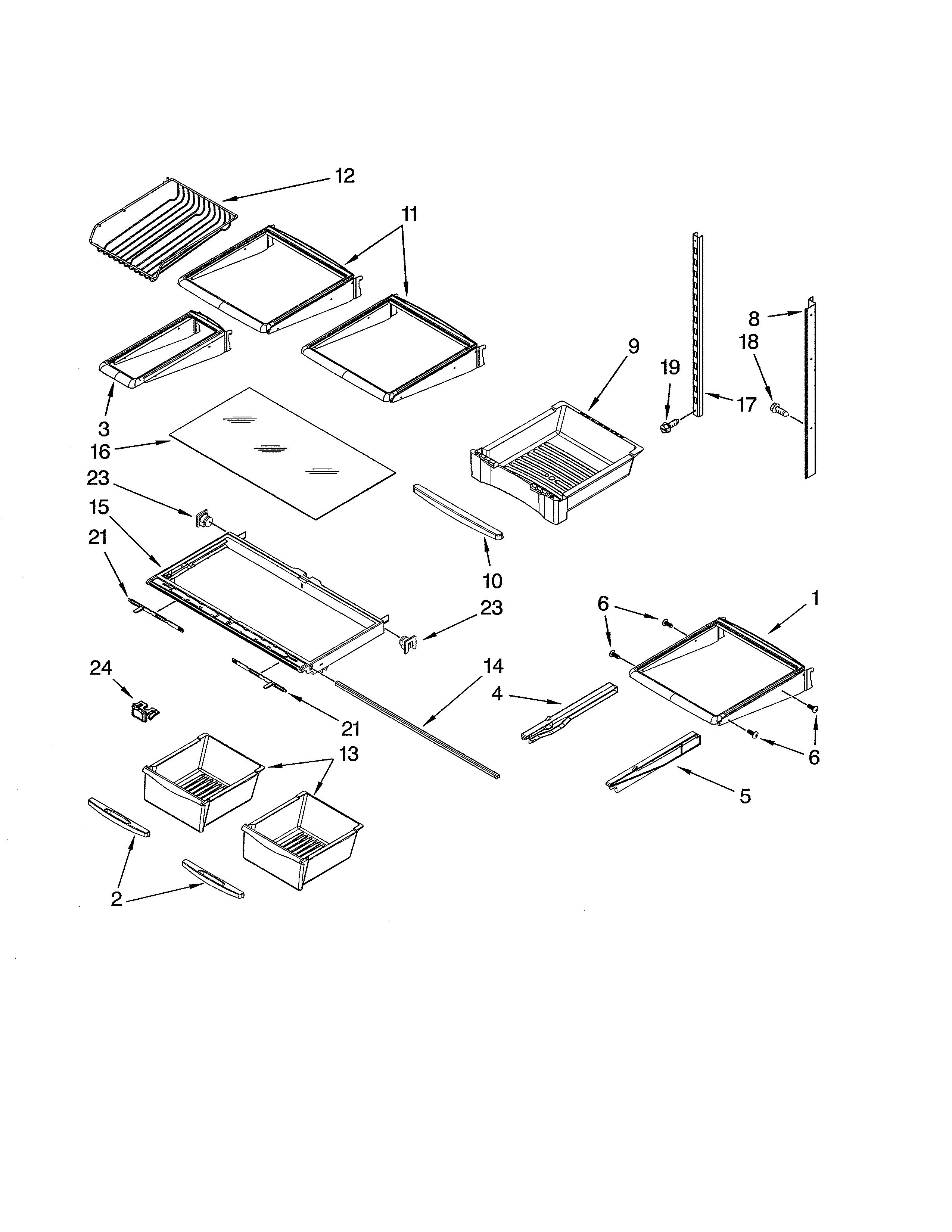

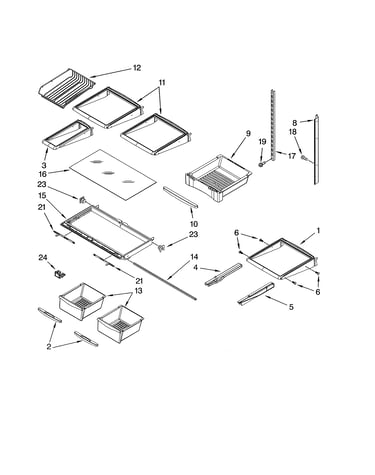

Refrigerator liner parts diagram
Refrigerator light switchPart #12466103
Replaced by #W11396033
?Manufacturer substitutionThis part replaces 12466103. Substitute parts can look different from the original.$19.31 |9% OFF Phone Price : $21.31In Stock - #12
Unit parts diagram
Refrigerator start relayPart #W10197428
Replaced by #WPW10197428
?Manufacturer substitutionThis part replaces W10197428. Substitute parts can look different from the original.$43.48 |12% OFF Phone Price : $49.48In Stock - #8

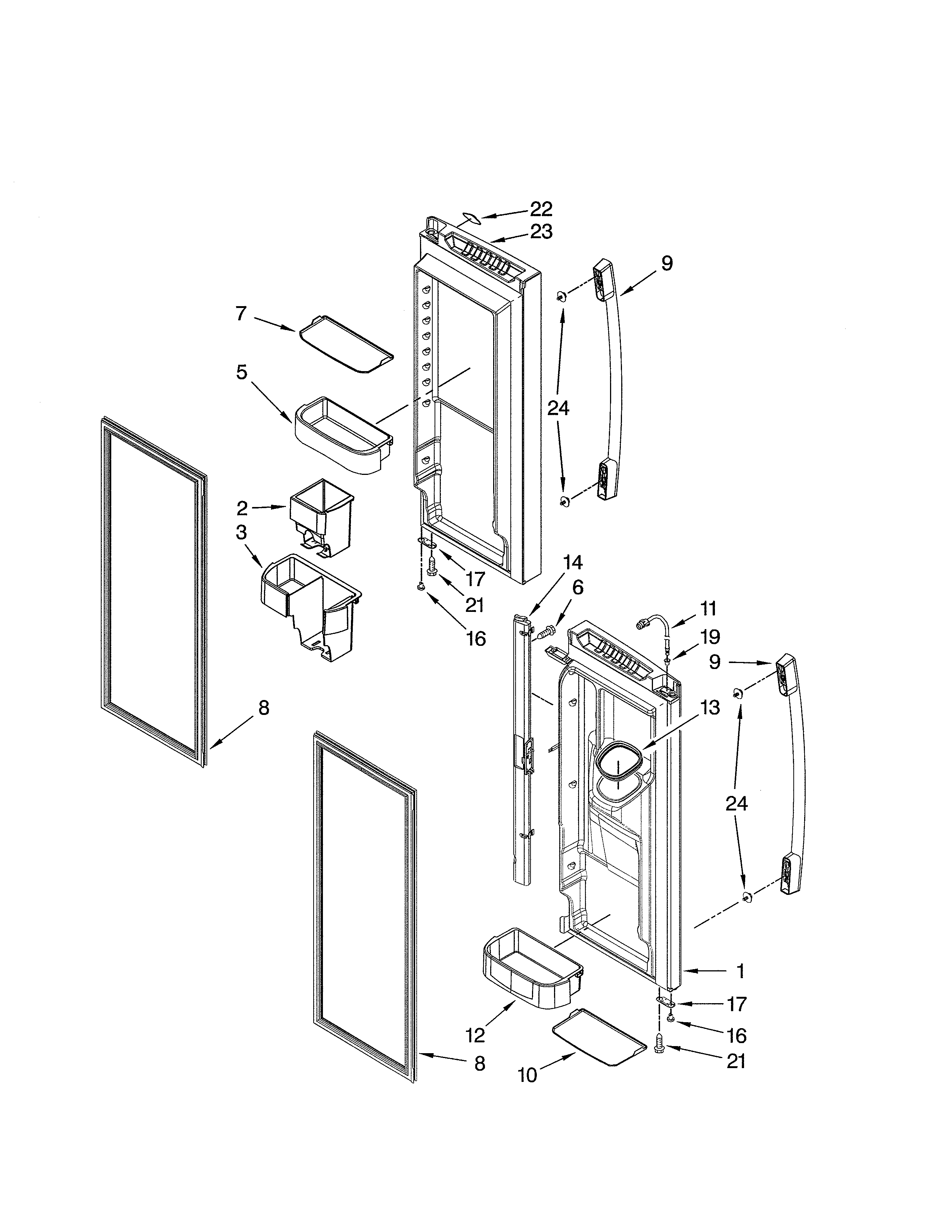

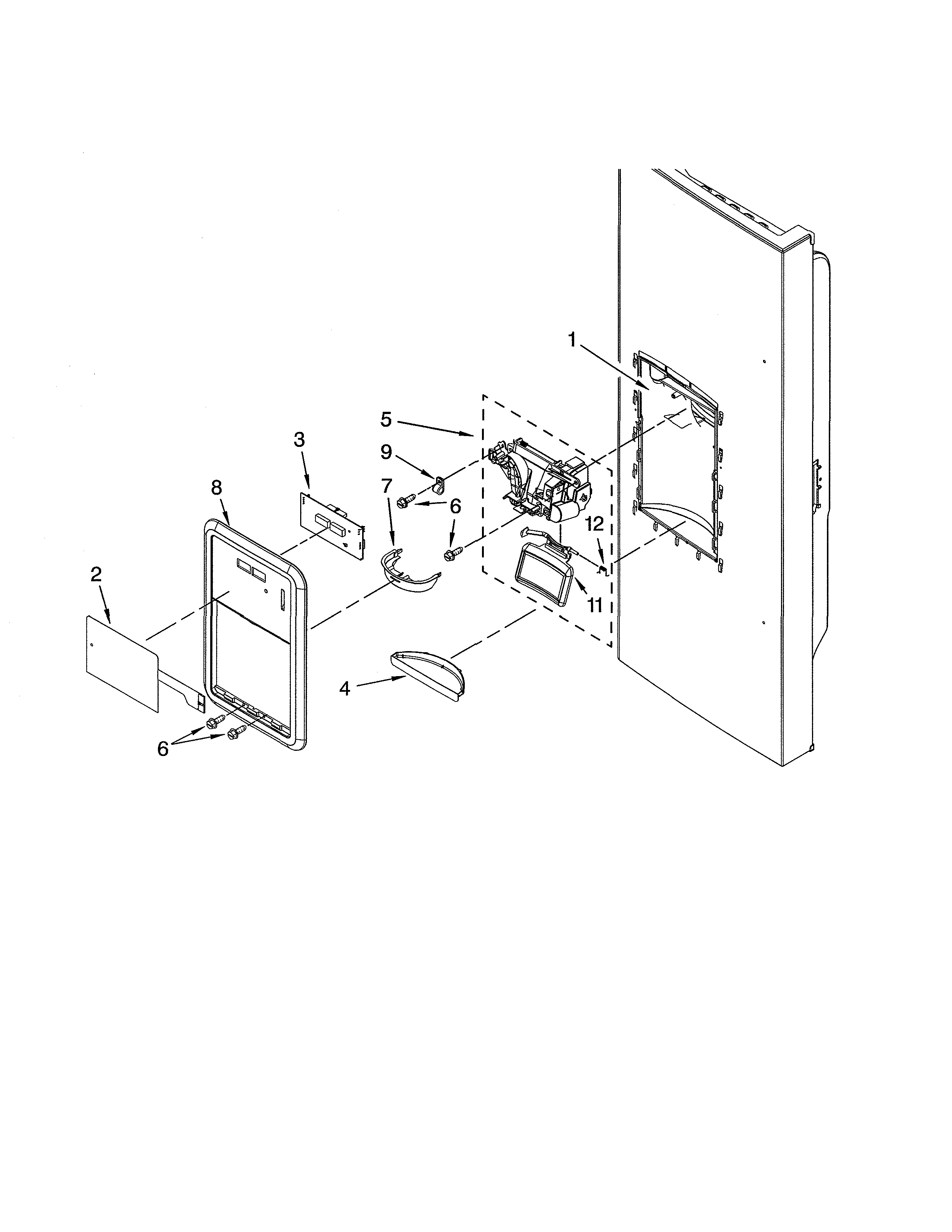

Refrigerator door parts diagram
Refrigerator gasket panel (gray)Part #W10163991
Replaced by #W10830055
?Manufacturer substitutionThis part replaces W10163991. Substitute parts can look different from the original.$129.27 |8% OFF Phone Price : $141.27In Stock - #2

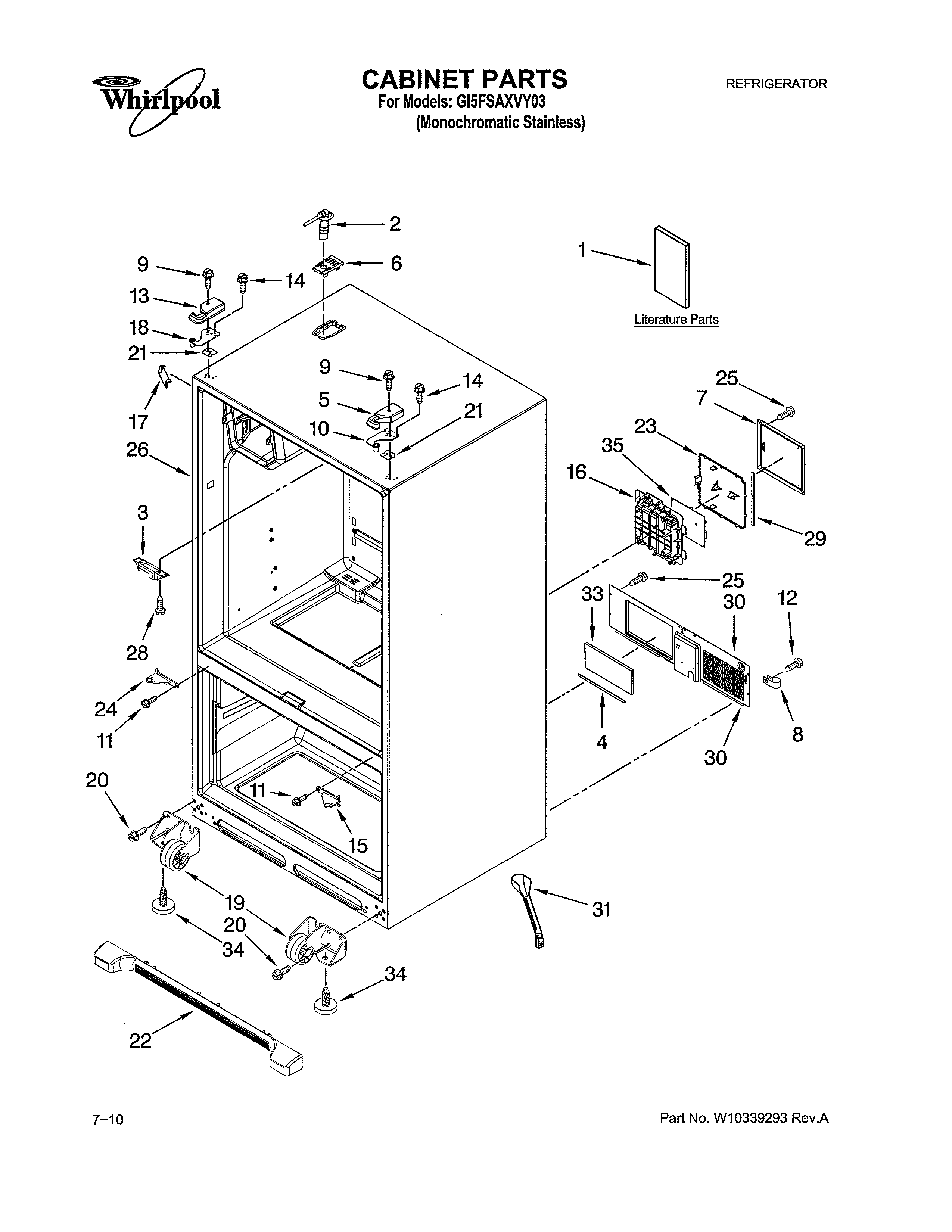

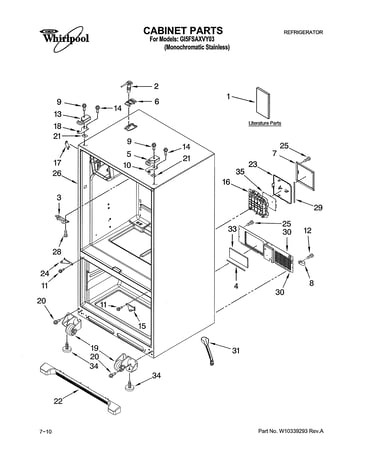

Cabinet parts diagram
Refrigerator water tubePart #12961401
Replaced by #W11415785
?Manufacturer substitutionThis part replaces 12961401. Substitute parts can look different from the original.$36.68 |14% OFF Phone Price : $42.68In Stock - #3
Freezer door parts diagram
Refrigerator gasket panelPart #W10164045
Replaced by #WPW10714545
?Manufacturer substitutionThis part replaces W10164045. Substitute parts can look different from the original.$115.53 |9% OFF Phone Price : $127.53In Stock - #10

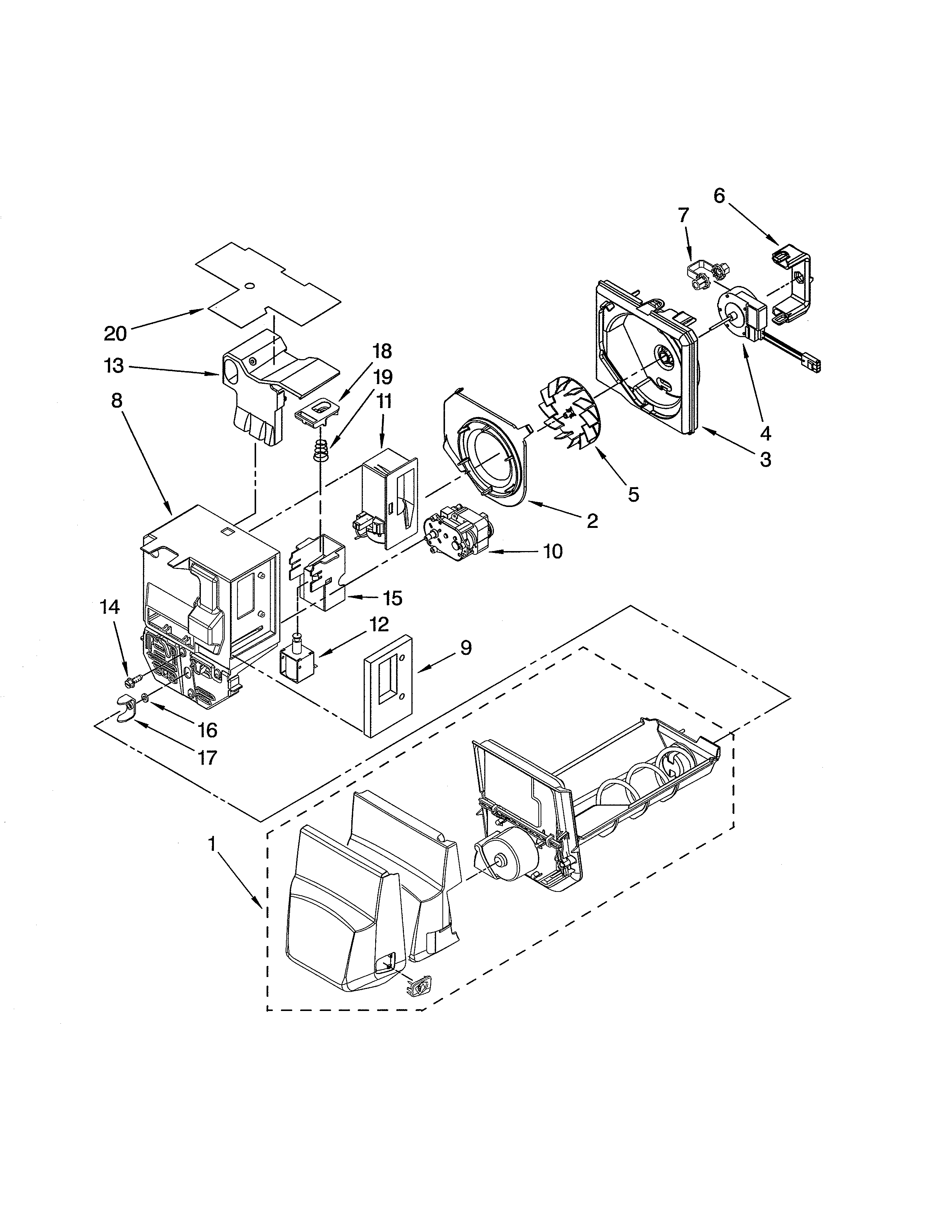

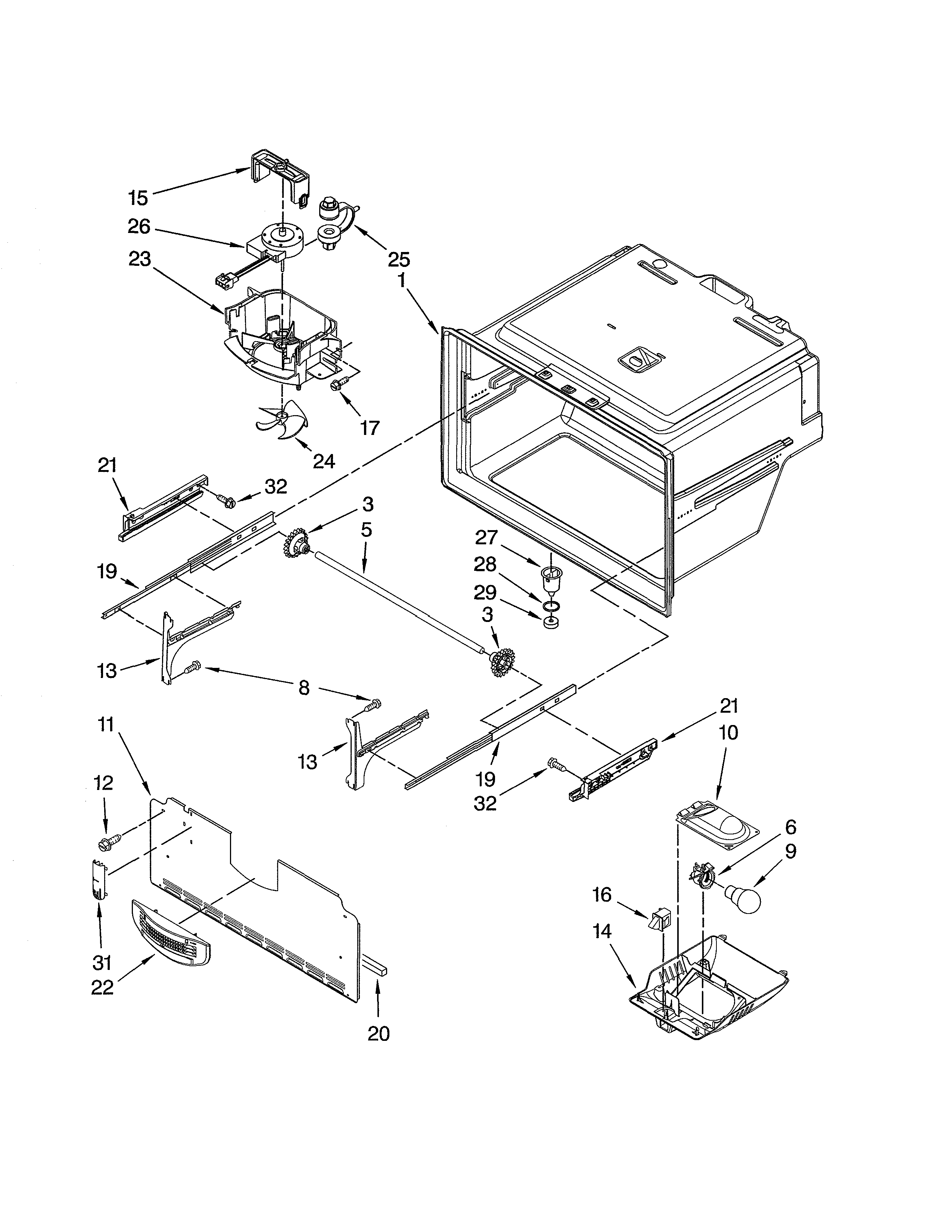

Motor & ice container parts diagram
Refrigerator motorPart #12955405
Replaced by #W11671282
?Manufacturer substitutionThis part replaces 12955405. Substitute parts can look different from the original.$128.38In Stock - #17

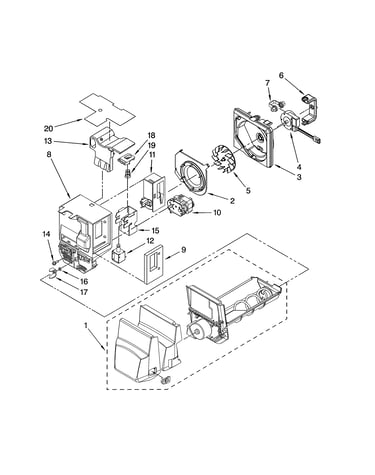

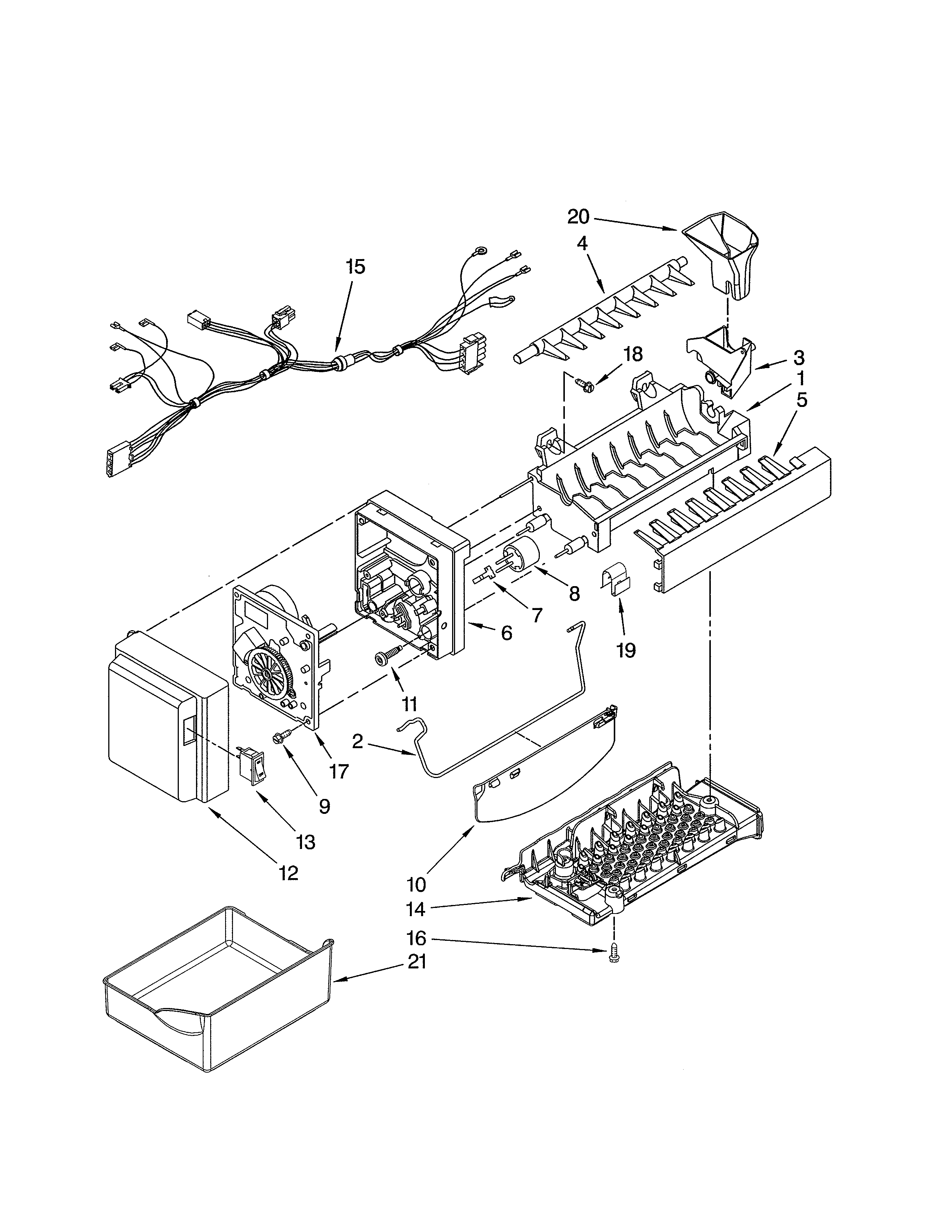

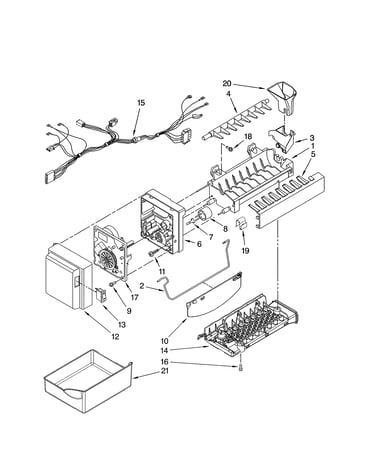

Motor & ice container parts diagram
Refrigerator couplingPart #63052A001
Replaced by #WP63052-2
?Manufacturer substitutionThis part replaces 63052A001. Substitute parts can look different from the original.$32.08 |16% OFF Phone Price : $38.08In Stock - #16
Refrigerator liner parts diagram
Refrigerator temperature sensorPart #12002355
$33.33 |15% OFF Phone Price : $39.33In Stock - #19

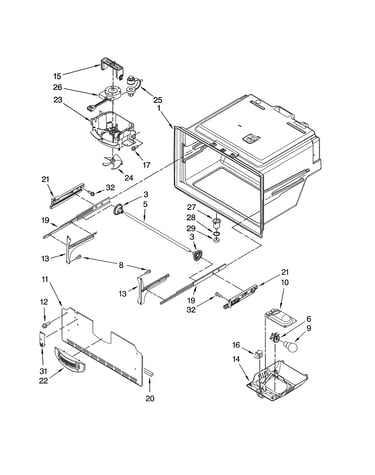

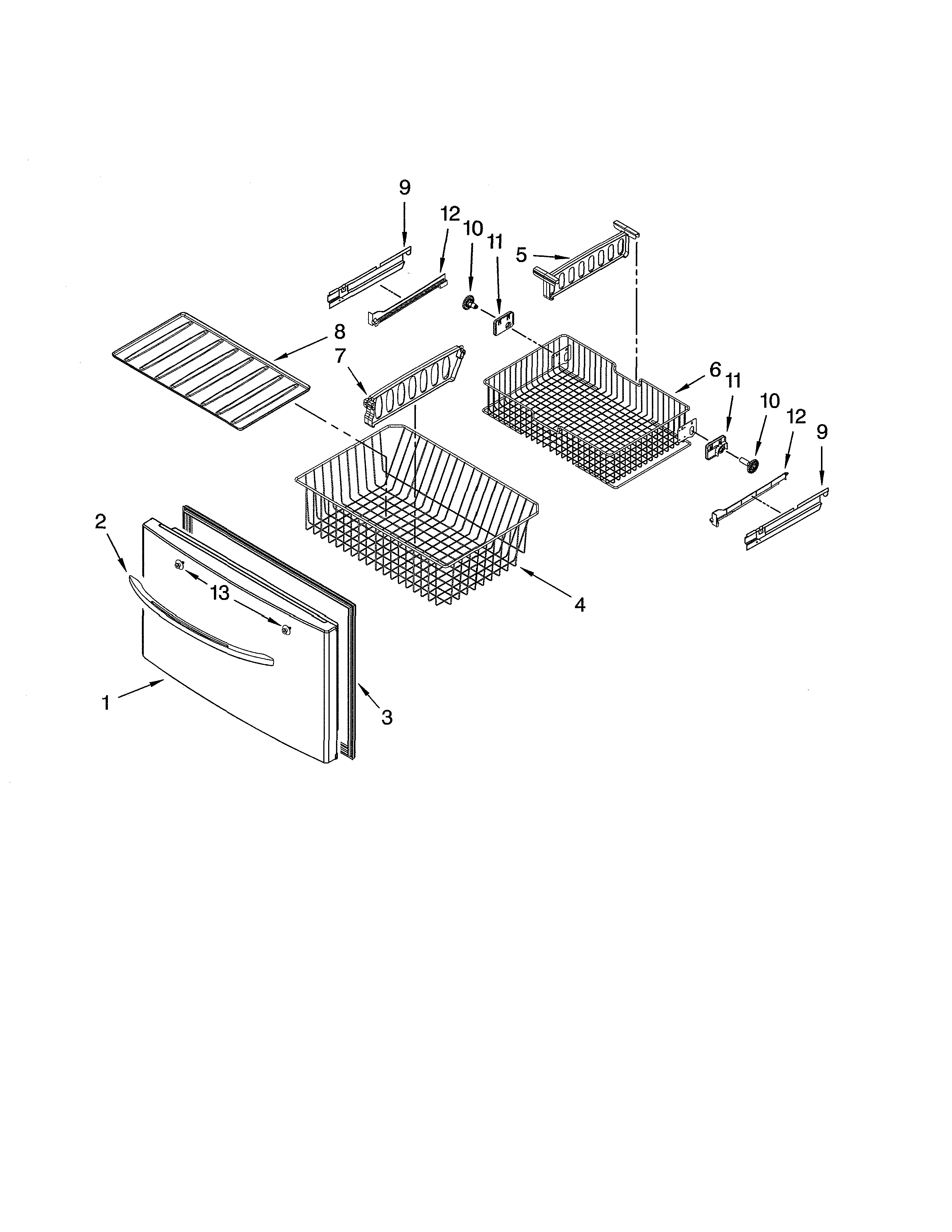

Freezer liner parts diagram
Refrigerator freezer slide railPart #W10120018
Replaced by #W11658402
?Manufacturer substitutionThis part replaces W10120018. Substitute parts can look different from the original.$152.17In Stock
