Samsung
Bottom-Mount Refrigerator

Model # RF197ACPN/XAA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF197ACPN-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Refrigerator Ice Maker DA97-05037C
#2

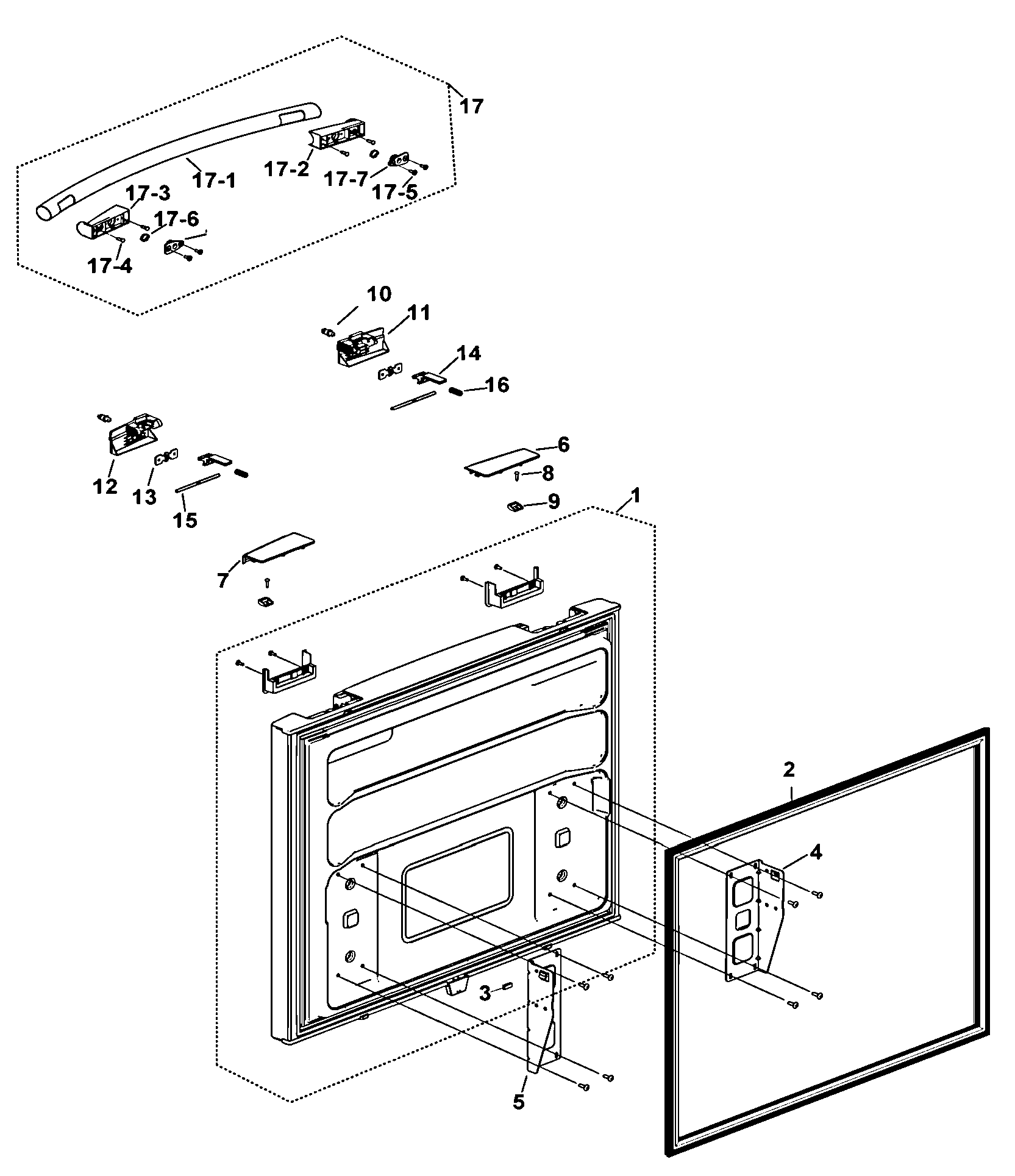

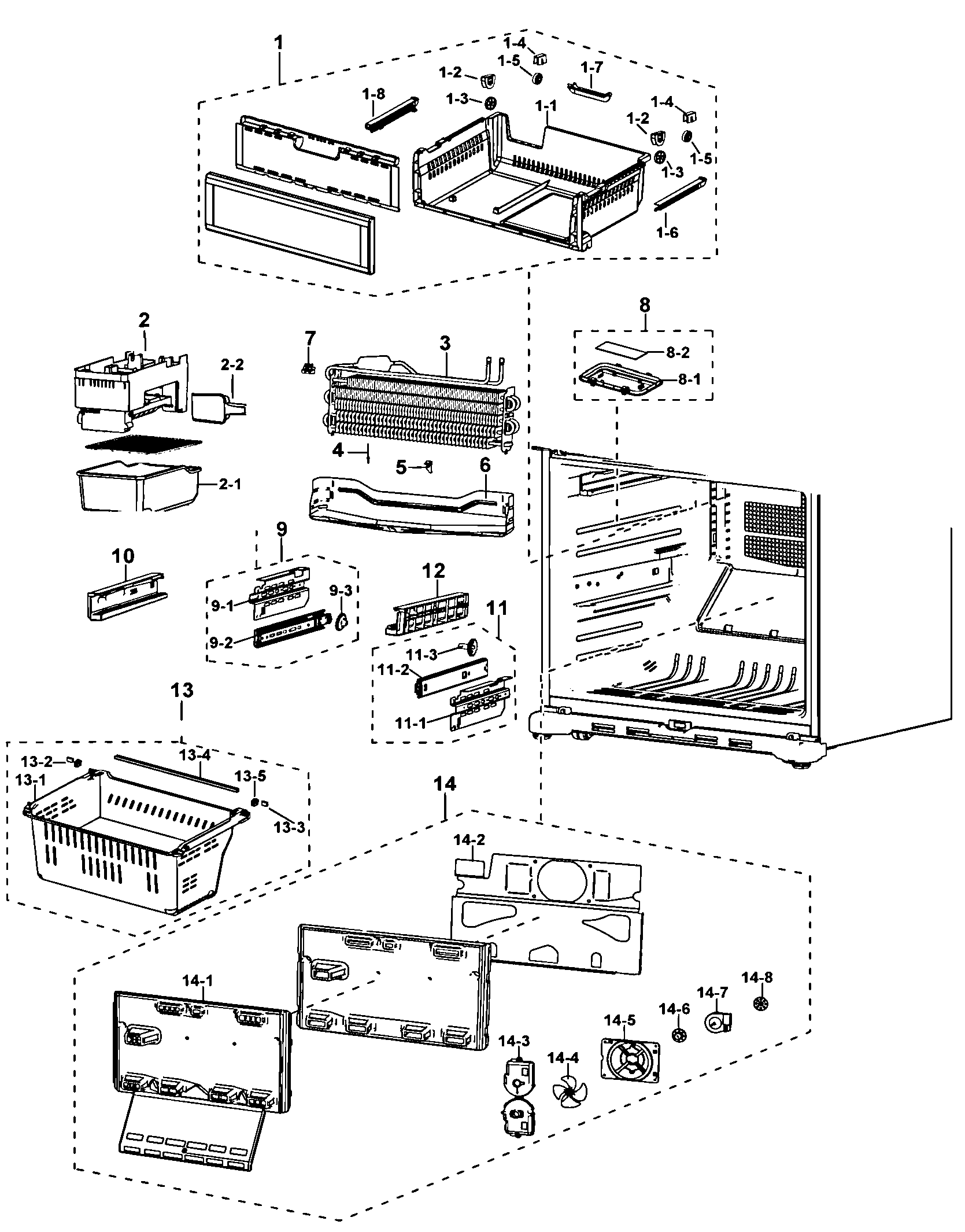

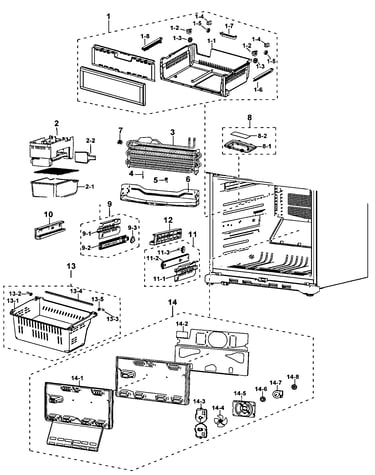

Freezer diagram

Refrigerator ice maker

Part #DA97-05037C

Replaced by #DA97-07603B

?
Manufacturer substitution
This part replaces DA97-05037C. Substitute parts can look different from the original.
BEST SELLER
$169.34 |
7% OFF Phone Price : $181.34
In Stock
Refrigerator Cover Assembly DA97-06656C
#9

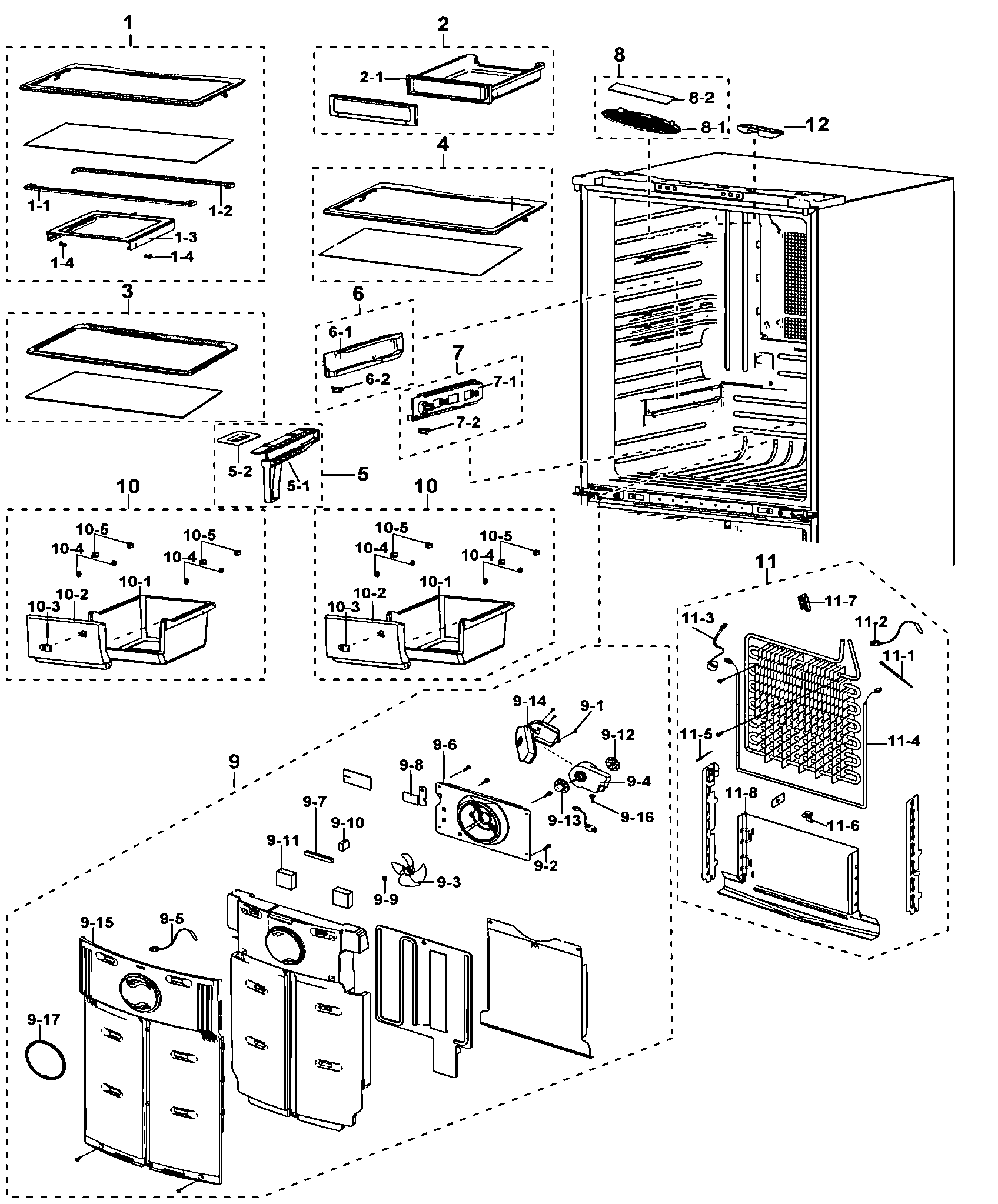

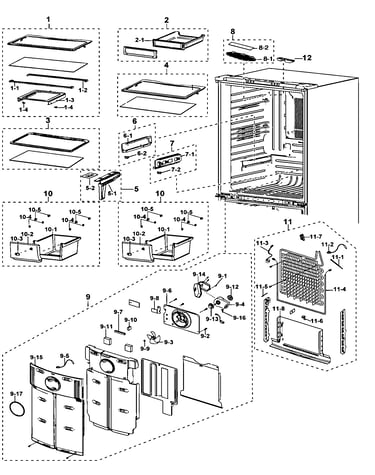

Refrigerator diagram

Refrigerator cover assembly

Part #DA97-06656C

Replaced by #DA97-11823A

?
Manufacturer substitution
This part replaces DA97-06656C. Substitute parts can look different from the original.
BEST SELLER
$155.36 |
7% OFF Phone Price : $167.36
In Stock
Refrigerator Protector DA47-00243C
#11-3

Refrigerator diagram

Refrigerator protector

Part #DA47-00243C

Replaced by #DA47-00243K

?
Manufacturer substitution
This part replaces DA47-00243C. Substitute parts can look different from the original.
BEST SELLER
$42.63 |
12% OFF Phone Price : $48.63
In Stock
Refrigerator Evaporator Fan Motor (replaces Da31-00146c) DA31-00146H
Refrigerator evaporator fan motor (replaces da31-00146c)

Part #DA31-00146H

BEST SELLER
$96.97 |
11% OFF Phone Price : $108.97
In Stock
Refrigerator Drain Cap DA97-04049A
#12

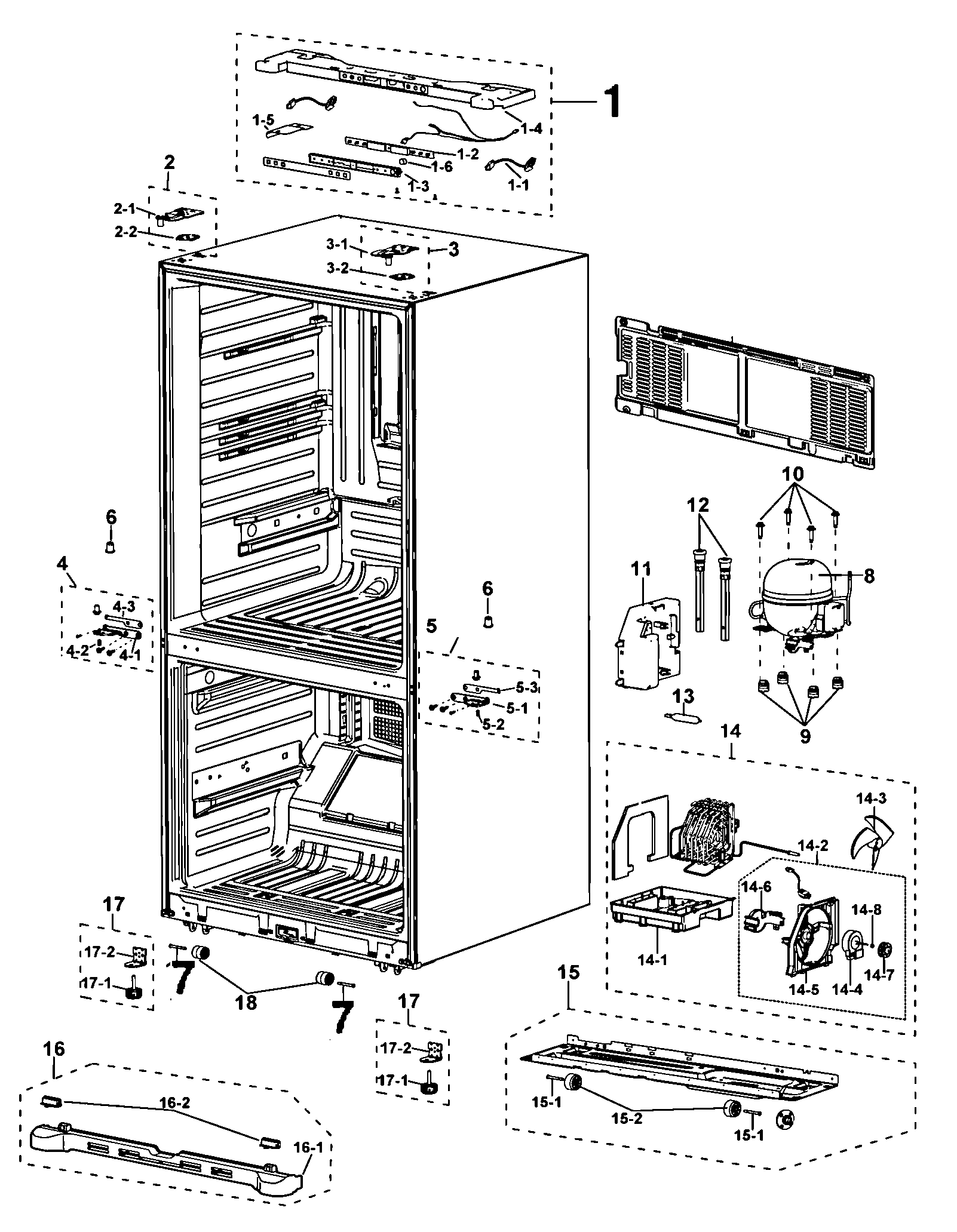

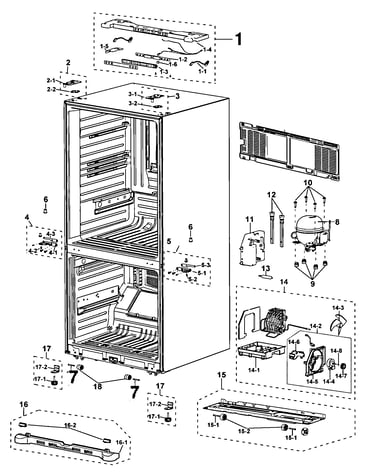

Cabinet diagram

Refrigerator drain cap

Part #DA97-04049A

Replaced by #DA97-04049D

?
Manufacturer substitution
This part replaces DA97-04049A. Substitute parts can look different from the original.
BEST SELLER
$28.75 |
17% OFF Phone Price : $34.75
In Stock
Refrigerator Case Assembly DA97-06725B
#10

Refrigerator diagram

Refrigerator case assembly

Part #DA97-06725B

Replaced by #DA97-11620B

?
Manufacturer substitution
This part replaces DA97-06725B. Substitute parts can look different from the original.
BEST SELLER
$103.95 |
10% OFF Phone Price : $115.95
Back Order
Refrigerator Spring (replaces Da61-07471a, Da81-01345a) DA81-01345B
#4-11

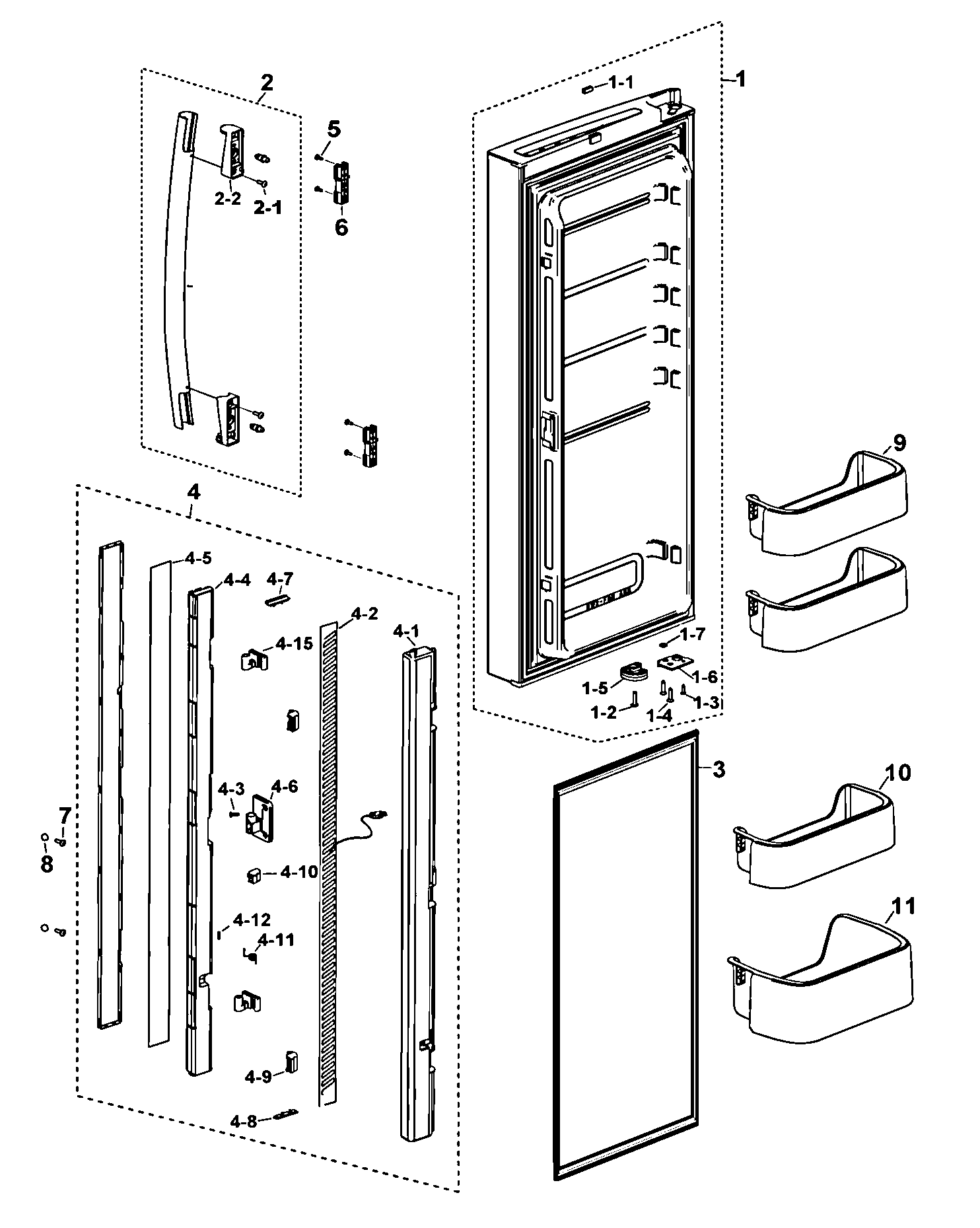

Left door diagram
