Model # 5181AT-1 Official Eureka self-propelled vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 5181AT-1 self-propelled vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

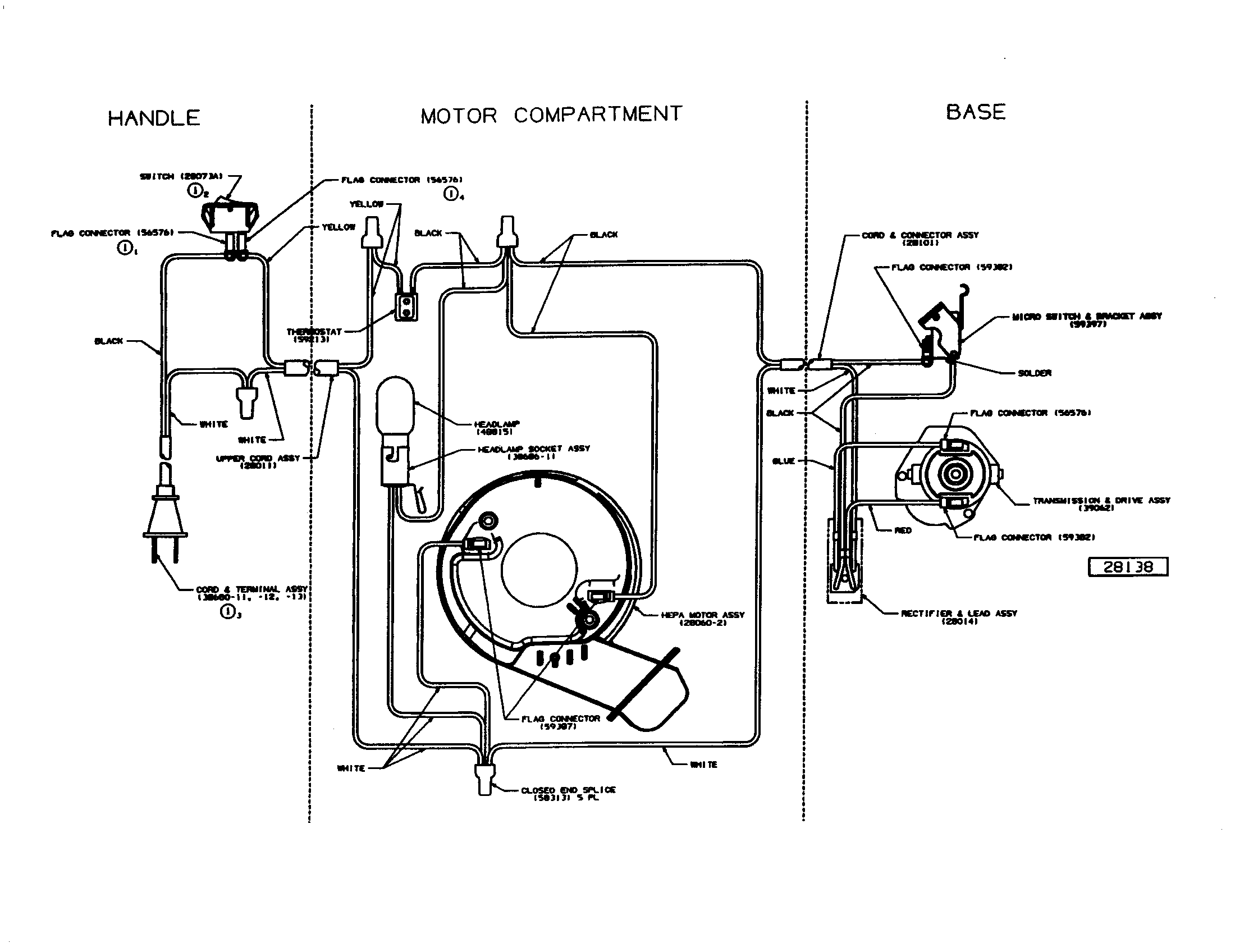

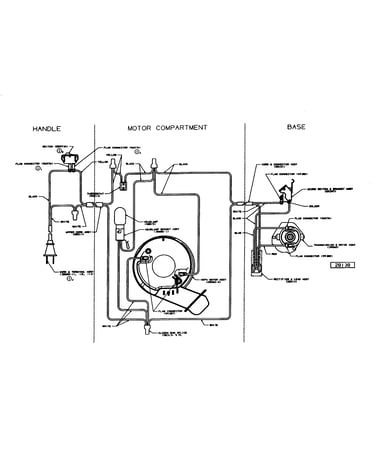

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Tube 15614-1
#3

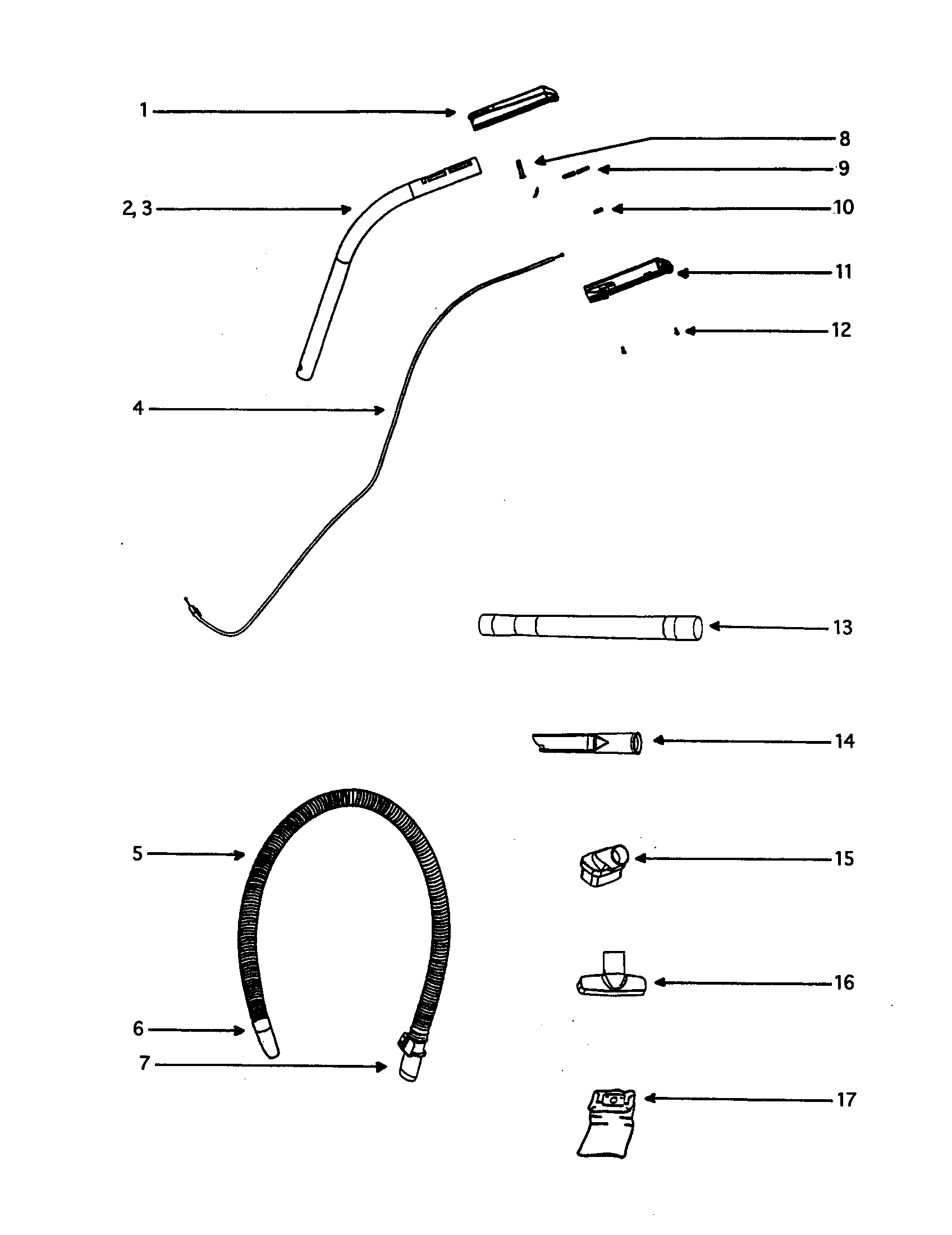

Accessories diagram

Tube

Part #15614-1

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 39047-119N
#7

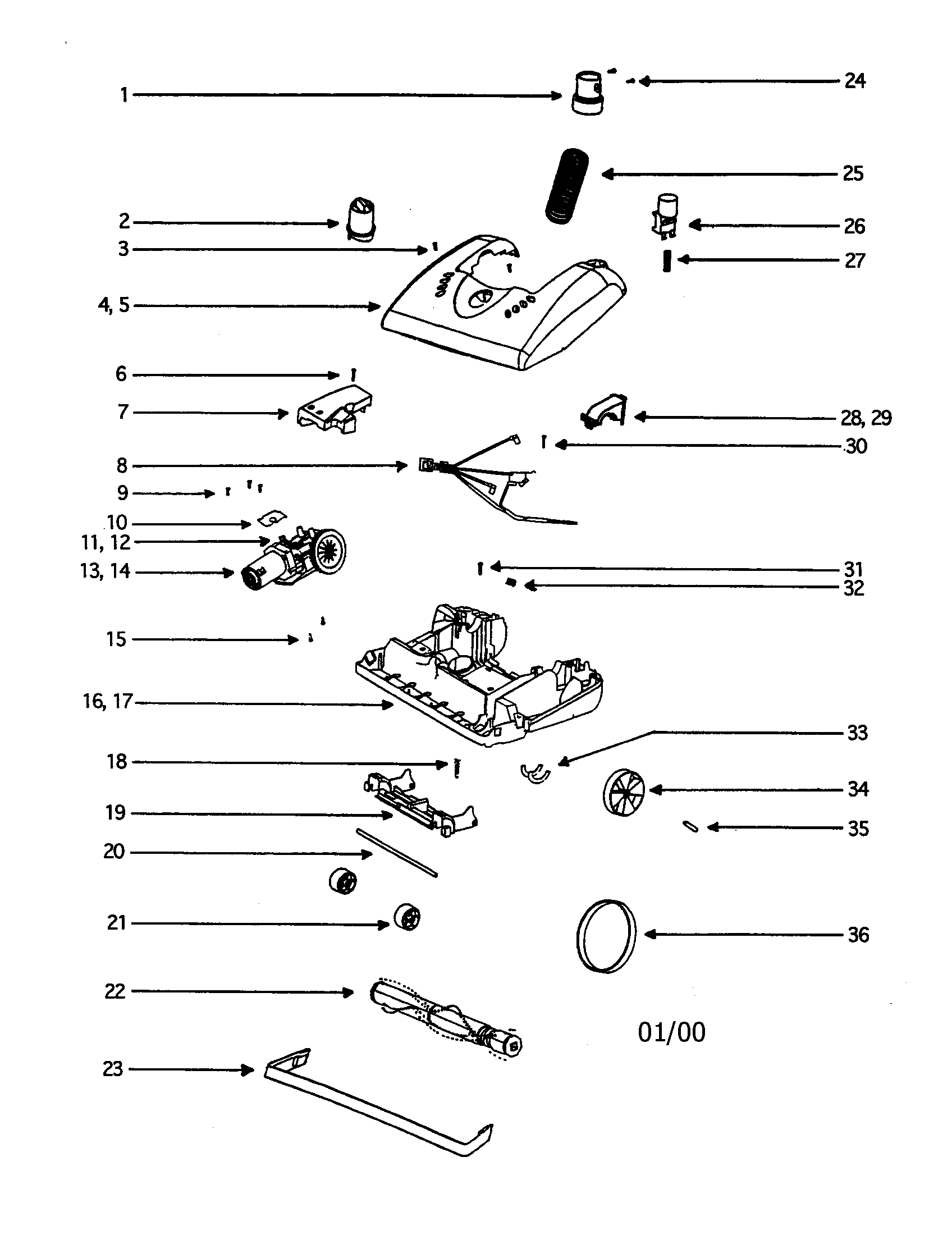

Hood diagram

Motor cover

Part #39047-119N

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Wire Tie 46713-5
#42

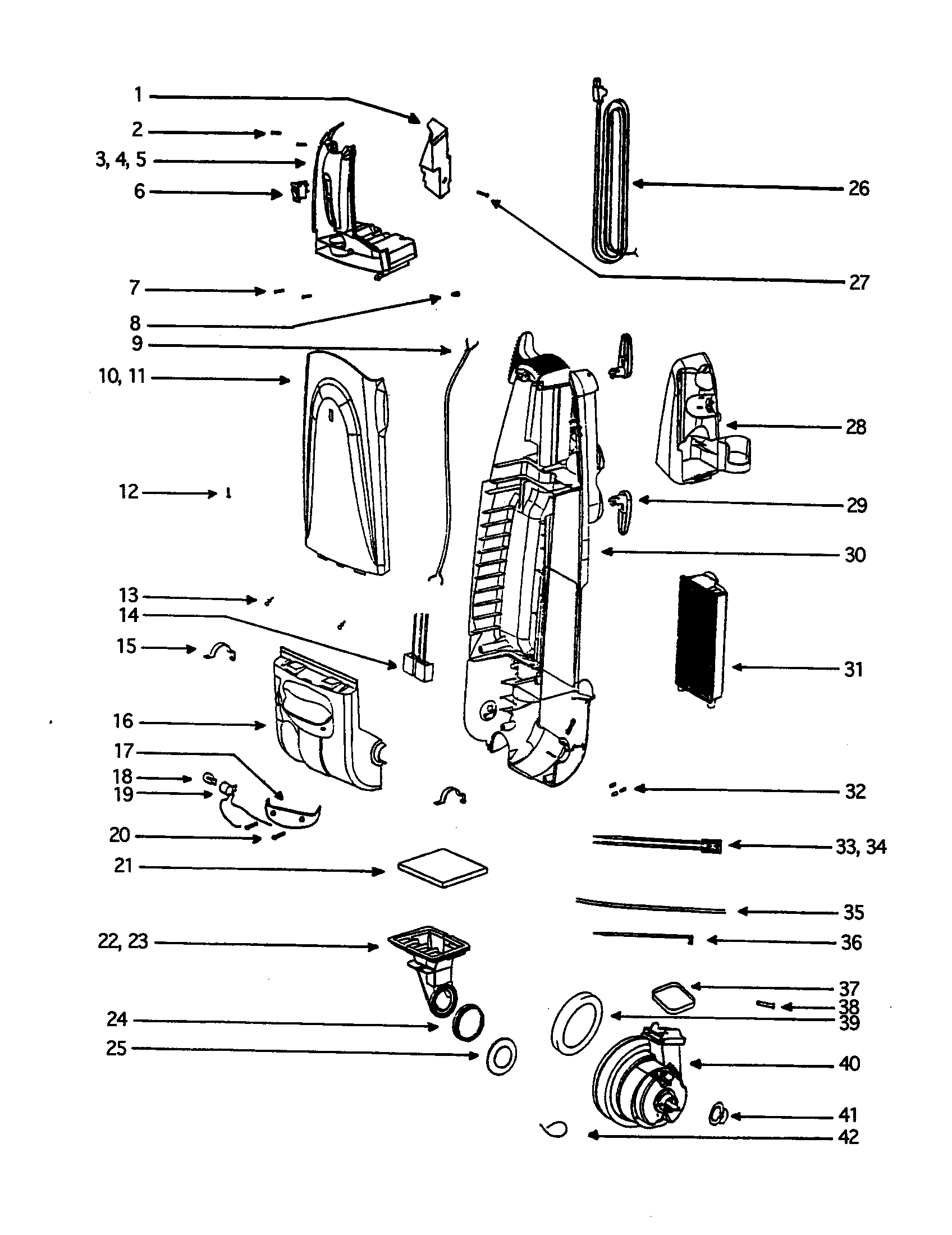

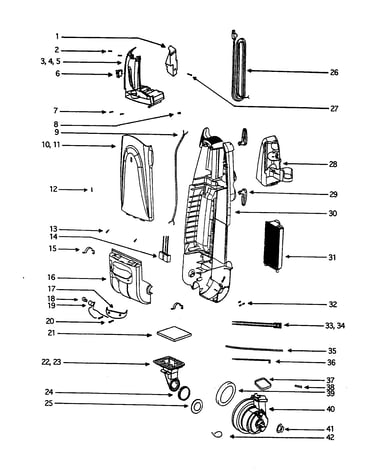

Body diagram

Electrolux wire tie

Part #46713-5

The manufacturer no longer makes this part, and there's no substitute part

Yoke Screw 53193
#9

Hood diagram

Yoke screw

Part #53193

The manufacturer no longer makes this part, and there's no substitute part

Push On Nut 60613
#34

Body diagram

Push on nut

Part #60613

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-2
#17

Hood diagram

Gasket

Part #58506-2

The manufacturer no longer makes this part, and there's no substitute part

Cover 60974-3
#3

Body diagram

Cover

Part #60974-3

The manufacturer no longer makes this part, and there's no substitute part

Cut-off 59213
#33

Body diagram

Cut-off

Part #59213

The manufacturer no longer makes this part, and there's no substitute part

Shield 59587
#14

Hood diagram

Shield

Part #59587

The manufacturer no longer makes this part, and there's no substitute part

Lead 59408-1
#36A

Body diagram

Lead

Part #59408-1

The manufacturer no longer makes this part, and there's no substitute part
