Hoover
Canister Vacuum

Model # S3515--- Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3515- canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Torsion Spring 38351009
#24

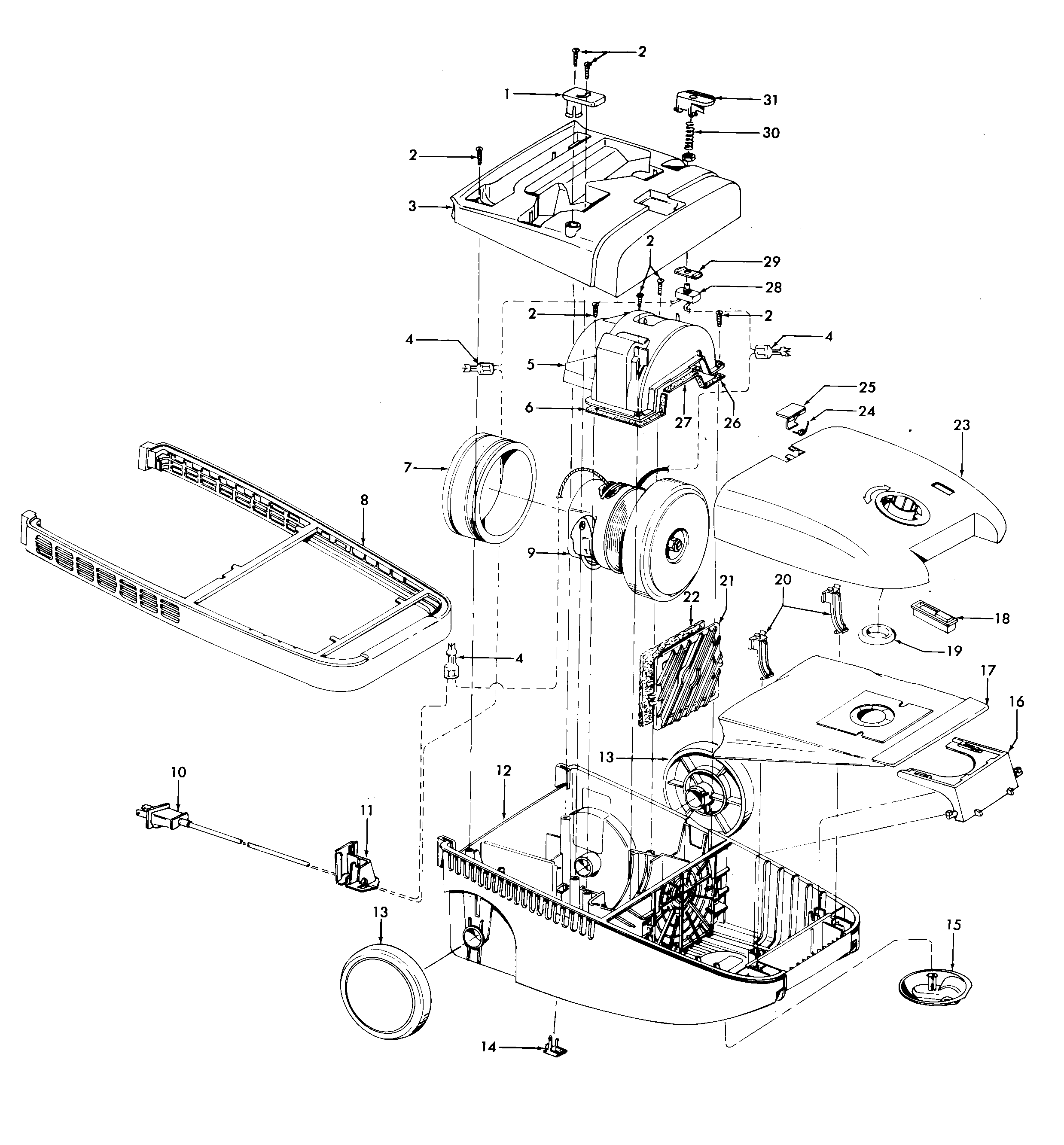

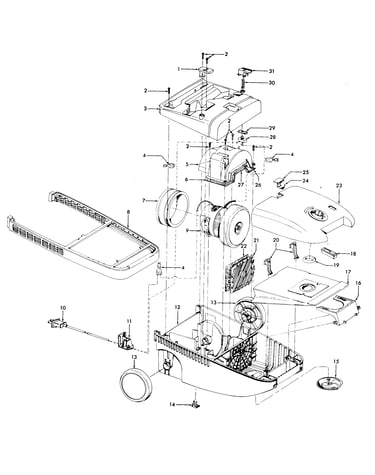

Mainhousing diagram

Torsion spring

Part #38351009

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube 43453027
Extension tube

Part #43453027

The manufacturer no longer makes this part, and there's no substitute part

Mounting Plate 34135014
#29

Mainhousing diagram

Mounting plate

Part #34135014

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Floor Brush Attachment Swivel 38644020
#4

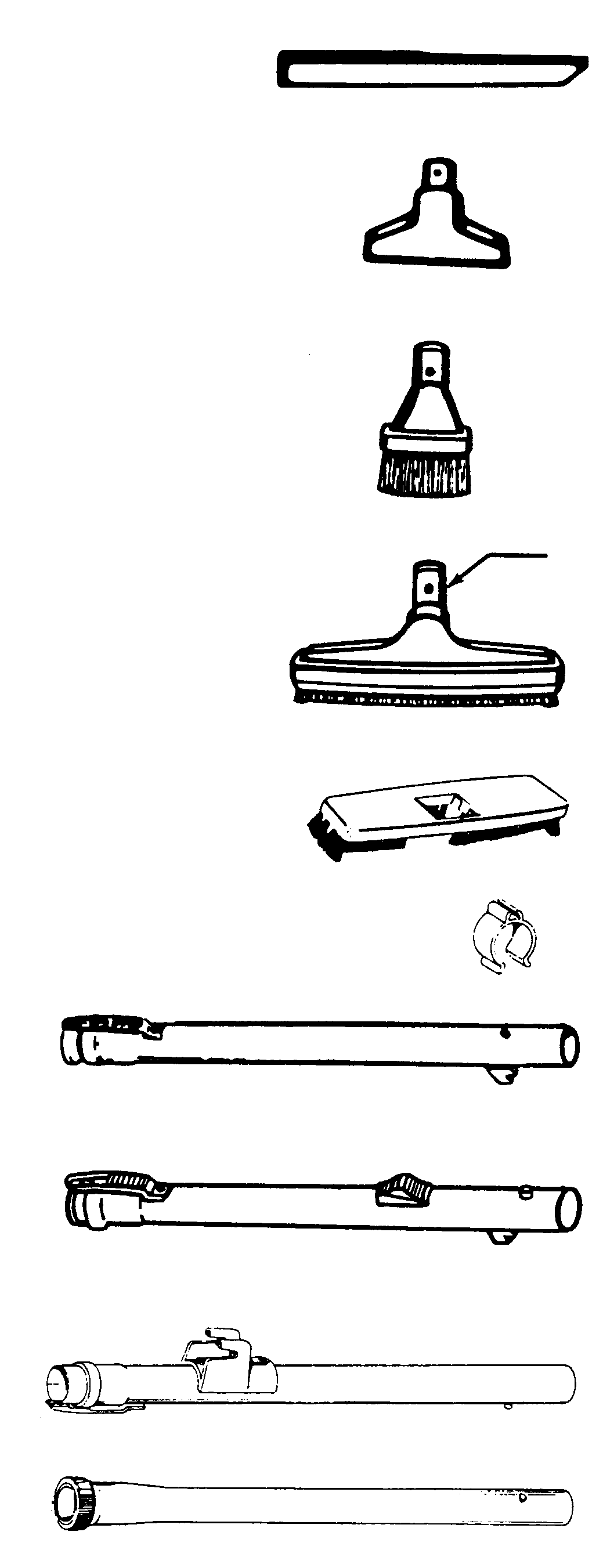

Cleaningtools diagram

Kenmore vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Screw 21429406
#11

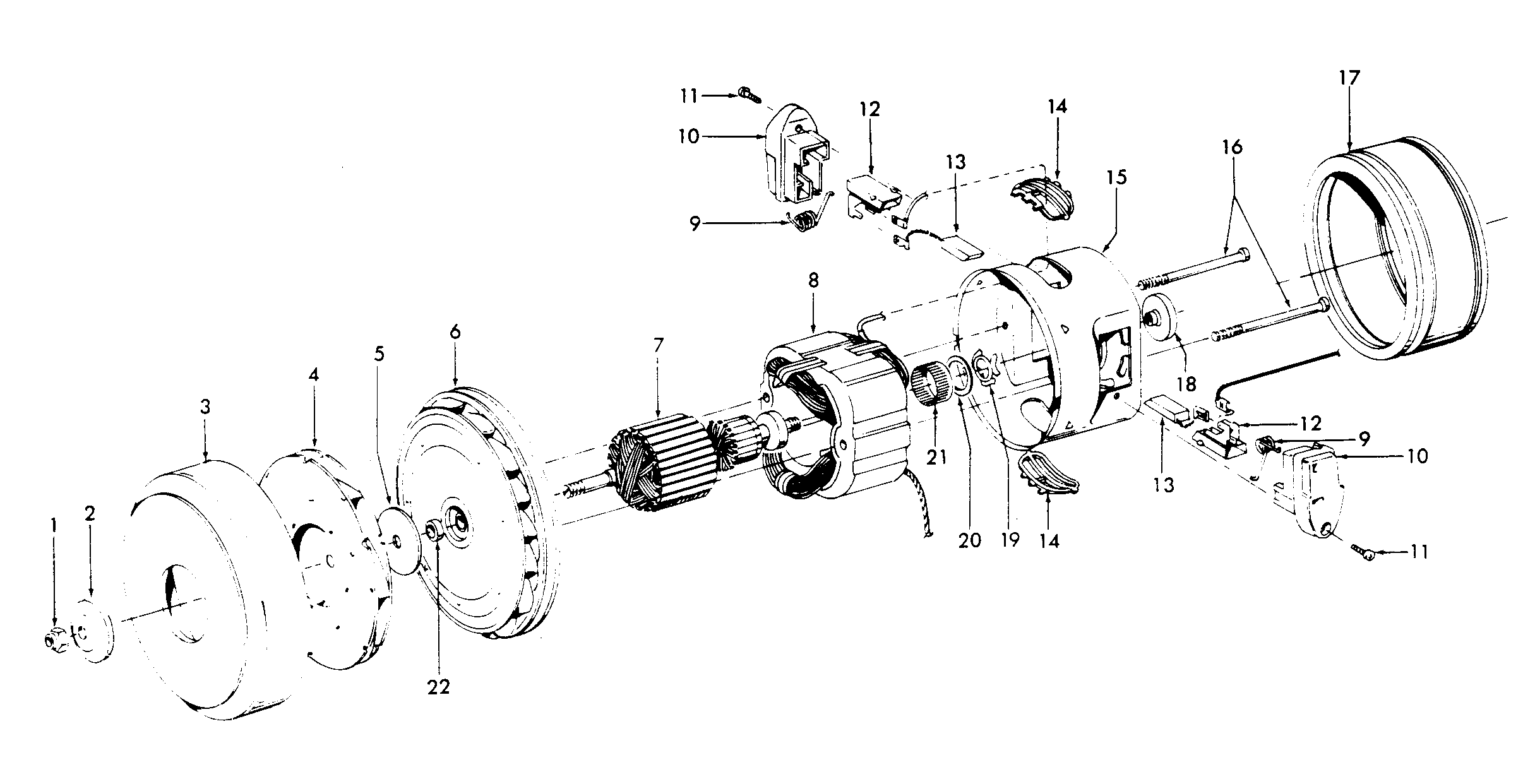

Motor assembly diagram

Screw

Part #21429406

The manufacturer no longer makes this part, and there's no substitute part

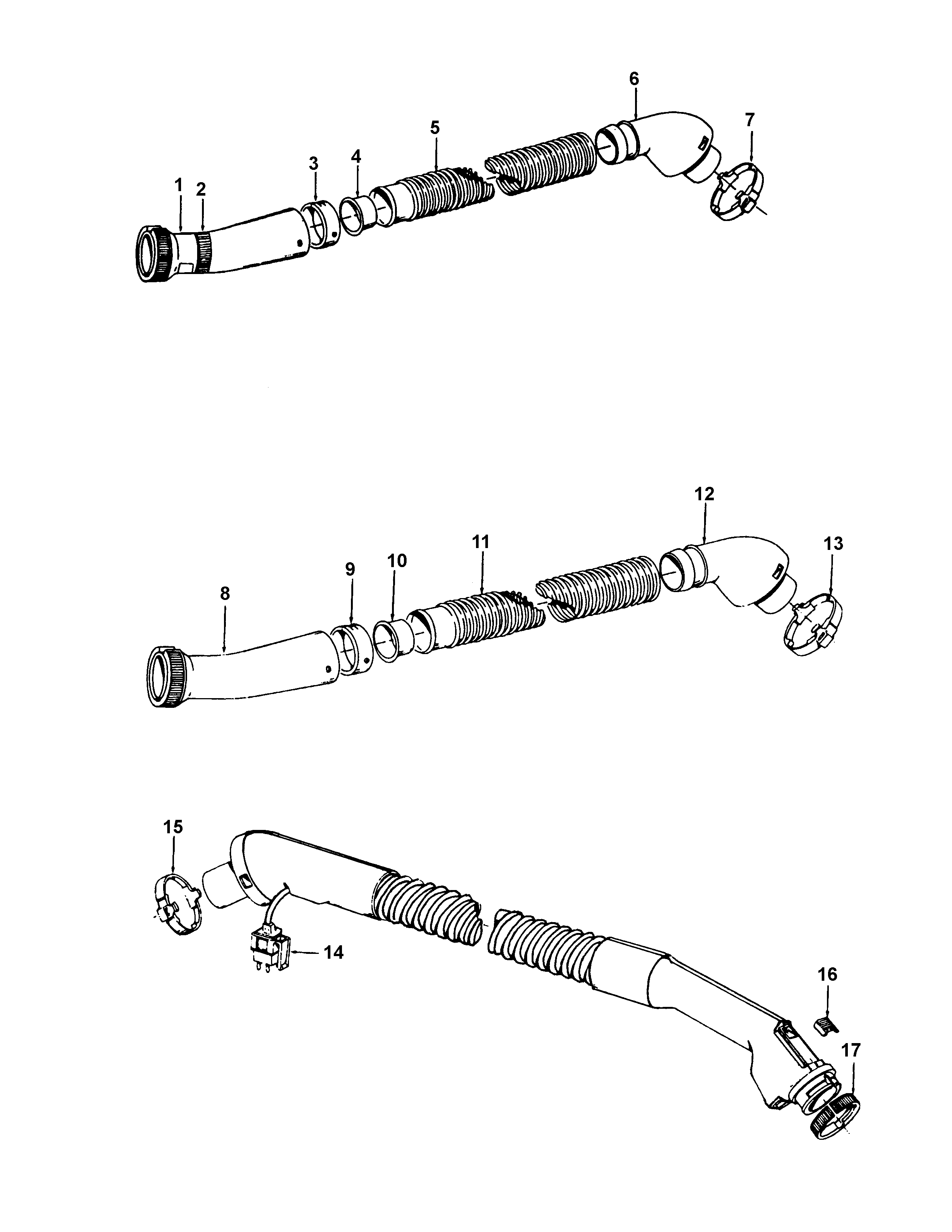

Hose Rel Lat 36153038
Hose rel lat

Part #36153038

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522065
#13

Mainhousing diagram

Vacuum wheel

Part #38522065

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 37196065
#3

Motor assembly diagram

Fan cover

Part #37196065

The manufacturer no longer makes this part, and there's no substitute part

Spring 38353004
#9

Motor assembly diagram

Spring

Part #38353004

The manufacturer no longer makes this part, and there's no substitute part

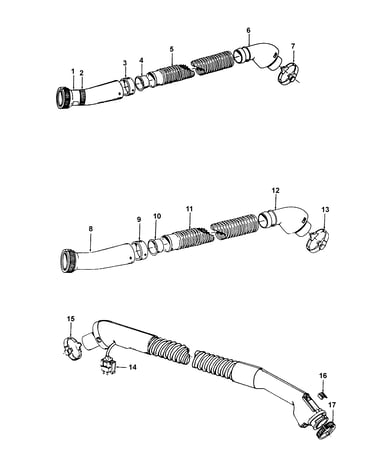

Kenmore Sleeve Hose 32156010
Kenmore sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part
