Model # SHV46C13UC/28 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHV46C13UC/28 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

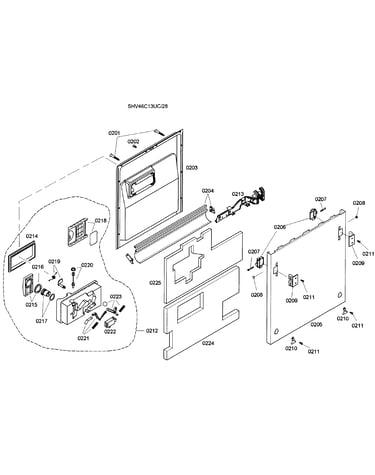

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forSHV46C13UC/28 Dishwasher

  • Dishwasher Recirculation Pump Assembly 442548
    #421

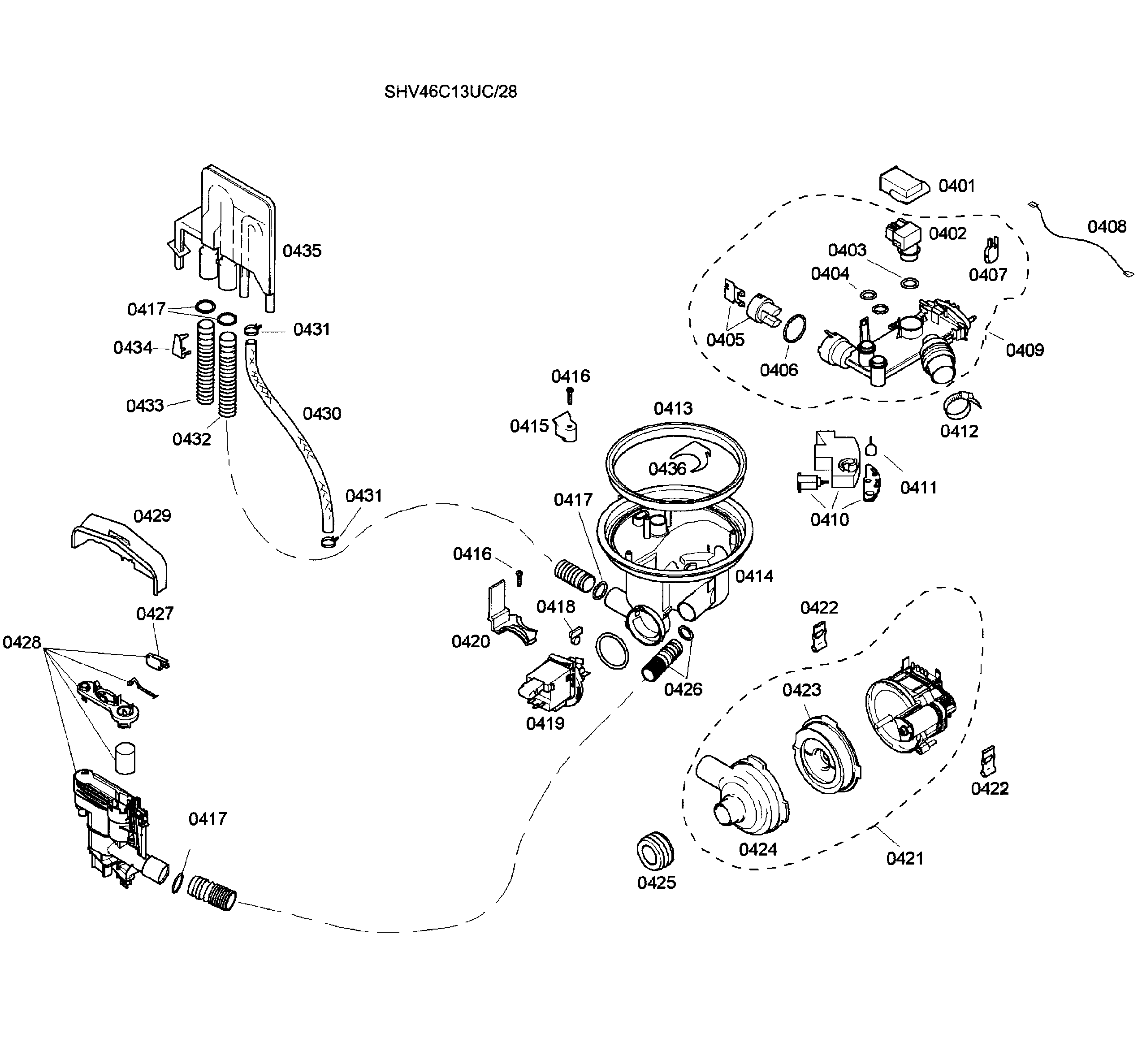

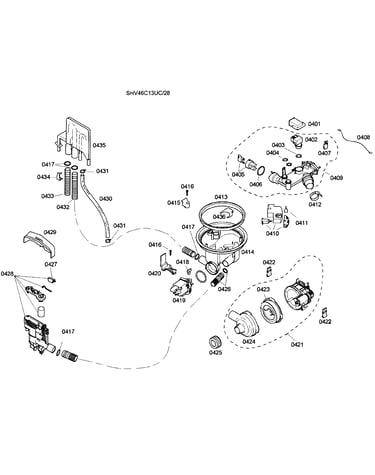

    Pump assy diagram

    Dishwasher recirculation pump assembly

    Part #442548

    Replaced by #00442548

    ?
    Manufacturer substitution
    This part replaces 442548. Substitute parts can look different from the original.
    BEST SELLER
    $236.57
    5% OFF Phone Price : $248.57
    In Stock
  • Door Gasket 494772
    #309

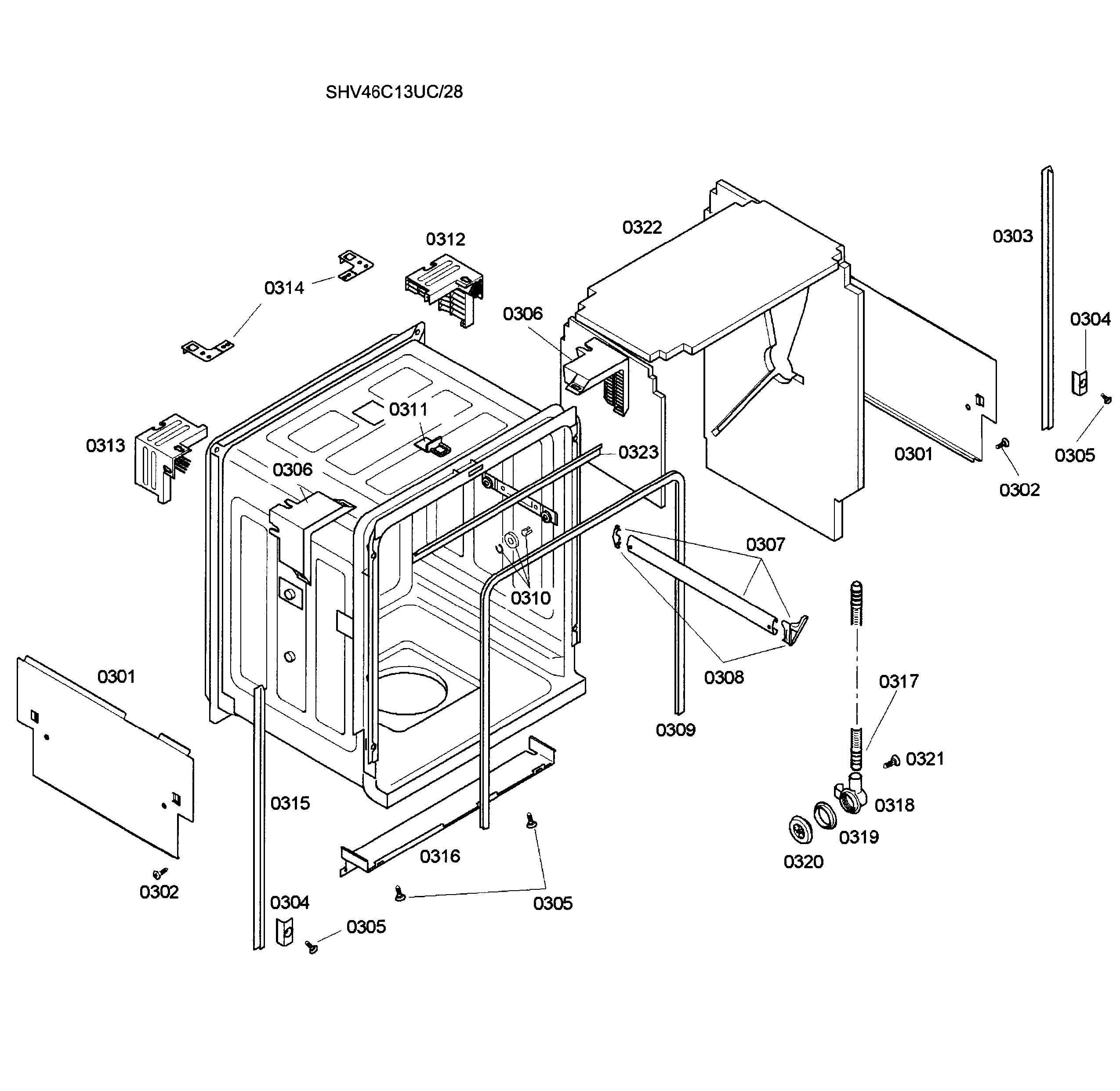

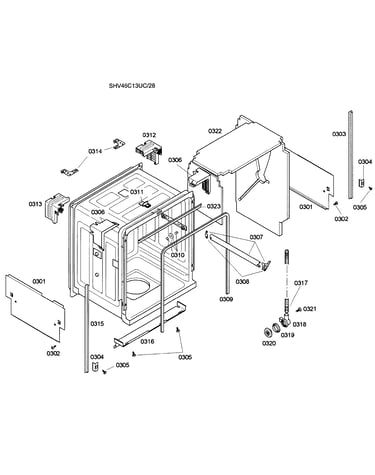

    Cabinet assy diagram

    Door gasket

    Part #494772

    Replaced by #00494772

    ?
    Manufacturer substitution
    This part replaces 494772. Substitute parts can look different from the original.
    BEST SELLER
    $29.72
    17% OFF Phone Price : $35.72
    In Stock
  • Hose Clamp 172272
    #412

    Pump assy diagram

    Hose clamp

    Part #172272

    Replaced by #00172272

    ?
    Manufacturer substitution
    This part replaces 172272. Substitute parts can look different from the original.
    BEST SELLER
    $28.11
    18% OFF Phone Price : $34.11
    In Stock
  • Motor 167082
    #419

    Pump assy diagram

    Motor

    Part #167082

    The manufacturer no longer makes this part, and there's no substitute part

  • Dishwasher Wash Pump Gasket 171598
    #425

    Pump assy diagram

    Dishwasher wash pump gasket

    Part #171598

    Replaced by #00171598

    ?
    Manufacturer substitution
    This part replaces 171598. Substitute parts can look different from the original.
    BEST SELLER
    $28.09
    18% OFF Phone Price : $34.09
    In Stock
  • Dishwasher Lower Rack Wheels 165314
    #619

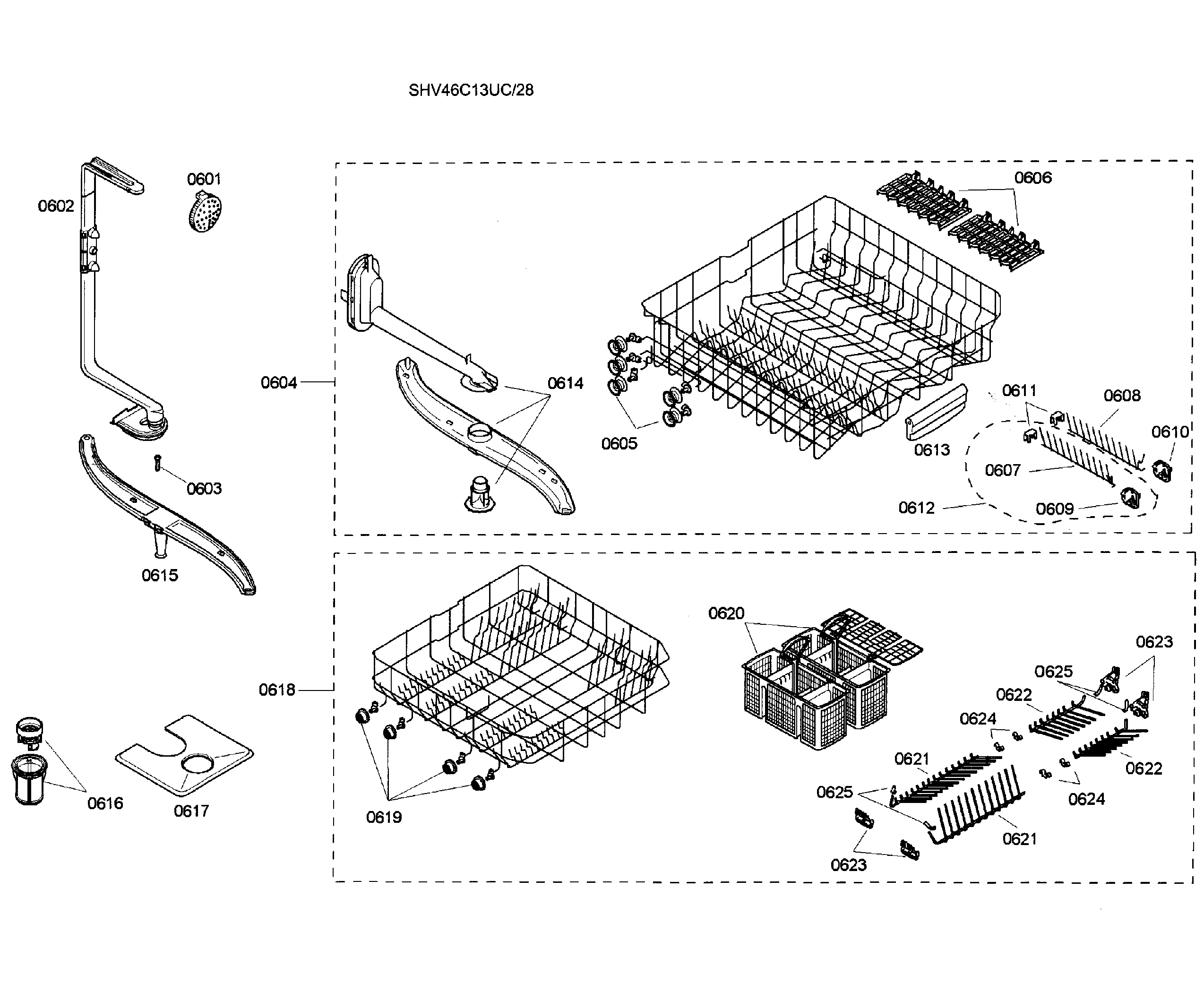

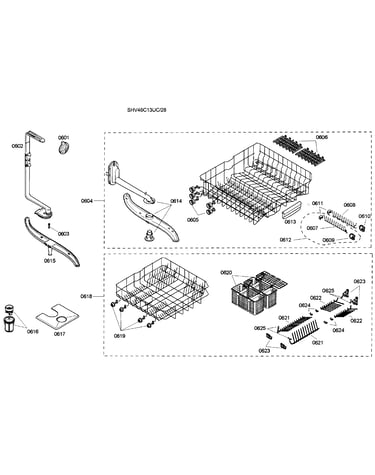

    Baskets assy diagram

    Dishwasher lower rack wheels

    Part #165314

    Replaced by #00165314

    ?
    Manufacturer substitution
    This part replaces 165314. Substitute parts can look different from the original.
    $11.49
    15% OFF Phone Price : $13.49
    In Stock
  • Dishwasher Drain Hose 298564
    Dishwasher drain hose

    Part #298564

    Replaced by #00298564

    ?
    Manufacturer substitution
    This part replaces 298564. Substitute parts can look different from the original.
    $31.39
    16% OFF Phone Price : $37.39
    In Stock
  • Control Unit 498345
    #101

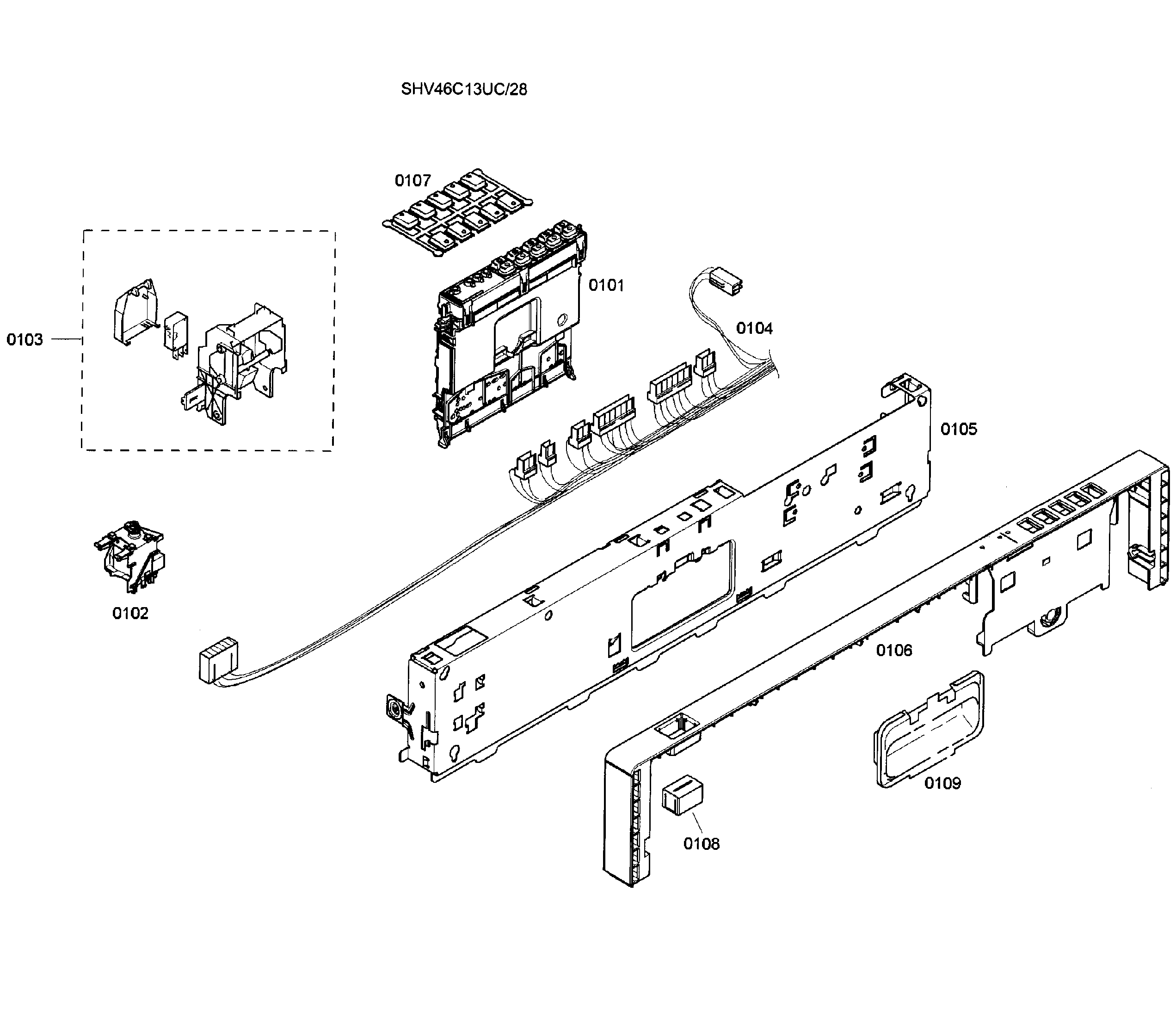

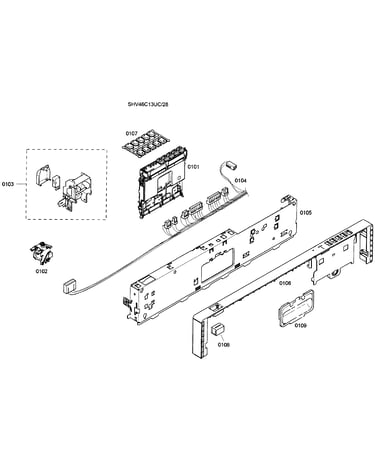

    Control panel diagram

    Control unit

    Part #498345

    Replaced by #00676967

    ?
    Manufacturer substitution
    This part replaces 498345. Substitute parts can look different from the original.
    $220.00
    5% OFF Phone Price : $232.00
    In Stock
  • Bearing 165296
    #504

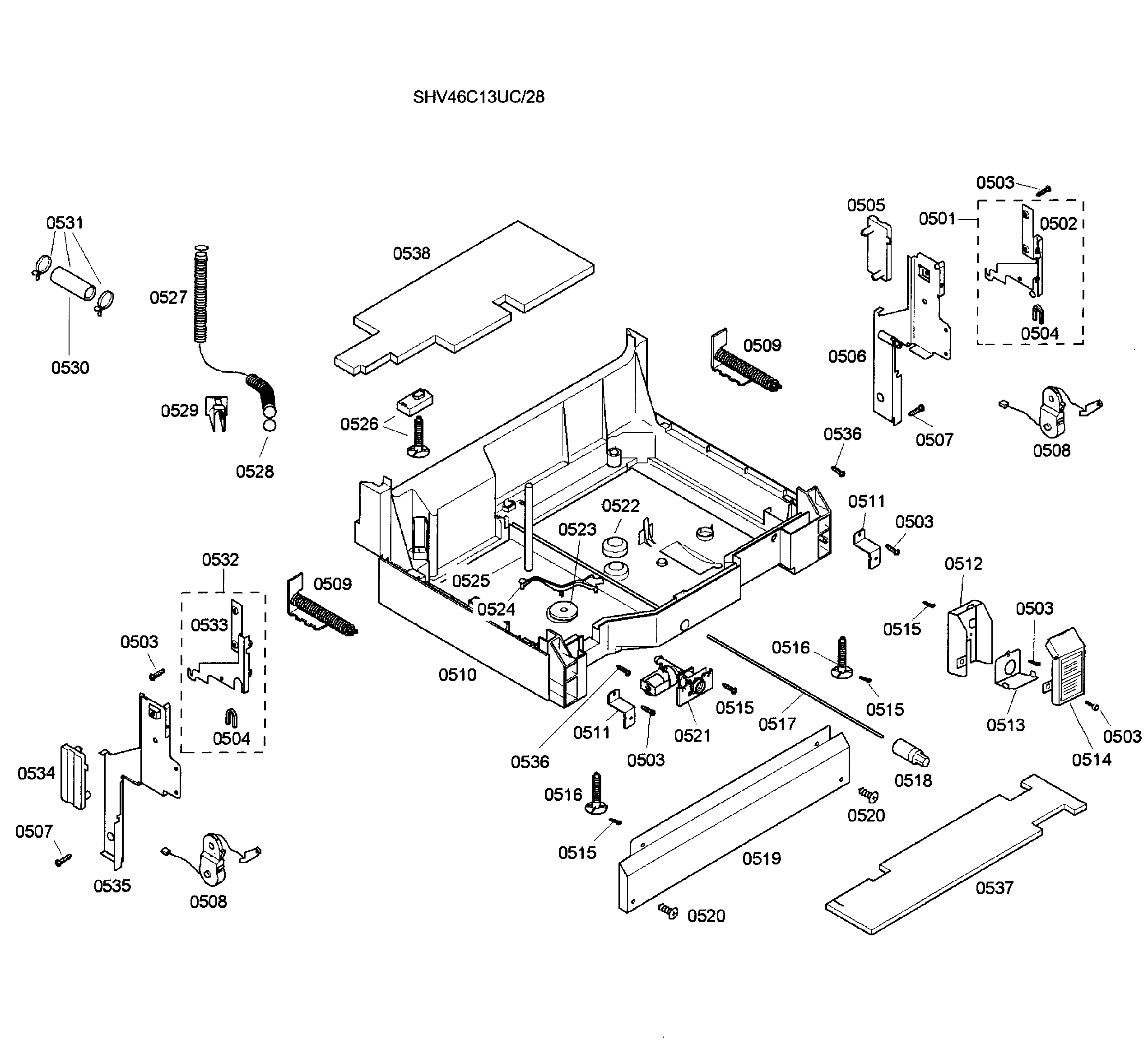

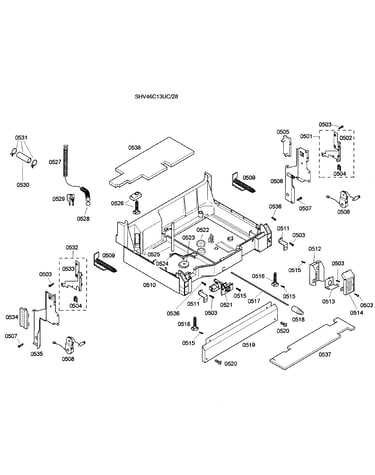

    Base assy diagram

    Bearing

    Part #165296

    Replaced by #00165296

    ?
    Manufacturer substitution
    This part replaces 165296. Substitute parts can look different from the original.
    This item is not returnable
    $17.89
    10% OFF Phone Price : $19.89
    In Stock
  • Drain Hose 263099
    #432

    Pump assy diagram

    Drain hose

    Part #263099

    Replaced by #00263099

    ?
    Manufacturer substitution
    This part replaces 263099. Substitute parts can look different from the original.
    $17.16
    10% OFF Phone Price : $19.16
    In Stock
