Model # ZDP48N4GH1SS Official GE gas range

Here are the diagrams and repair parts for Official GE ZDP48N4GH1SS gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

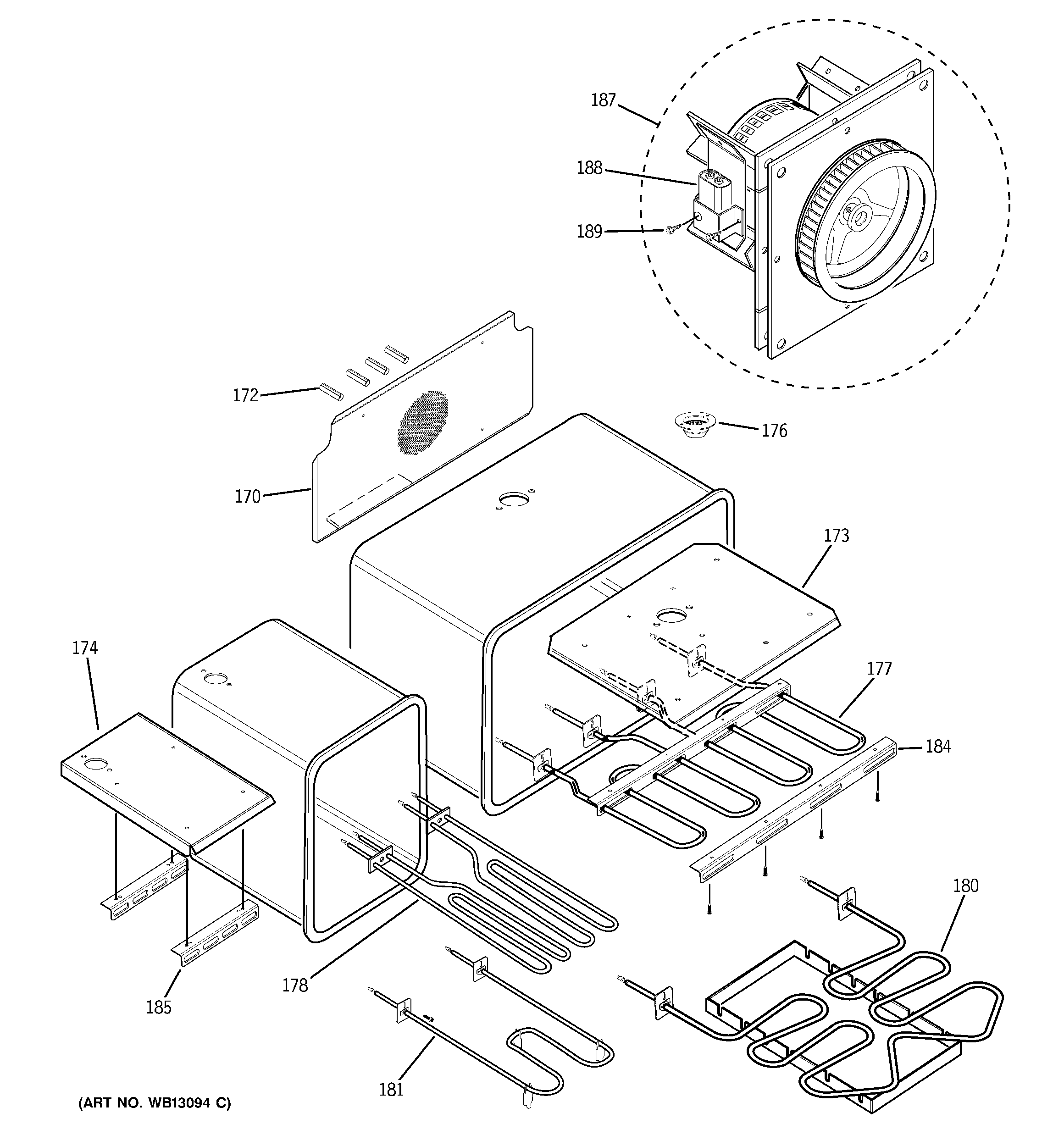

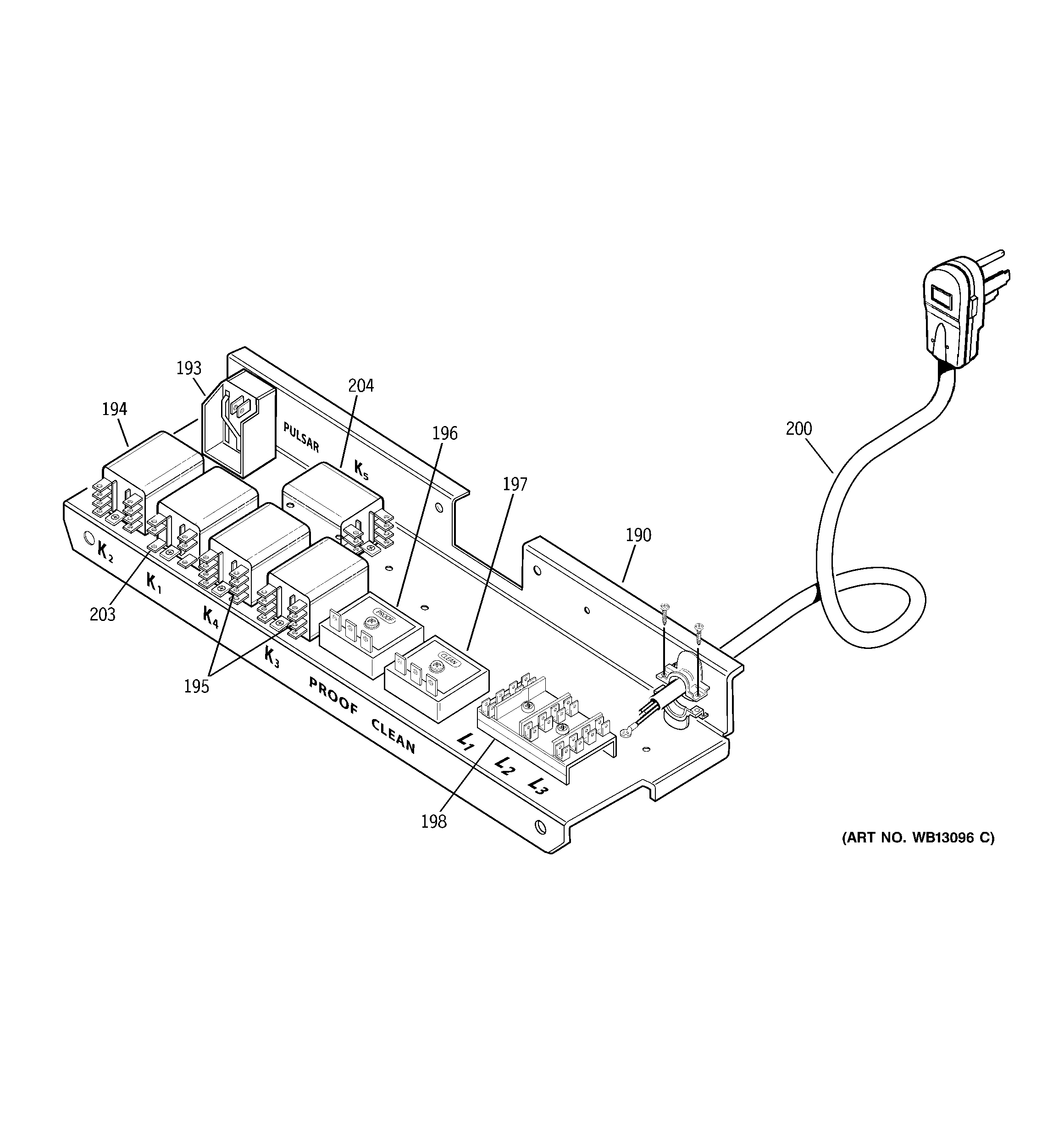

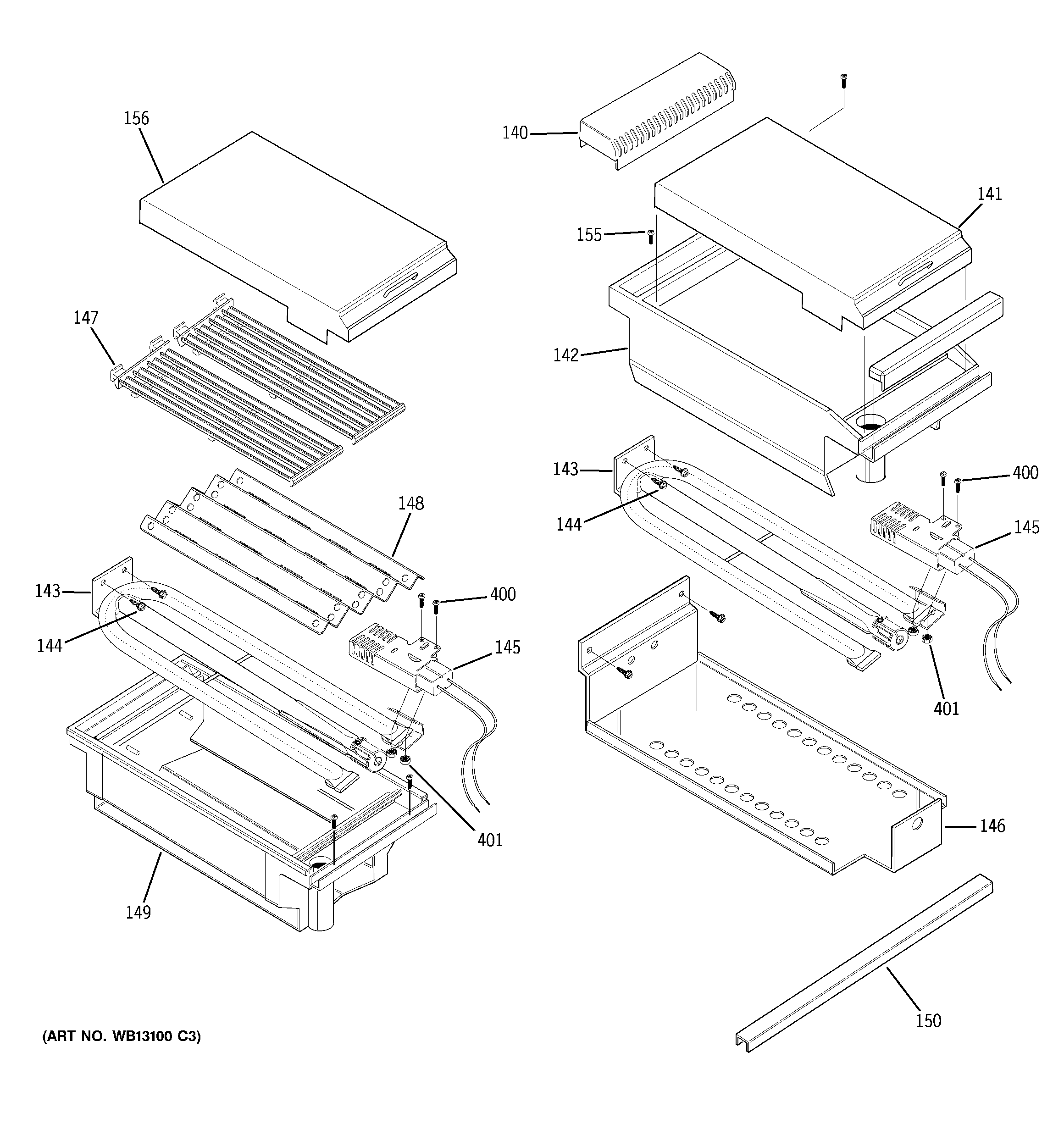

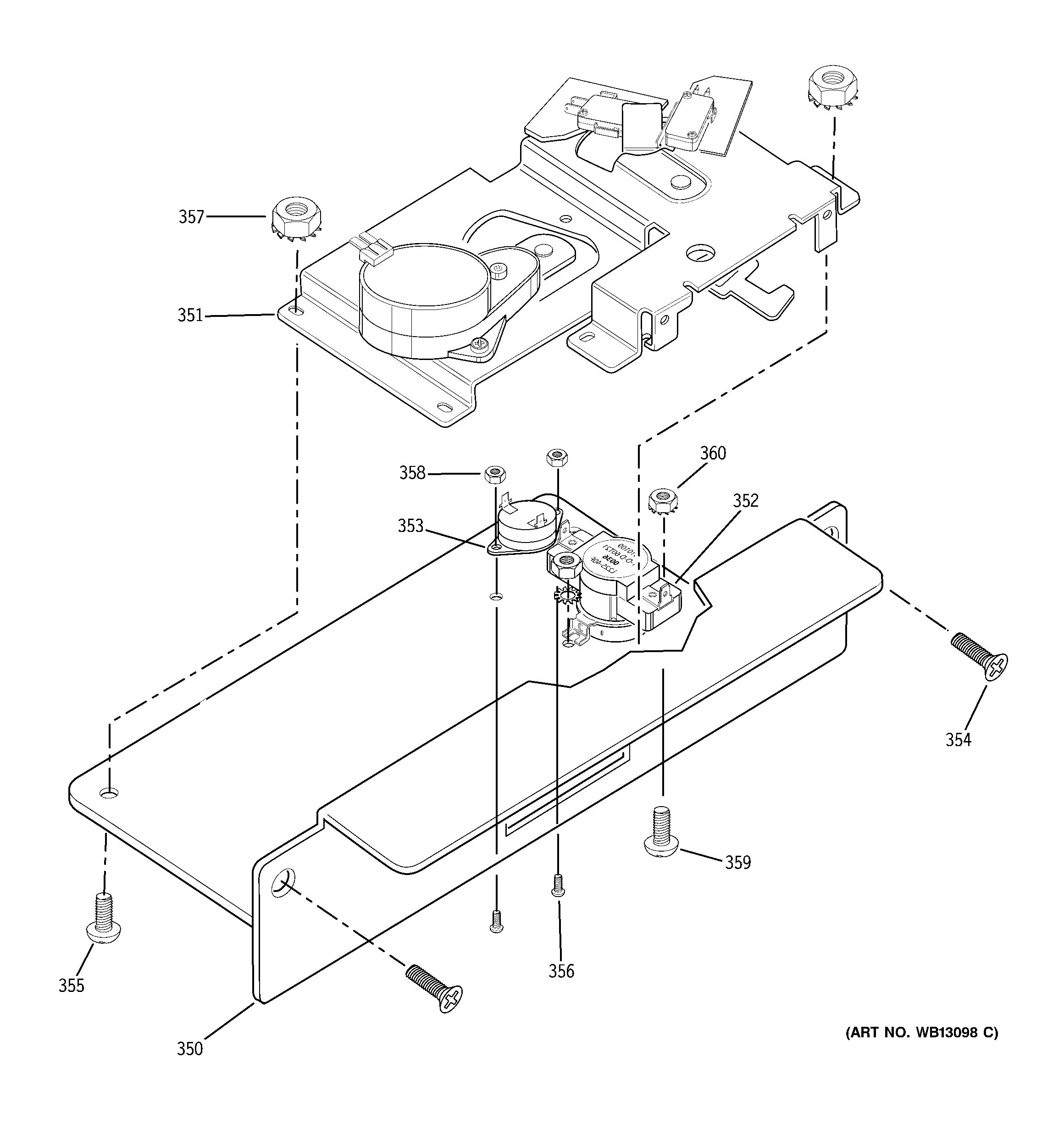

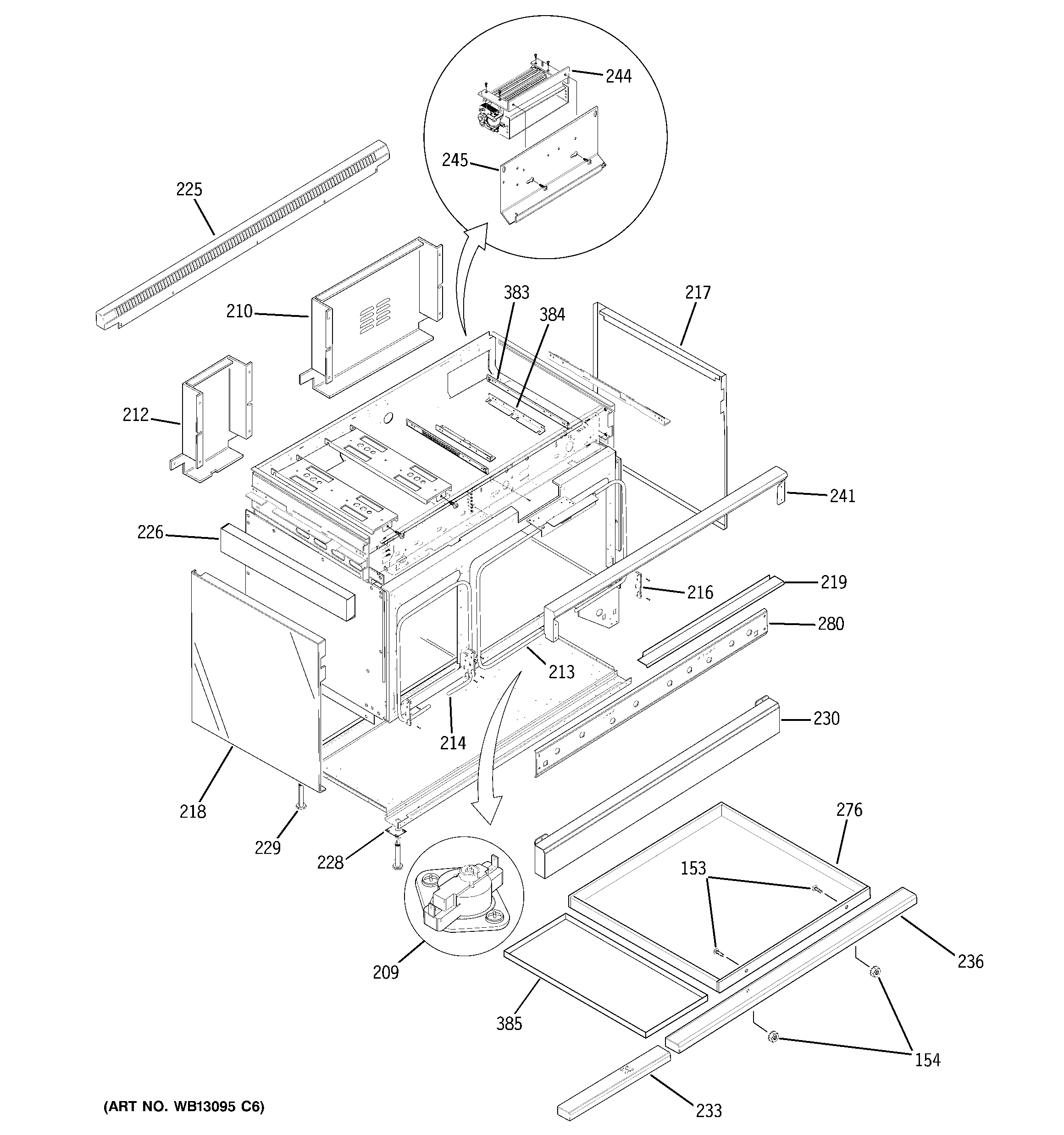

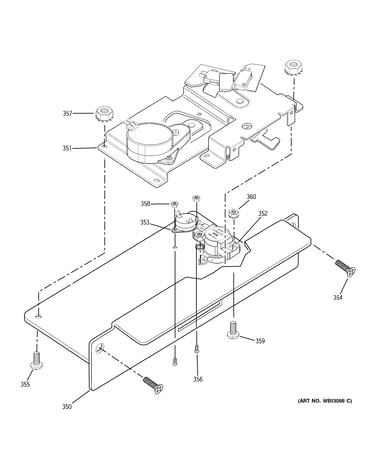

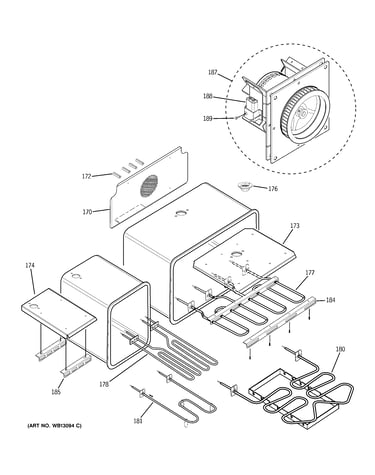

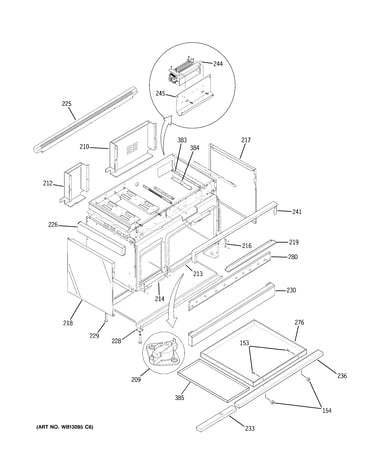

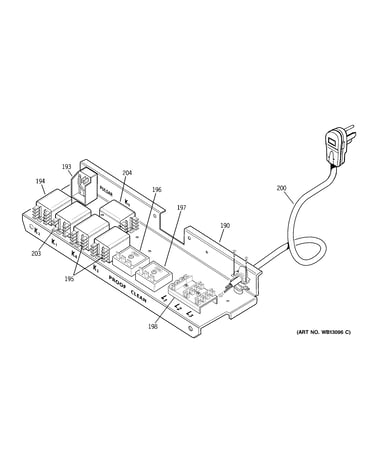

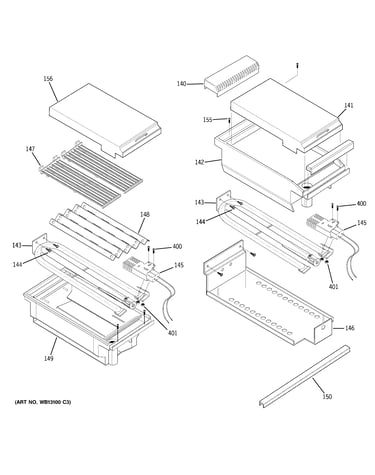

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
ZDP48N4GH1SS Gas Range
Igniter Switch WB24X10089
#305

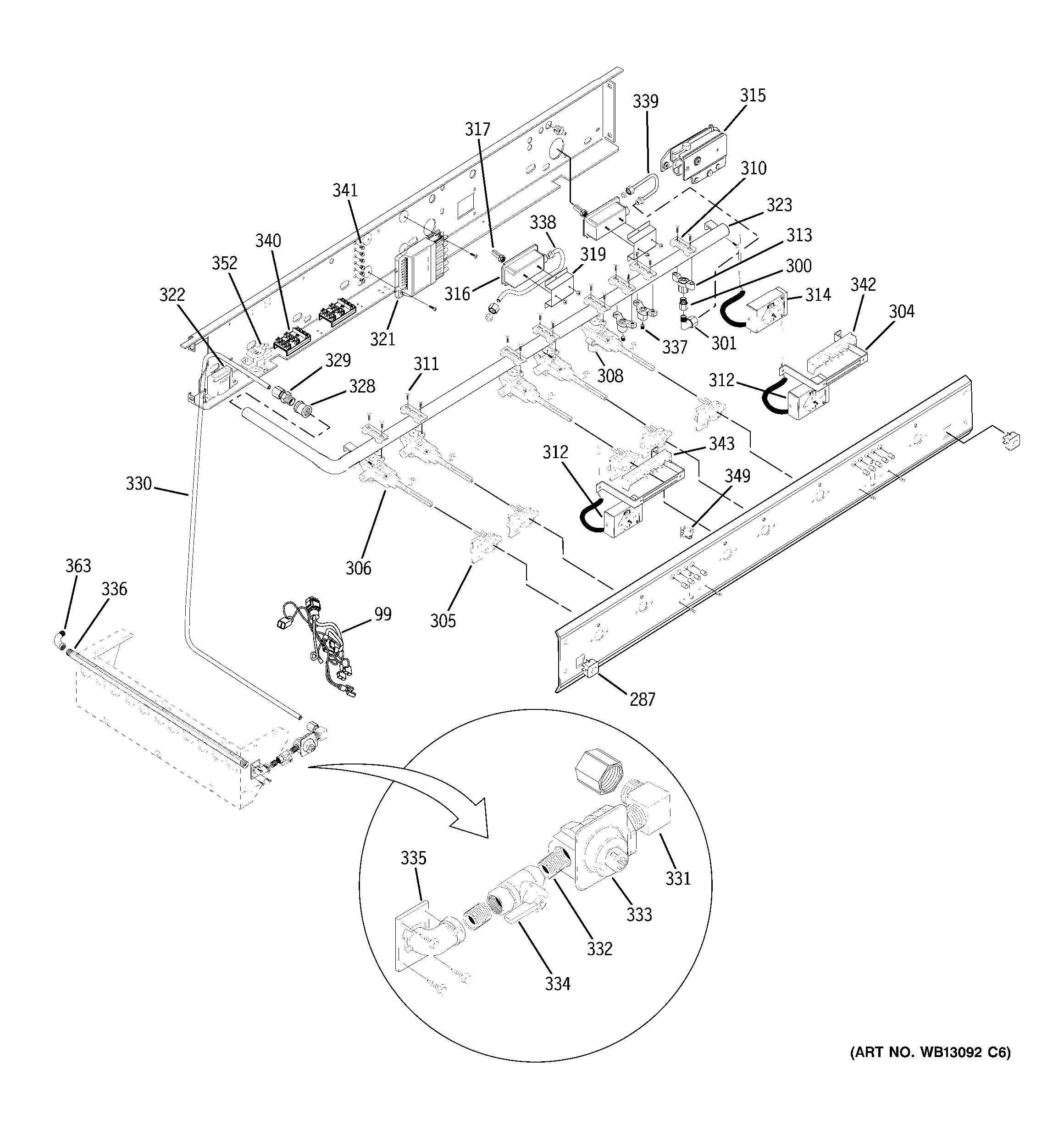

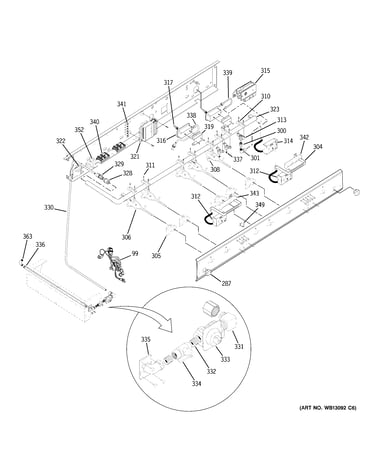

Manifold assembly diagram

Igniter switch

Part #WB24X10089

Replaced by #WB24X10091

?
Manufacturer substitution
This part replaces WB24X10089. Substitute parts can look different from the original.
1 (1)
$37.96 |
14% OFF Phone Price : $43.96
In Stock
Igniter WB02X10780
#259

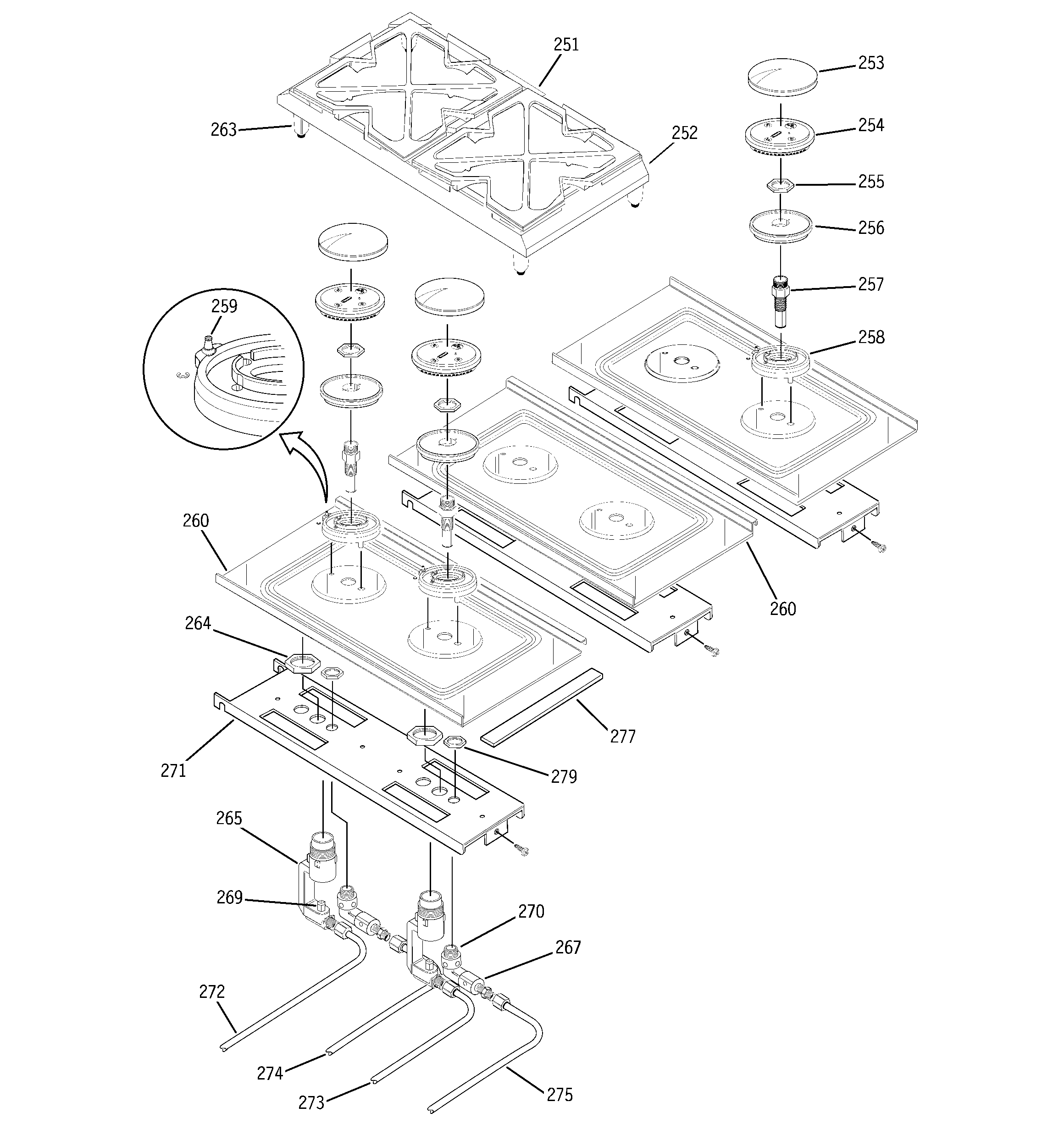

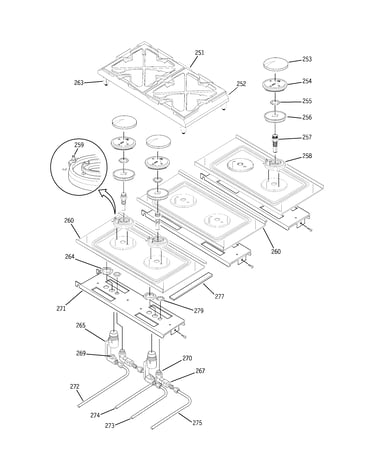

Gas & burner parts diagram

Igniter

Part #WB02X10780

Replaced by #WB02X10822

?
Manufacturer substitution
This part replaces WB02X10780. Substitute parts can look different from the original.
$118.89 |
9% OFF Phone Price : $130.89
In Stock
Halogen Lamp WB08X10044
#166

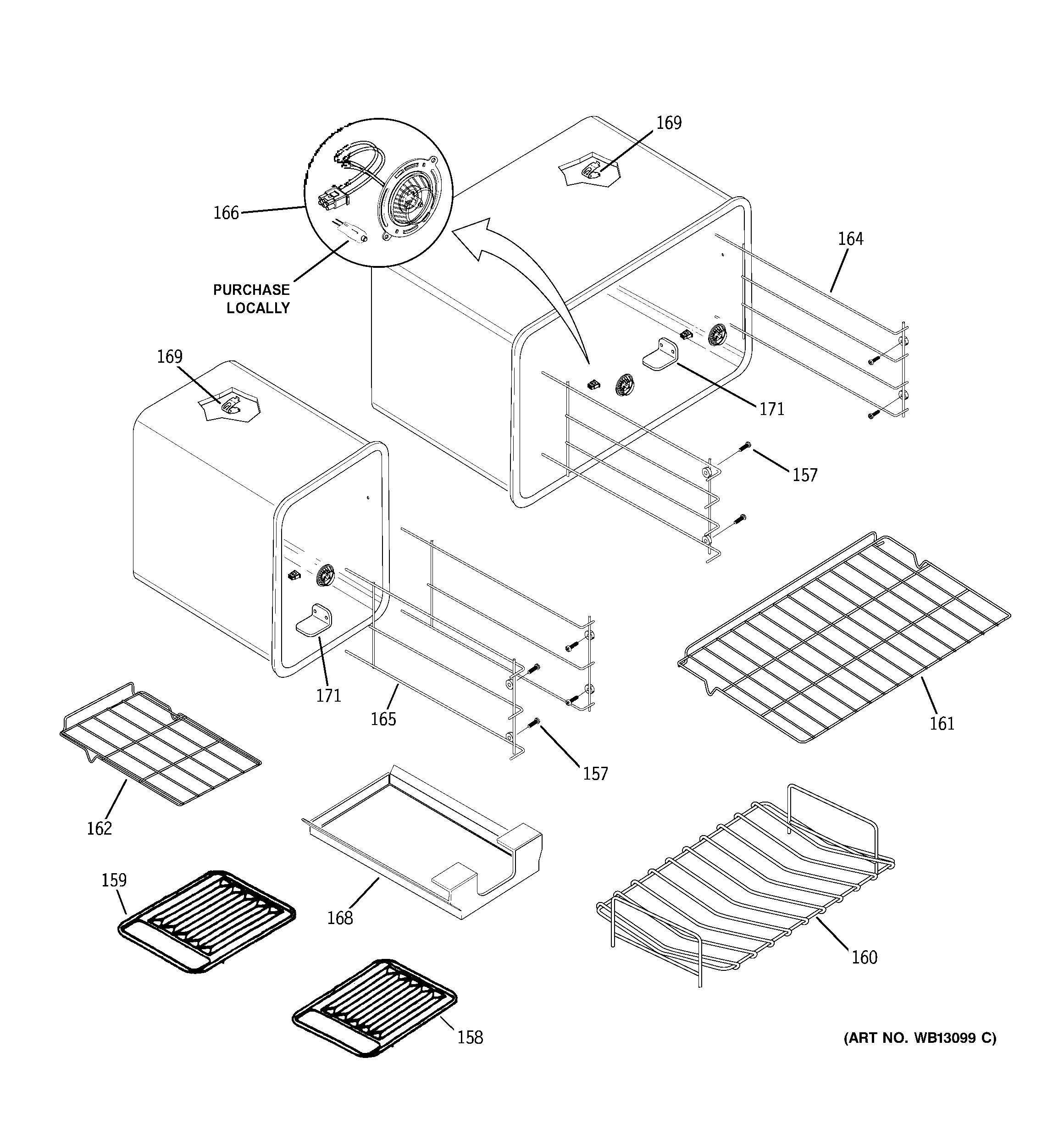

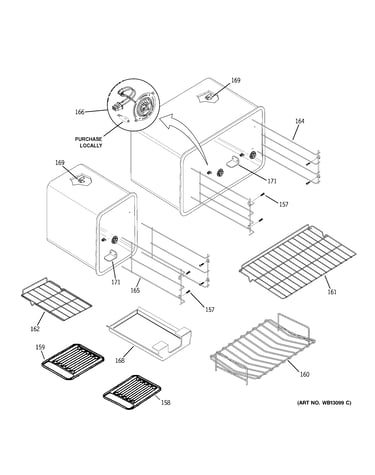

Racks & glides diagram

Halogen lamp

Part #WB08X10044

Replaced by #WB25T10096

?
Manufacturer substitution
This part replaces WB08X10044. Substitute parts can look different from the original.
$35.08 |
15% OFF Phone Price : $41.08
In Stock
Range Surface Burner Supply Tube, Front WB28X10065
#273

Gas & burner parts diagram

Range surface burner supply tube, front

Part #WB28X10065

$51.31 |
10% OFF Phone Price : $57.31
In Stock
Transformer WB27X10783
#322

Manifold assembly diagram

Transformer

Part #WB27X10783

Replaced by #WB27X10905

?
Manufacturer substitution
This part replaces WB27X10783. Substitute parts can look different from the original.
$114.37 |
9% OFF Phone Price : $126.37
In Stock
D Simmer Rin WB22X10012
#256

Gas & burner parts diagram

D simmer rin

Part #WB22X10012

Replaced by #WB31X10010

?
Manufacturer substitution
This part replaces WB22X10012. Substitute parts can look different from the original.
$118.79 |
9% OFF Phone Price : $130.79
In Stock
Range Oven Control Knob Screw WB01X10322
#377

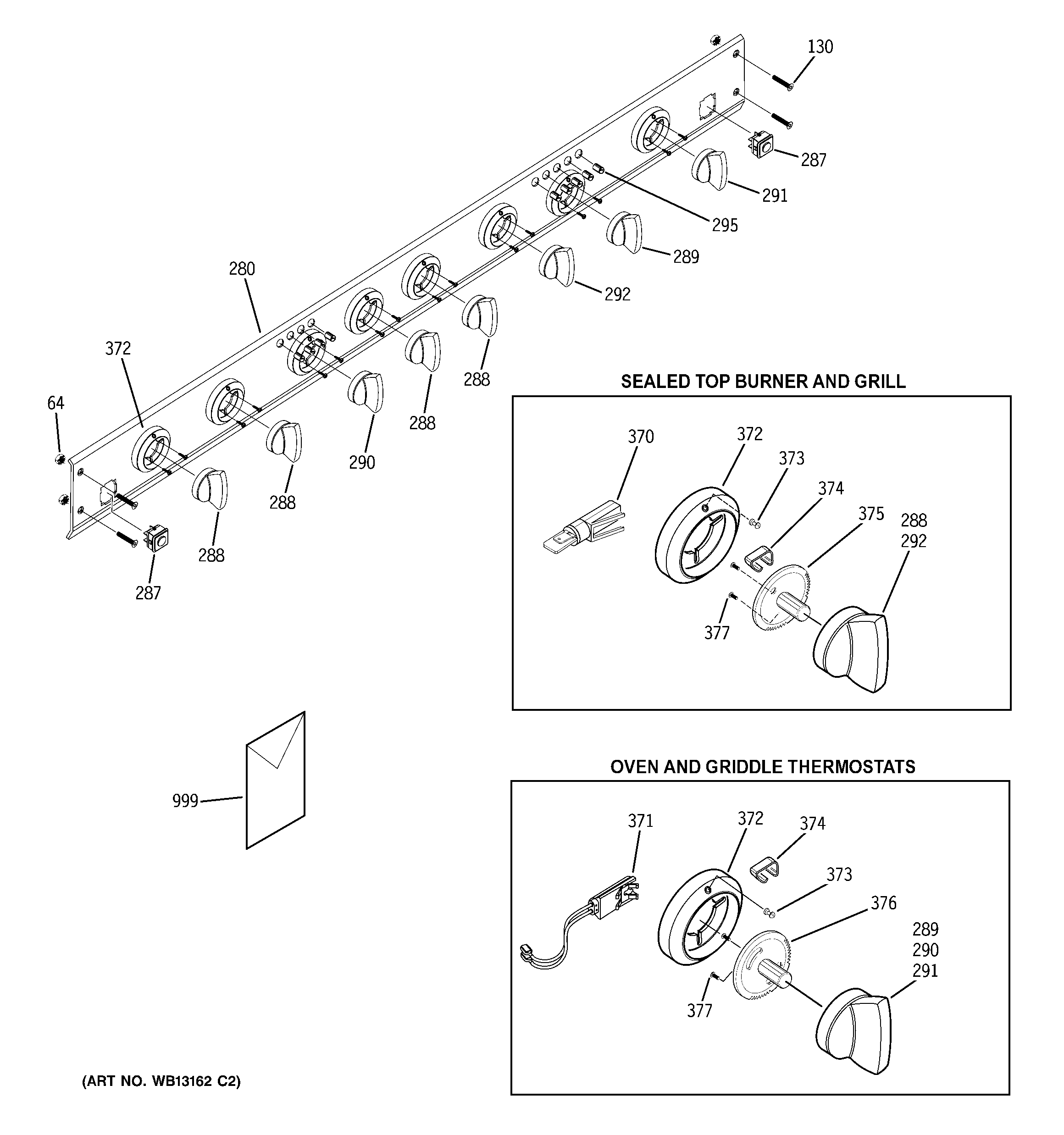

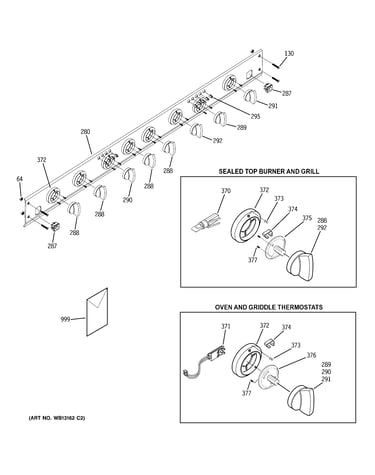

Control panel diagram

Range oven control knob screw

Part #WB01X10322

This item is not returnable
$5.00
In Stock
Lp/nat Conve WB49X10133
#1

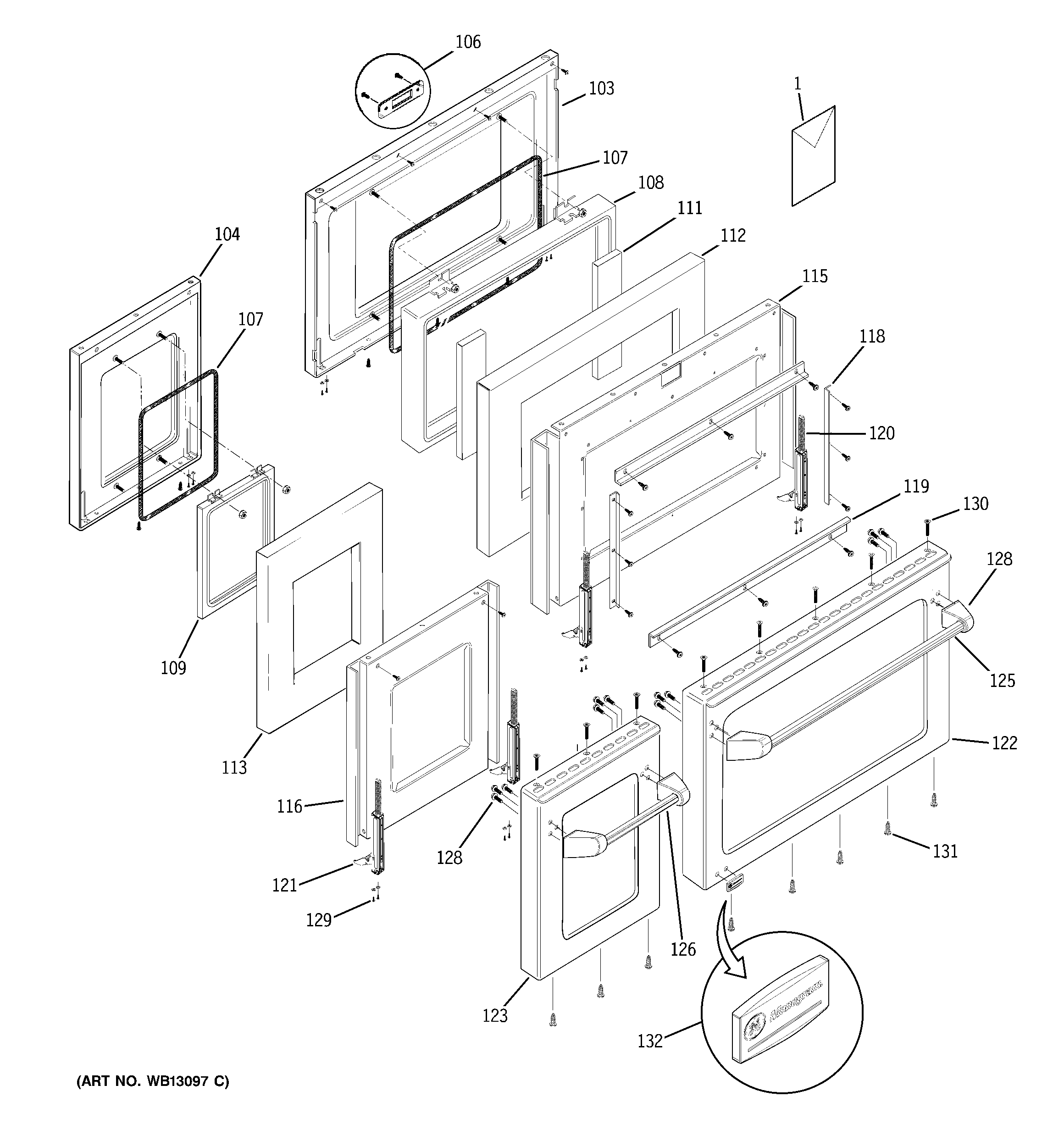

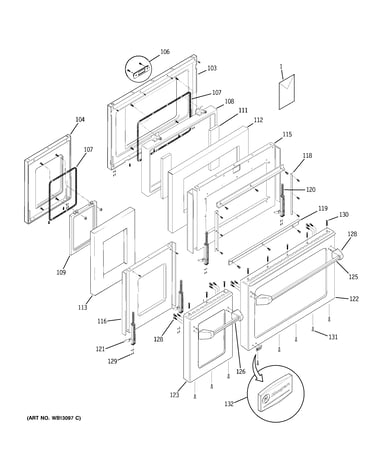

Door diagram

Lp/nat conve

Part #WB49X10133

$294.96
In Stock
Range Surface Burner Cap WB13X10014
#253

Gas & burner parts diagram

Range surface burner cap

Part #WB13X10014

$96.32 |
11% OFF Phone Price : $108.32
In Stock
Burner Bracket WB02X11077
#271

Gas & burner parts diagram

Burner bracket

Part #WB02X11077

$66.66
In Stock
