Model # 8501 Official Porter Cable battery charger

Here are the diagrams and repair parts for Official Porter Cable 8501 battery charger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Connector 682063
#4

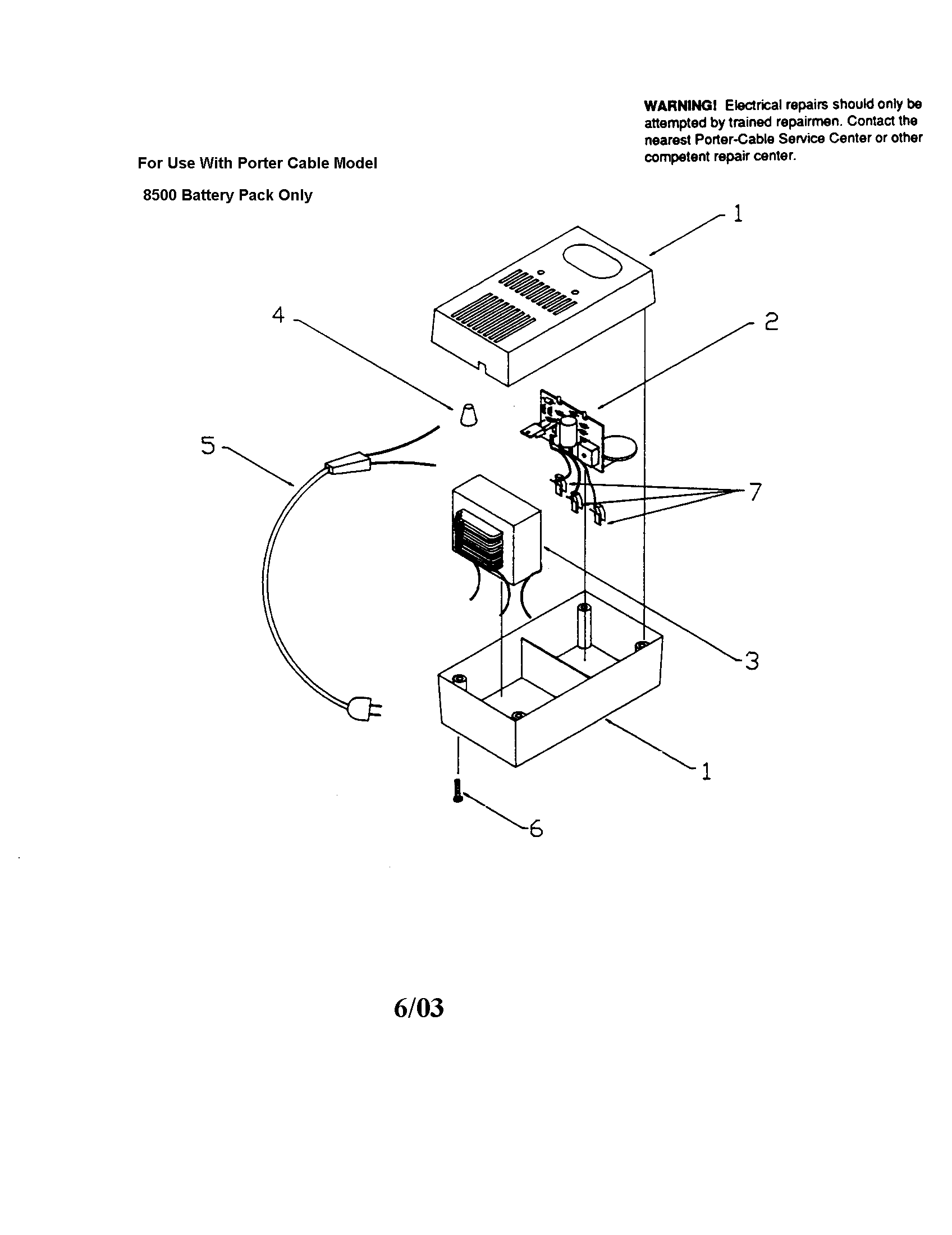

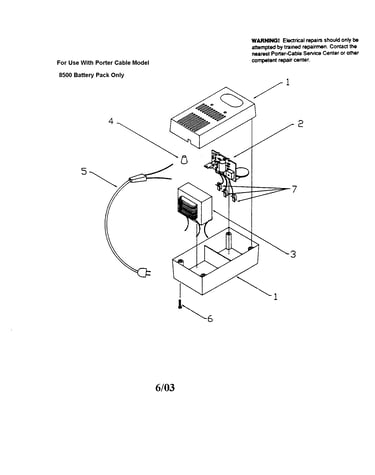

Battery charger diagram

Connector

Part #682063

The manufacturer no longer makes this part, and there's no substitute part

Screw 694015
#6

Battery charger diagram

Screw

Part #694015

The manufacturer no longer makes this part, and there's no substitute part

Cord 877528
#5

Battery charger diagram

Cord

Part #877528

The manufacturer no longer makes this part, and there's no substitute part

Transformer 877526
#3

Battery charger diagram

Transformer

Part #877526

The manufacturer no longer makes this part, and there's no substitute part

Housing Set 877655
#1

Battery charger diagram

Housing set

Part #877655

The manufacturer no longer makes this part, and there's no substitute part

Circuit Board 877527
#2

Battery charger diagram

Circuit board

Part #877527

The manufacturer no longer makes this part, and there's no substitute part

Contact 877530
#7

Battery charger diagram

Contact

Part #877530

The manufacturer no longer makes this part, and there's no substitute part
