Model # SGV68U53UC/D5 Official Bosch dishwasher
Here are the diagrams and repair parts for Official Bosch SGV68U53UC/D5 dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

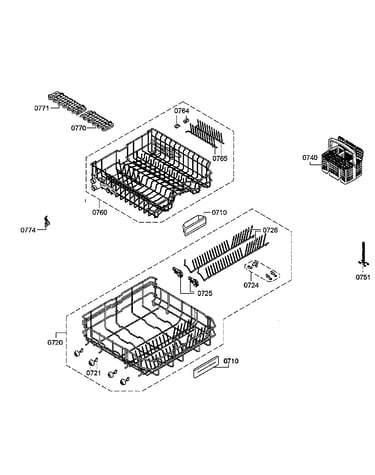

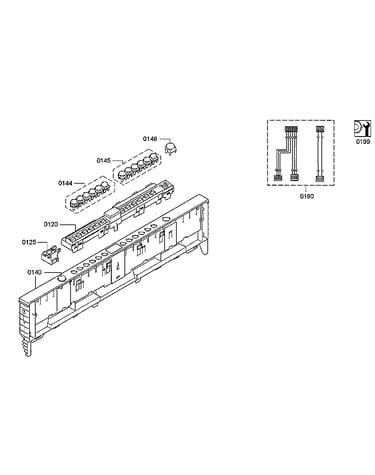

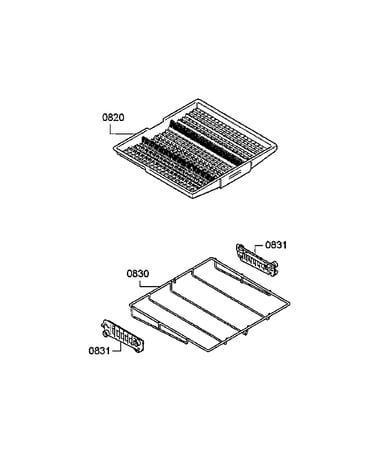

SELECT DIAGRAM
Browse Parts for
SGV68U53UC/D5 Dishwasher
#455

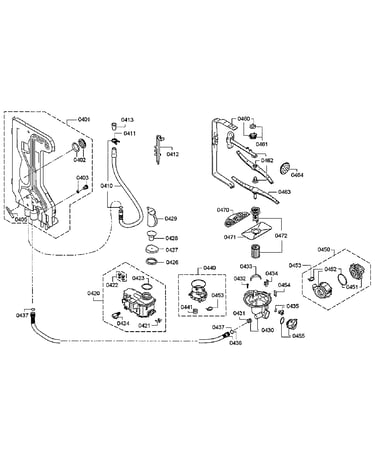

Pump asy diagram
Dishwasher drain pump
Part #00631200
$35.97 |
14% OFF Phone Price : $41.97
In Stock
#430
Pump asy diagram
Dishwasher sump (replaces 00752078, 668102)
Part #00668102
$75.17 |
7% OFF Phone Price : $81.17
In Stock
#435
Pump asy diagram
Dishwasher turbidity sensor (replaces 00611567, 00611568, 611323)
Part #00611323
$38.75 |
13% OFF Phone Price : $44.75
In Stock
#622

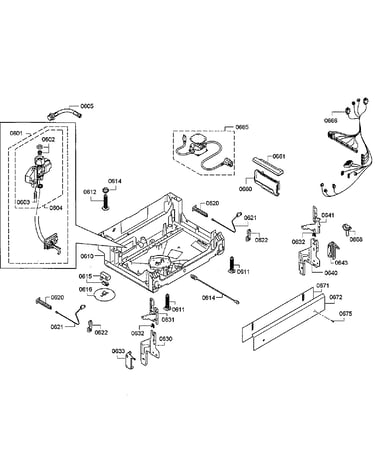

Base diagram
Dishwasher door cable roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835)
Part #00623536
$21.44 |
22% OFF Phone Price : $27.44
In Stock
#616
Base diagram
Dishwasher float assembly (replaces 622036)
Part #00622036
This item is not returnable
$26.69 |
18% OFF Phone Price : $32.69
In Stock
#436
Pump asy diagram
Dishwasher sump hose (replaces 668104)
Part #00668104
This item is not returnable
$9.49 |
10% OFF Phone Price : $10.49
In Stock
#330

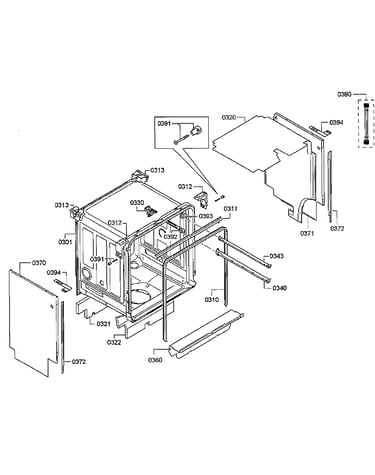

Frame diagram
Dishwasher door latch
Part #00630628
Replaced by #00636708
?
Manufacturer substitution
This part replaces 00630628. Substitute parts can look different from the original.
$36.99 |
14% OFF Phone Price : $42.99
In Stock
#472
Pump asy diagram
Dishwasher circulation pump micro filter (replaces 645038)
Part #00645038
$37.73 |
14% OFF Phone Price : $43.73
In Stock
#431
Pump asy diagram
Dishwasher check valve (replaces 611320)
Part #00611320
This item is not returnable
$24.20 |
20% OFF Phone Price : $30.20
In Stock
#287

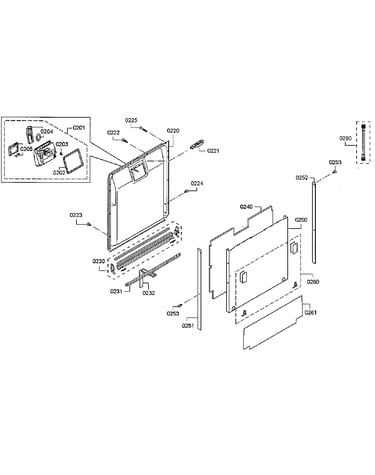

Door asy diagram
Dishwasher door handle
Part #00752527
Replaced by #12012913
?
Manufacturer substitution
This part replaces 00752527. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $31.84 |16% OFF Phone Price : $37.84
- $23.77
Most common symptoms to help you fix your dishwashers
Choose a symptom to see related dishwasher repairs.
Main causes: broken door spring, damaged or broken door hinge…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main cause: damaged rack height adjuster…
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
Most common repair guides to help fix your dishwashers
These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.
How to replace a dishwasher door latch assembly
If the dishwasher door doesn't click shut, a broken door latch is a likely cause. Follow these instructions to replace i…
Repair difficulty
Time required
30 minutes or less
How to replace a dishwasher user interface control
The user interface control houses the selection buttons and display. If it fails, you can't select the cycle and setting…
Repair difficulty
Time required
30 minutes or less
How to replace a dishwasher thermal fuse
A completely dead control panel often indicates that the thermal fuse on the electronic control board is blown; follow t…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your dishwashers
Use the advice and tips in these articles and videos to get the most out of your dishwasher.
Get tips on completing essential holiday cleaning tasks to brighten your home.…
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
