ICP
Heating & Cooling Combined Unit

Model # PGF018K040A Official ICP central package

Here are the diagrams and repair parts for Official ICP PGF018K040A central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#39

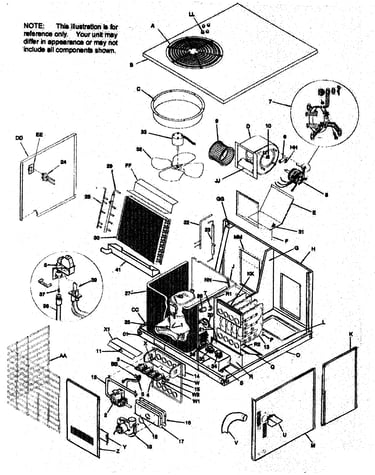

Central package diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Fan Motor 1082639
#33

Central package diagram

Fan motor

Part #1082639

Replaced by #1086598

?
Manufacturer substitution
This part replaces 1082639. Substitute parts can look different from the original.
$242.11 |
5% OFF Phone Price : $254.11
In Stock
Furnace Inducer Vent Motor Assembly 1085571
#19

Central package diagram

Furnace inducer vent motor assembly

Part #1085571

$296.73 |
$12.00 OFF Phone Price : $308.73
In Stock
Transformer 1082611
#35

Central package diagram

Transformer

Part #1082611

$101.35 |
11% OFF Phone Price : $113.35
In Stock
Limit Switch 1000735
#10

Central package diagram

Limit switch

Part #1000735

Replaced by #1013105

?
Manufacturer substitution
This part replaces 1000735. Substitute parts can look different from the original.
This item is not returnable
$15.14
In Stock
Furnace Burner 1009178
#3

Central package diagram

Furnace burner

Part #1009178

$109.11
In Stock
Cover-vent 1096970
#U

Central package diagram

Cover-vent

Part #1096970

$443.00
In Stock
Panel-accs 1084134
#Z

Central package diagram

Panel-accs

Part #1084134

$828.45
In Stock
Arcoaire Gskt Htx Bnr 2480904
#14

Central package diagram

Arcoaire gskt htx bnr

Part #2480904

This item is not returnable
$3.37
In Stock
Box Collector 1085400
#17

Central package diagram

Box collector

Part #1085400

$147.28
In Stock
