Model # SPX68U55UC/30 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SPX68U55UC-30 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#451

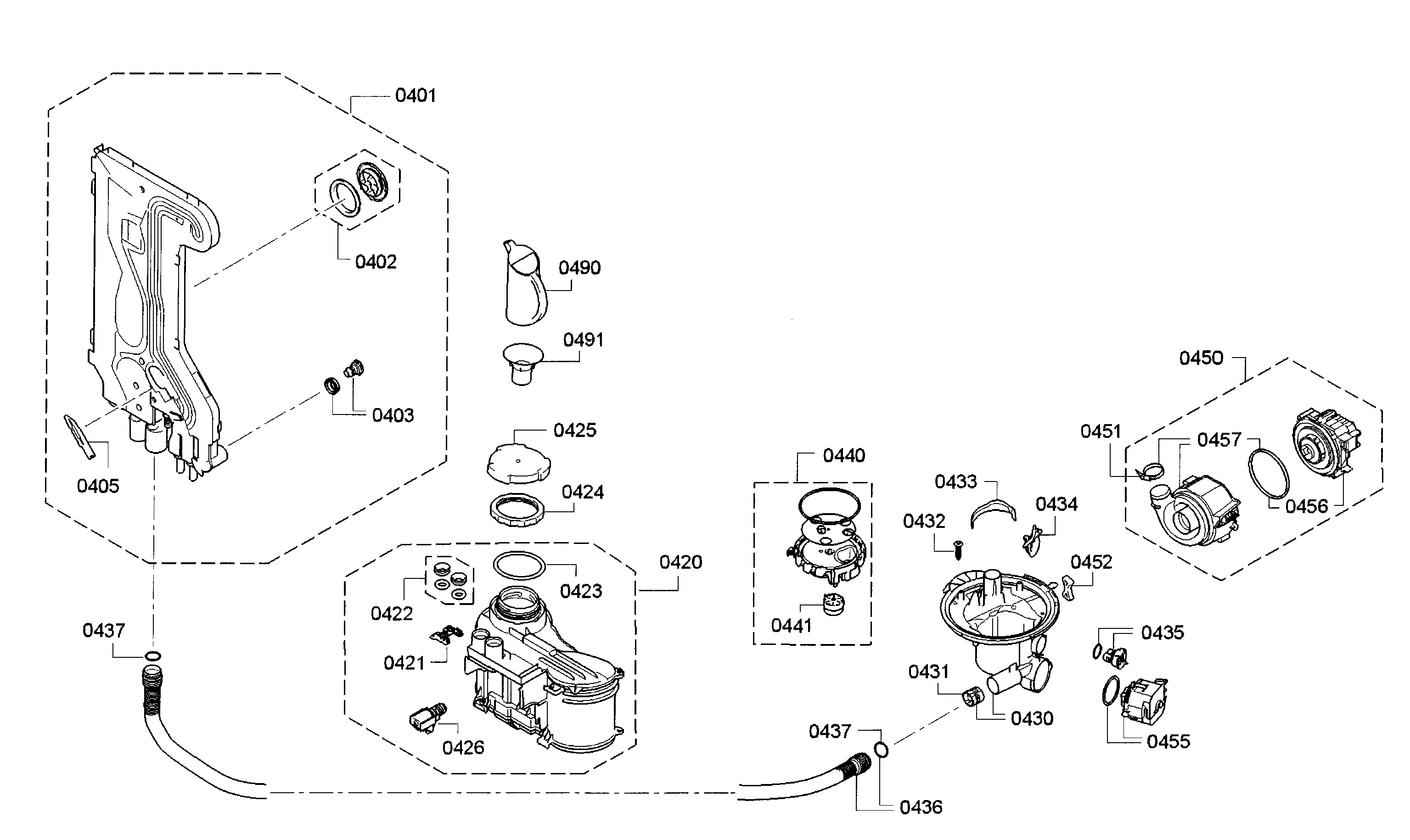

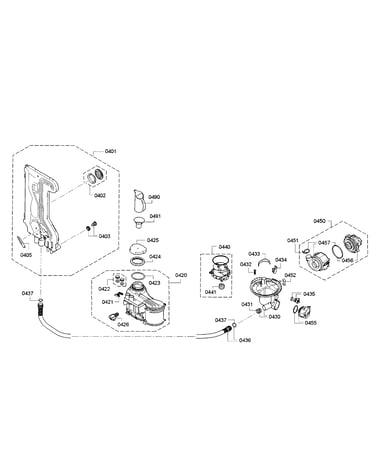

Pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Dishrack Roller, Lower (replaces 611475) 00611475
#621

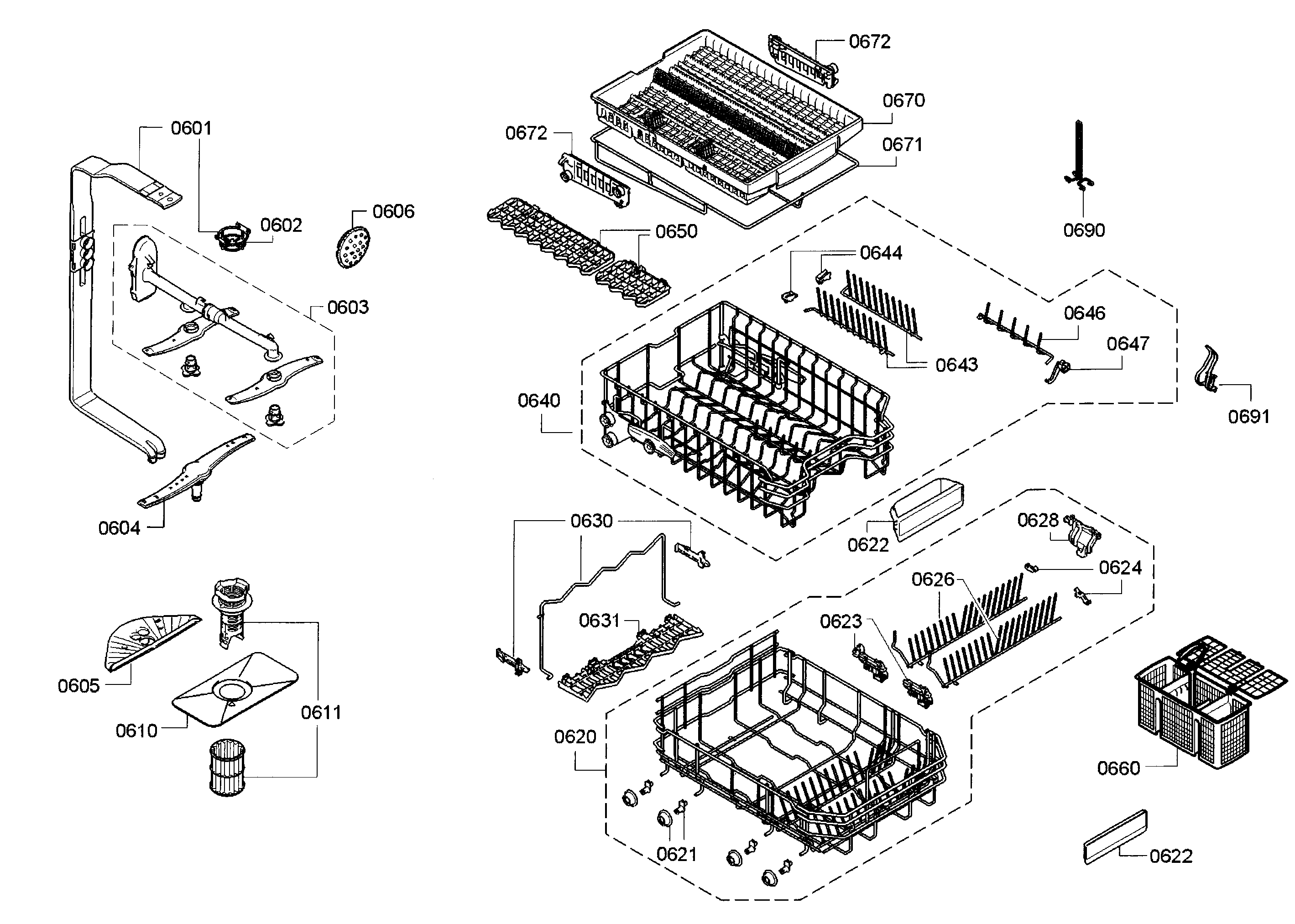

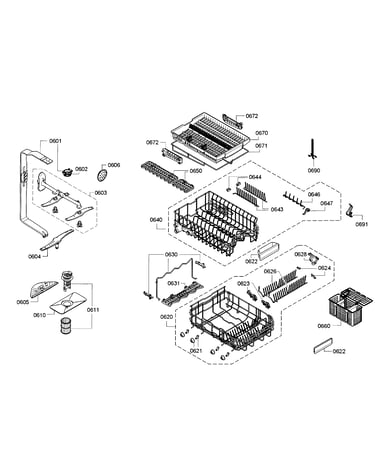

Rack diagram

Dishwasher dishrack roller, lower (replaces 611475)

Part #00611475

BEST SELLER
$14.27 |
12% OFF Phone Price : $16.27
In Stock
Dishwasher Door Handle End Cap (replaces 628998) 00628998
#281

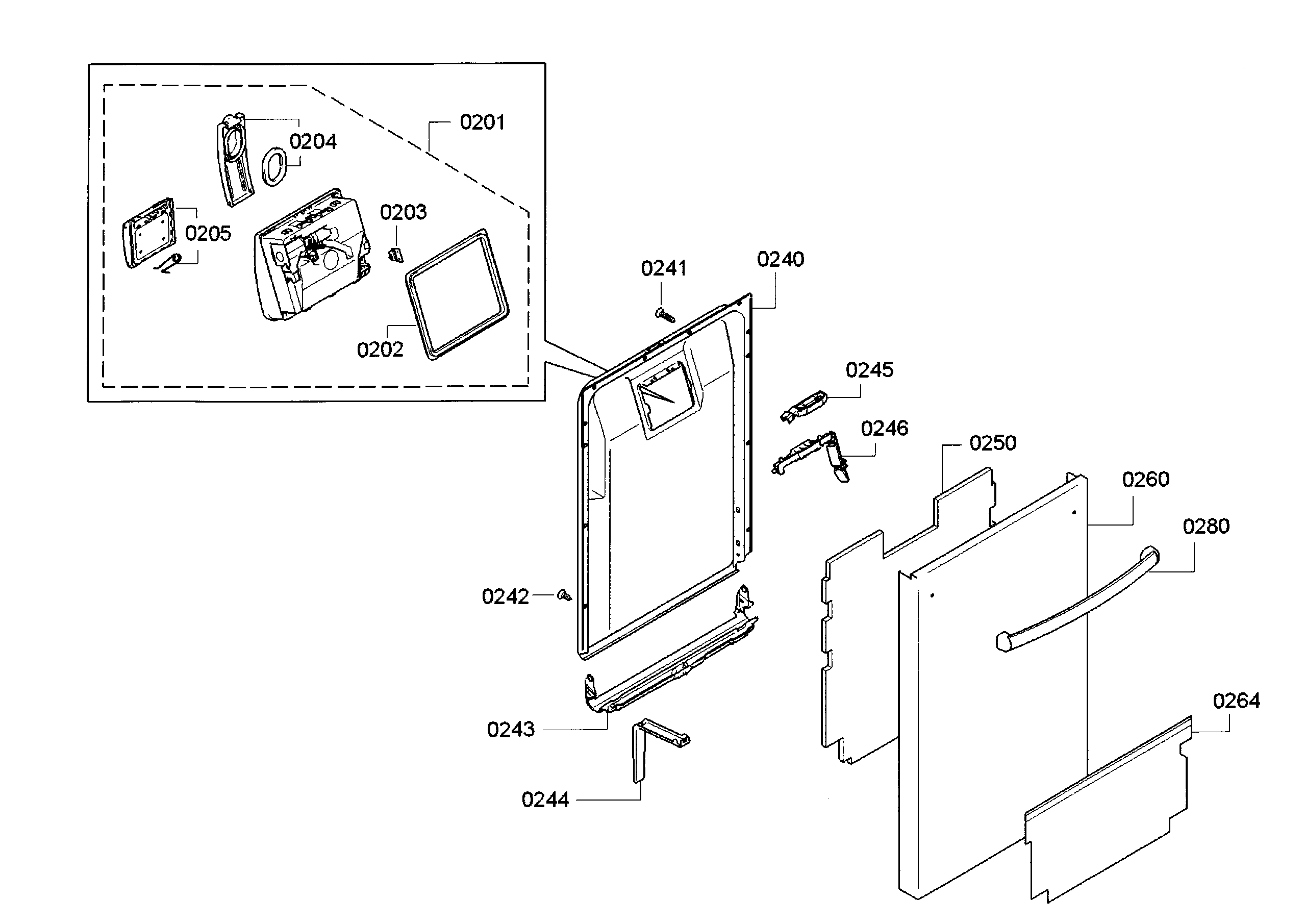

Door diagram

Dishwasher door handle end cap (replaces 628998)

Part #00628998

BEST SELLER
$8.98 |
10% OFF Phone Price : $9.98
In Stock
Dishwasher Door Cable Roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835) 00623536
#555

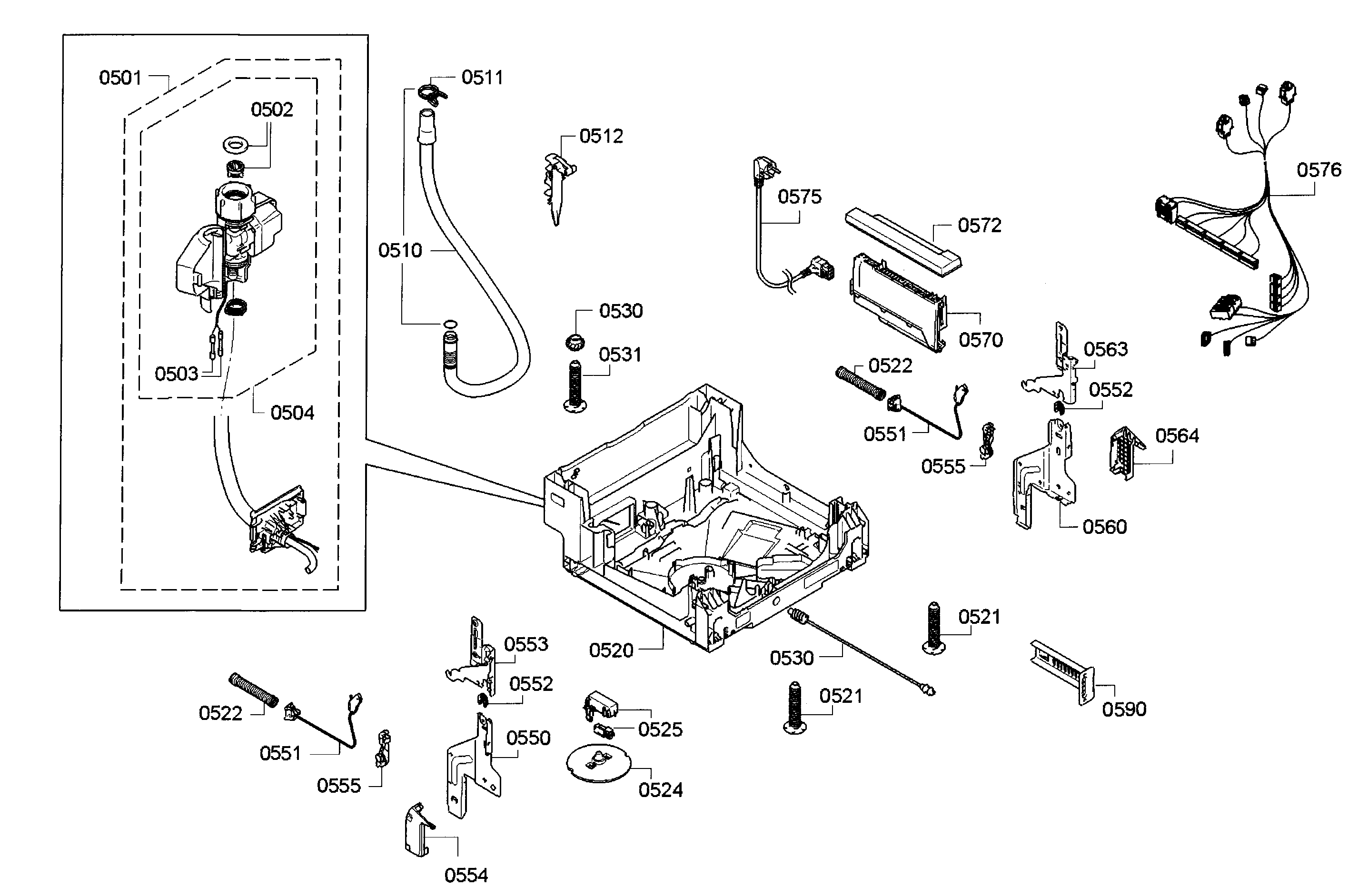

Base diagram

Dishwasher door cable roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835)

Part #00623536

BEST SELLER
$20.16 |
23% OFF Phone Price : $26.16
In Stock
Dishwasher On/off Switch (replaces 620775) 00620775
#113

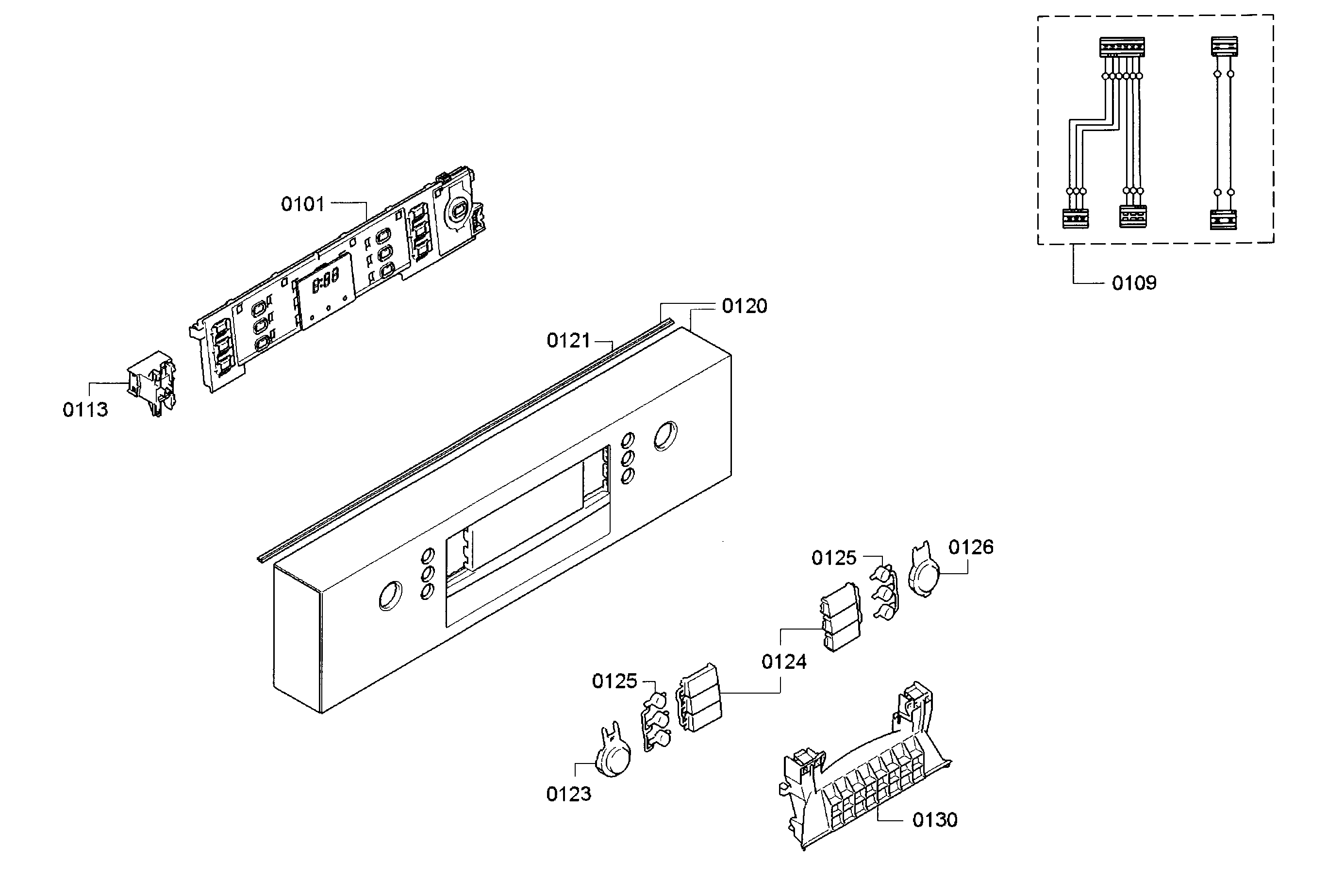

Control panel diagram

Dishwasher on/off switch (replaces 620775)

Part #00620775

$38.99 |
13% OFF Phone Price : $44.99
In Stock
Dishwasher Float Assembly (replaces 622036) 00622036
#524

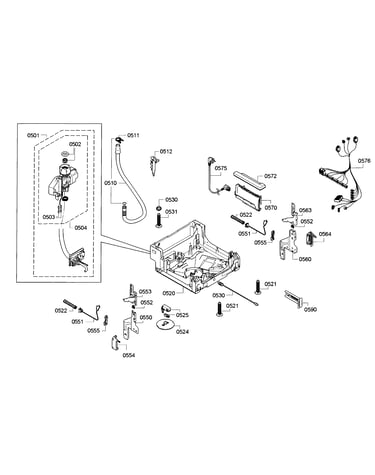

Base diagram

Dishwasher float assembly (replaces 622036)

Part #00622036

This item is not returnable
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Appliance Screw 00151703
#242

Door diagram

Appliance screw

Part #00151703

This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Dishwasher Wire Harness (replaces 00611663, 00630611, 648135) 00648135
#109

Control panel diagram

Dishwasher wire harness (replaces 00611663, 00630611, 648135)

Part #00648135

$80.49 |
7% OFF Phone Price : $86.49
In Stock
Dishwasher Door Seal (replaces 263096) 00263096
#331

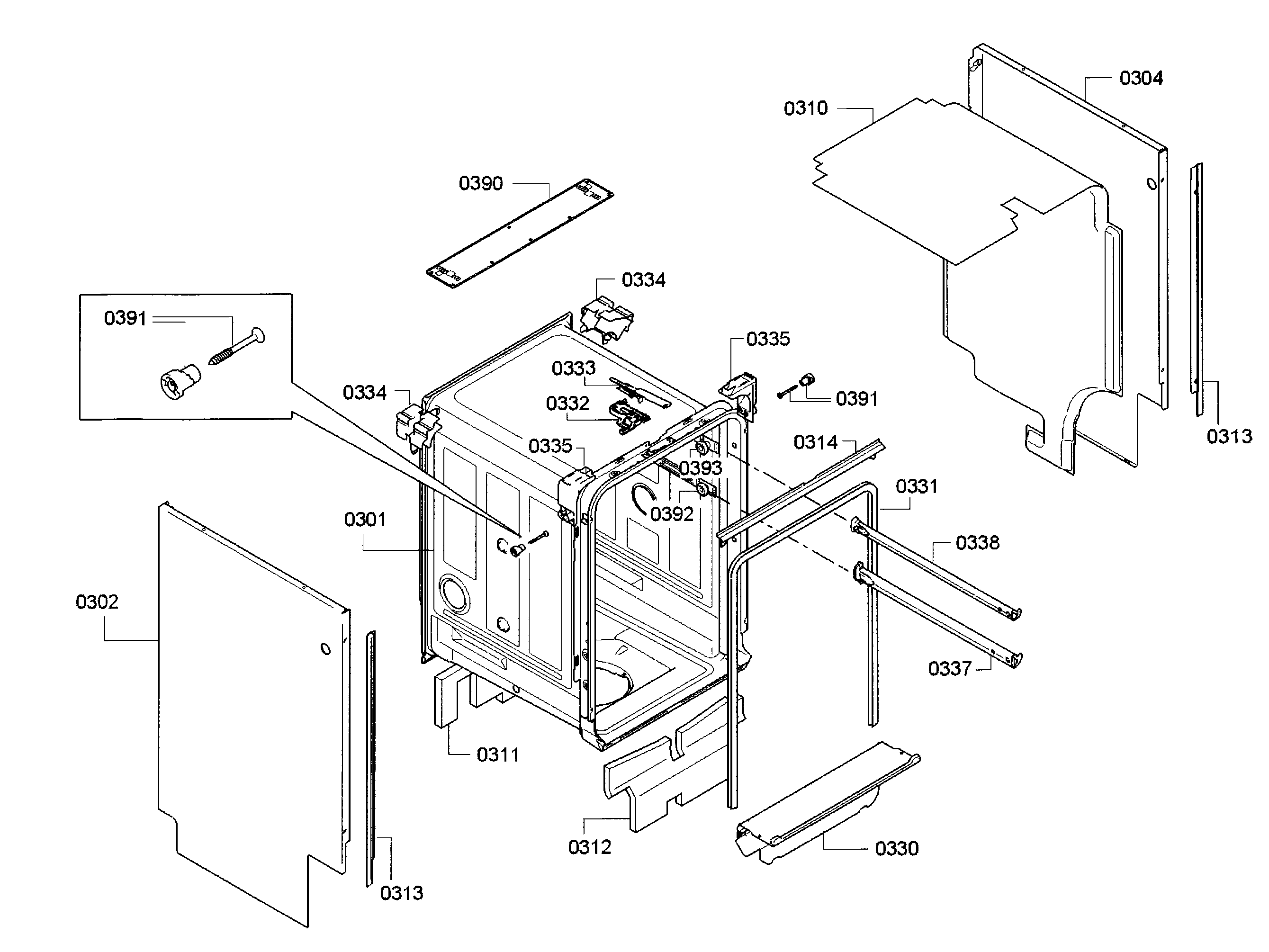

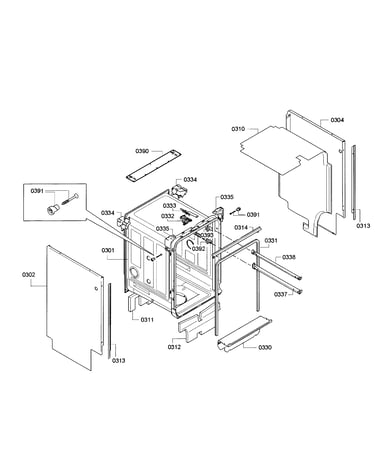

Frame diagram
