Model # 143235042 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143235042 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

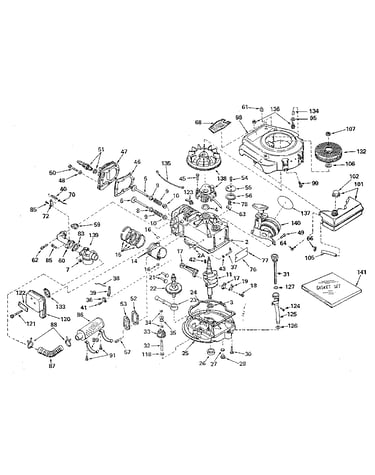

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |

Carburetor 631693
#139

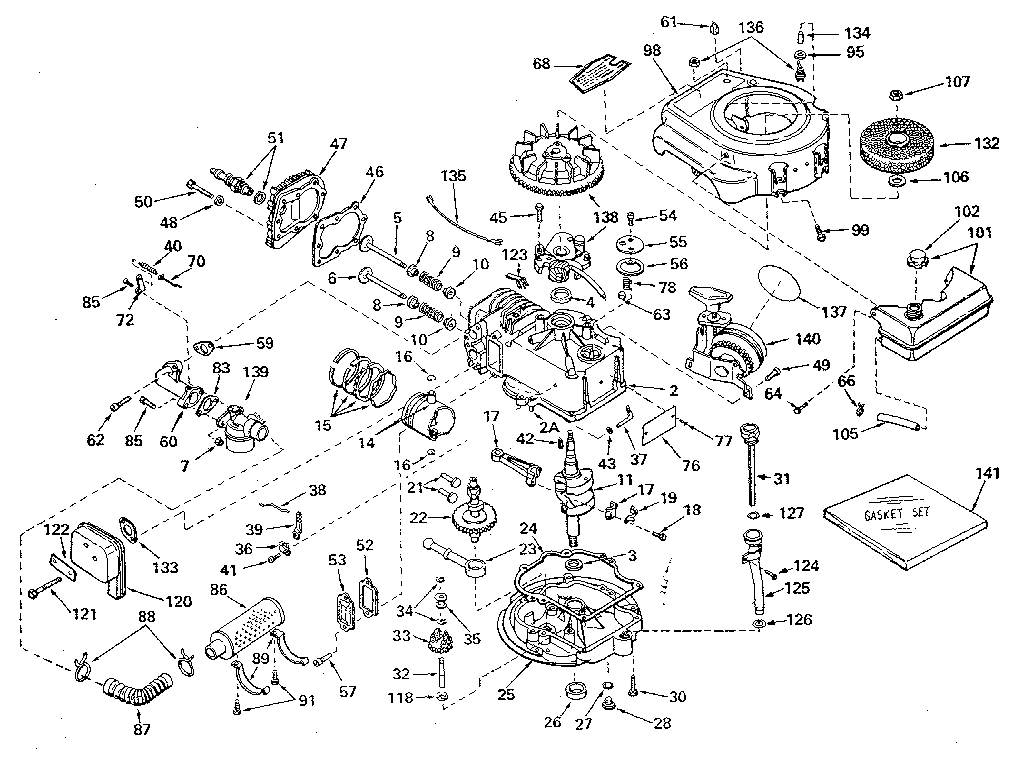

Unit parts diagram

Carburetor

Part #631693

The manufacturer no longer makes this part, and there's no substitute part

Drain Plug 27244
#28

Unit parts diagram

Drain plug

Part #27244

The manufacturer no longer makes this part, and there's no substitute part

Spring 31672
#9

Unit parts diagram

Spring

Part #31672

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#33

Unit parts diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Screw 650665
#91

Unit parts diagram

Screw

Part #650665

The manufacturer no longer makes this part, and there's no substitute part

Gasket 28833
#27

Unit parts diagram

Gasket

Part #28833

The manufacturer no longer makes this part, and there's no substitute part

Pump Assembly 29914
#23

Unit parts diagram

Pump assembly

Part #29914

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 650490
#106

Unit parts diagram

Flat washer

Part #650490

The manufacturer no longer makes this part, and there's no substitute part

Ring Set 33567
#15

Unit parts diagram

Ring set

Part #33567

The manufacturer no longer makes this part, and there's no substitute part

Cap 31673
#10

Unit parts diagram

Cap

Part #31673

The manufacturer no longer makes this part, and there's no substitute part
