Model # UXL6036YSS0 Official Whirlpool 36" & 48" professional hood

Here are the diagrams and repair parts for Official Whirlpool UXL6036YSS0 36" & 48" professional hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Control Housing W10370649
#6

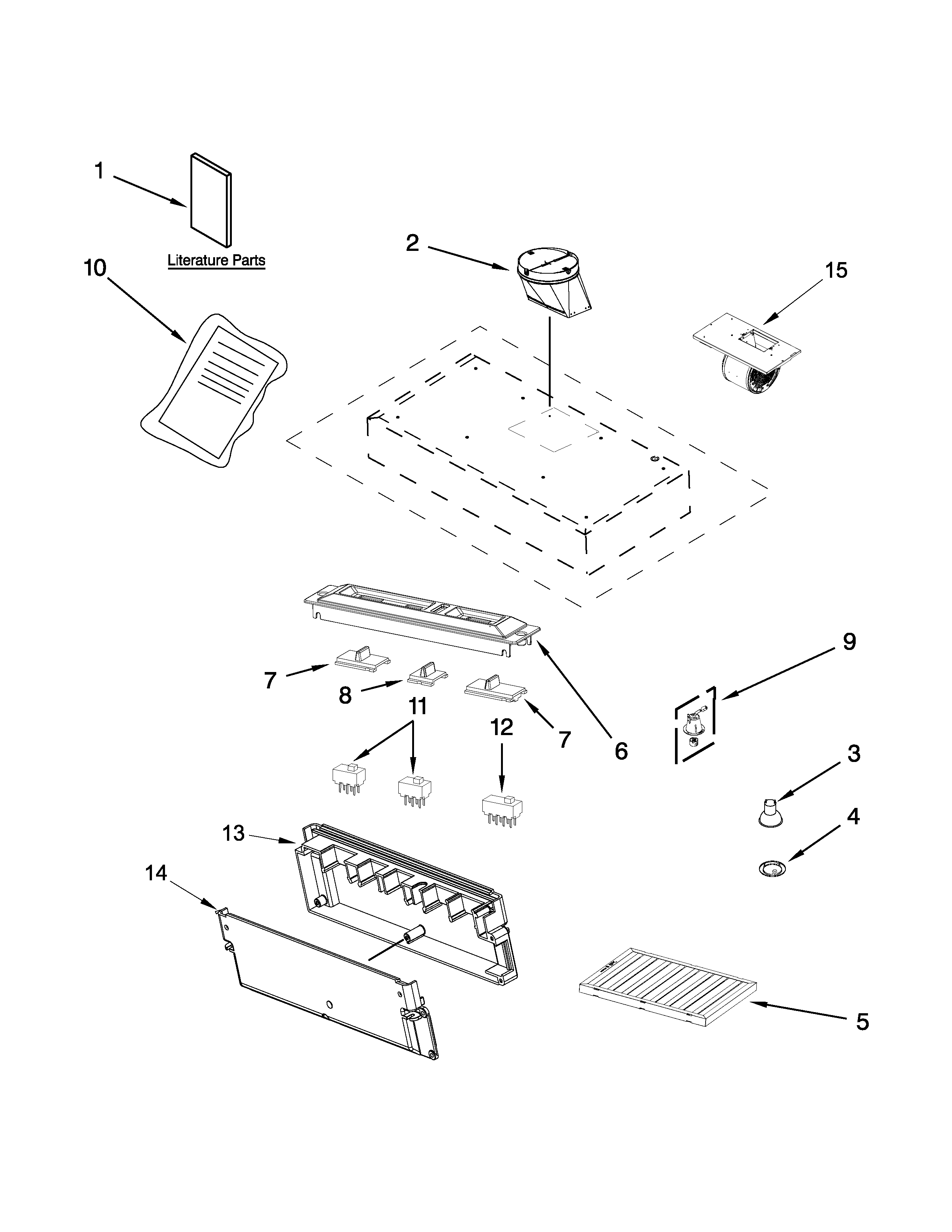

Hood parts diagram

Control housing

Part #W10370649

Replaced by #W11387938

?
Manufacturer substitution
This part replaces W10370649. Substitute parts can look different from the original.
$106.63 |
10% OFF Phone Price : $118.63
In Stock
Slide Switch W10370625
#7

Hood parts diagram

Slide switch

Part #W10370625

Replaced by #W11569415

?
Manufacturer substitution
This part replaces W10370625. Substitute parts can look different from the original.
$17.85 |
10% OFF Phone Price : $19.85
In Stock
Range Hood Light Bulb W10291579
#3

Hood parts diagram

Range hood light bulb

Part #W10291579

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Vent Damper W10351926
#2

Hood parts diagram

Range hood vent damper

Part #W10351926

Replaced by #W11156393

?
Manufacturer substitution
This part replaces W10351926. Substitute parts can look different from the original.
$99.69 |
11% OFF Phone Price : $111.69
Back Order
Range Hood Light Bulb Bezel W10351924
#4

Hood parts diagram

Range hood light bulb bezel

Part #W10351924

$114.40
In Stock
Range Hood Control Switch Housing, Rear W10721964
#13

Hood parts diagram

Range hood control switch housing, rear

Part #W10721964

$73.33
In Stock
Control Housing W10721963
#14

Hood parts diagram

Control housing

Part #W10721963

$55.18
In Stock
Slide Switch W10351911
#8

Hood parts diagram

Slide switch

Part #W10351911

Replaced by #W11662407

?
Manufacturer substitution
This part replaces W10351911. Substitute parts can look different from the original.
$23.91
In Stock
Rocker Switch W10351916
#11

Hood parts diagram

Rocker switch

Part #W10351916

Replaced by #W10853393

?
Manufacturer substitution
This part replaces W10351916. Substitute parts can look different from the original.
$89.14 |
6% OFF Phone Price : $95.14
In Stock
Range Hood Blower Assembly W10294026
#NI

Hood parts diagram

Range hood blower assembly

Part #W10294026

Replaced by #WPW10294026

?
Manufacturer substitution
This part replaces W10294026. Substitute parts can look different from the original.
$391.04 |
$12.00 OFF Phone Price : $403.04
In Stock
