Model # 91655142 Official Kenmore 24" motorized barbecue grill
Here are the diagrams and repair parts for Official Kenmore 91655142 24" motorized barbecue grill, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
91655142 Outdoor Grills
#6

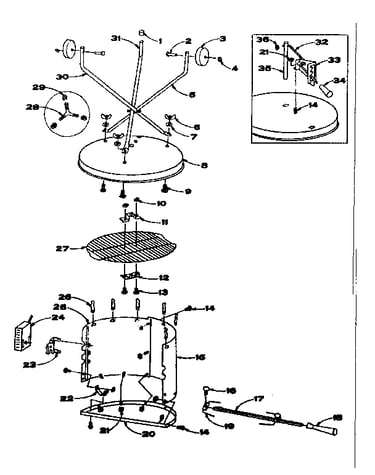

Replacement parts diagram
Wing nut
Part #11-10144
The manufacturer no longer makes this part, and there's no substitute part
#32
Replacement parts diagram
Lift rod
Part #41-37974
The manufacturer no longer makes this part, and there's no substitute part
#18
Replacement parts diagram
Handle
Part #10-10315
The manufacturer no longer makes this part, and there's no substitute part
#8
Replacement parts diagram
Bowl
Part #60-34059-125
The manufacturer no longer makes this part, and there's no substitute part
#24
Replacement parts diagram
Motor asem
Part #60-18021-179
The manufacturer no longer makes this part, and there's no substitute part
#27
Replacement parts diagram
Grid asm
Part #61-43206
The manufacturer no longer makes this part, and there's no substitute part
#13
Replacement parts diagram
Screw
Part #11-10280
The manufacturer no longer makes this part, and there's no substitute part
#35
Replacement parts diagram
Riser tube
Part #40-38056
The manufacturer no longer makes this part, and there's no substitute part
#34
Replacement parts diagram
Handle
Part #10-10323
The manufacturer no longer makes this part, and there's no substitute part
#1
Replacement parts diagram
Tube cap
Part #10-12100
The manufacturer no longer makes this part, and there's no substitute part
