Model # 572610830 Official Craftsman rotary tool

Here are the diagrams and repair parts for Official Craftsman 572610830 rotary tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |

Sleeve 2615297373
#15

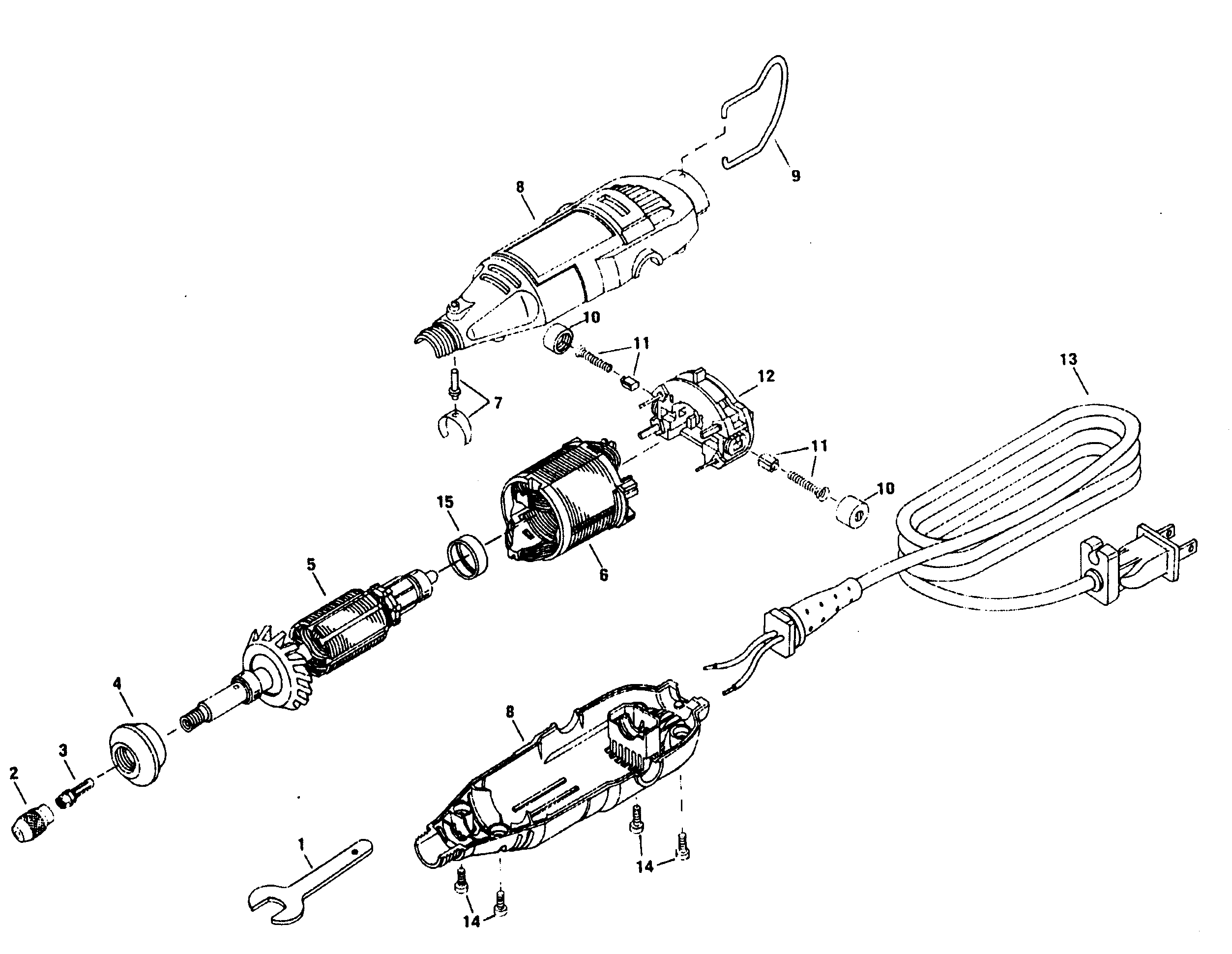

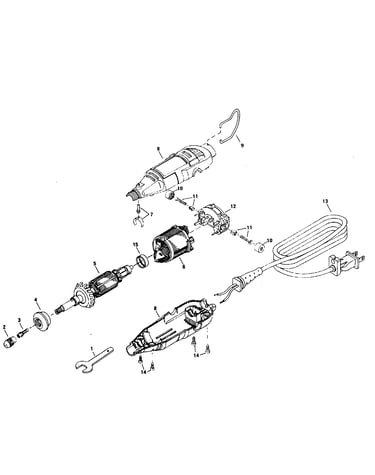

Rotary tool diagram

Sleeve

Part #2615297373

The manufacturer no longer makes this part, and there's no substitute part

Rotary Tool Shaft Lock 2615297356
#7

Rotary tool diagram

Rotary tool shaft lock

Part #2615297356

The manufacturer no longer makes this part, and there's no substitute part

Rotary Tool Motor Brush Cap Set 2615302217
#10

Rotary tool diagram

Rotary tool motor brush cap set

Part #2615302217

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Switch 2610912838
#12

Rotary tool diagram

Craftsman switch

Part #2610912838

The manufacturer no longer makes this part, and there's no substitute part

Screw 2615294035
#14

Rotary tool diagram

Screw

Part #2615294035

The manufacturer no longer makes this part, and there's no substitute part

Rotary Tool Collet, 3/32-in 481
#3A

Rotary tool diagram

Rotary tool collet, 3/32-in

Part #481

The manufacturer no longer makes this part, and there's no substitute part

Hanger 2615294043
#9

Rotary tool diagram

Hanger

Part #2615294043

The manufacturer no longer makes this part, and there's no substitute part

Rotary Tool Power Cord 2615294041
#13

Rotary tool diagram

Rotary tool power cord

Part #2615294041

The manufacturer no longer makes this part, and there's no substitute part

Collet 480
#3

Rotary tool diagram

Collet

Part #480

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring 2615302695
#11

Rotary tool diagram

Brush spring

Part #2615302695

The manufacturer no longer makes this part, and there's no substitute part
