Model # GSM1800J00WW Official GE dishwasher

Here are the diagrams and repair parts for Official GE GSM1800J00WW dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Connector Bo WD01X10377
#20

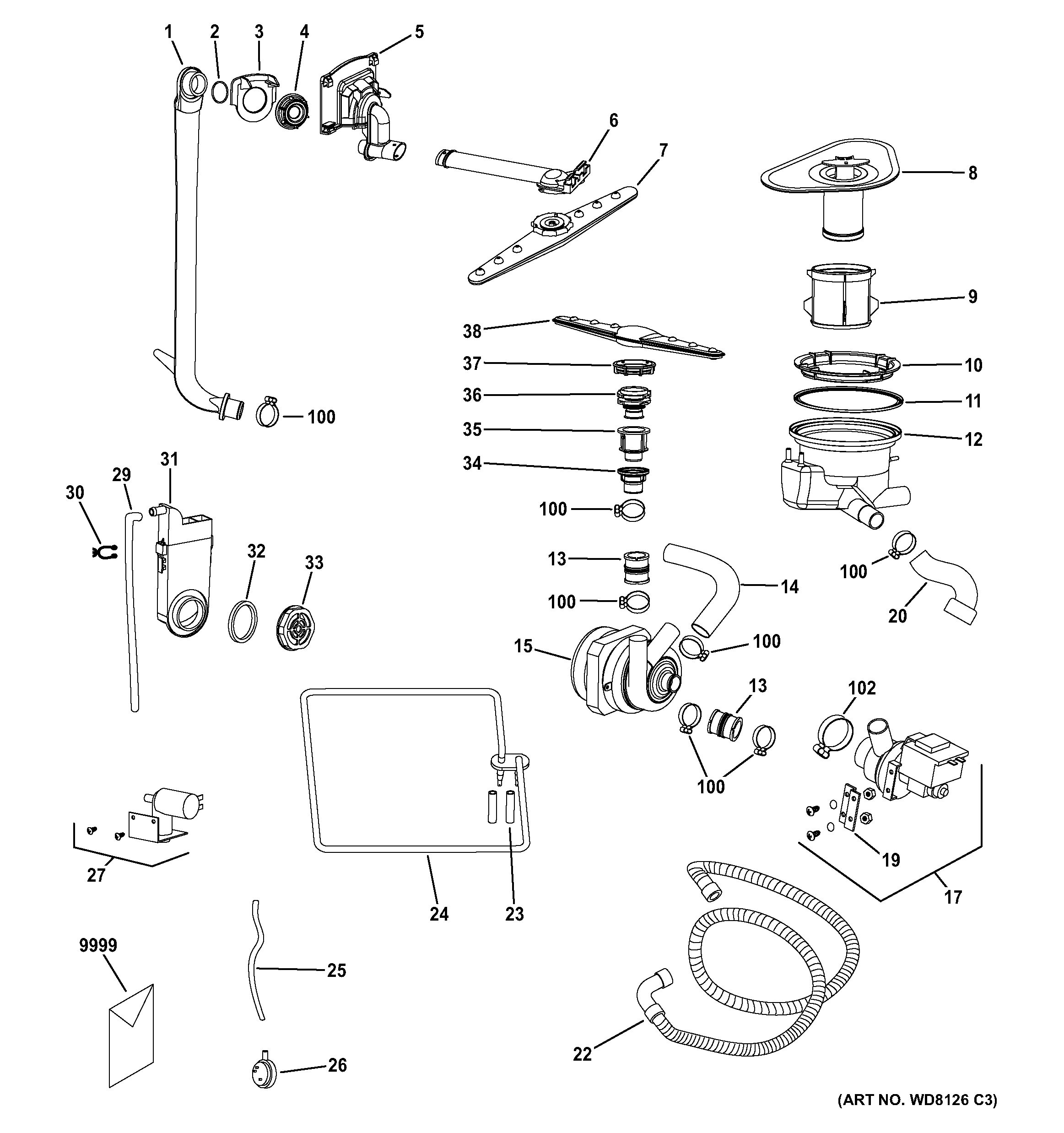

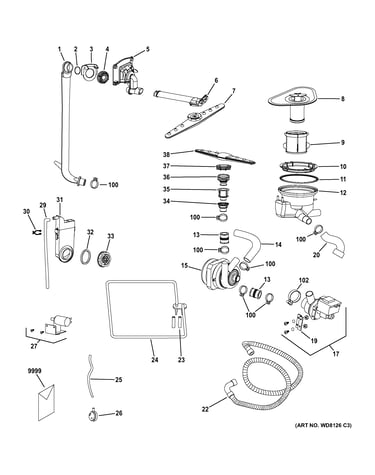

Motor-pump mechanism diagram

Connector bo

Part #WD01X10377

Replaced by #WD01X10105

?
Manufacturer substitution
This part replaces WD01X10377. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dishwasher Detergent Dispenser Retainer WD01X10207
#60

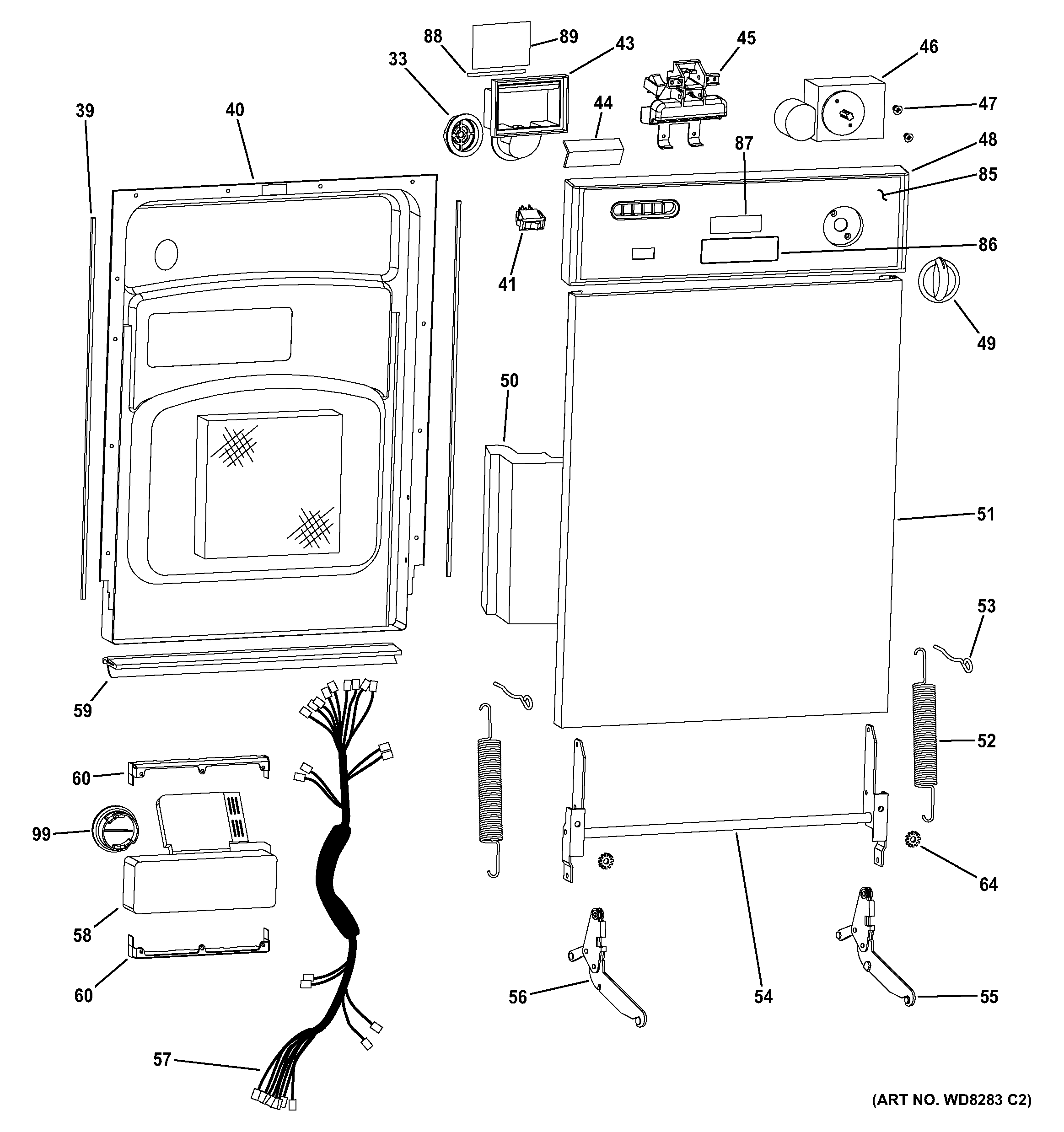

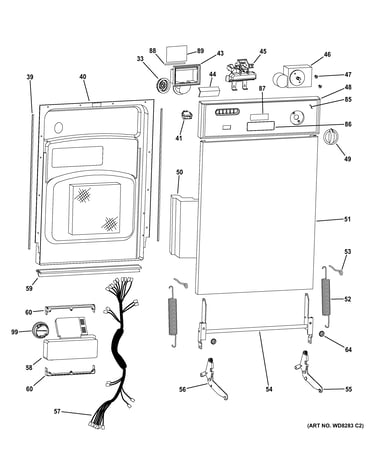

Escutcheon & door assembly diagram

Dishwasher detergent dispenser retainer

Part #WD01X10207

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Dishwasher Dishrack Slide Rail Mounting Bracket WD12X10175
#67

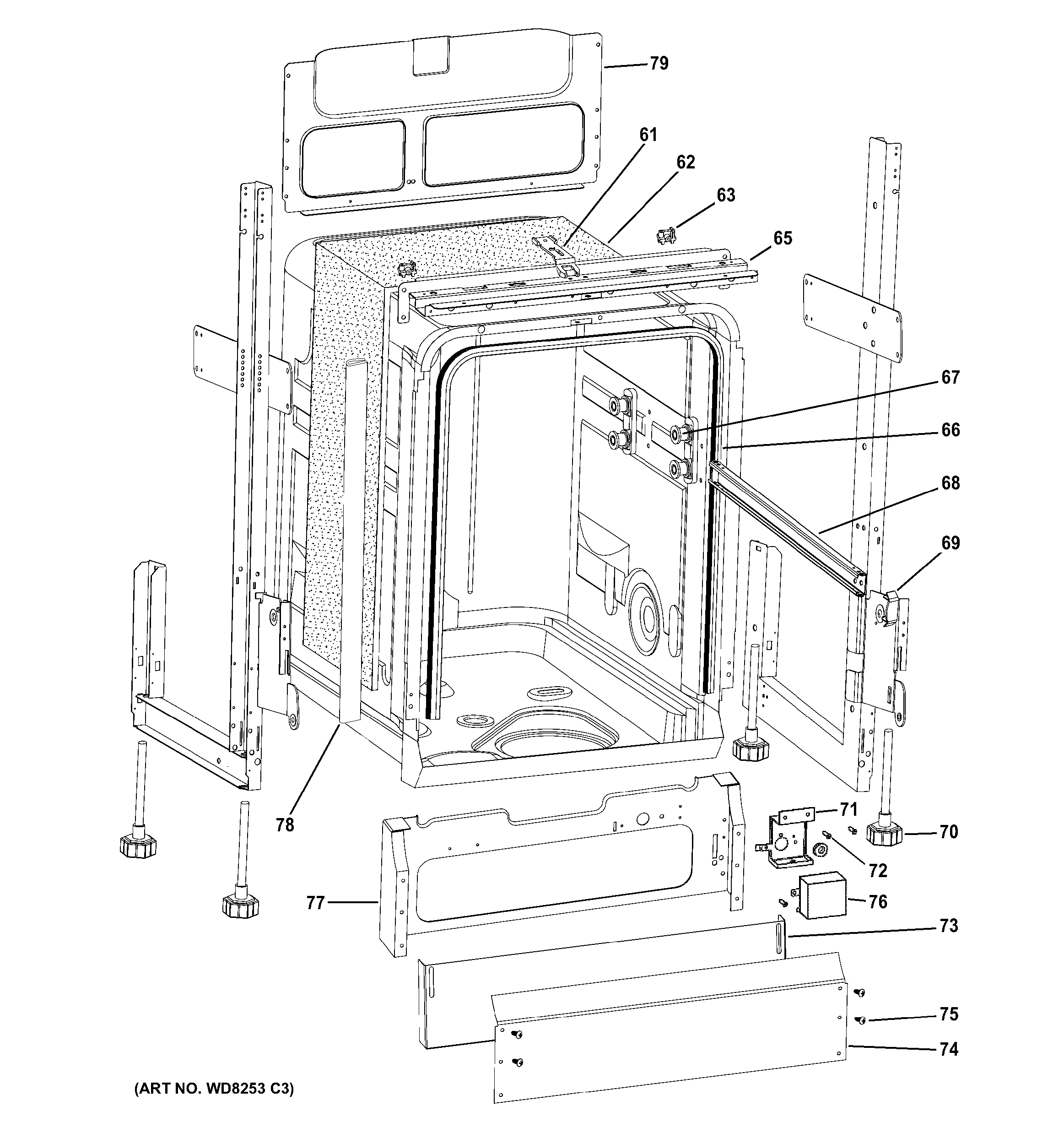

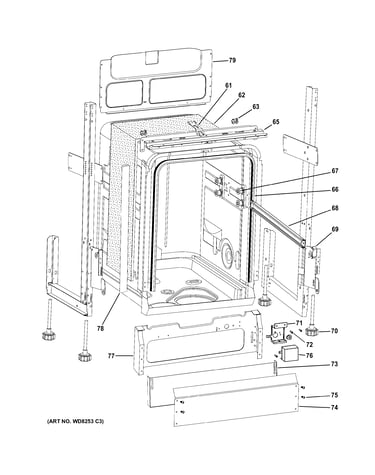

Body parts diagram

Dishwasher dishrack slide rail mounting bracket

Part #WD12X10175

$12.91
In Stock
Dishwasher Dishrack Roller And Stud WD12X10178
#84

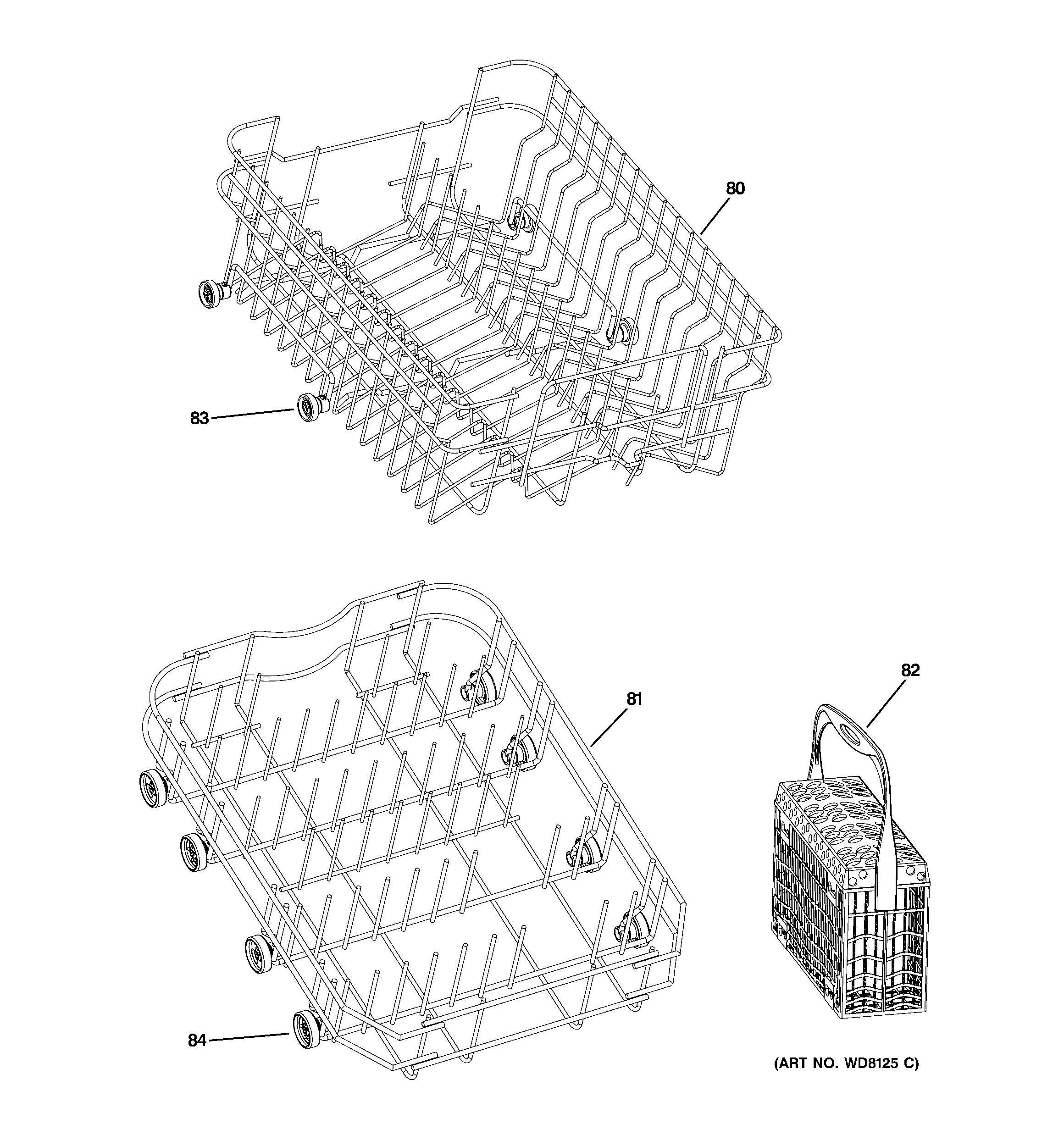

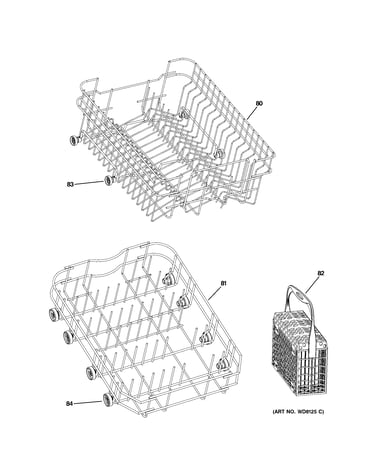

Upper & lower rack assemblies diagram

Dishwasher dishrack roller and stud

Part #WD12X10178

This item is not returnable
$12.60 |
14% OFF Phone Price : $14.60
In Stock
Dishwasher Door Strike WD13X10029
#61

Body parts diagram

Dishwasher door strike

Part #WD13X10029

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Dishwasher Upper Spray Arm Manifold Ring Nut And Gasket WD01X10242
#4

Motor-pump mechanism diagram

Dishwasher upper spray arm manifold ring nut and gasket

Part #WD01X10242

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dishwasher Door Hinge WD03X10024
#52

Escutcheon & door assembly diagram

Dishwasher door hinge

Part #WD03X10024

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Haier Lower Front WD27X10194
#77

Body parts diagram

Haier lower front

Part #WD27X10194

$25.51
In Stock
Fill Funnel WD12X10170
#31

Motor-pump mechanism diagram

Fill funnel

Part #WD12X10170

$40.38
In Stock
Ring Nut - M WD01X10244
#34

Motor-pump mechanism diagram

Ring nut - m

Part #WD01X10244

$7.88 |
11% OFF Phone Price : $8.88
In Stock
