Model # 11088732791 Official Kenmore washer/dryer laundry system

Here are the diagrams and repair parts for Official Kenmore 11088732791 washer/dryer laundry system, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for11088732791 Washer/Dryer Laundry System

  • Agitator Dog 3366877
    #22

    Tub and basket diagram

    Agitator dog

    Part #3366877

    Replaced by #80040

    ?
    Manufacturer substitution
    This part replaces 3366877. Substitute parts can look different from the original.
    BEST SELLER
    $6.50
    13% OFF Phone Price : $7.50
    In Stock
  • Coupling 3364003
    #13

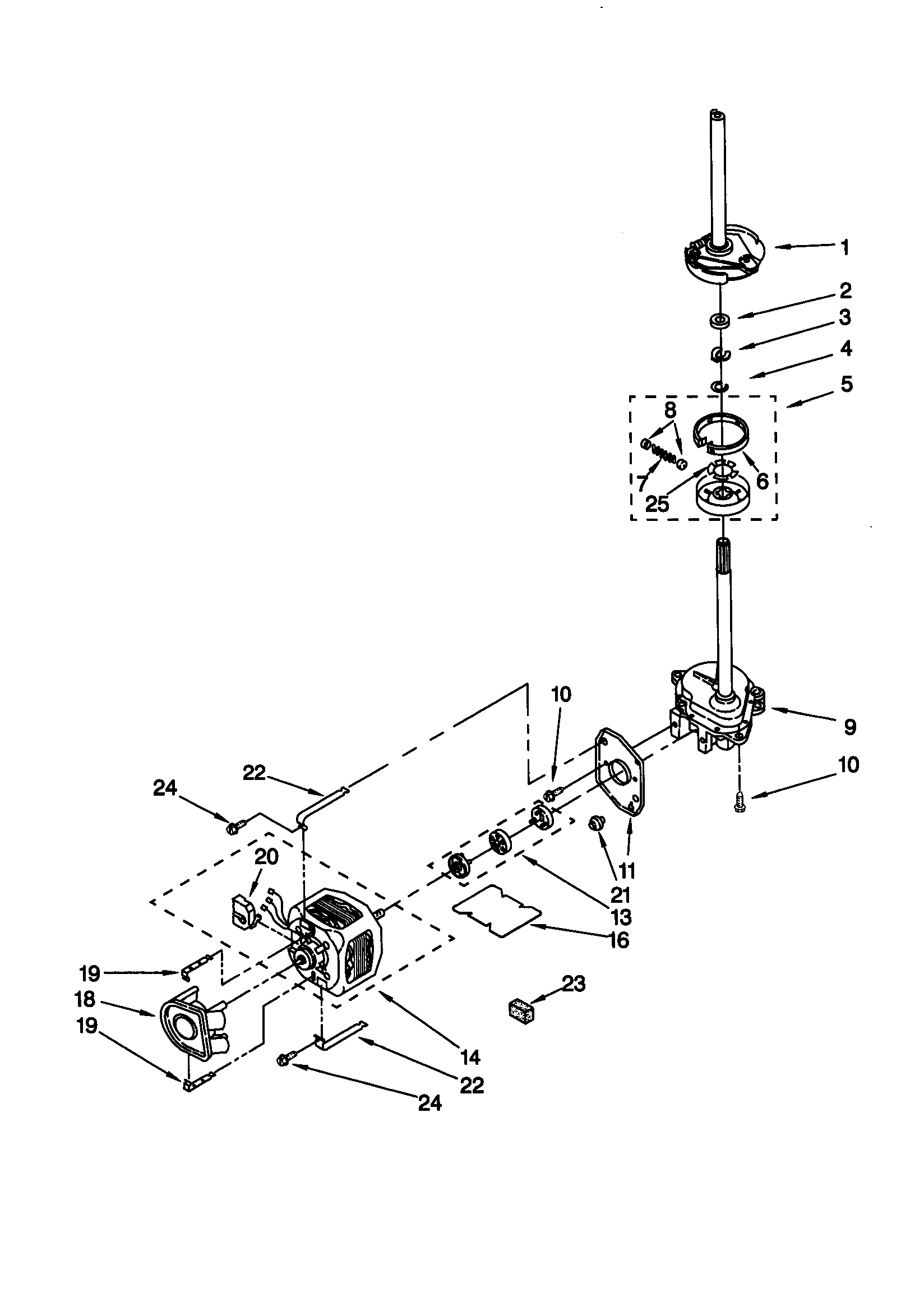

    Brake/clutch/gearcase/motor/pump diagram

    Coupling

    Part #3364003

    Replaced by #285753A

    ?
    Manufacturer substitution
    This part replaces 3364003. Substitute parts can look different from the original.
    BEST SELLER
    $19.80
    9% OFF Phone Price : $21.80
    In Stock
  • Gear Case 3360630
    #9

    Brake/clutch/gearcase/motor/pump diagram

    Gear case

    Part #3360630

    Replaced by #3360629

    ?
    Manufacturer substitution
    This part replaces 3360630. Substitute parts can look different from the original.
    BEST SELLER
    $205.42
    6% OFF Phone Price : $217.42
    In Stock
  • Drive Motor 3398046
    #2

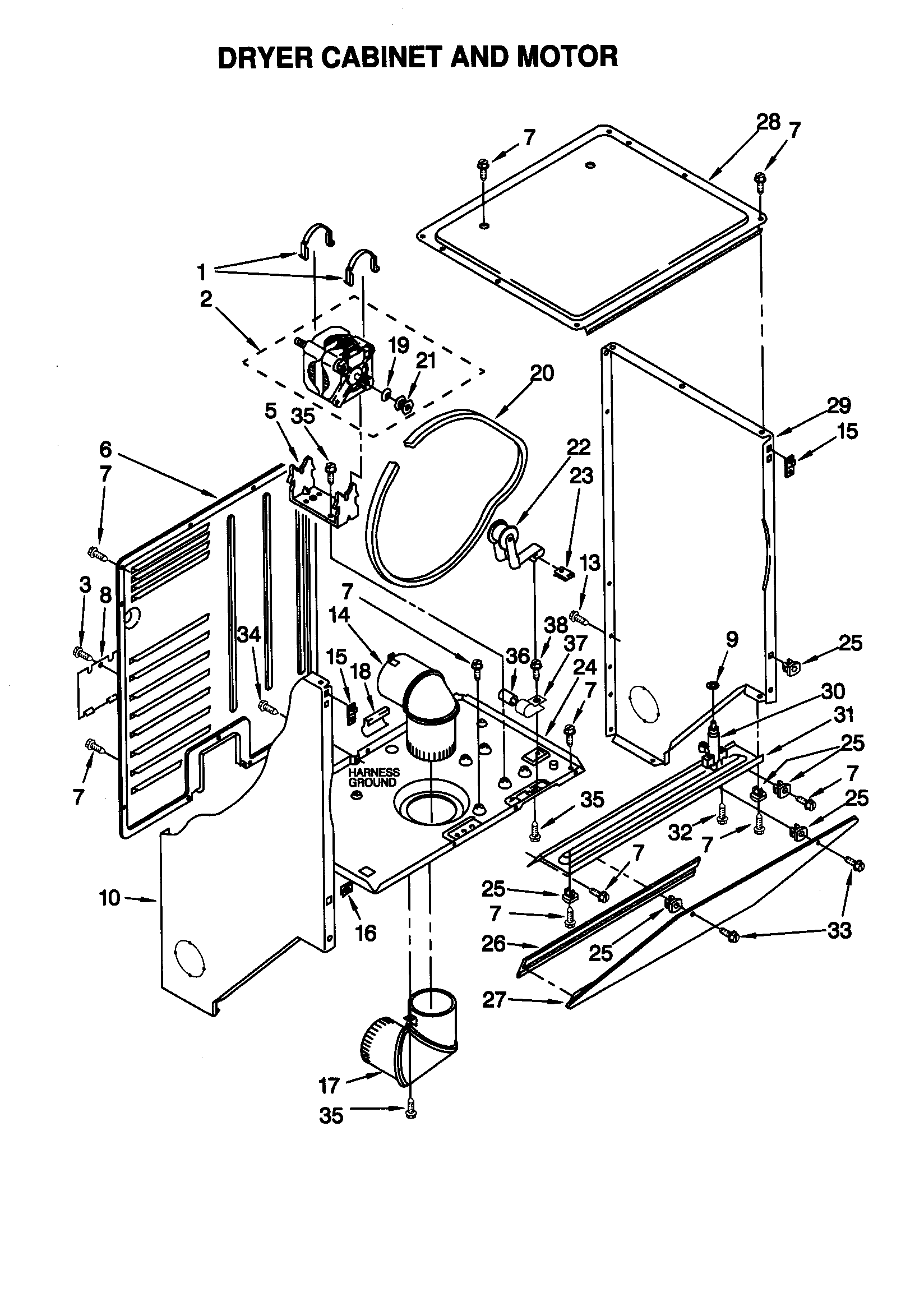

    Dryer cabinet and motor diagram

    Drive motor

    Part #3398046

    Replaced by #279827

    ?
    Manufacturer substitution
    This part replaces 3398046. Substitute parts can look different from the original.
    BEST SELLER
    $81.17
    7% OFF Phone Price : $87.17
    In Stock
  • Clutch 3951312
    #5

    Brake/clutch/gearcase/motor/pump diagram

    Clutch

    Part #3951312

    Replaced by #285785

    ?
    Manufacturer substitution
    This part replaces 3951312. Substitute parts can look different from the original.
    BEST SELLER
    $30.15
    17% OFF Phone Price : $36.15
    In Stock
  • Drive Basket 387948
    #1

    Brake/clutch/gearcase/motor/pump diagram

    Drive basket

    Part #387948

    Replaced by #W10820043

    ?
    Manufacturer substitution
    This part replaces 387948. Substitute parts can look different from the original.
    BEST SELLER
    $116.98
    9% OFF Phone Price : $128.98
    In Stock
  • Strike 696144
    #11

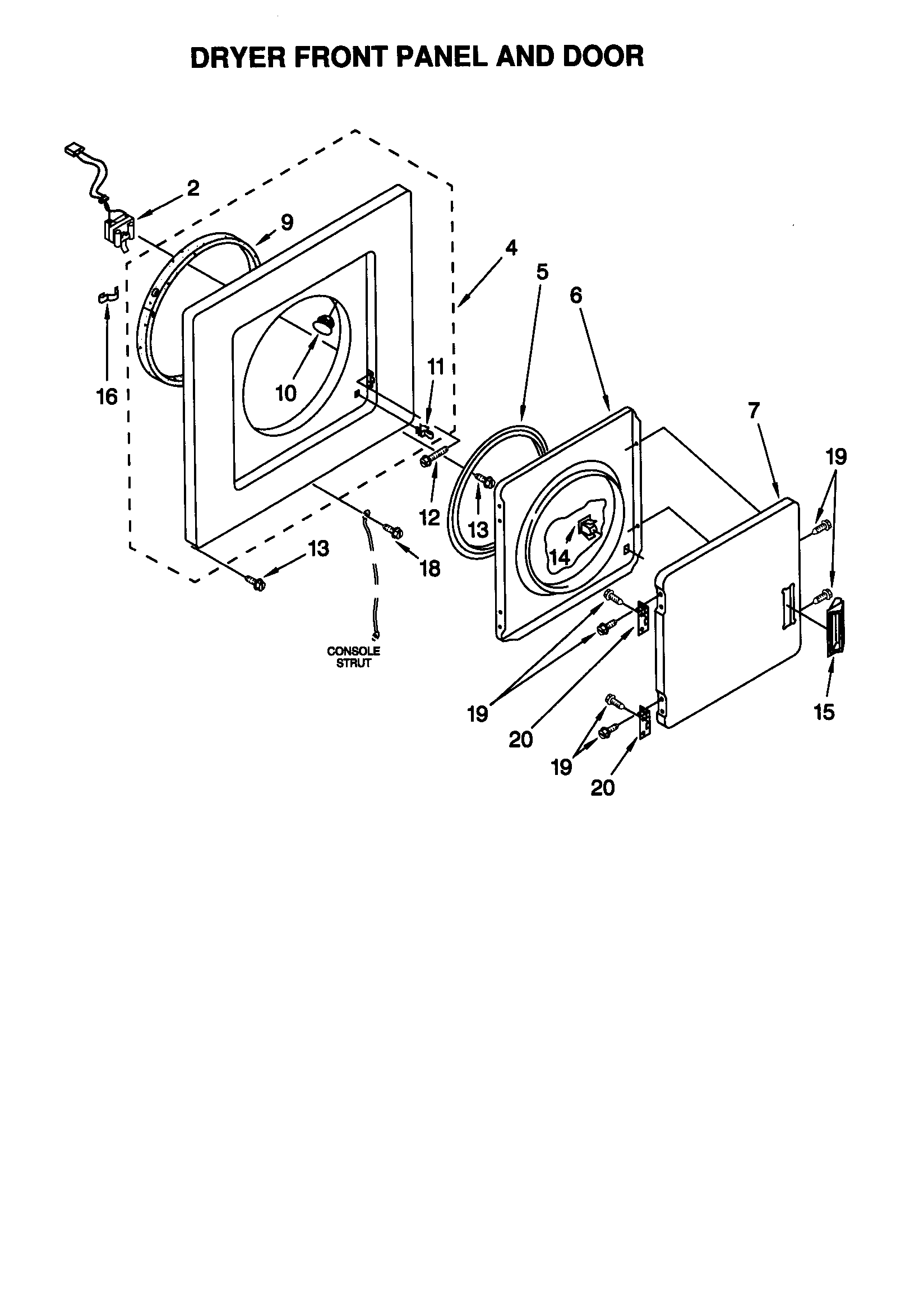

    Dryer front panel and door diagram

    Strike

    Part #696144

    Replaced by #279570

    ?
    Manufacturer substitution
    This part replaces 696144. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.25
    19% OFF Phone Price : $5.25
    In Stock
  • Washer Spanner Nut 21366
    #6

    Tub and basket diagram

    Washer spanner nut

    Part #21366

    Replaced by #WP21366

    ?
    Manufacturer substitution
    This part replaces 21366. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.36
    14% OFF Phone Price : $7.36
    In Stock
  • Washer Agitator Bolt 358237
    #2

    Tub and basket diagram

    Washer agitator bolt

    Part #358237

    Replaced by #WP358237

    ?
    Manufacturer substitution
    This part replaces 358237. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $5.70
    15% OFF Phone Price : $6.70
    In Stock
  • Washer Tub Gasket 383727
    #17

    Tub and basket diagram

    Washer tub gasket

    Part #383727

    Replaced by #W10814296

    ?
    Manufacturer substitution
    This part replaces 383727. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $3.69
    21% OFF Phone Price : $4.69
    In Stock
