Whirlpool
Top-Mount Refrigerator

Model # ET19RKXFW01 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool ET19RKXFW01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

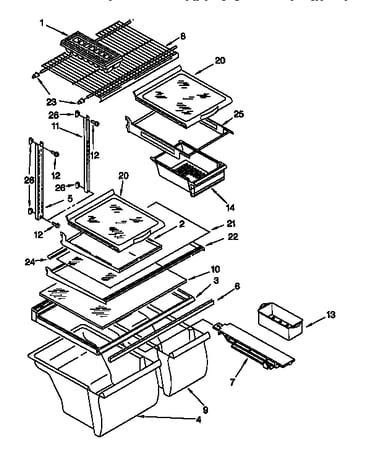

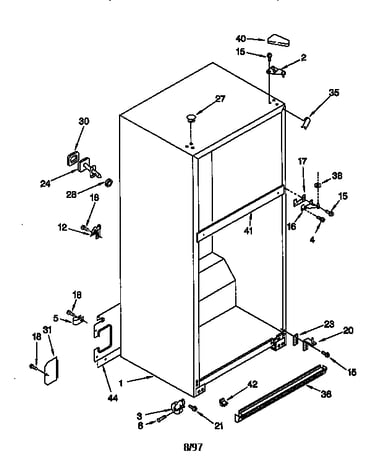

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
Light Bulb 527949
#17

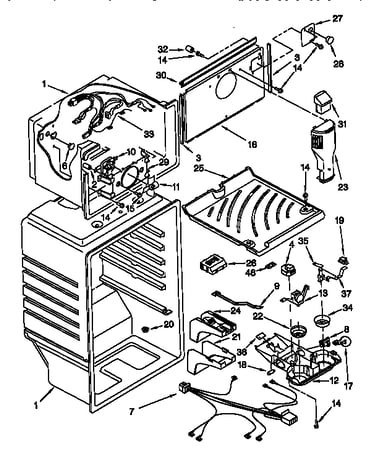

Liner diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Defrost Timer 2193084
#4

Liner diagram

Refrigerator defrost timer

Part #2193084

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 2193084. Substitute parts can look different from the original.
BEST SELLER
$27.82 |
18% OFF Phone Price : $33.82
In Stock
Drier Tube 2174865
#29

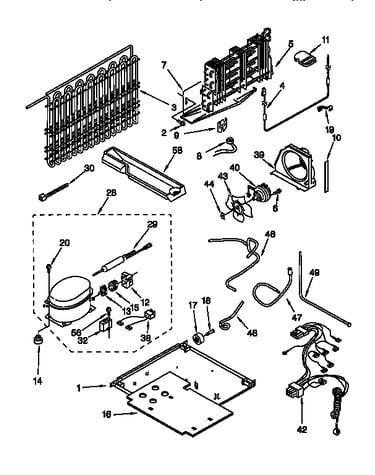

Unit diagram

Drier tube

Part #2174865

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2174865. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Ice Maker 2155469

#NI

All parts diagram

Ice maker

Part #2155469

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 2155469. Substitute parts can look different from the original.
BEST SELLER
$111.86 |
10% OFF Phone Price : $123.86
In Stock
Condenser Motor 2176336
#40

Unit diagram

Condenser motor

Part #2176336

Replaced by #W10822259

?
Manufacturer substitution
This part replaces 2176336. Substitute parts can look different from the original.
BEST SELLER
$128.22 |
9% OFF Phone Price : $140.22
In Stock
Screw 487909
#8

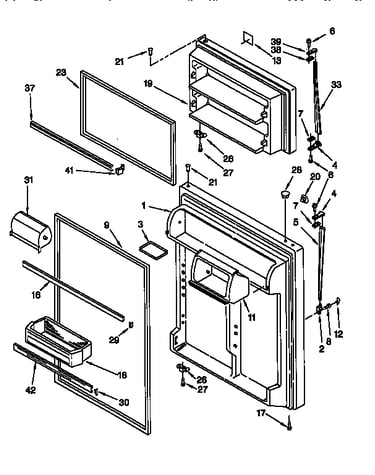

Door diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Kirkland Refrigerator Door Gasket (replaces 2159051, 2171386, 2177307, 2202874, 2214962) 2159057
#9

Door diagram

Kirkland refrigerator door gasket (replaces 2159051, 2171386, 2177307, 2202874, 2214962)

Part #2159057

BEST SELLER
$100.61 |
11% OFF Phone Price : $112.61
In Stock
Appliance Silicone Lubricant 542638

#NI

All parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764

#NI

All parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
