Air Compressor

Model # CF2020 Official Porter Cable twin-cylinder compressor

Here are the diagrams and repair parts for Official Porter Cable CF2020 twin-cylinder compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 64 parts |

Valve 889111

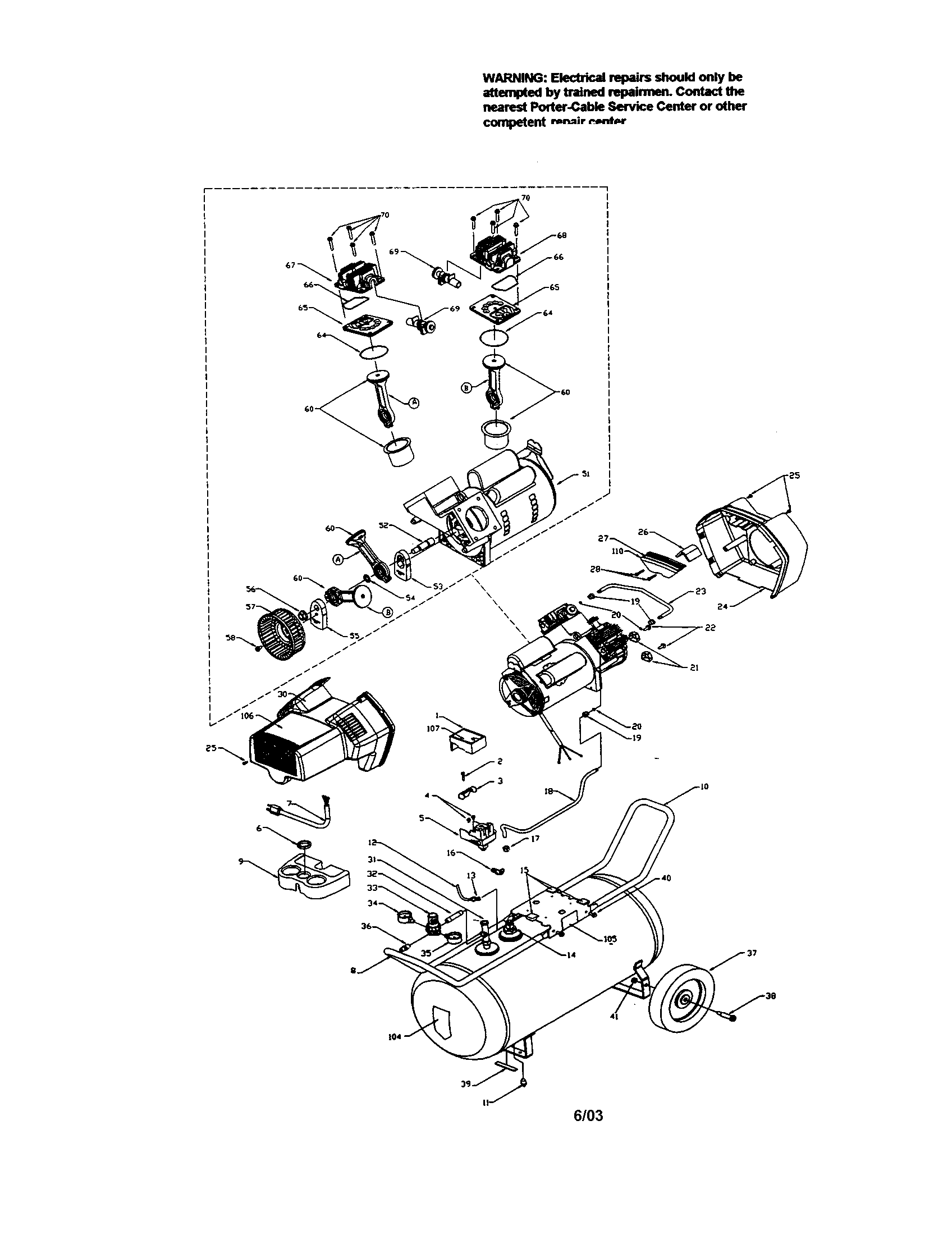

Twin cylinder compressor diagram

Valve

Part #889111

The manufacturer no longer makes this part, and there's no substitute part

Regulator 889106

Twin cylinder compressor diagram

Regulator

Part #889106

The manufacturer no longer makes this part, and there's no substitute part

Screw 892378

Twin cylinder compressor diagram

Screw

Part #892378

The manufacturer no longer makes this part, and there's no substitute part

Saddle Mount Cup 889096

Twin cylinder compressor diagram

Saddle mount cup

Part #889096

The manufacturer no longer makes this part, and there's no substitute part

Outlet Tube 892353

Twin cylinder compressor diagram

Outlet tube

Part #892353

The manufacturer no longer makes this part, and there's no substitute part

O-ring 889118

Twin cylinder compressor diagram

O-ring

Part #889118

The manufacturer no longer makes this part, and there's no substitute part

Nut 892376

Twin cylinder compressor diagram

Nut

Part #892376

The manufacturer no longer makes this part, and there's no substitute part

Isolator 889095

Twin cylinder compressor diagram

Isolator

Part #889095

The manufacturer no longer makes this part, and there's no substitute part

Rubber Foot Strip 892370

Twin cylinder compressor diagram

Rubber foot strip

Part #892370

The manufacturer no longer makes this part, and there's no substitute part

Panel Mounting Ring 892344

Twin cylinder compressor diagram

Panel mounting ring

Part #892344

The manufacturer no longer makes this part, and there's no substitute part
