Model # AKG35E Official Amana gas cooktop
Here are the diagrams and repair parts for Official Amana AKG35E gas cooktop, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 48 parts |
#14

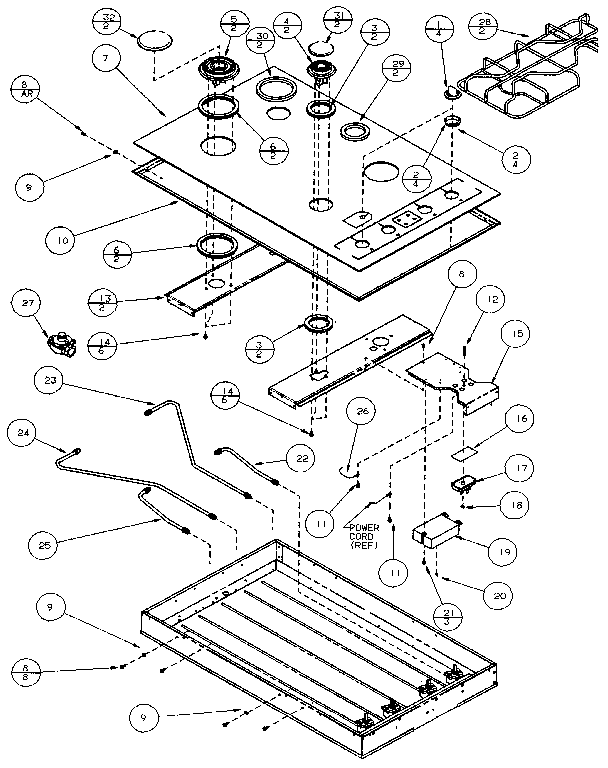

Main top section diagram
Screw
Part #M0253516
Replaced by #WP489128
?
Manufacturer substitution
This part replaces M0253516. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
#13

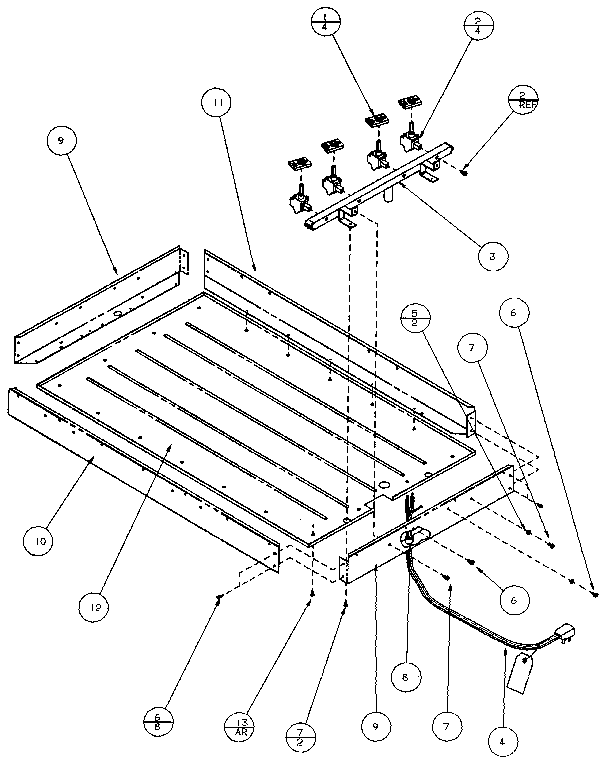

Burner section diagram
Screw
Part #M0216703
Replaced by #M0216703
?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw
Part #M0210417
Replaced by #W11245710
?
Manufacturer substitution
This part replaces M0210417. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
#7
Burner section diagram
Screw
Part #M0225929
Replaced by #WPW10068250
?
Manufacturer substitution
This part replaces M0225929. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
#21
Main top section diagram
Screw
Part #M0211003
Replaced by #WP12990527
?
Manufacturer substitution
This part replaces M0211003. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#4
Main top section diagram
Small burner
Part #10224301
The manufacturer no longer makes this part, and there's no substitute part
#23
Main top section diagram
Gas tube
Part #10311301
The manufacturer no longer makes this part, and there's no substitute part
#10
Main top section diagram
Vegetable pan frame trim
Part #10246901
The manufacturer no longer makes this part, and there's no substitute part
#9
Burner section diagram
End heater box
Part #10373302
The manufacturer no longer makes this part, and there's no substitute part
#5
Main top section diagram
Lg burn asm
Part #10224401
The manufacturer no longer makes this part, and there's no substitute part
