Model # MDG14PDAEW Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag MDG14PDAEW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

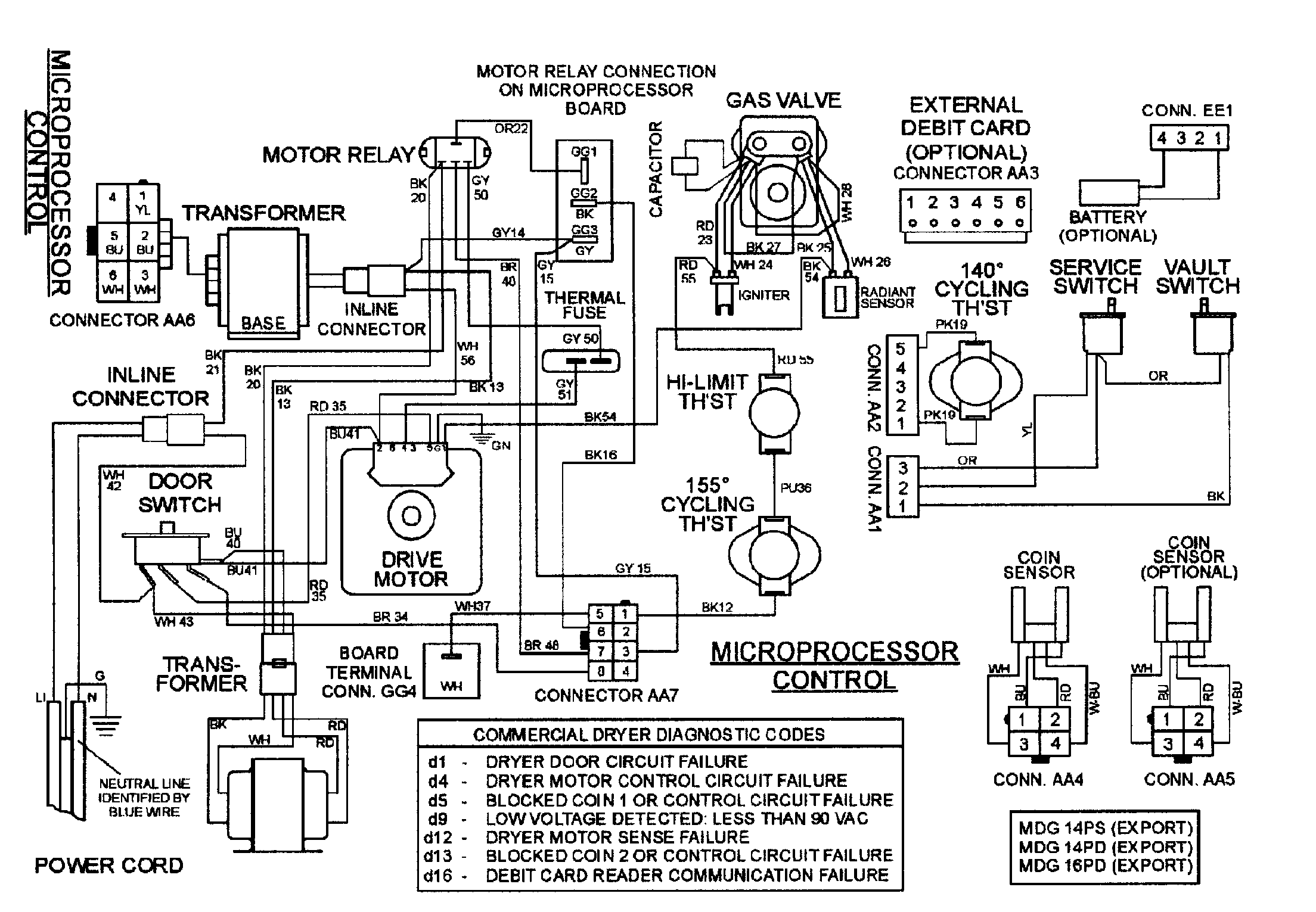

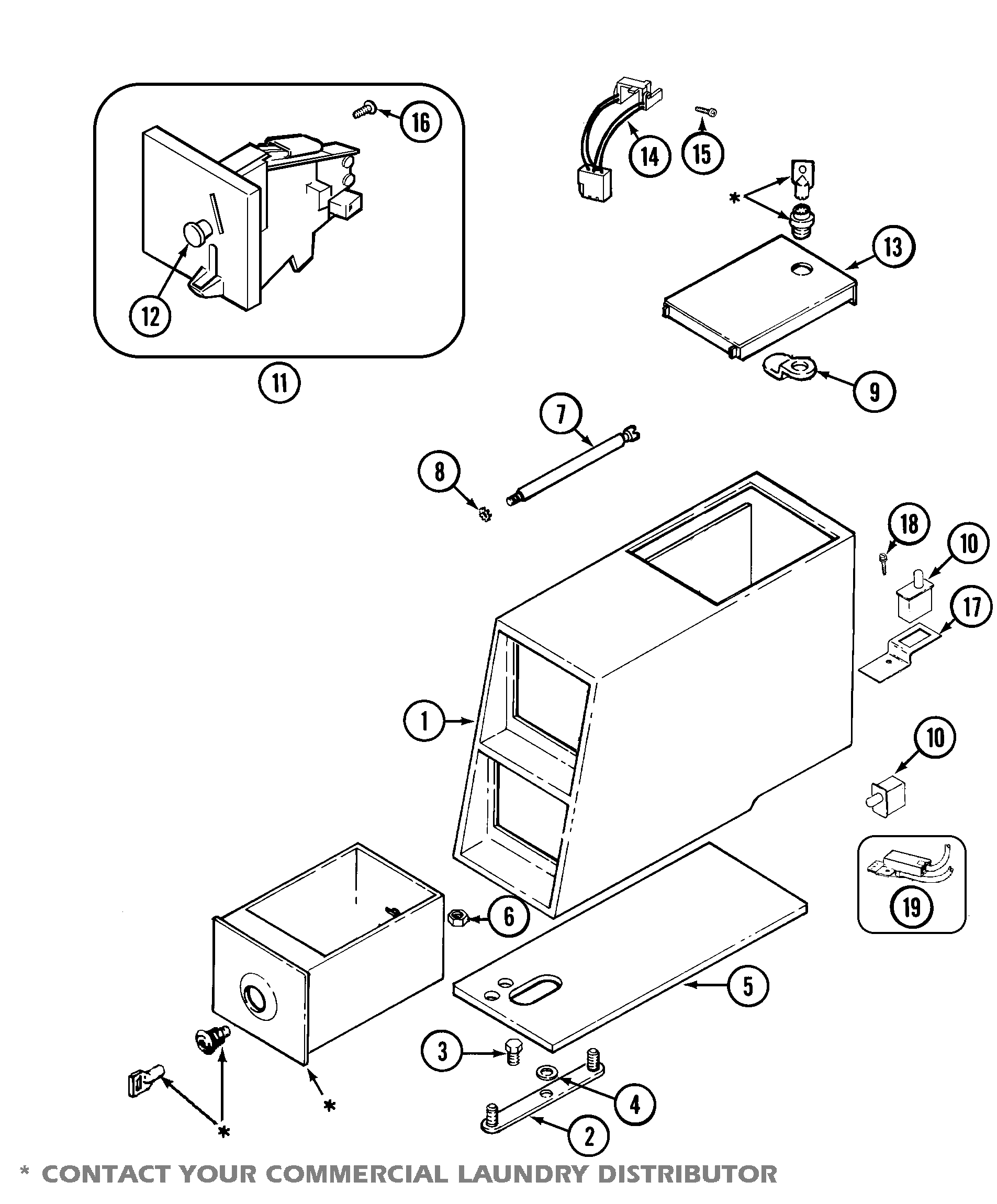

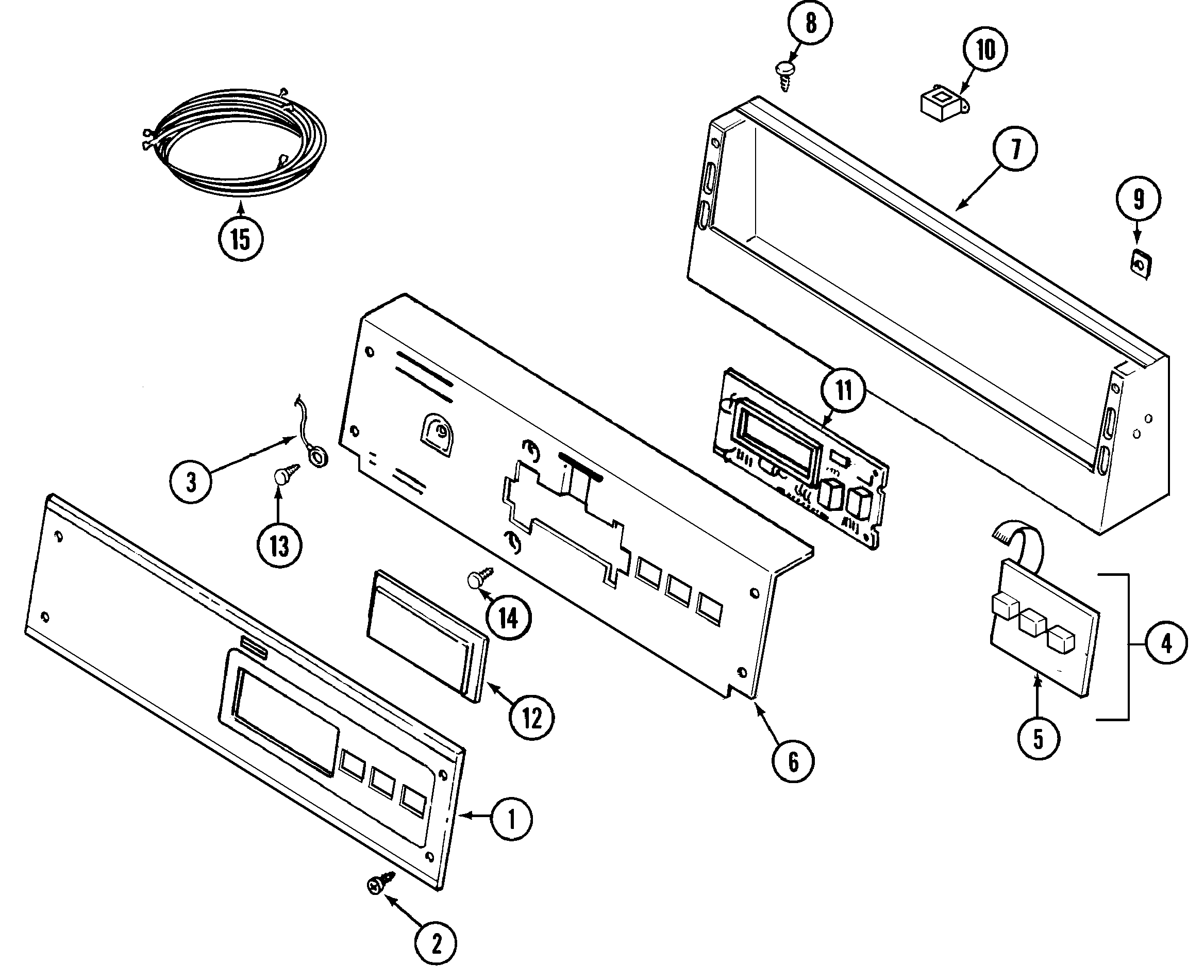

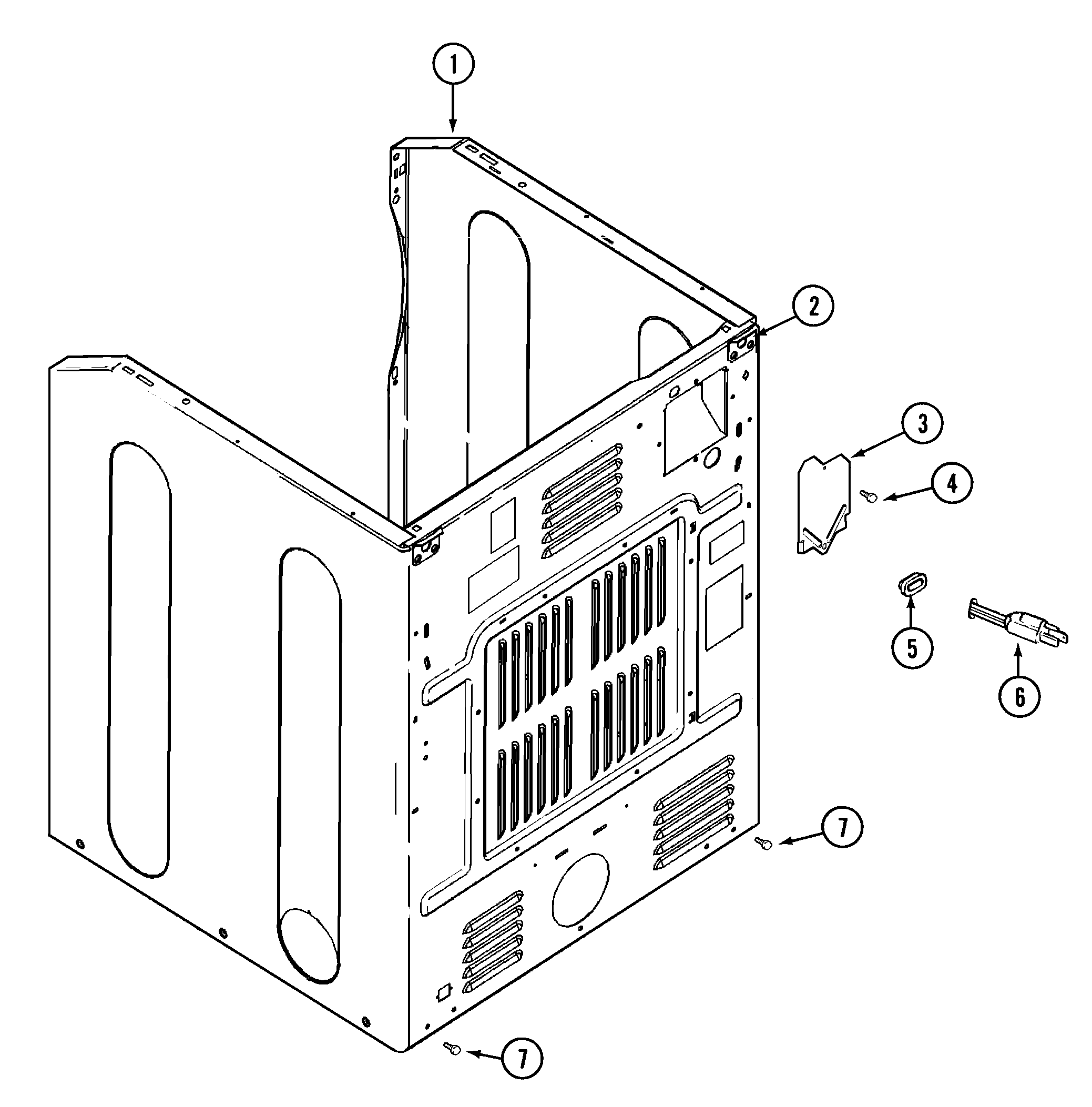

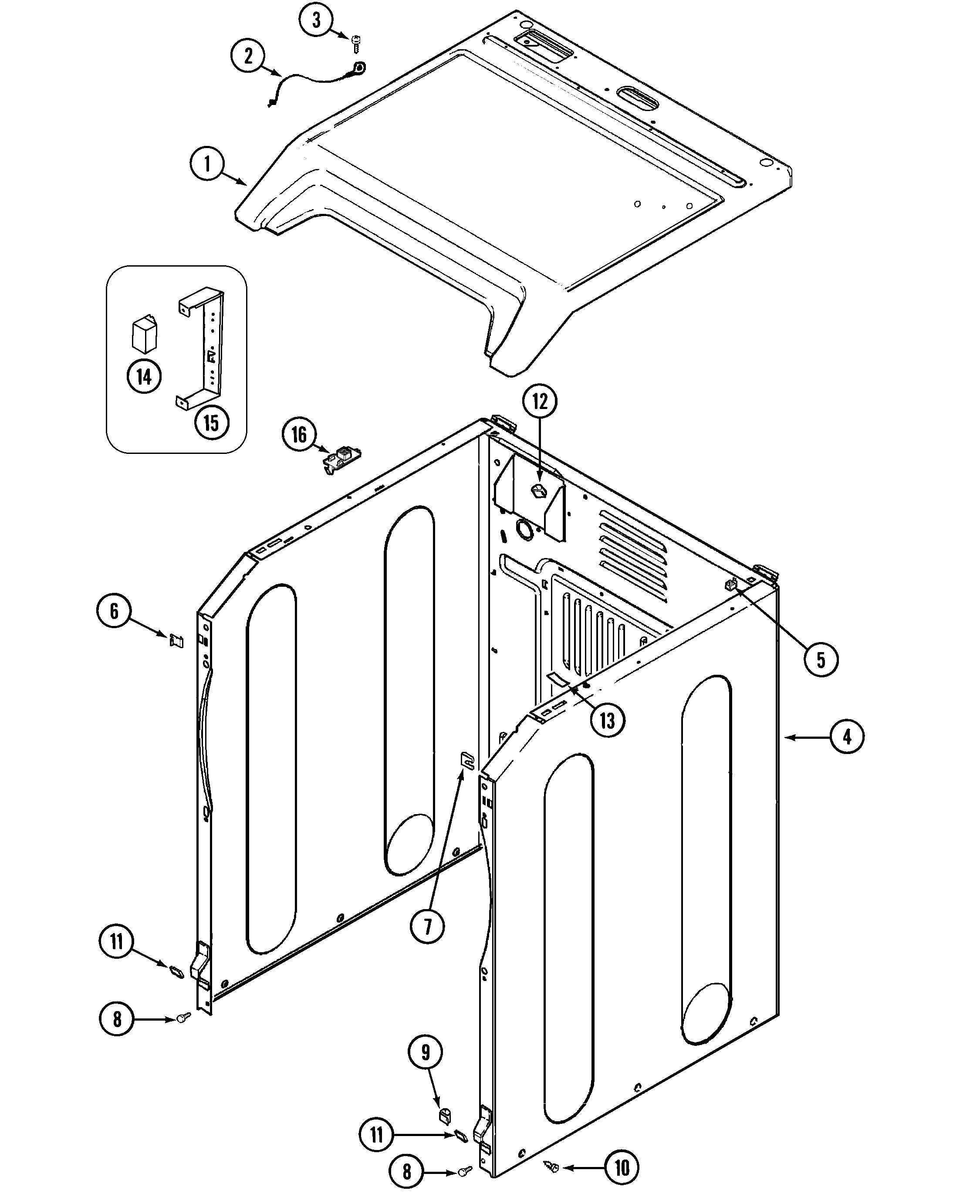

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Second Coil 306105
#8

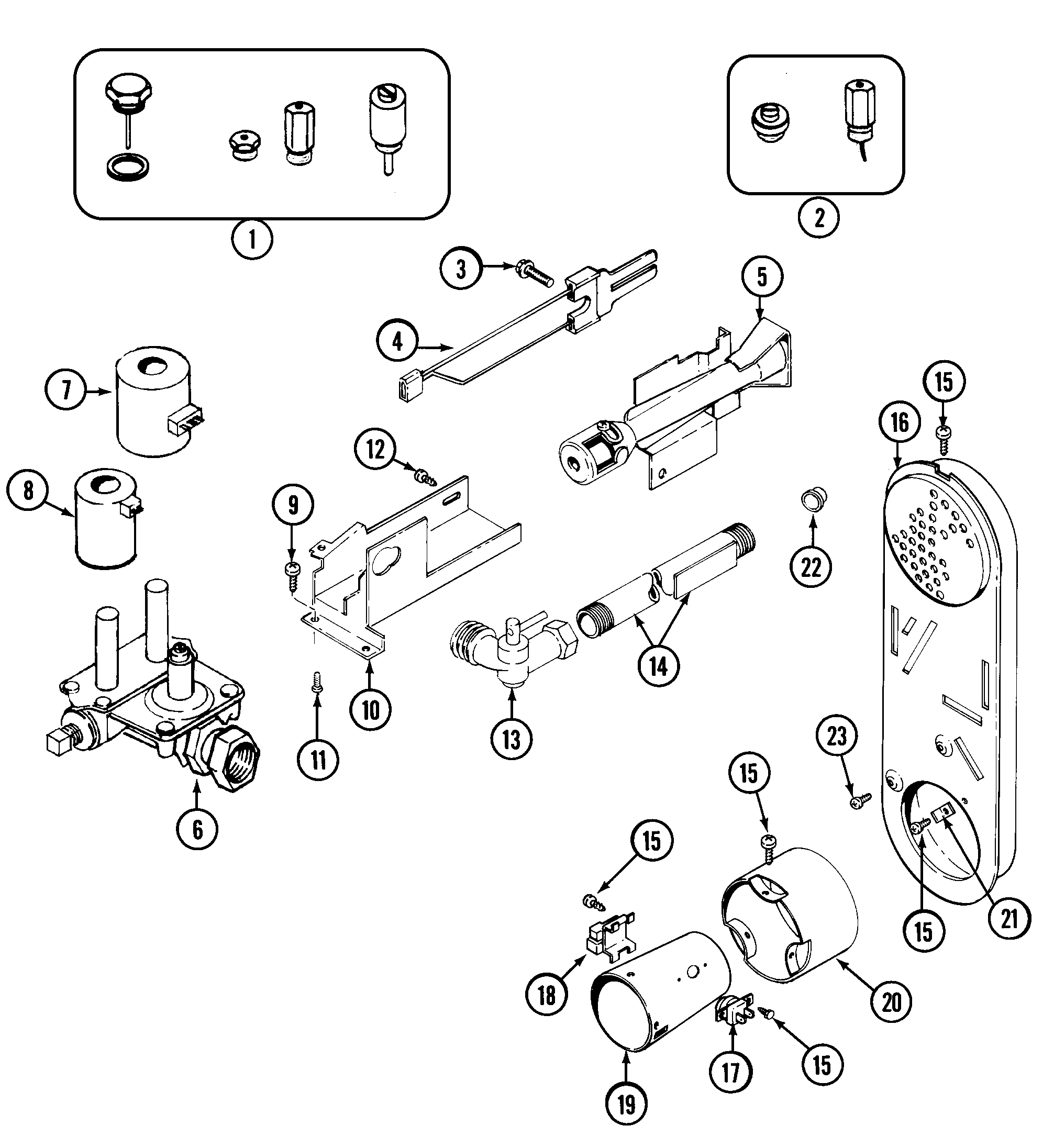

Gas valve diagram

Second coil

Part #306105

Replaced by #279834

?
Manufacturer substitution
This part replaces 306105. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Holding Coil 306106
#7

Gas valve diagram

Holding coil

Part #306106

Replaced by #279834

?
Manufacturer substitution
This part replaces 306106. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Roller W/bea 303373
#24

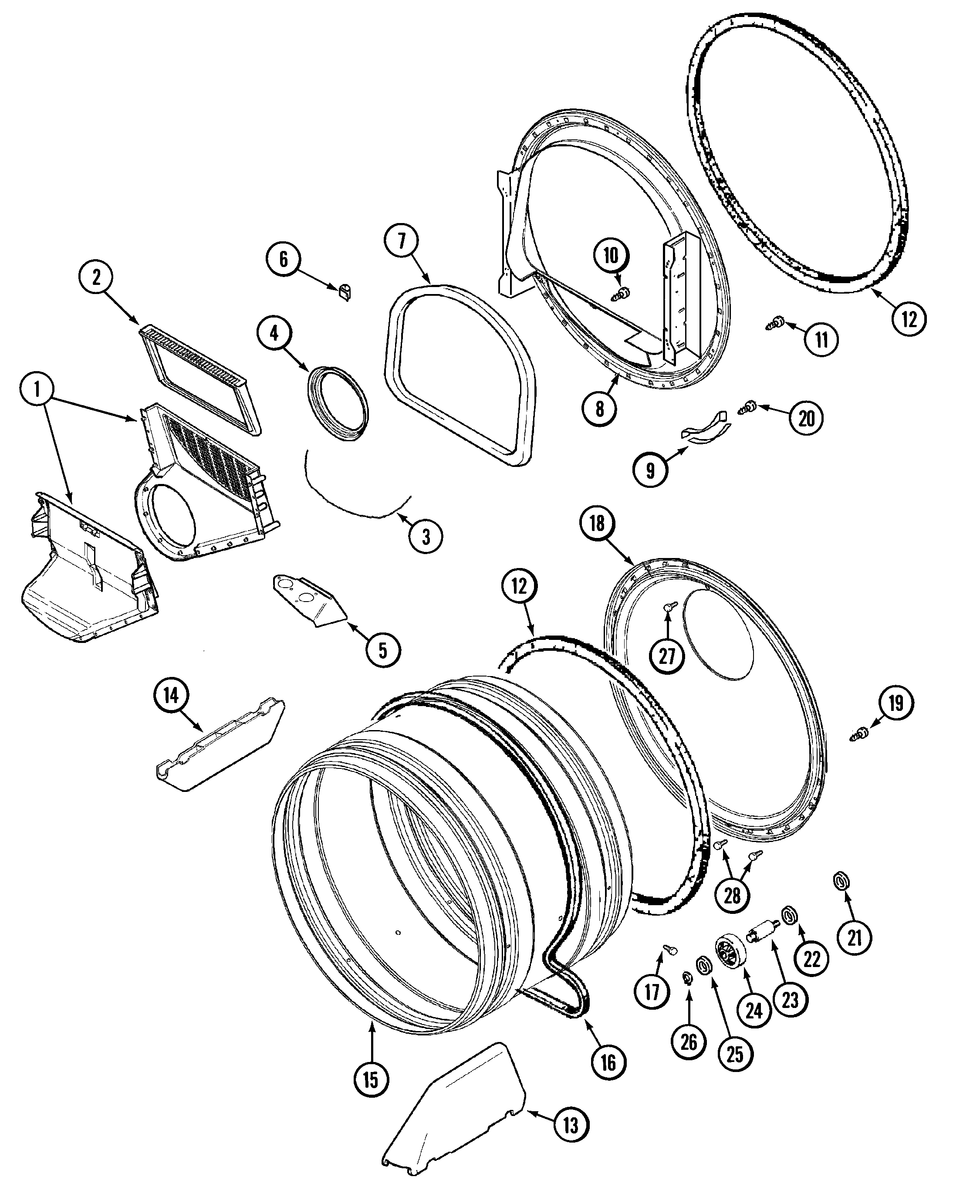

Tumbler diagram

Roller w/bea

Part #303373

Replaced by #12001541

?
Manufacturer substitution
This part replaces 303373. Substitute parts can look different from the original.
BEST SELLER
$26.88 |
18% OFF Phone Price : $32.88
In Stock
Belt, Tumble 33001777
#16

Tumbler diagram

Belt, tumble

Part #33001777

Replaced by #WP33002535

?
Manufacturer substitution
This part replaces 33001777. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Idler Pulley 33001783
#22

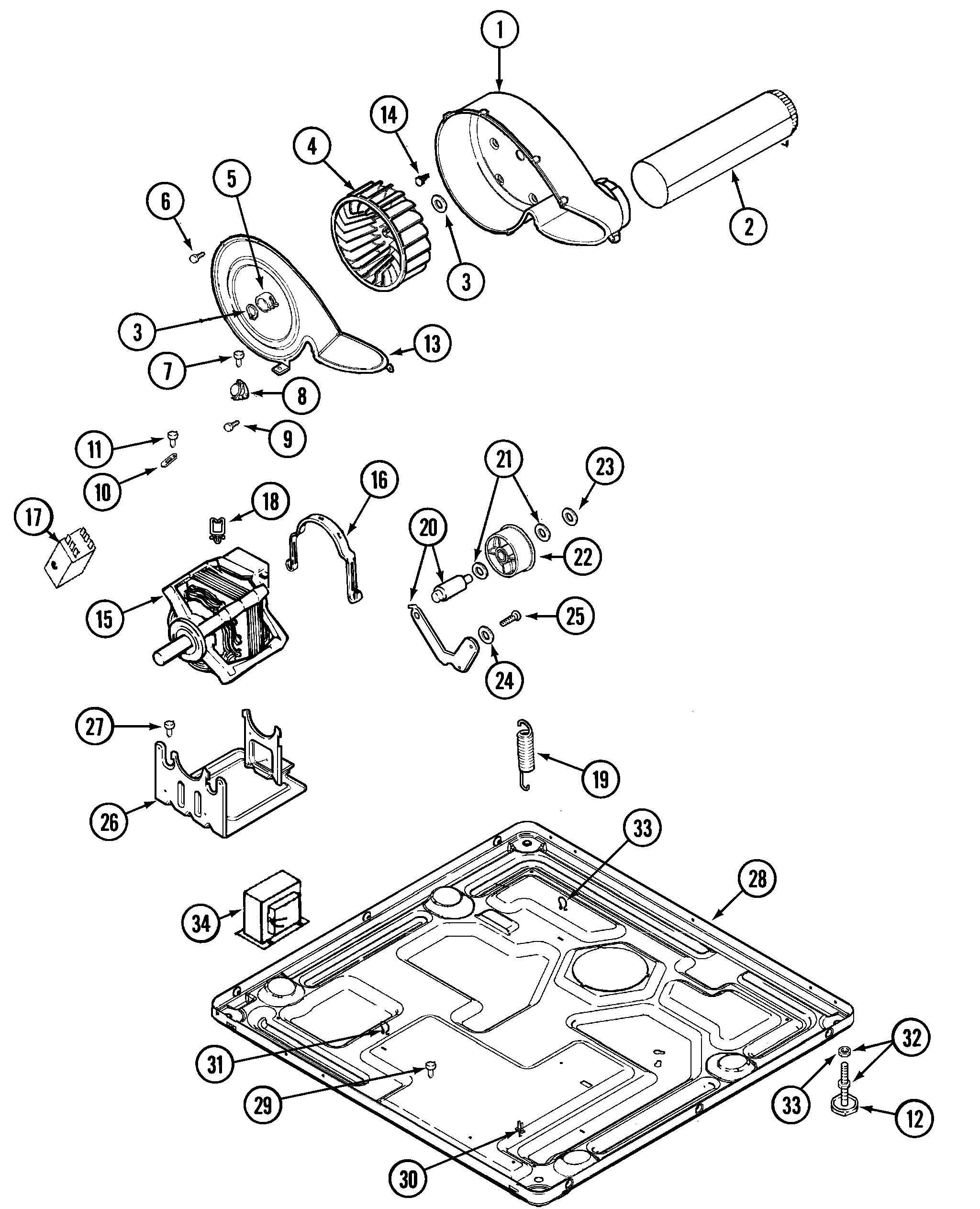

Motor drive diagram

Idler pulley

Part #33001783

Replaced by #WP6-3700340

?
Manufacturer substitution
This part replaces 33001783. Substitute parts can look different from the original.
BEST SELLER
$17.67 |
10% OFF Phone Price : $19.67
In Stock
Dryer Drum Bearing Kit (replaces 312940, 312941) 306508
#9

Tumbler diagram

Dryer drum bearing kit (replaces 312940, 312941)

Part #306508

BEST SELLER
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Gas Igniter 304970
#4

Gas valve diagram

Gas igniter

Part #304970

Replaced by #4391996

?
Manufacturer substitution
This part replaces 304970. Substitute parts can look different from the original.
BEST SELLER
$34.39 |
15% OFF Phone Price : $40.39
In Stock
Lock Ring, I 312958
#23

Motor drive diagram

Lock ring, i

Part #312958

Replaced by #WP354987

?
Manufacturer substitution
This part replaces 312958. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Dryer Drum Baffle 33001755
#14

Tumbler diagram

Dryer drum baffle

Part #33001755

Replaced by #WP33001755

?
Manufacturer substitution
This part replaces 33001755. Substitute parts can look different from the original.
BEST SELLER
$23.39 |
20% OFF Phone Price : $29.39
In Stock
Outer Screw 22002063
#22

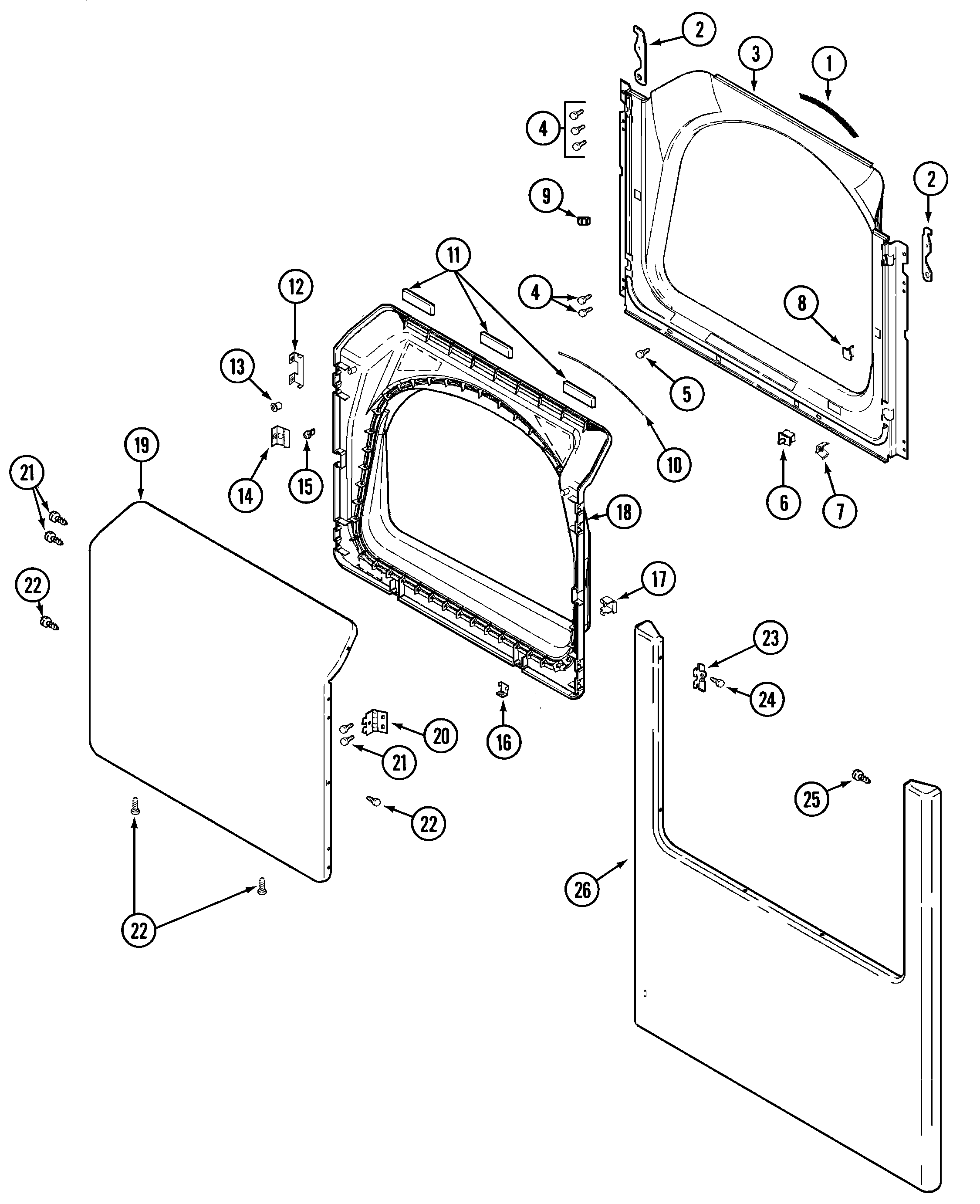

Door diagram

Outer screw

Part #22002063

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 22002063. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
