GE
Side-By-Side Refrigerator

Model # TFX22DKB Official GE refrigerator

Here are the diagrams and repair parts for Official GE TFX22DKB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 217 parts  |
Drier WR86X83

#740

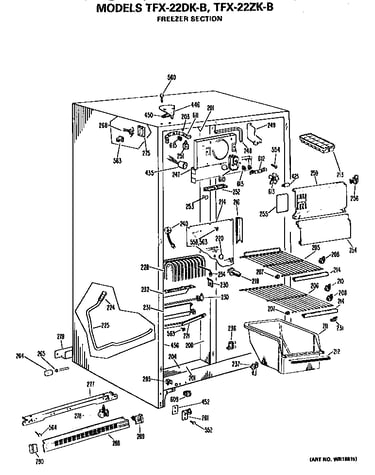

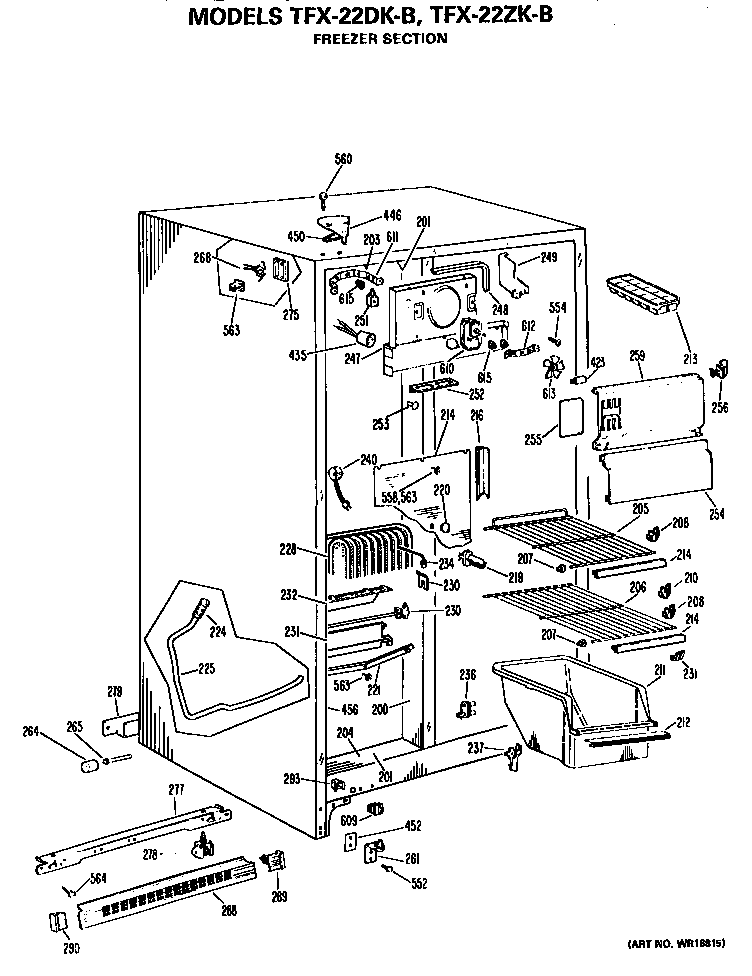

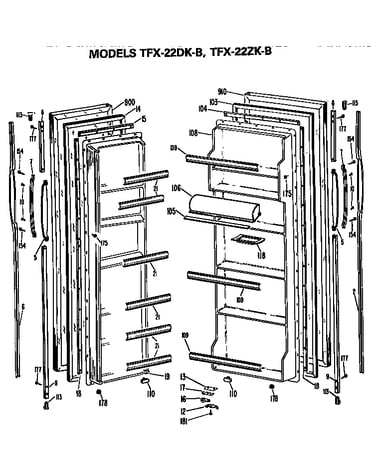

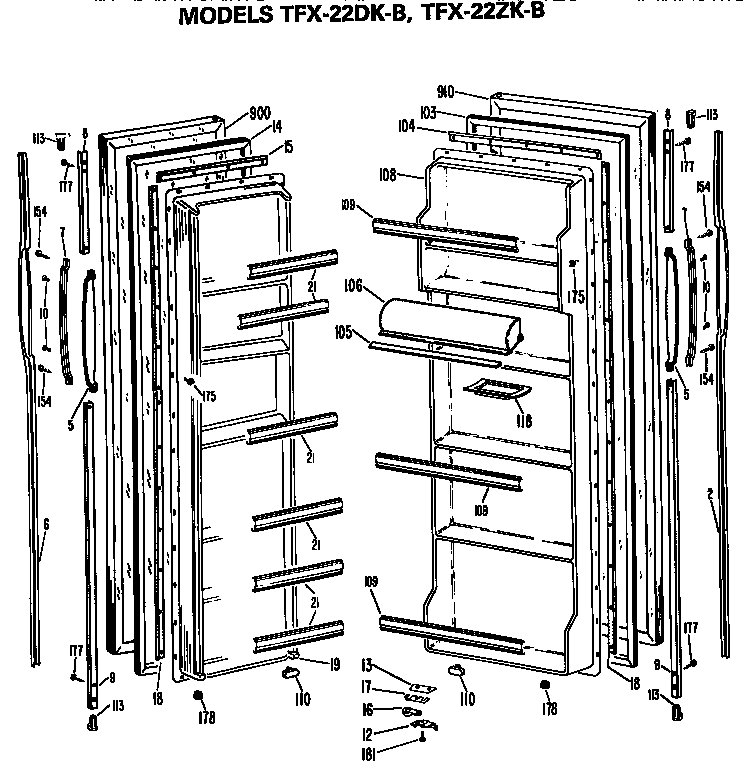

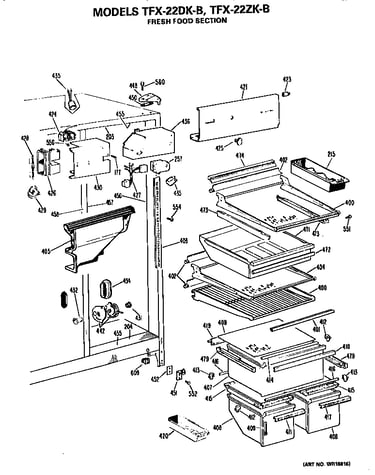

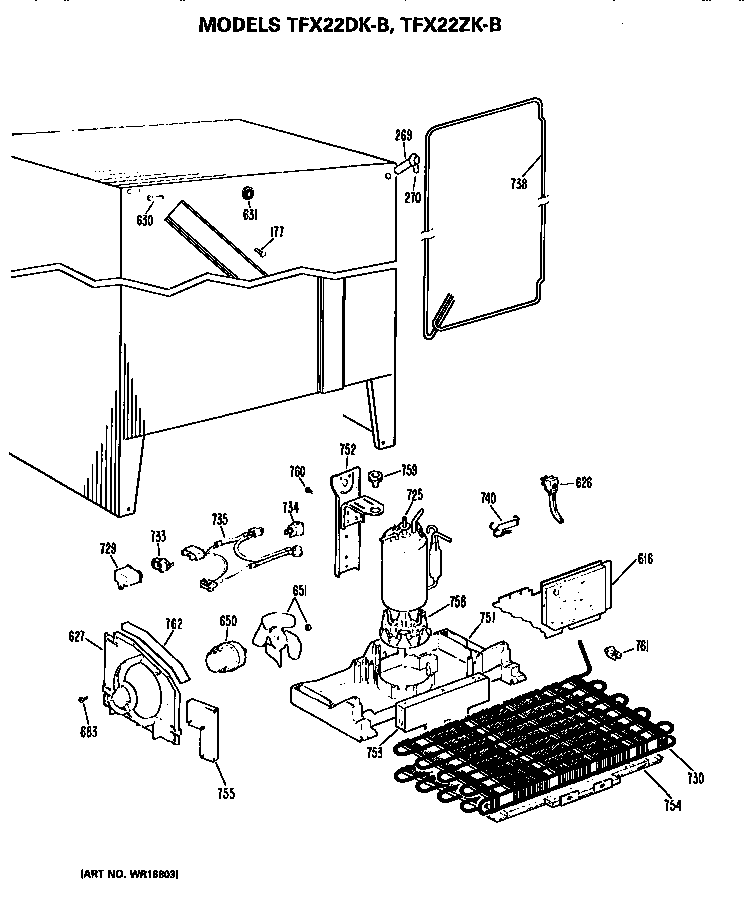

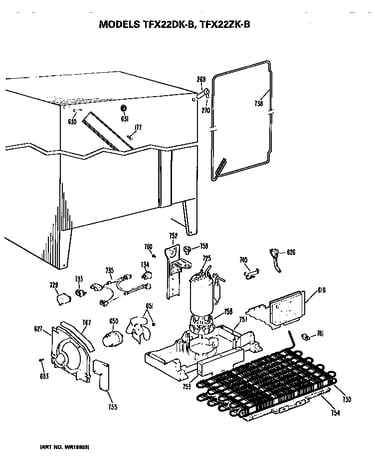

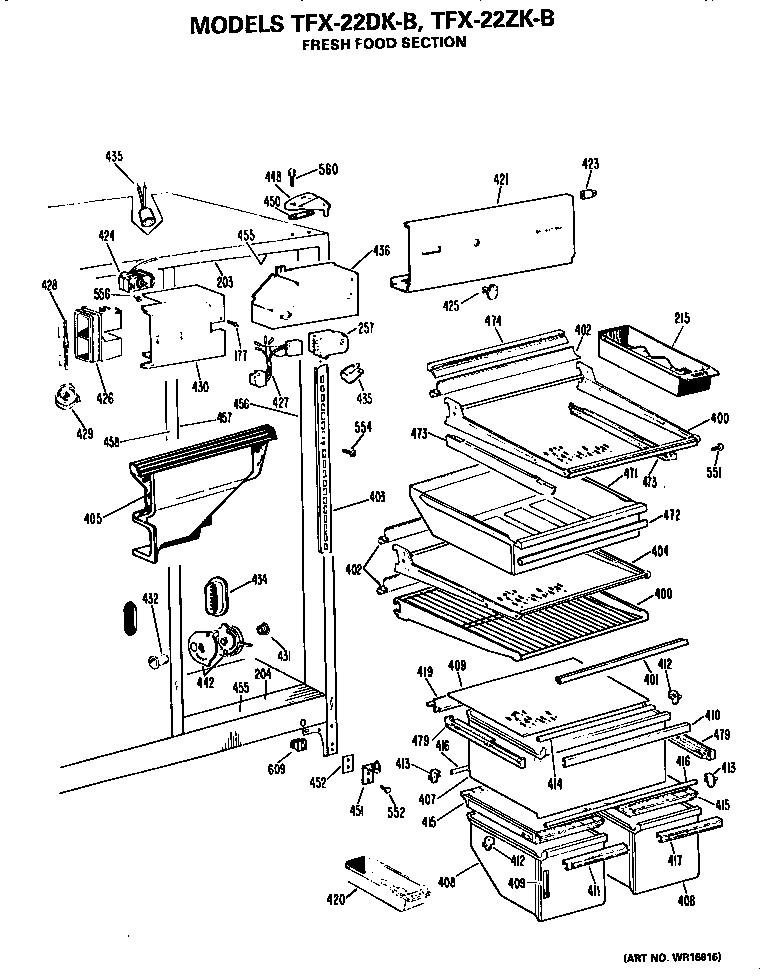

All parts diagram

Drier

Part #WR86X83

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X83. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Door Hinge Pin, Lower WR13X576

#261

All parts diagram

Door hinge pin, lower

Part #WR13X576

Replaced by #WR13X10020

?
Manufacturer substitution
This part replaces WR13X576. Substitute parts can look different from the original.
BEST SELLER
$30.16 |
17% OFF Phone Price : $36.16
In Stock
Door Hinge Pin, Lower WR13X575

#451

All parts diagram

Door hinge pin, lower

Part #WR13X575

Replaced by #WR13X10020

?
Manufacturer substitution
This part replaces WR13X575. Substitute parts can look different from the original.
BEST SELLER
$30.16 |
17% OFF Phone Price : $36.16
In Stock
Refrigerator Condenser Fan Motor WR60X179

#650

All parts diagram

Refrigerator condenser fan motor

Part #WR60X179

Replaced by #WR60X187

?
Manufacturer substitution
This part replaces WR60X179. Substitute parts can look different from the original.
BEST SELLER
$207.94 |
5% OFF Phone Price : $219.94
In Stock
Refrigerator Evaporator Fan Blade (replaces Swr2x3198, Swr60x114, Wr2x3198, Wr60x0114, Wr60x107, Wr60x113, Wr60x247, Wr60x55, Wr60x80) WR60X114
Refrigerator evaporator fan blade (replaces swr2x3198, swr60x114, wr2x3198, wr60x0114, wr60x107, wr60x113, wr60x247, wr60x55, wr60x80)

Part #WR60X114

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Fan Blade WR2X3198

#613

All parts diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Thermostat WR50X35

#240

All parts diagram

Refrigerator thermostat

Part #WR50X35

Replaced by #WR50X55

?
Manufacturer substitution
This part replaces WR50X35. Substitute parts can look different from the original.
This item is not returnable
$16.85 |
11% OFF Phone Price : $18.85
In Stock
Refrigerator Water Tubing Clip WR1X5278

#626

All parts diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Ice Tray WR30X196

#213

All parts diagram

Refrigerator ice tray

Part #WR30X196

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X196. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Frz O Dr Ha WR78X8075

#900

All parts diagram

Frz o dr ha

Part #WR78X8075

$104.99
In Stock
