Electric Wall Oven

Model # ZET1SH3SS Official GE electric wall oven

Here are the diagrams and repair parts for Official GE ZET1SH3SS electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Wall Oven Cooling Fan Sensor Board WB27T11463
#599

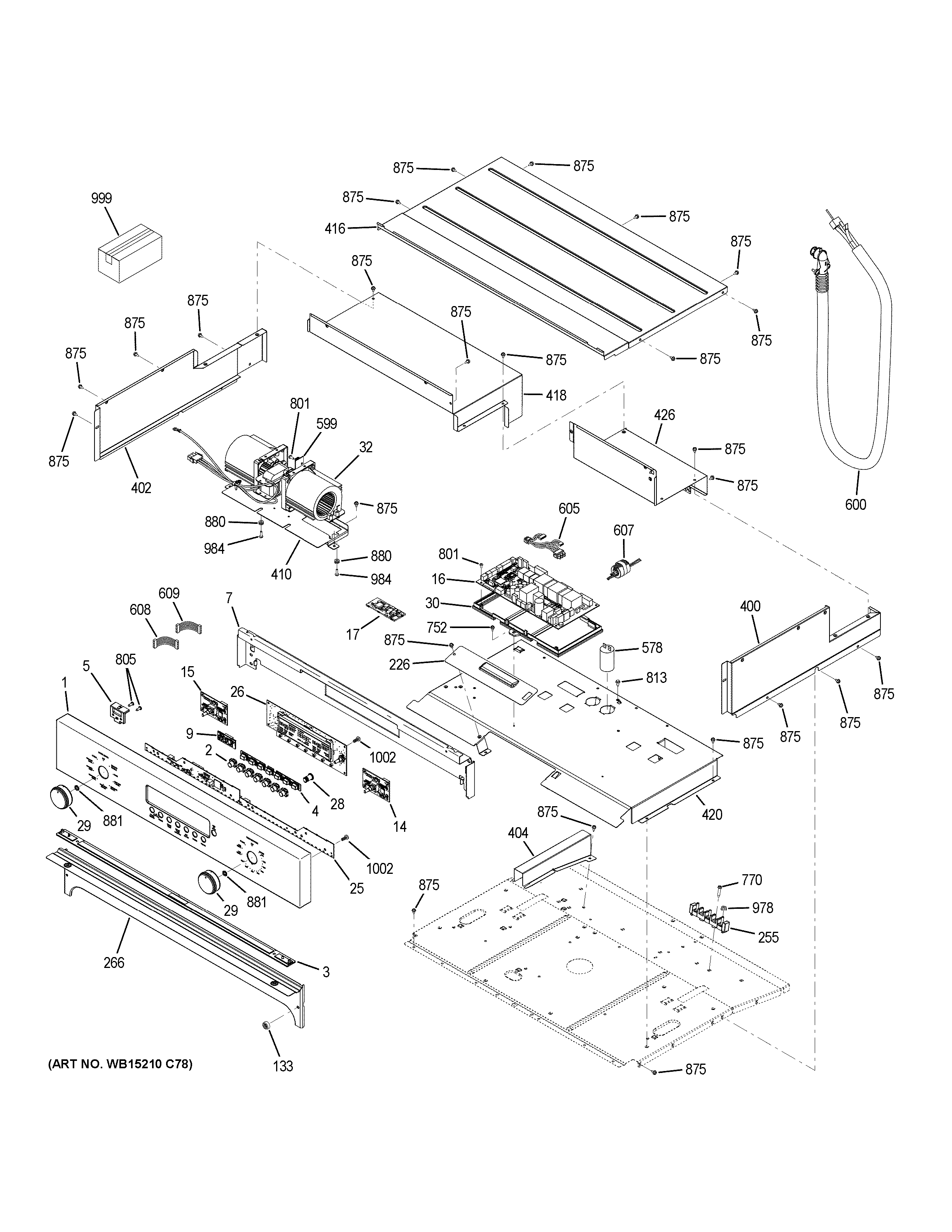

Control panel diagram

Wall oven cooling fan sensor board

Part #WB27T11463

BEST SELLER
This item is not returnable
$51.74 |
10% OFF Phone Price : $57.74
In Stock
Wall Oven Temperature Sensor WB21X10165
#253

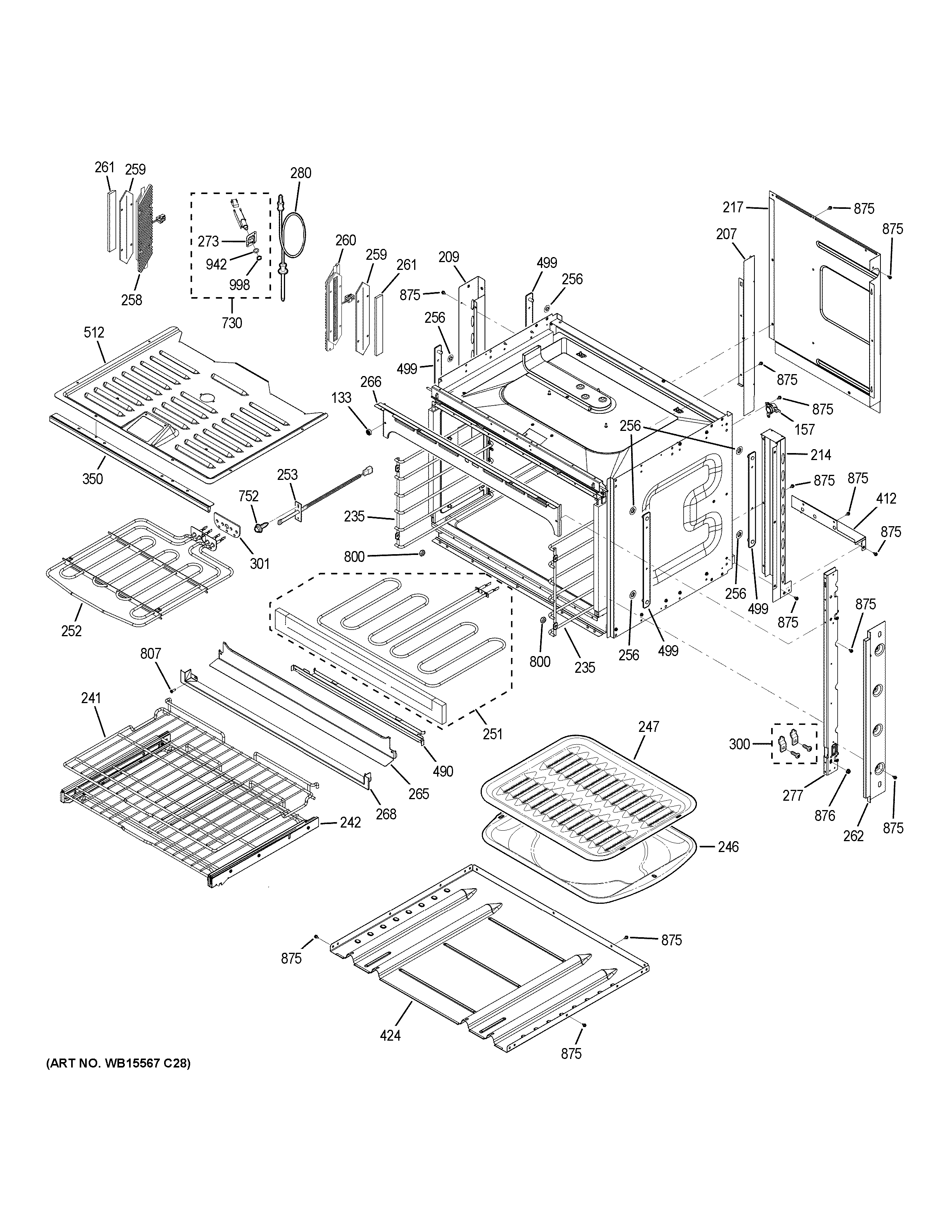

Body parts diagram

Wall oven temperature sensor

Part #WB21X10165

BEST SELLER
$19.80 |
9% OFF Phone Price : $21.80
In Stock
Wall Oven Cooling Fan Assembly (replaces Wb26x23477) WB26X31060
#32

Control panel diagram

Wall oven cooling fan assembly (replaces wb26x23477)

Part #WB26X31060

BEST SELLER
$70.44 |
8% OFF Phone Price : $76.44
In Stock
Range High-limit Thermostat WB24T10164
#157

Body parts diagram

Range high-limit thermostat

Part #WB24T10164

Replaced by #WB24X46906

?
Manufacturer substitution
This part replaces WB24T10164. Substitute parts can look different from the original.
BEST SELLER
$99.57 |
11% OFF Phone Price : $111.57
In Stock
Cooking Appliance Oven Rack Lubricant WB02T10303
#999

Control panel diagram

Cooking appliance oven rack lubricant

Part #WB02T10303

BEST SELLER
$36.35 |
14% OFF Phone Price : $42.35
In Stock
Gasket WB35X26196
#132

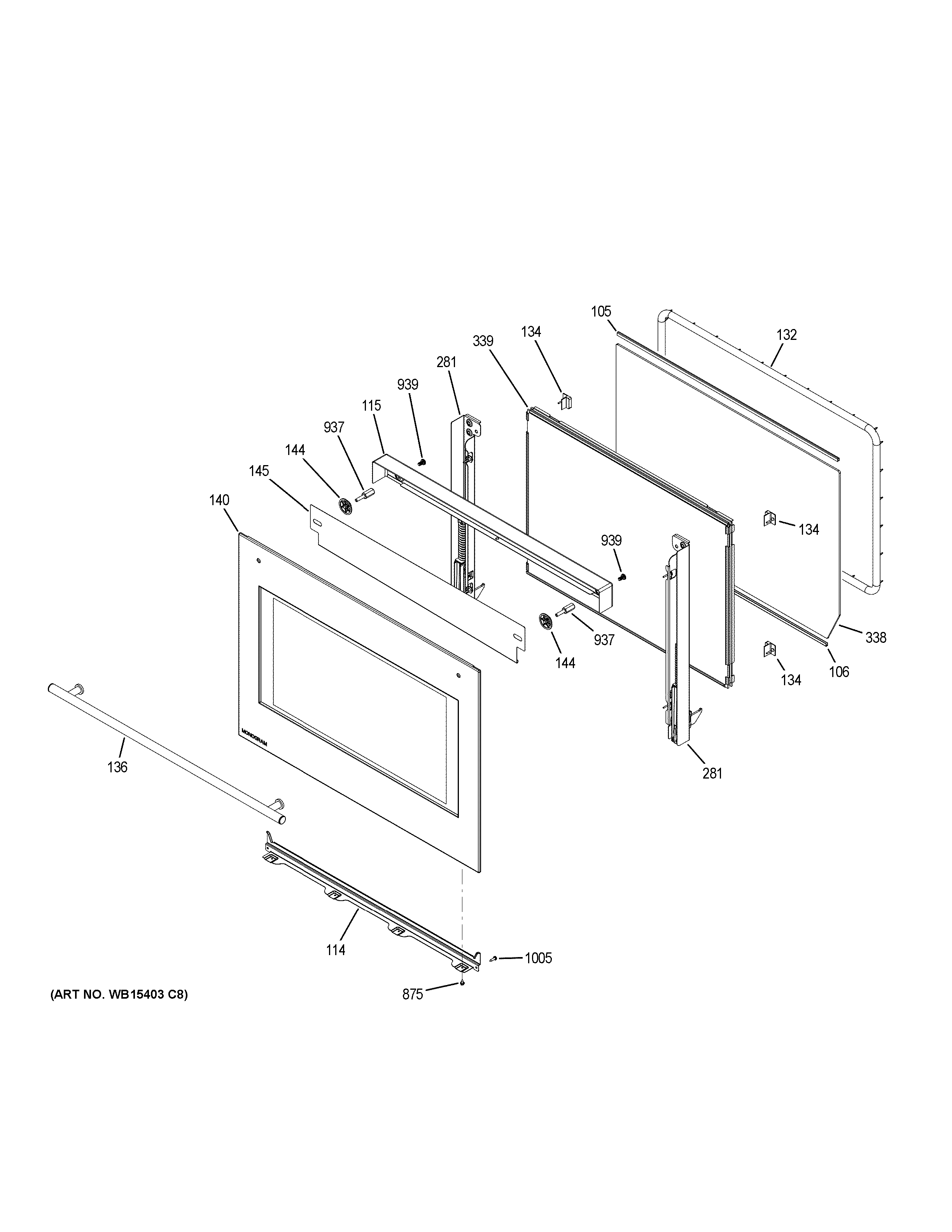

Door diagram

Gasket

Part #WB35X26196

Replaced by #WB35X32825

?
Manufacturer substitution
This part replaces WB35X26196. Substitute parts can look different from the original.
$40.78 |
13% OFF Phone Price : $46.78
In Stock
Wall Oven User Interface Control Board WB27X24647
#26

Control panel diagram

Wall oven user interface control board

Part #WB27X24647

$357.35
In Stock
Hex Nut WB02T10608
#977

Convection fan diagram

Hex nut

Part #WB02T10608

$8.11
In Stock
Wall Oven Convection Fan Motor WB26X23476
#511

Convection fan diagram

Wall oven convection fan motor

Part #WB26X23476

Replaced by #WB26X44167

?
Manufacturer substitution
This part replaces WB26X23476. Substitute parts can look different from the original.
$106.40
In Stock
Board Wifi Cat Module WB27X29798
#9

Control panel diagram

Board wifi cat module

Part #WB27X29798

Replaced by #WB27X33353

?
Manufacturer substitution
This part replaces WB27X29798. Substitute parts can look different from the original.
$46.78 |
11% OFF Phone Price : $52.78
In Stock
