Model # DK50-P1307703R Official Amana dehumidifier

Here are the diagrams and repair parts for Official Amana DK50-P1307703R dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

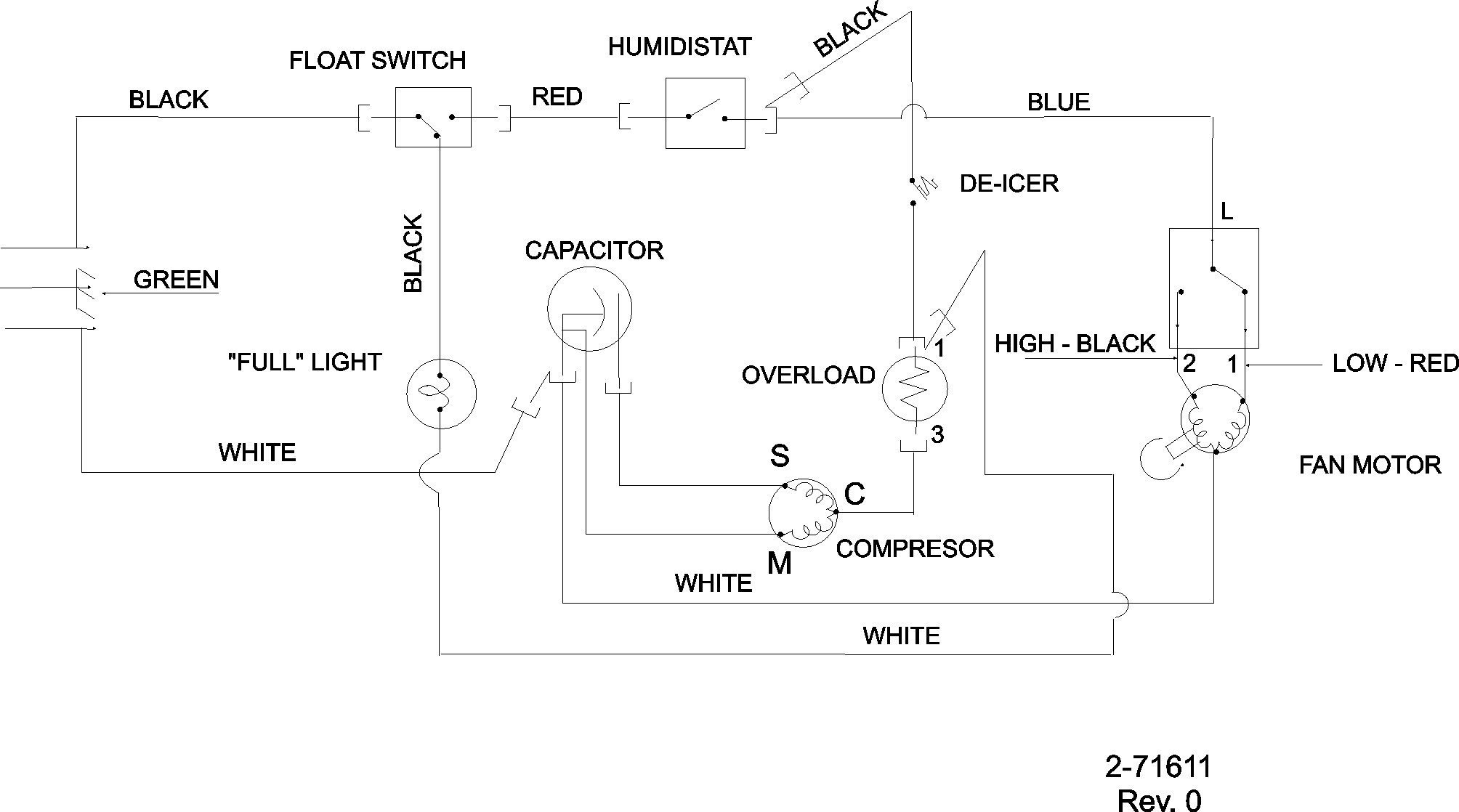

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Capacitor R0211564
#33

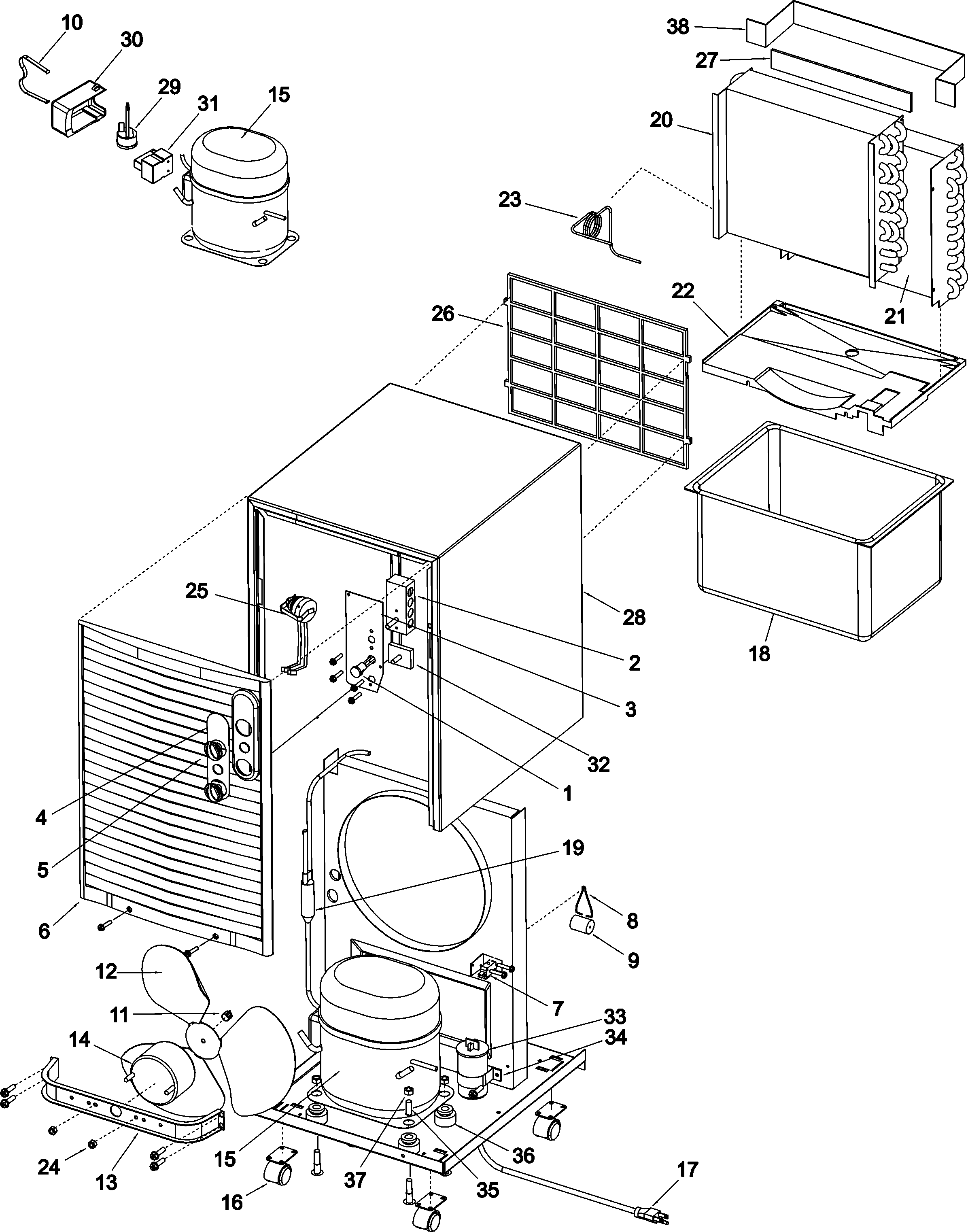

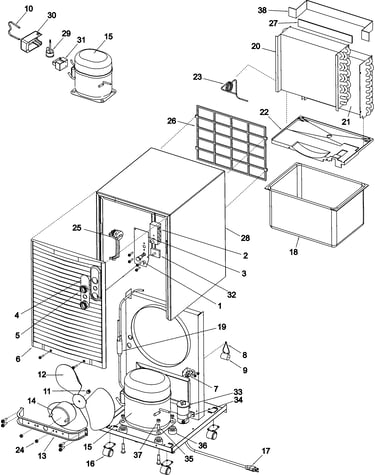

Cabinet diagram

Capacitor

Part #R0211564

The manufacturer no longer makes this part, and there's no substitute part

Compressor R9900042
#15

Cabinet diagram

Compressor

Part #R9900042

The manufacturer no longer makes this part, and there's no substitute part

Wire, Jumper (grey) (non-illus) R0211575
#42

Cabinet diagram

Wire, jumper (grey) (non-illus)

Part #R0211575

The manufacturer no longer makes this part, and there's no substitute part

Control Bracket R0211515
#3

Cabinet diagram

Control bracket

Part #R0211515

The manufacturer no longer makes this part, and there's no substitute part

Screw - Evaporator (non-illus) R9900219
#21A

Cabinet diagram

Screw - evaporator (non-illus)

Part #R9900219

The manufacturer no longer makes this part, and there's no substitute part

Clip - Protector (non-illus) R9900236
#43

Cabinet diagram

Clip - protector (non-illus)

Part #R9900236

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor R9900232
#14

Cabinet diagram

Fan motor

Part #R9900232

The manufacturer no longer makes this part, and there's no substitute part

Wire, Lead (white) (non-illus) R0211574
#41

Cabinet diagram

Wire, lead (white) (non-illus)

Part #R0211574

The manufacturer no longer makes this part, and there's no substitute part

Removable-bucket R0211567
#18

Cabinet diagram

Removable-bucket

Part #R0211567

The manufacturer no longer makes this part, and there's no substitute part

Switch - Speed (rotary) (p1307701r, P1307702r, P1307703r, P1307706r) R0211560
#32

Cabinet diagram

Switch - speed (rotary) (p1307701r, p1307702r, p1307703r, p1307706r)

Part #R0211560

The manufacturer no longer makes this part, and there's no substitute part
