Model # 315228490 Official Craftsman table saw

Here are the diagrams and repair parts for Official Craftsman 315228490 table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

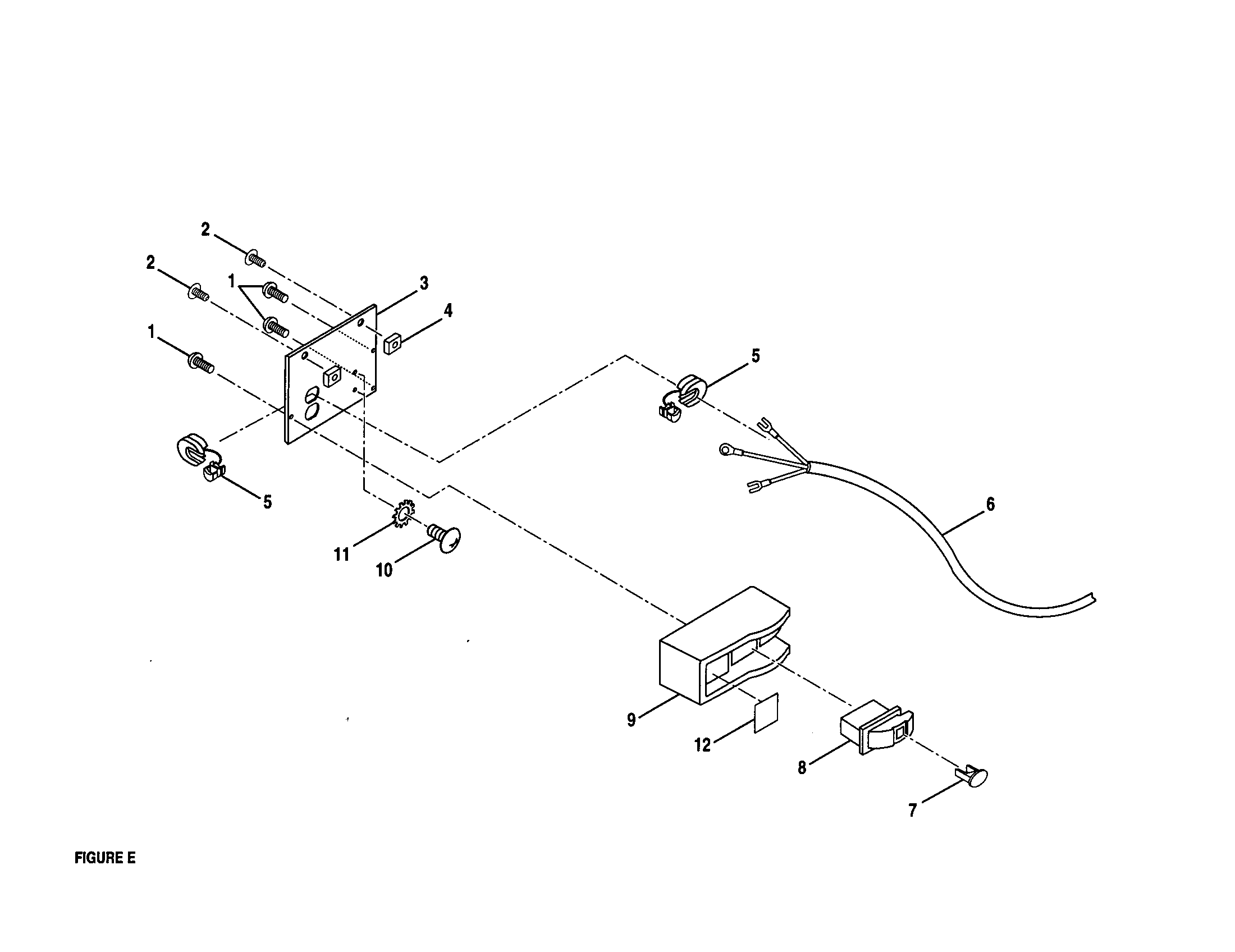

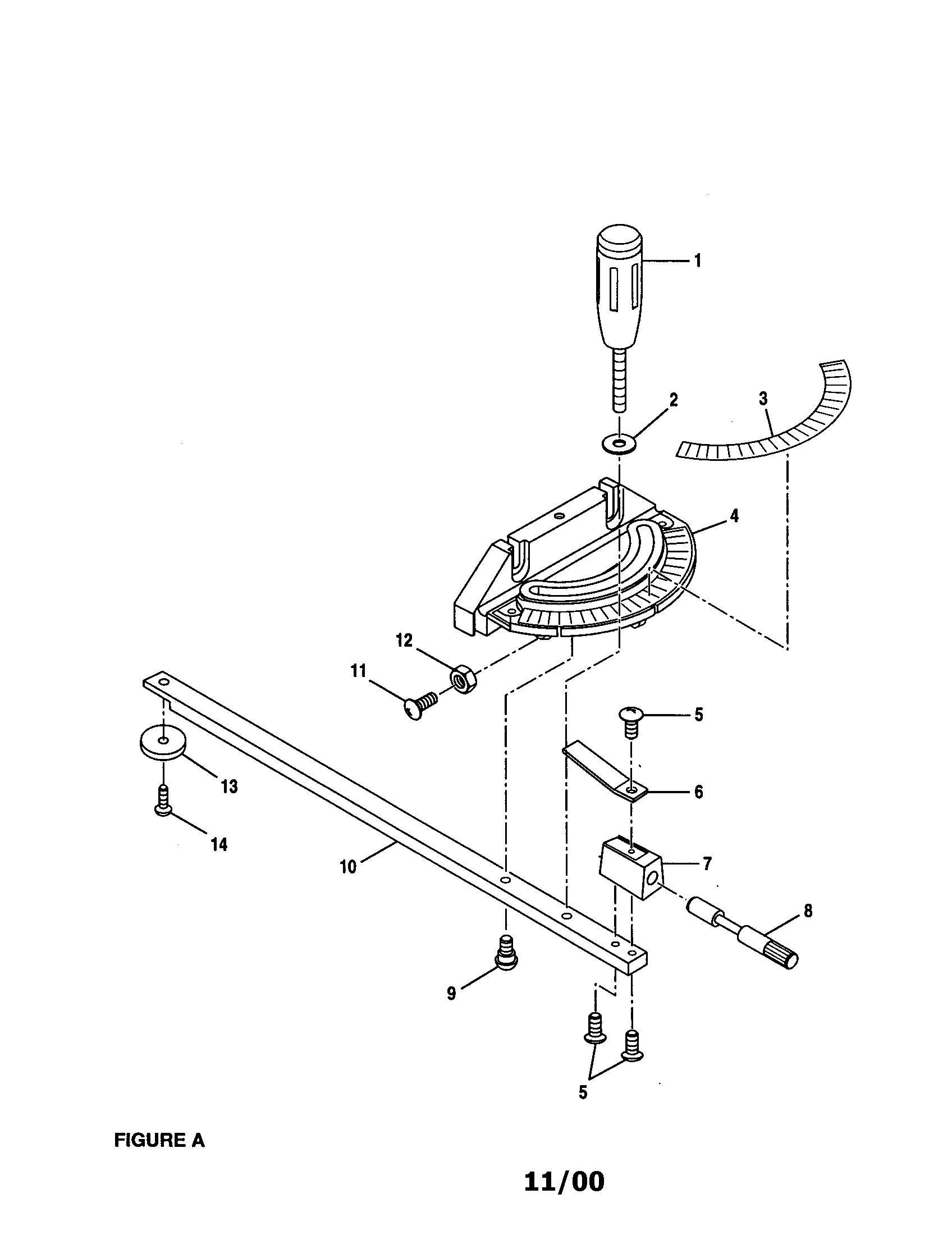

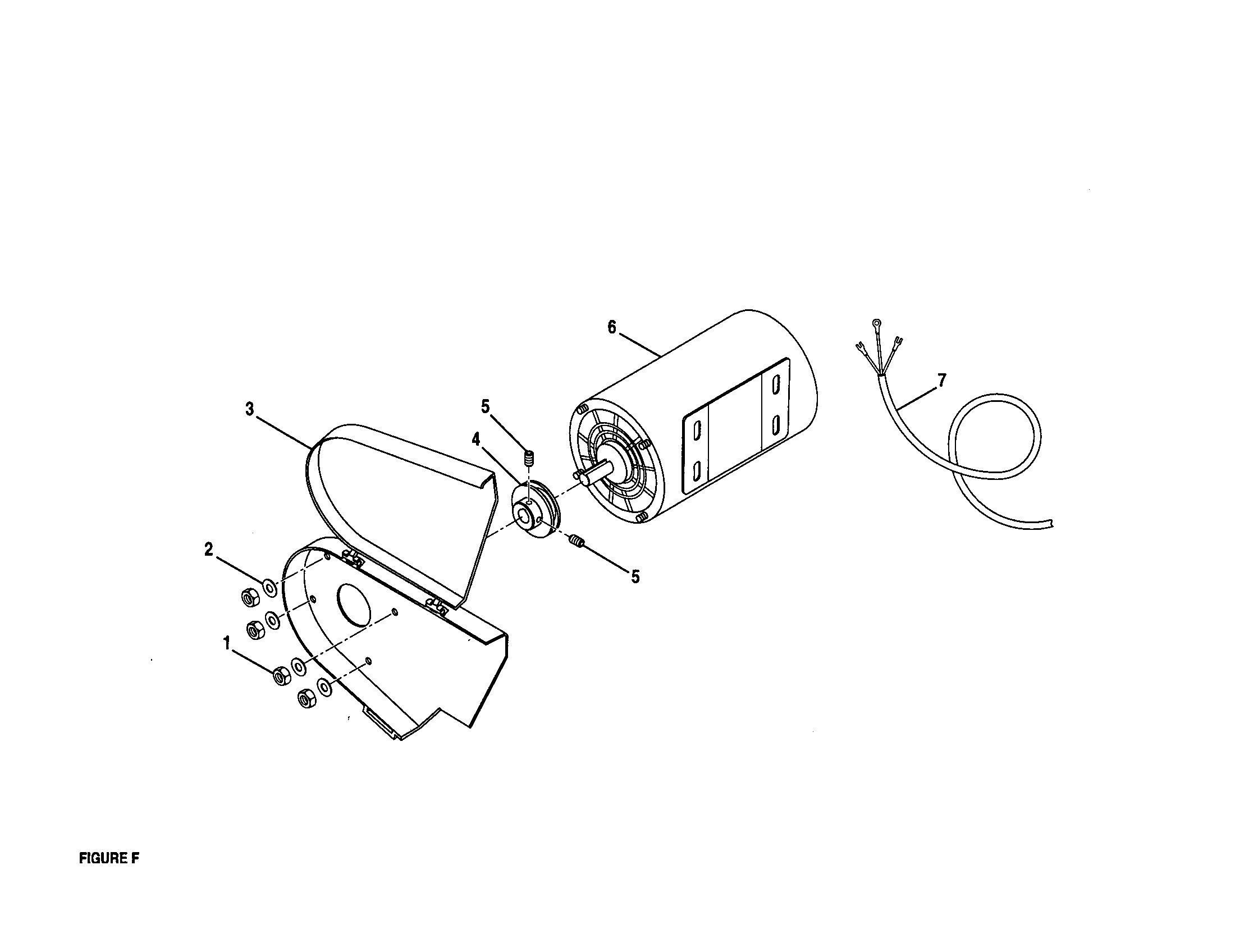

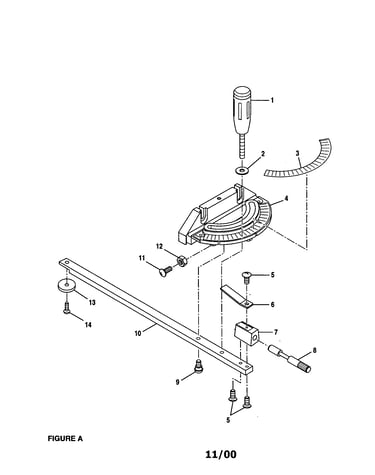

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Panel 980320-002
#10

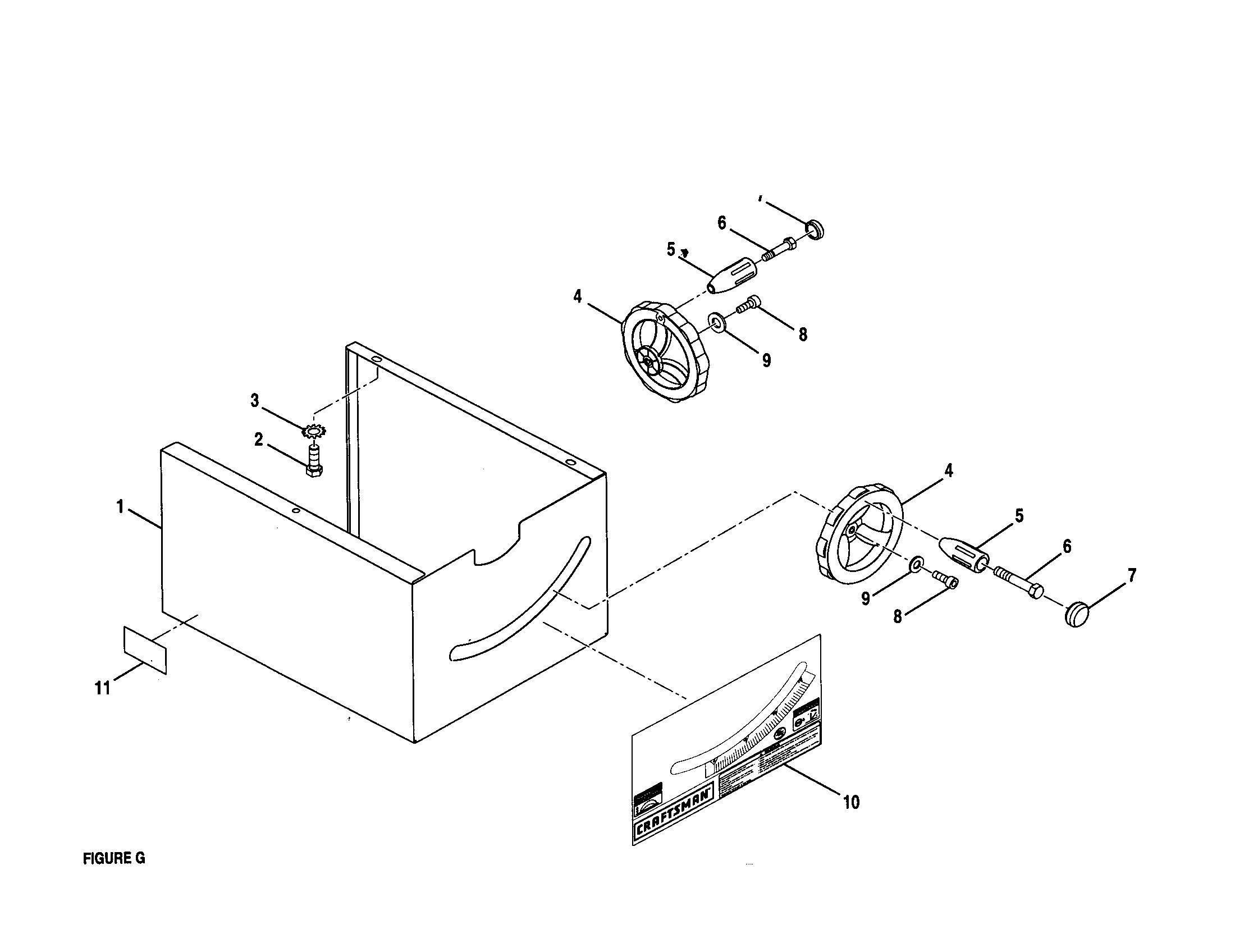

Base diagram

Panel

Part #980320-002

The manufacturer no longer makes this part, and there's no substitute part

Plate 979962-001
#10

Rip fence diagram

Plate

Part #979962-001

The manufacturer no longer makes this part, and there's no substitute part

Leg (4) 979995-02
#4

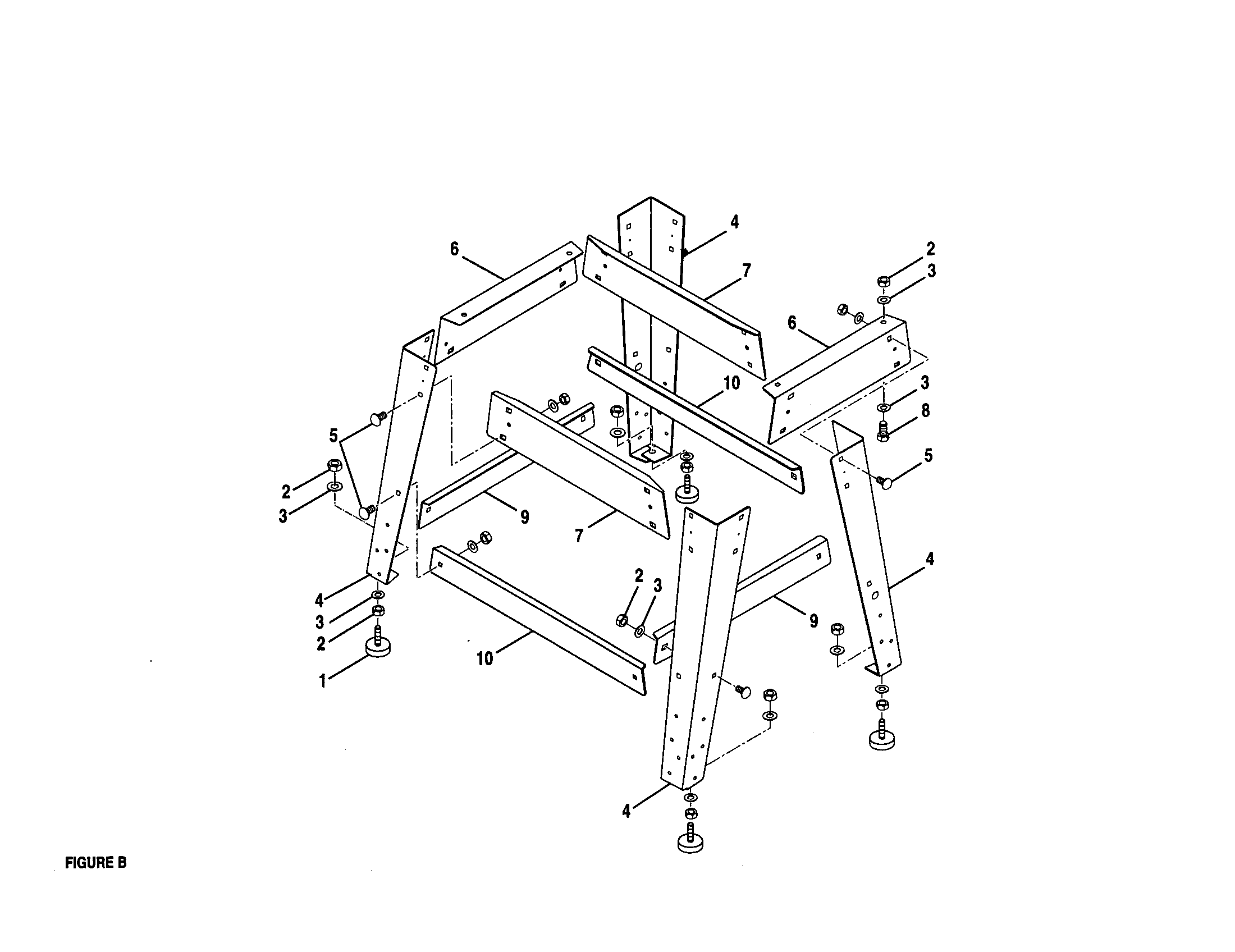

Leveling foot diagram

Leg (4)

Part #979995-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 979910-001
#21

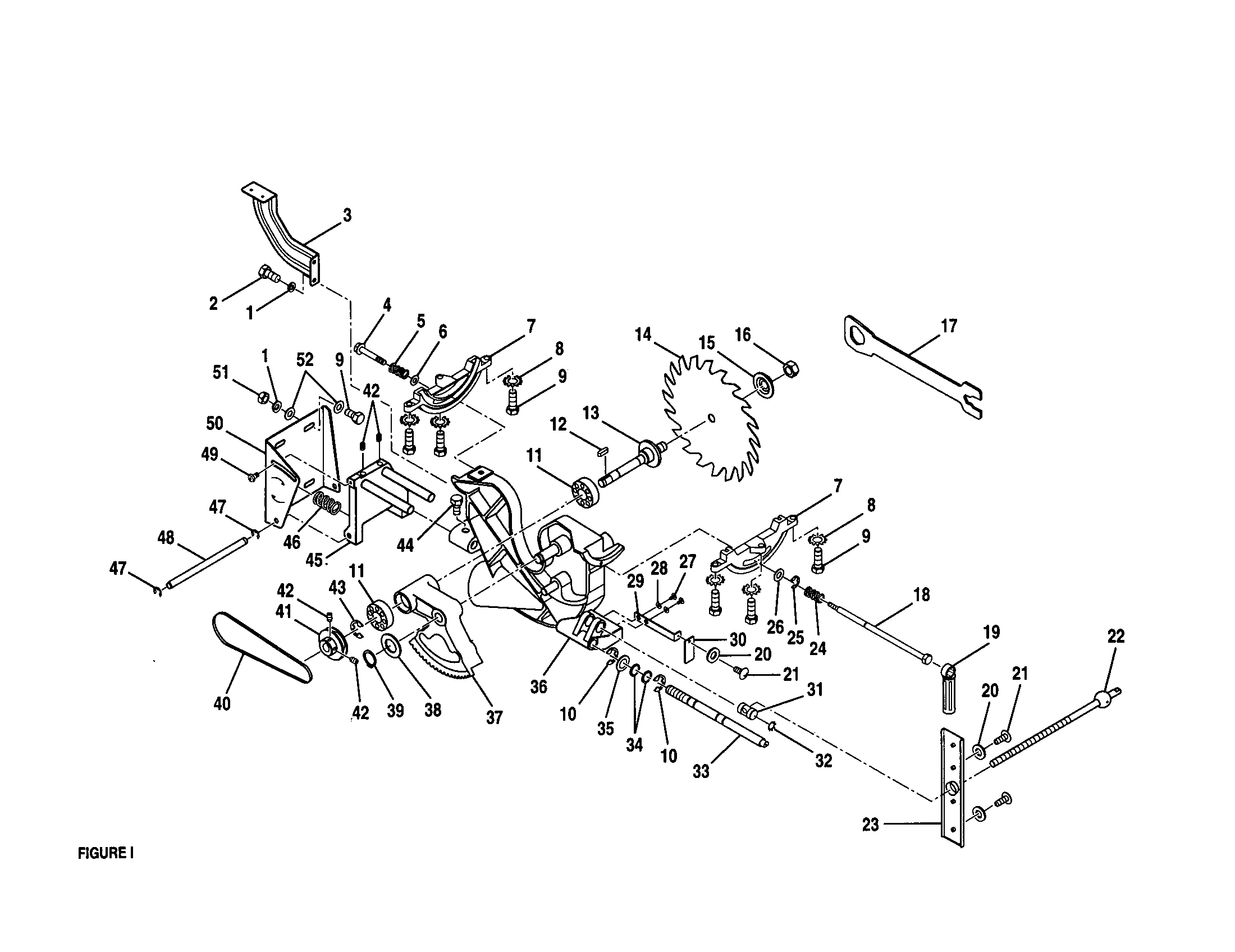

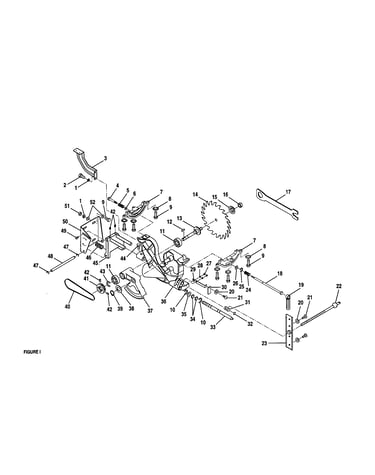

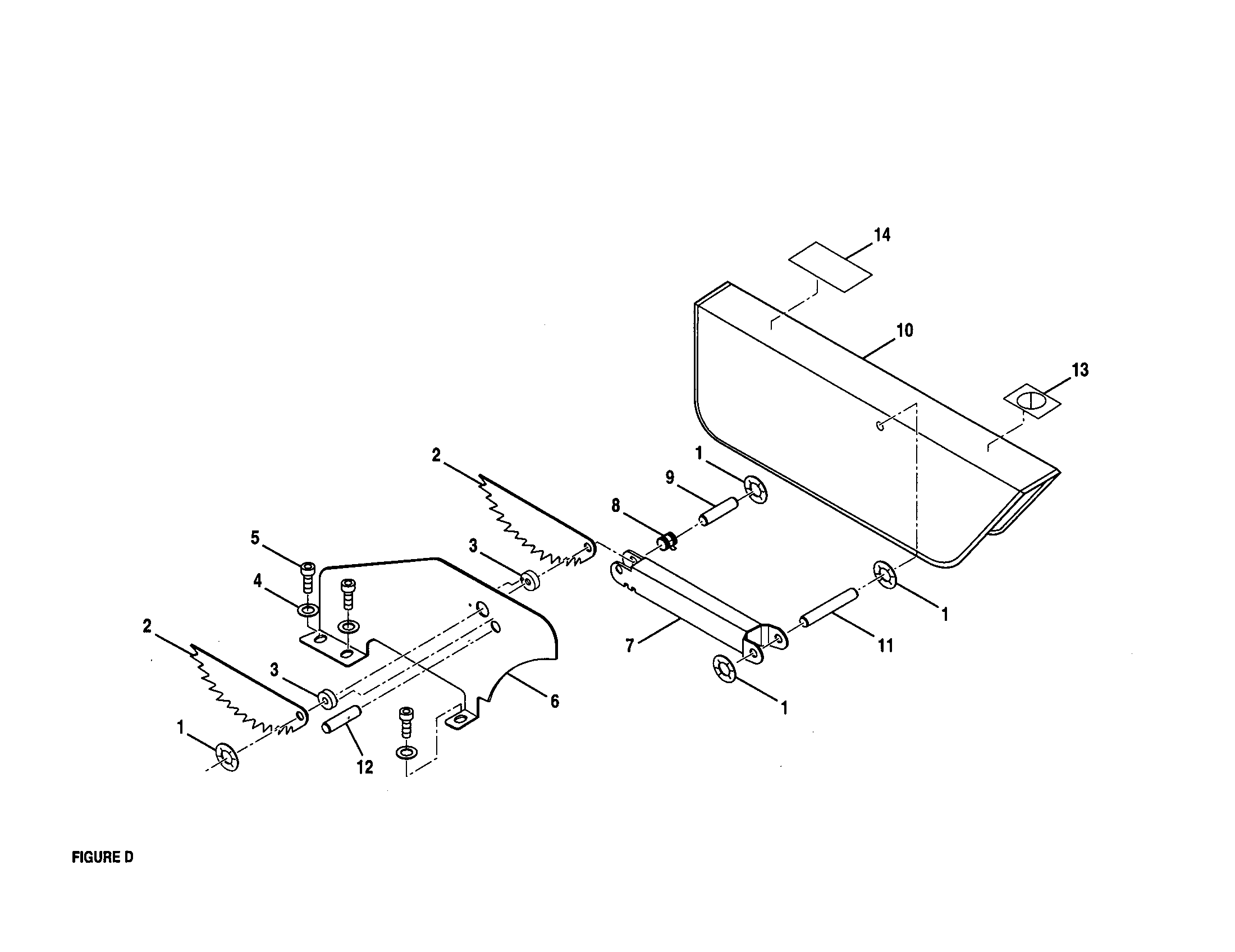

Blade diagram

Screw

Part #979910-001

The manufacturer no longer makes this part, and there's no substitute part

Rear Rail 980954-001
#5

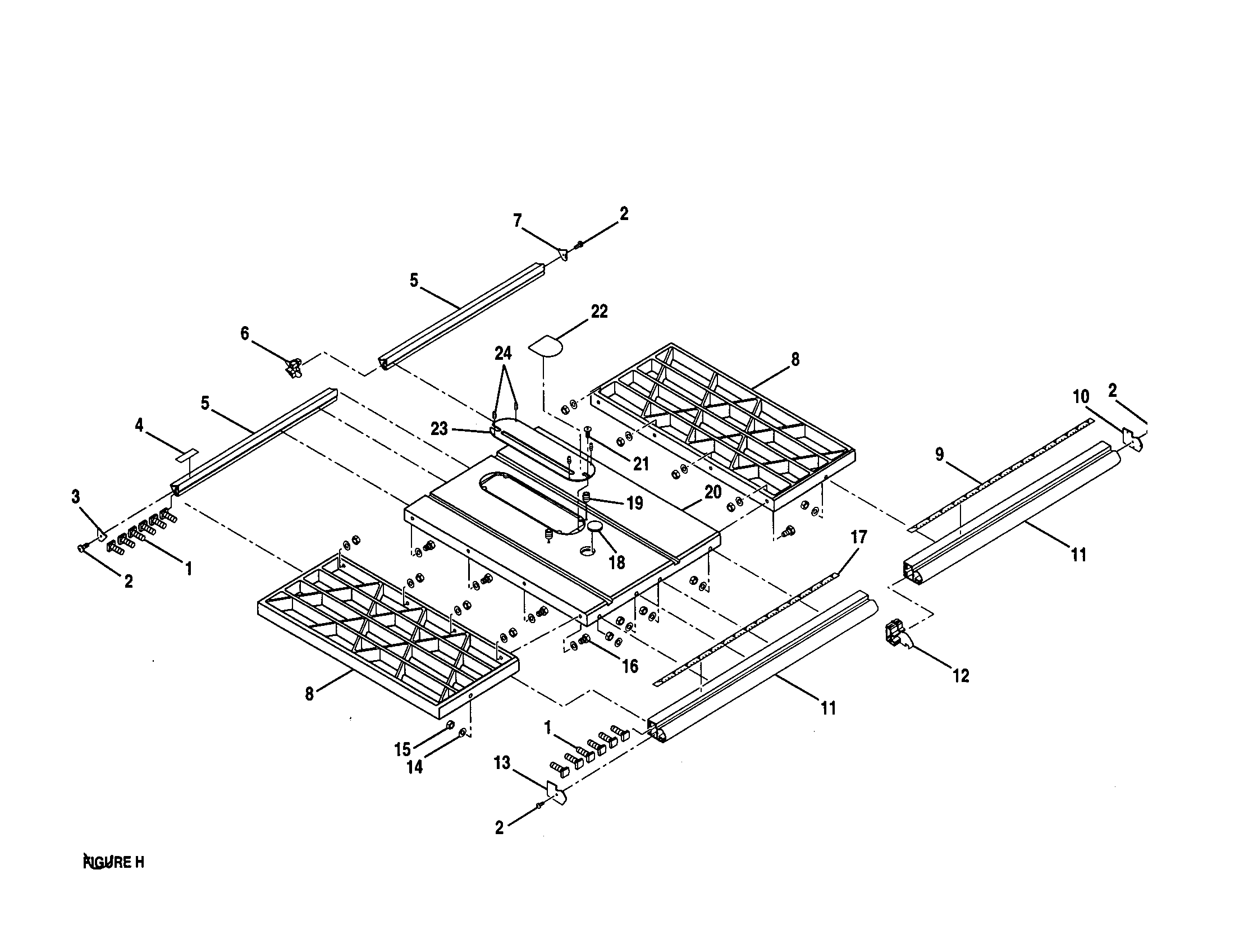

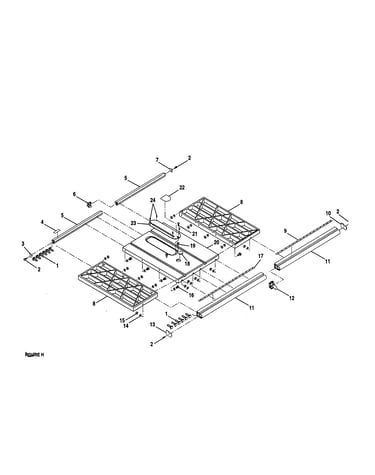

Extension tabs diagram

Rear rail

Part #980954-001

The manufacturer no longer makes this part, and there's no substitute part

End Cap 979951-001
#10

Extension tabs diagram

End cap

Part #979951-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 980602-001
#8

Base diagram

Screw

Part #980602-001

The manufacturer no longer makes this part, and there's no substitute part

Set Screw STD502502
Set screw

Part #STD502502

The manufacturer no longer makes this part, and there's no substitute part

Table Saw 980956-002
#20

Extension tabs diagram

Table saw

Part #980956-002

The manufacturer no longer makes this part, and there's no substitute part

Screw 979872-001
#21

Extension tabs diagram

Screw

Part #979872-001

The manufacturer no longer makes this part, and there's no substitute part
