Model # 917258515 Official Craftsman tractor
Here are the diagrams and repair parts for Official Craftsman 917258515 tractor, as well as links to manuals and error code tables, if available.
Owner’s manual

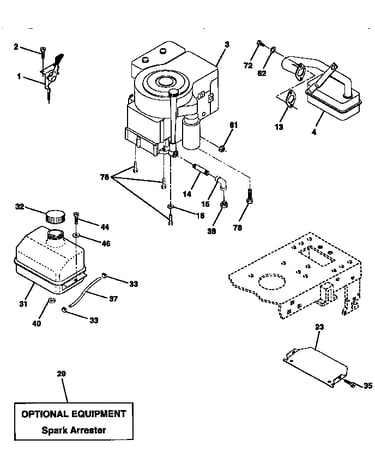

View engineBy Schematic
By Part

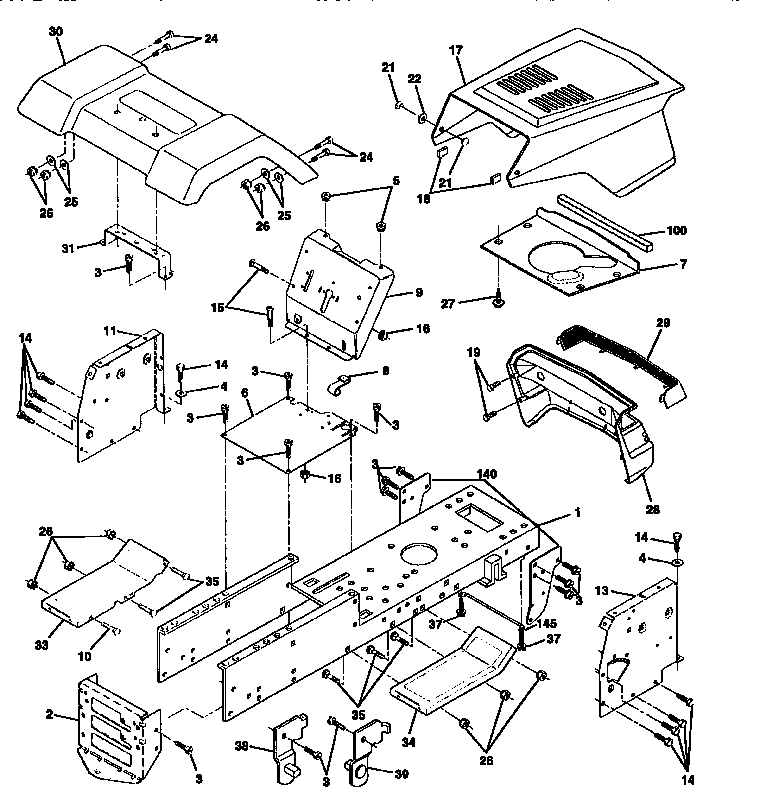

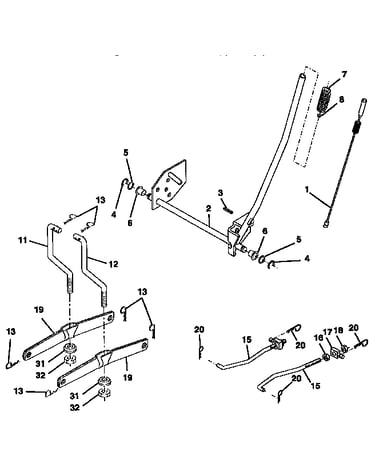

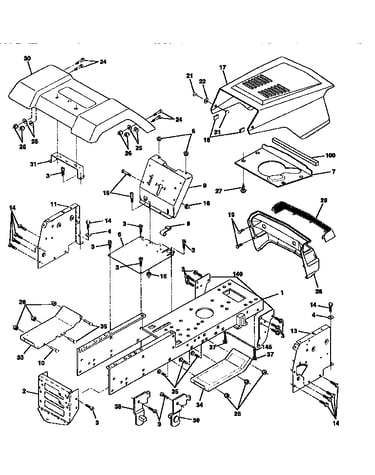

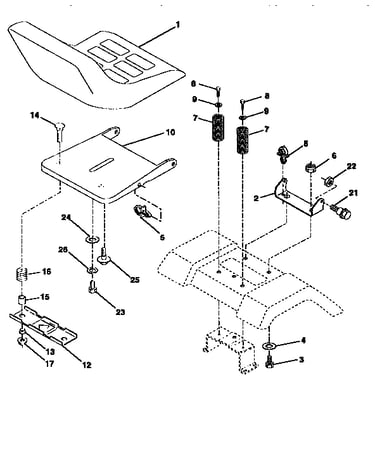

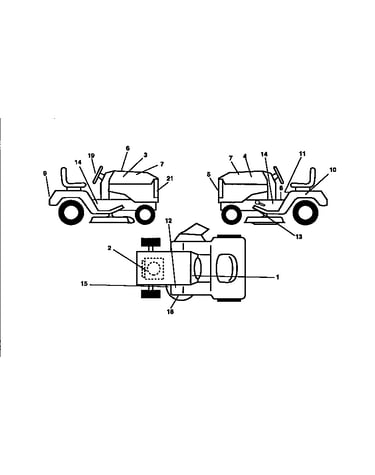

SELECT DIAGRAM
Browse Parts for
917258515 Riding Mowers & Tractors
#11

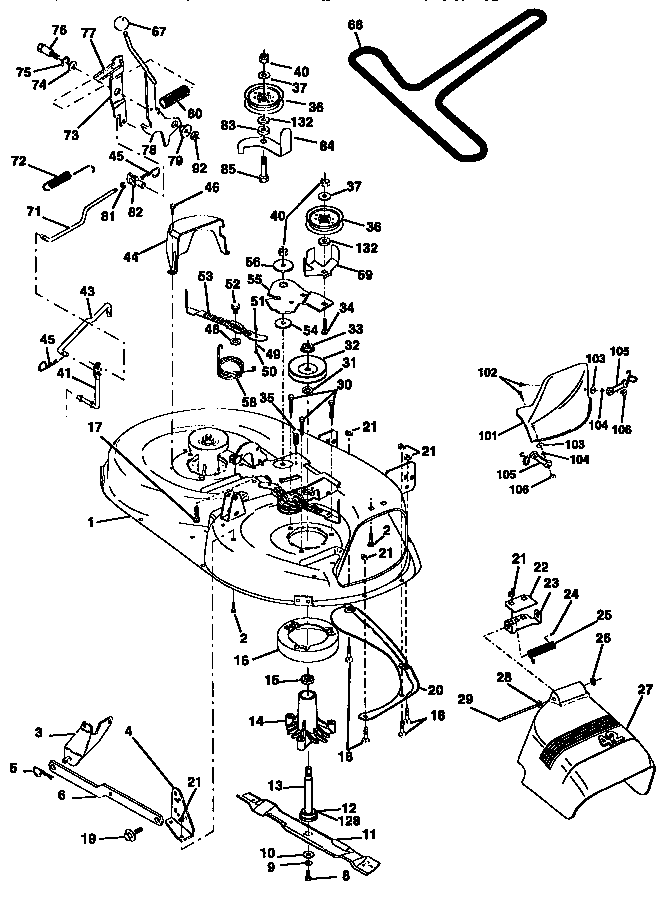

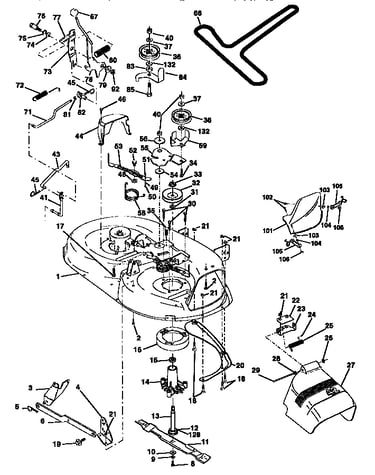

Mower deck diagram
Lawn tractor mulching blade
Part #134149
Replaced by #532134149
?
Manufacturer substitution
This part replaces 134149. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$26.64 |
18% OFF Phone Price : $32.64
In Stock
#11
Wheel assembly diagram
Hub cap
Part #104757X
Replaced by #532104757
?
Manufacturer substitution
This part replaces 104757X. Substitute parts can look different from the original.
This item is not returnable
$6.18 |
14% OFF Phone Price : $7.18
In Stock
#57

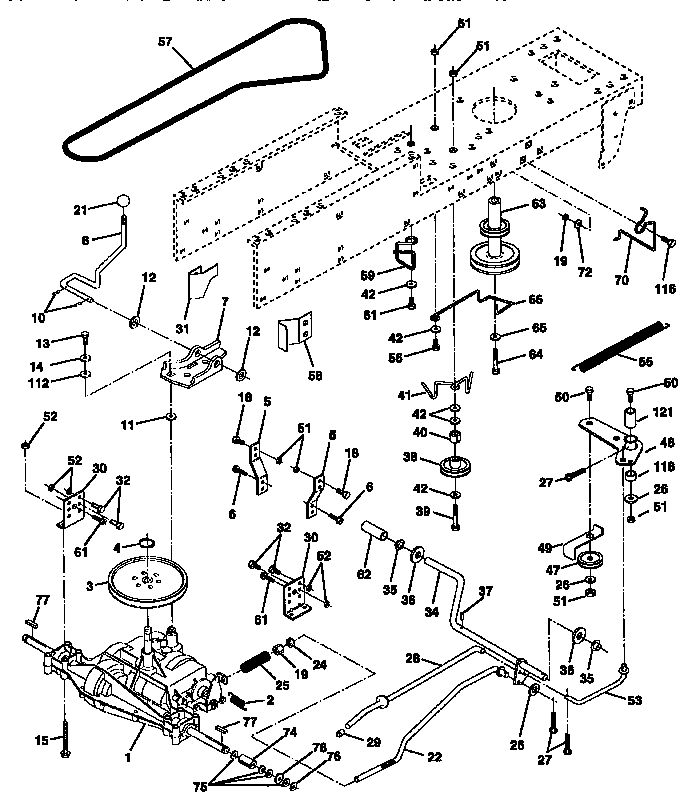

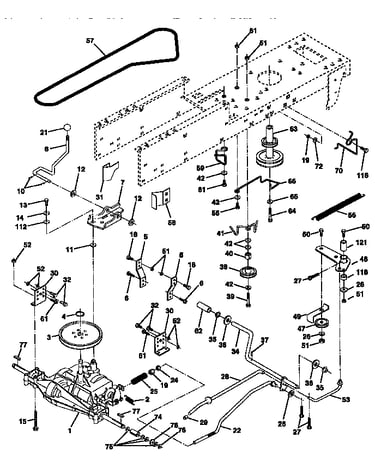

Drive diagram
V-belt
Part #130801
Replaced by #532138255
?
Manufacturer substitution
This part replaces 130801. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$37.98 |
14% OFF Phone Price : $43.98
In Stock
#30
Mower deck diagram
Washer head thread rolling screw
Part #157722
Replaced by #584953901
?
Manufacturer substitution
This part replaces 157722. Substitute parts can look different from the original.
This item is not returnable
$4.36 |
19% OFF Phone Price : $5.36
In Stock
#43

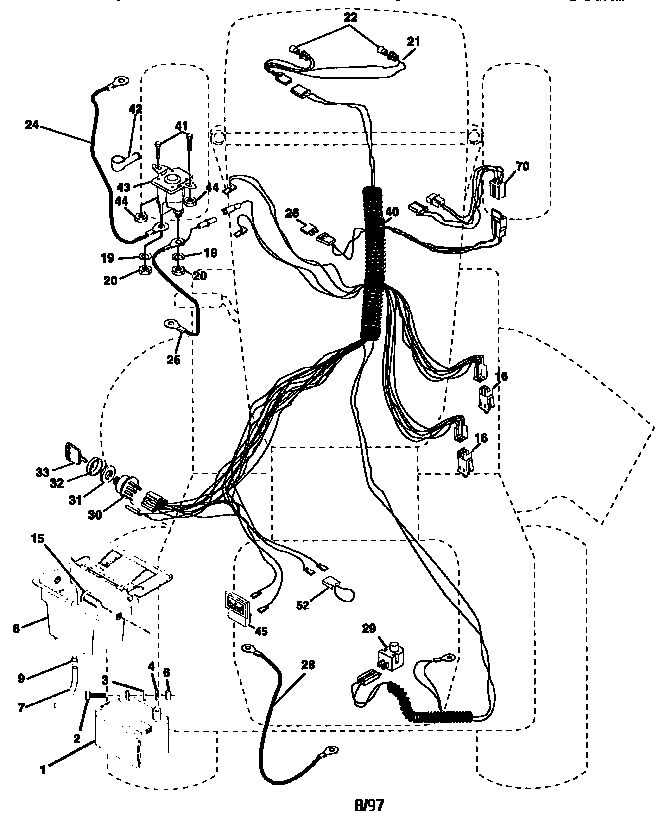

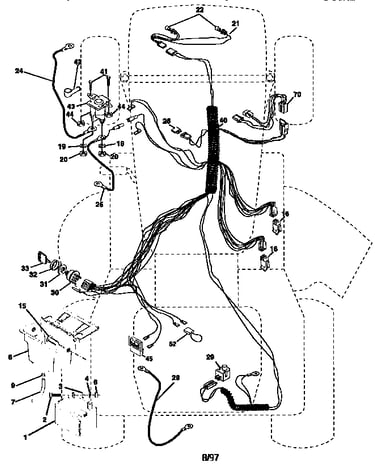

Electrical diagram
Solenoid
Part #145673
Replaced by #532146154
?
Manufacturer substitution
This part replaces 145673. Substitute parts can look different from the original.
$28.30 |
17% OFF Phone Price : $34.30
In Stock
#105
Mower deck diagram
Lawn tractor bagger attachment chute strap
Part #160793
Replaced by #597000601
?
Manufacturer substitution
This part replaces 160793. Substitute parts can look different from the original.
$8.76 |
10% OFF Phone Price : $9.76
In Stock
#68
Mower deck diagram
Lawn tractor drive belt
Part #144200
Replaced by #532144200
?
Manufacturer substitution
This part replaces 144200. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$44.98 |
12% OFF Phone Price : $50.98
In Stock
#29
Mower deck diagram
Lawn tractor deflector shield hinge rod
Part #131491
Replaced by #595297001
?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
$8.64 |
10% OFF Phone Price : $9.64
In Stock
#3
Wheel assembly diagram
Tire
Part #106222X
Replaced by #532122073
?
Manufacturer substitution
This part replaces 106222X. Substitute parts can look different from the original.
$59.98 |
9% OFF Phone Price : $65.98
In Stock
#2

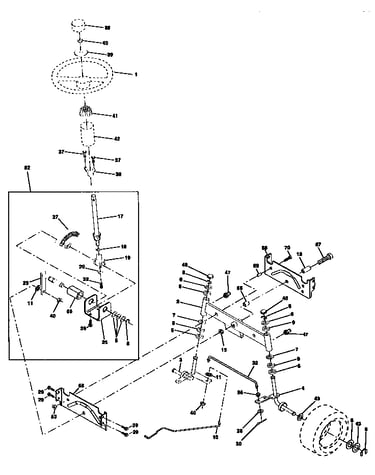

Steering assembly diagram
Axle assembly
Part #154427
Replaced by #531171101
?
Manufacturer substitution
This part replaces 154427. Substitute parts can look different from the original.
$61.78 |
9% OFF Phone Price : $67.78
In Stock
