Model # 917299662 Official Craftsman task handler tiller

Here are the diagrams and repair parts for Official Craftsman 917299662 task handler tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

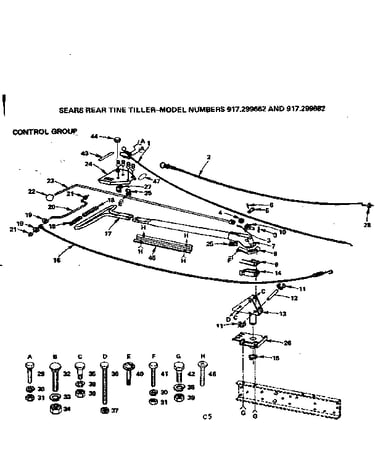

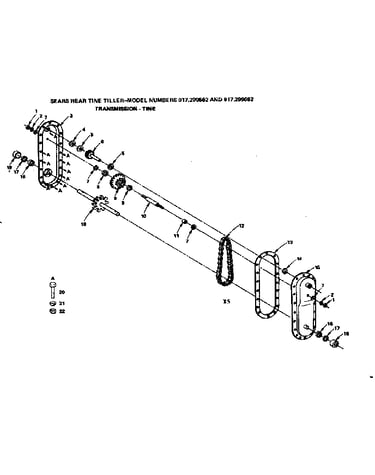

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 239 parts  |
Hood Latch 8889R
#3

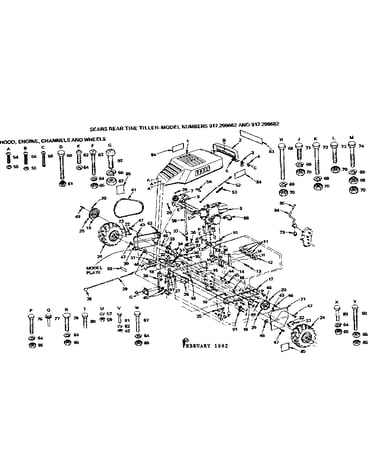

Hood engine channels & wheels diagram

Hood latch

Part #8889R

Replaced by #532109808

?
Manufacturer substitution
This part replaces 8889R. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Spring Retainer 3146R
#19

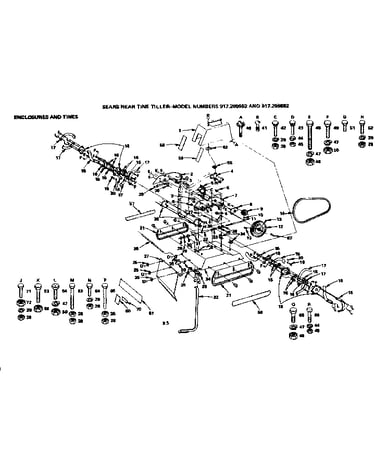

Enclosures and tines diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.02 |
20% OFF Phone Price : $5.02
In Stock
Hardened Race Thrust Bearing 6266H
#18

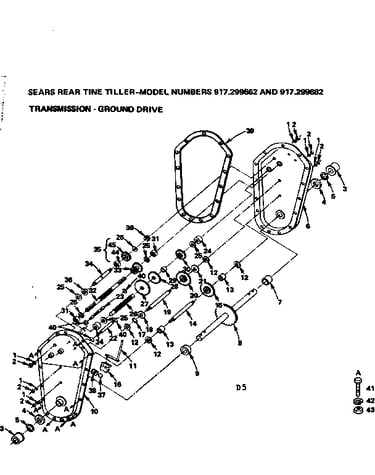

Transmission-ground drive diagram

Hardened race thrust bearing

Part #6266H

Replaced by #532006266

?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
BEST SELLER
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Ball 7392M
#37

Transmission-ground drive diagram

Ball

Part #7392M

Replaced by #532100482

?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Bearing 6803J
#44

Transmission-ground drive diagram

Bearing

Part #6803J

Replaced by #532006803

?
Manufacturer substitution
This part replaces 6803J. Substitute parts can look different from the original.
This item is not returnable
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Bolt 15P
#42

Enclosures and tines diagram

Bolt

Part #15P

The manufacturer no longer makes this part, and there's no substitute part

Washer 4358J
Washer

Part #4358J

Replaced by #532004358

?
Manufacturer substitution
This part replaces 4358J. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Nut 575P
#61

Hood engine channels & wheels diagram

Nut

Part #575P

The manufacturer no longer makes this part, and there's no substitute part

Washer 4360J
#40

Transmission-ground drive diagram

Washer

Part #4360J

Replaced by #532102136

?
Manufacturer substitution
This part replaces 4360J. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Tine 673H349
#17A

Enclosures and tines diagram

Tine

Part #673H349

Replaced by #532101194

?
Manufacturer substitution
This part replaces 673H349. Substitute parts can look different from the original.
This item is not returnable
$26.64 |
18% OFF Phone Price : $32.64
In Stock
