Model # 30363200 Official Kenmore 4-slice toaster

Here are the diagrams and repair parts for Official Kenmore 30363200 4-slice toaster, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

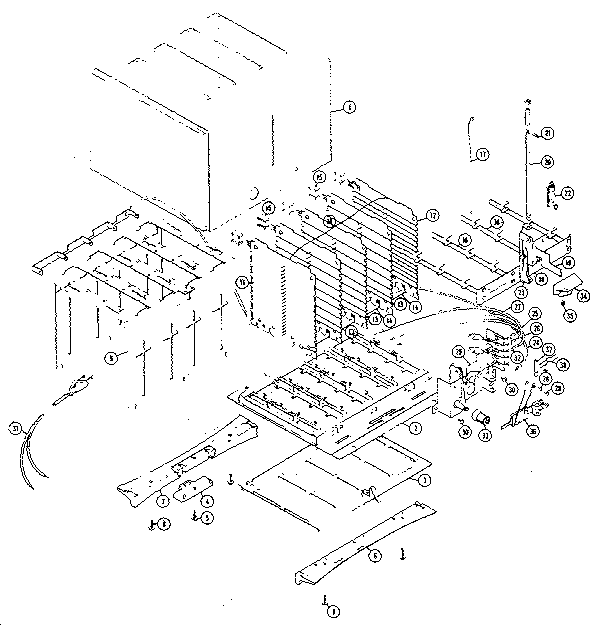

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Bimetal 34121-A25
#36

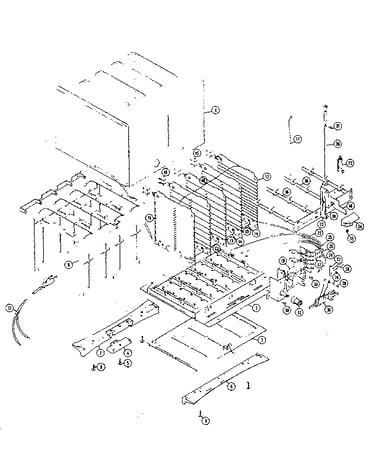

Replacement parts diagram

Bimetal

Part #34121-A25

The manufacturer no longer makes this part, and there's no substitute part

Spring 34-22-18A
#38

Replacement parts diagram

Spring

Part #34-22-18A

The manufacturer no longer makes this part, and there's no substitute part

Clip SP-943

#NI

All parts diagram

Clip

Part #SP-943

The manufacturer no longer makes this part, and there's no substitute part

Spring Clip 1B12S-40
#21

Replacement parts diagram

Spring clip

Part #1B12S-40

The manufacturer no longer makes this part, and there's no substitute part

Bread Rack 34-8-112
#16

Replacement parts diagram

Bread rack

Part #34-8-112

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 34121-A5
#24

Replacement parts diagram

Lead wire

Part #34121-A5

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly W/leads 34121-A85-OP10
#31

Replacement parts diagram

Cord assembly w/leads

Part #34121-A85-OP10

The manufacturer no longer makes this part, and there's no substitute part

Spring 34-22-5

#NI

All parts diagram

Spring

Part #34-22-5

The manufacturer no longer makes this part, and there's no substitute part

Insulator 34-18-5
#15

Replacement parts diagram

Insulator

Part #34-18-5

The manufacturer no longer makes this part, and there's no substitute part

Element 34121-A90
#12

Replacement parts diagram

Element

Part #34121-A90

The manufacturer no longer makes this part, and there's no substitute part
